Shenzhou - DPP-80 Automatic Blister Packing Machine For Tablets Capsules Or Other Granule Products Medicine Food Medical Instruments Hardwa Filling&Packing Machine1 1

Shenzhou - DPP-80 Automatic Blister Packing Machine For Tablets Capsules Or Other Granule Products Medicine Food Medical Instruments Hardwa Filling&Packing Machine1

The latest technology improves the quality of DPP-80 Automatic Blister Packing Machine For Tablets Capsules Or Other Granule Products Medicine Food Medical Instruments Hardwa.So the product has already been used in a wide variety of applications like Blister Packaging Machines.

Customization:

Customized logo (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets),Graphic customization (Min. Order: 1 Sets)

shipping:

Support Sea freight · Land freight

Inquiry

Write a Review

Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd has always attached great importance to the pain points of the industry. The newly launched products are specially developed to solve the pain points of the industry, which perfectly solve the pain points of the industry and are enthusiastically sought after by the market. We have been constantly developing new technologies to manufacture value-added DPP-80 Automatic Blister Packing Machine For Tablets Capsules Or Other Granule Products Medicine Food Medical Instruments Hardwa.It can be widely found in the application field(s) of Blister Packaging Machines. The design is the most striking aspect of Shenzhou. Its design comes from our designers who are sensitive to fashion and are know the commercial needs of the market very well. Also, Decanter centrifuge,Disc Centrifuge,Tubular Centrifuge,Plate Centrifuge made of well-selected raw materials.

Type:	Blister Packaging Machine	Applicable Industries:	Commodity, Medical, Chemical, Machinery & Hardware, medical, Chemical
Showroom Location:	None	Video outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	Hot Product
Warranty of core components:	1 Year	Core Components:	Motor
Condition:	New	Application:	Chemical, Food, Medical
Automatic Grade:	Automatic	Driven Type:	Electric
Voltage:	380V/50Hz 220V/60Hz	Place of Origin:	China
Brand Name:	Shenzhou	Dimension(LWH):	15006001200mm
Weight:	450 KG	Warranty:	1 Year
Key Selling Points:	Easy to Operate	After Warranty Service:	Spare parts, Field maintenance and repair service
Local Service Location:	None	Certification:	ISO9001

Product Description

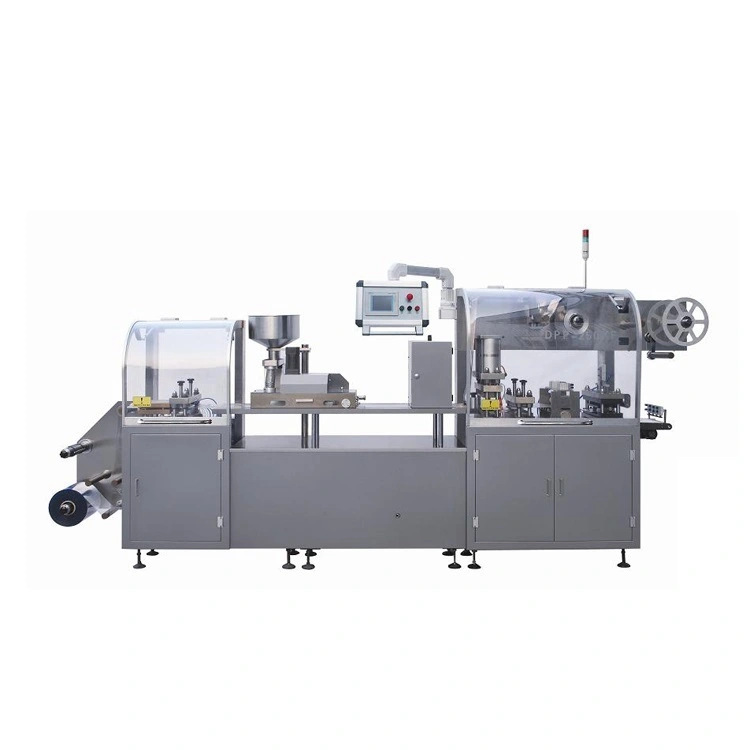

DPP-80 AUTOMATIC BLISTER PACKING MACHINE FOR TABLETS CAPSULES OR OTHER GRANULE PRODUCTS MEDICINE FOOD MEDICAL INSTRUMENTS HARDWARE ELECTRONIC PRODUCTS

Description:
This is the best option for small batches, pharmaceutical R&D and pilot plants. It allows forming thermoplastic and cold forming materials (Alu-Alu) and stands out for its simple operation, high reliability and compact design. Its main structure is made of stainless steel. Automation by PLC and operation through touch screen control panel. It has pneumatic drives, which lend it high robustness and low maintenance. It is suggested for R&D departments, considering that its easy operation and maintenance makes it user-friendly to personnel that are not familiar with the use of blister machines.
DPP-80 is flexible and allows the adding of a great variety of accessories and optional extras:
* Aided forming
* Pre-cutting
* Inspection and rejecting control systems.
* Print mark registration
* Automatic feeder

Specification

Model	DPP-80
Punching frequency	10-30 times/min.
Production capacity	2400 pcs/hour
Max.forming area and depth	7011026 mm
Standard stroke range	20-80 mm (can be customized)
Air pressure	0.6-0.8 Mpa
Total power	380V/220V 3.0Kw
Main motor power	0.75Kw
PVC hard Film	0.15-0.5*80 mm
PTP Aluminum film	0.02-0.035*80 mm
Overall dimension	15006001200mm
Weight	450 kg
Noise index	<75dBA

Application Case

This machine is specially designed for laboratories, dosage rooms in hospital, small pharmaceutical factories, small motor test workshops, and medical institutes. It is suitable for AL/PL packaging for any shape of objects, such as capsules, tablets, pellets, sugar-coated tablets, candies, milk tablets, small pieces of metal etc.

Work flow

Workflow:
Shape forming -- Filing -- Heat sealing -- Printing code -- Embossing -- Punching (Blanking) -- Finished products

Feature:

Features:
1.It uses the advanced high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and the noise of the gear wheel transmission can be avoided.
2. The machine has an imported control system and a frequency inverter. A detection device is also installed optionally to avoid empty blister package.
3. A photoelectrical control system controls the automatic feeding of PVC, PTP and duralumin packaging and the automatic waste edge slitter, ensuring the stability of work synchronization within long distance.
4. A photoelectrical correction device along with an imported stepping motor enables the matching image-word packaging and improves the grade of the packaging.
5.The machine is widely used in the fields of medicine, food, medical instruments, hardware and electronic products.
