Shenzhou - Pedal Filling Machine Liquid Paste Bottler Filler 5-50ml Filler (A02) Filling&Packing Machine
With experienced engineers and technicians, we have strong ability to optimize and upgrade technologies. Based on its versatile features, it proves to be very useful in the field(s) of Filling Machines.
5.0
Customization:
Customized logo (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets),Graphic customization (Min. Order: 1 Sets)
shipping:
Support Sea freight · Land freight
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Our professional engineers have expertise in using technologies. It has a wide scope of range and is widely seen in the field(s) of Filling Machines. The team uses the most advanced production equipment and independent research and development technology to minimize Pedal Filling Machine Liquid Paste Bottler Filler 5-50ml Filler (A02) development cycle and ensure the high quality and strong reliability of the product. In the future, Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd will continue to attach importance to the cultivation of talents, continuously improve the staff's business level and professional skills, strengthen technological innovation, and continuously enhance the comprehensive competitiveness of the company, in order to achieve'building a century-old evergreen enterprise and creating a well-known international brand' Work hard for this grand goal.
| Type: | Filling Machine | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company |
| Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan, Japan, Malaysia, Australia | Condition: | New |
| Application: | Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Tobacco | Packaging Type: | Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags, Pouch, case |
| Packaging Material: | Plastic, Paper, Metal, Glass, Wood | Automatic Grade: | Semi-automatic |
| Driven Type: | Pneumatic | Voltage: | 220V/380V |
| Place of Origin: | China | Brand Name: | Shenzhou |
| Dimension(L*W*H): | 270 * 270 x*710 mm | Weight: | 17 KG |
| Warranty: | 2 years | Key Selling Points: | Competitive Price |
| Machinery Capacity: | 4000BPH, 8000BPH, 12000BPH, 6000BPH, 400BPH, 20000BPH, 16000BPH, 500BPH, 2000BPH, 1000BPH, 100BPH, 200BPH | Filling Material: | Beer, Other, Milk, Water, Oil, Juice |
| Filling Accuracy: | ≥ 99.7% | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video outgoing-inspection: | Provided |
| Warranty of core components: | 1.5 years | Core Components: | Motor |
| Product name: | Liquid Paste Bottler Filler | Filling range: | 5-50 Ml |
| Feature: | Hand-control | Key words: | Manual Liquid Paste Filling Machine |
| After Warranty Service: | Video technical support, Online support, Spare parts, Field maintenance and repair service | Local Service Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan |
| After-sales Service Provided: | Field installation, commissioning and training, Field maintenance and repair service | Certification: | CE Certificate |
Product Description
Pedal Filling Machine Liquid Paste Bottler Filler 5-50ml Filler (A02)
* Pedal Liquid Paste filler filling range: 5-50ml;Capacity of hopper:22lbs/10kg;Filling speed;20--60 times/min;Filling
accuracy (+/- 1%)
* The filling material contact part are all made of SUS304. The discharge nozzle part adopts integral forming technology.It is guaranteed not to drip after long use
* This paste filler has the characteristics of wear resistance, high temperature resistance.Can be used for the filling of paste liquid within 200℃
* This Pneumatic filling machine is specially designed for small and medium enterprises, suitable for medicine, daily chemical, food, and other industries(Paste Liquid Without Particulate).The machine doesn't contain air compressor, you need to have your air resource to run the machine
accuracy (+/- 1%)
* The filling material contact part are all made of SUS304. The discharge nozzle part adopts integral forming technology.It is guaranteed not to drip after long use
* This paste filler has the characteristics of wear resistance, high temperature resistance.Can be used for the filling of paste liquid within 200℃
* This Pneumatic filling machine is specially designed for small and medium enterprises, suitable for medicine, daily chemical, food, and other industries(Paste Liquid Without Particulate).The machine doesn't contain air compressor, you need to have your air resource to run the machine
This Pneumatic filling machine is specially designed for small and medium enterprises. The machine has simple and reasonable structure,Pneumatic filling is safer and faster
Product Feature：
* Can only be used for liquid paste with good liquidity
* It is suitable for medicine, daily chemical, food, and other industries
* Can fill beverage, fluid food, lubricating oil, shampoo and other liquid paste material（Without Particulate）
* All parts in contact with the filling object are made of stainless steel and Polytetrafluoroethylene，meet GMP requirement
* The maximum capacity of the hopper is 10 kg, Filling capacity can be set freely
* The machine is extremely accurate (+/- 1%) and simple to operate
* You can learn more about the machine and how to use it in the User Guide [pdf ] on this page
Product Feature：
* Can only be used for liquid paste with good liquidity
* It is suitable for medicine, daily chemical, food, and other industries
* Can fill beverage, fluid food, lubricating oil, shampoo and other liquid paste material（Without Particulate）
* All parts in contact with the filling object are made of stainless steel and Polytetrafluoroethylene，meet GMP requirement
* The maximum capacity of the hopper is 10 kg, Filling capacity can be set freely
* The machine is extremely accurate (+/- 1%) and simple to operate
* You can learn more about the machine and how to use it in the User Guide [pdf ] on this page
Start The Pneumatic Filling Machine

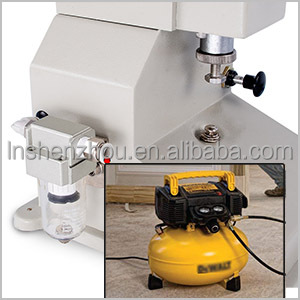

1, Connect Air Compressor
Air compressor requirements:
Storage capacity: ≥ 5 Gallons
Working air pressure: 0.4-0.6mpa
Size of the pipe: 8mm
The machine doesn't contain air compressor, you need to have your air resource to run the machine.

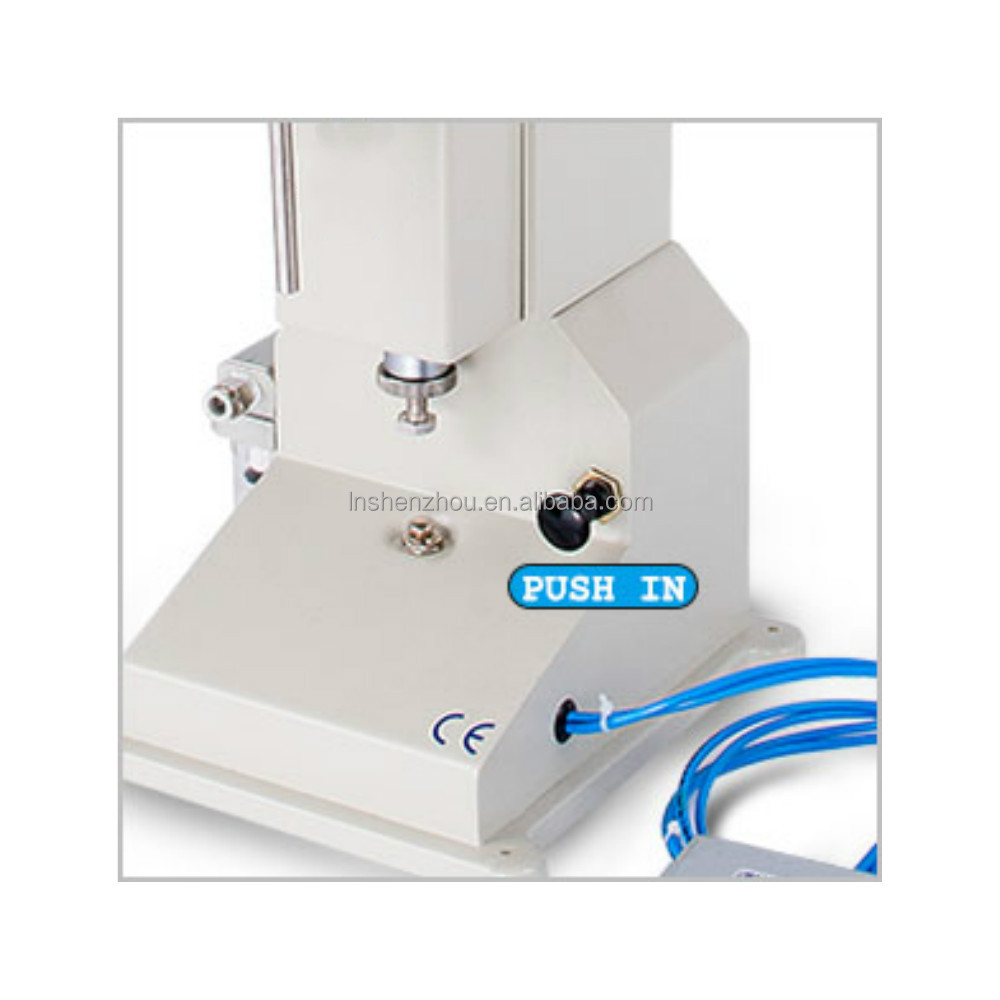

2, Closed Pneumatic Valve
The emergency stop button needs to be pushed in while the machine is working.
You can also pull the switch out if you want to stop the machine
3, Foot Pedal
Discharge controled by foot pedal.
Simple, save time and effort

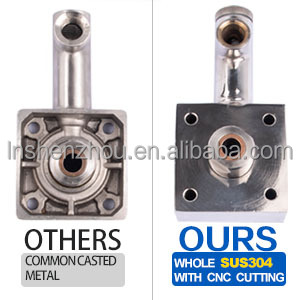

Whole sus304 with cnc cutting
Internal key part, with whole SUS304 and integrated CNC cutting.
Internal key part, with whole SUS304 and integrated CNC cutting.

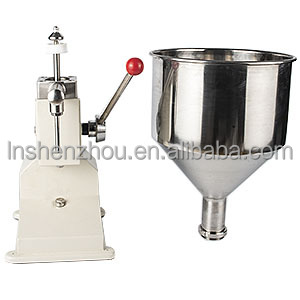

Hopper
Can hold 10KG(water) materials
Can hold 10KG(water) materials
Easy to clean
In order to protect the piston of the machine, we will grease the piston before the machine leaves the factory.
So we recommend that you wash the oil off before using it.
In order to protect the piston of the machine, we will grease the piston before the machine leaves the factory.
So we recommend that you wash the oil off before using it.
Clockwise rotation, filling speed slow down
We usually set the pump to the maximum pressure before delivery.
If the regulator is set to the minimum or feel the pump pressure is too large.
You can open the back cover and continue to adjust the pump pressure.
We usually set the pump to the maximum pressure before delivery.
If the regulator is set to the minimum or feel the pump pressure is too large.
You can open the back cover and continue to adjust the pump pressure.
Note:
The machine doesn't contain air compressor, you need to have your air resource to run the machine.
The machine doesn't contain air compressor, you need to have your air resource to run the machine.
Wide Application
This manual liquid filling machine is perfect for filling liquid, oil, shampoo, liquid substance applicable to the pharmaceutical,cosmetic, food, pesticides，and other industries.A02Manual Filling Machine For Liquid & Paste
This manual filling machine adopts a piston type structure, suitable for 5-50 ml quantitative filling. This product can be used for liquid and also paste with good fluidity. It can apply to pharmaceutical, cosmetic, pesticides, and particular industries.
* Convenient Manual Filling
* Durable Construction
* Reasonable Design
* Easy to Operate
This manual liquid filling machine is perfect for filling liquid, oil, shampoo, liquid substance applicable to the pharmaceutical,cosmetic, food, pesticides，and other industries.A02Manual Filling Machine For Liquid & Paste
This manual filling machine adopts a piston type structure, suitable for 5-50 ml quantitative filling. This product can be used for liquid and also paste with good fluidity. It can apply to pharmaceutical, cosmetic, pesticides, and particular industries.
* Convenient Manual Filling
* Durable Construction
* Reasonable Design
* Easy to Operate
Body wash, shampoo, etc.
Products with good fluidity and no particles
Lip gloss
Products with good fluidity and no particles
Essential oil
Products with good fluidity and no particles
Sauce
Products with good fluidity and no particles
Specification
Model: | A02 |
Filling Range: | · 5-50 ml |
Capacity of Hopper: | · 22 lbs/10 kg |
Height range: | · 7.87"/200 mm |
Bottle diameter range | · 3-15 mm |
Filling accuracy: | · ±1% |
Machine size: | · 10.6 x 10.6 x 27.5 inch/ 270 x 270 x 710 mm |
Packing size: | · 13.4 x 13.4 x 31.1 inch/ 340 × 340 × 790 mm |
Net weight: | · 28.5 lbs/13 kg |
Gross weight: | · 37.5 lbs/17 kg |
Material: | · Stainless Steel |
Filling material: | · Paste liquid with good fluidity(cosmetic, cream, shampoo) |
Packing & Delivery
Package Content
* 1 x A03 Manual Filling Machine
* 1 x Nozzle(Inside diameter 6 mm, outside diameter 8 mm)
* 9 x O-Rings of different sizes
* 1 x Screwdriver
* 1 x Guide Manual
* 1 x A03 Manual Filling Machine
* 1 x Nozzle(Inside diameter 6 mm, outside diameter 8 mm)
* 9 x O-Rings of different sizes
* 1 x Screwdriver
* 1 x Guide Manual
Company Profile
Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so onAt the same time,our product with best prices and good quality,welcome to Shenzhou!
FAQ
1. who are we?
We are based in Liaoning, China, start from 2018,sell to South America(12.00%),Southeast Asia(10.00%),Northern Europe(10.00%),Southern Europe(10.00%),Domestic Market(10.00%),South Asia(8.00%),Central America(6.00%),North America(5.00%),Eastern Europe(5.00%),Africa(5.00%),Oceania(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Mid East(4.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Centrifuge,Separator,Packing machine,Drying machine,Filling & Sealing machine
4. why should you buy from us not from other suppliers?
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
We are based in Liaoning, China, start from 2018,sell to South America(12.00%),Southeast Asia(10.00%),Northern Europe(10.00%),Southern Europe(10.00%),Domestic Market(10.00%),South Asia(8.00%),Central America(6.00%),North America(5.00%),Eastern Europe(5.00%),Africa(5.00%),Oceania(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Mid East(4.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Centrifuge,Separator,Packing machine,Drying machine,Filling & Sealing machine
4. why should you buy from us not from other suppliers?
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
