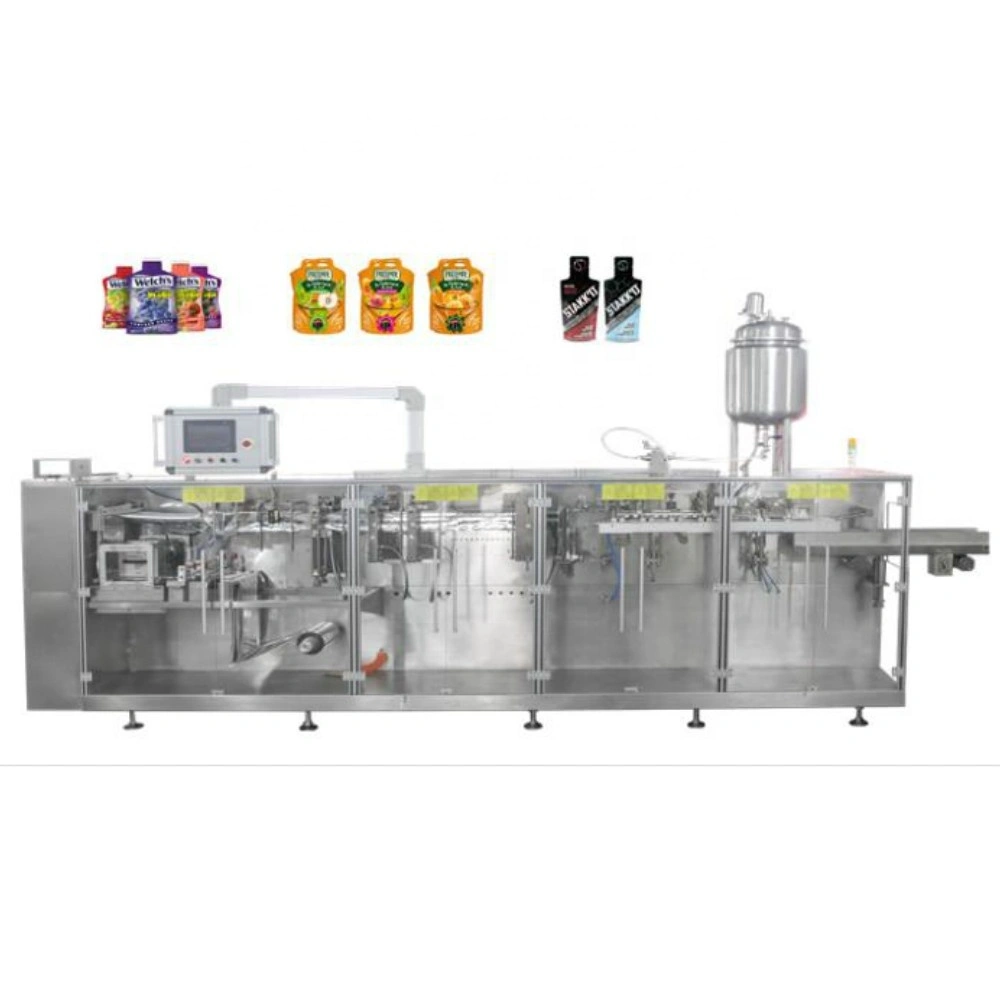

Shenzhou - DRINK PACKING MACHINE BHD-240DS Filling&Packing Machine
DRINK PACKING MACHINE BHD-240DS is perfected by the adoption of high-end technology.The design of it caters to varied needs of customers at home and abroad.And the product have received the qualification.So the users can apply it into a wider range.Our products also can be customized to satisfy customers' exact requirements.
5.0
Customization:
Customized logo (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets),Graphic customization (Min. Order: 1 Sets)
shipping:
Support Sea freight · Land freight
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
We always create a perfect quality of product at prices that meet a customer’s budget. The product is characterized by multiple advantages.Its application ranges have been expanded to the Multi-Function Packaging Machines. Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd will always be led by market demand and respect customers' wishes. Based on the feedback given by customers, we will make changes accordingly in our product development so as to manufacture the most satisfying and profitable products.
| Type: | Multi-Function Packaging Machine | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company |
| Weight (KG): | 120 | Showroom Location: | United States |
| Function: | FILLING, Wrapping, Labeling, Laminating, Capping, COATING, Sealing, BOXING, Embossing | Application: | Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Textiles, Cigarettes, medical face mask automatic packing machine |
| Packaging Type: | Cartons, CANS, Stand-up Pouch, Bags, Film, Foil, Pouch, case, Sachet/Pillow bag/Back bag | Packaging Material: | Plastic, Paper, OPP/CPP/PE |
| Automatic Grade: | Automatic | Driven Type: | Electric |
| Voltage: | 380 | Place of Origin: | China |
| Brand Name: | Shenzhou | Dimension(L*W*H): | (L)4020*(W)745*(H)1450mm |
| Warranty: | 1 Year | Key Selling Points: | Easy to Operate |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video outgoing-inspection: | Provided | Warranty of core components: | 1 Year |
| Core Components: | Motor, Pressure vessel, PLC, Gear, Bearing, Engine, Gearbox | Production Capacity: | 5bag/min, 20bag/min, 7bag/min, 6bag/min, 40bag/min, 9bag/min, 25bag/min, 8bag/min, 15bag/min, 10bag/min, 50bag/min, 30bag/min |
| Material: | Stianless Steel |
Product Description
General Description
General Description
1. Efficient: Bag - making, filling, sealing, cutting, heating, date / lot number achieved in one time;
2. Intelligent: Packing speed and bag length can be set through the screen without part changes;
3. Profession: Independent temperature controller with heat balance enables different packing materials;
4. Characteristic: Automatic stop function, with safe operation and saving the film;
5. Convenient: Low loss, labor saving, easy for operation and maintenance.
6. Weighing accuracy 0.5 to 1.2 gram.
General Description
1. Efficient: Bag - making, filling, sealing, cutting, heating, date / lot number achieved in one time;
2. Intelligent: Packing speed and bag length can be set through the screen without part changes;
3. Profession: Independent temperature controller with heat balance enables different packing materials;
4. Characteristic: Automatic stop function, with safe operation and saving the film;
5. Convenient: Low loss, labor saving, easy for operation and maintenance.
6. Weighing accuracy 0.5 to 1.2 gram.
Specification
Model | Pouch width | Pouch length | Filling capacity | Speed |
BHD-180SC | 90-180mm | 110-250mm | 1000ml | 40-60ppm |
BHD-240SC | 100-240mm | 120-320mm | 1500ml | 40-60ppm |
BHD-280DSC | 90-140mm | 110-250mm | 600ml | 90-120ppm |

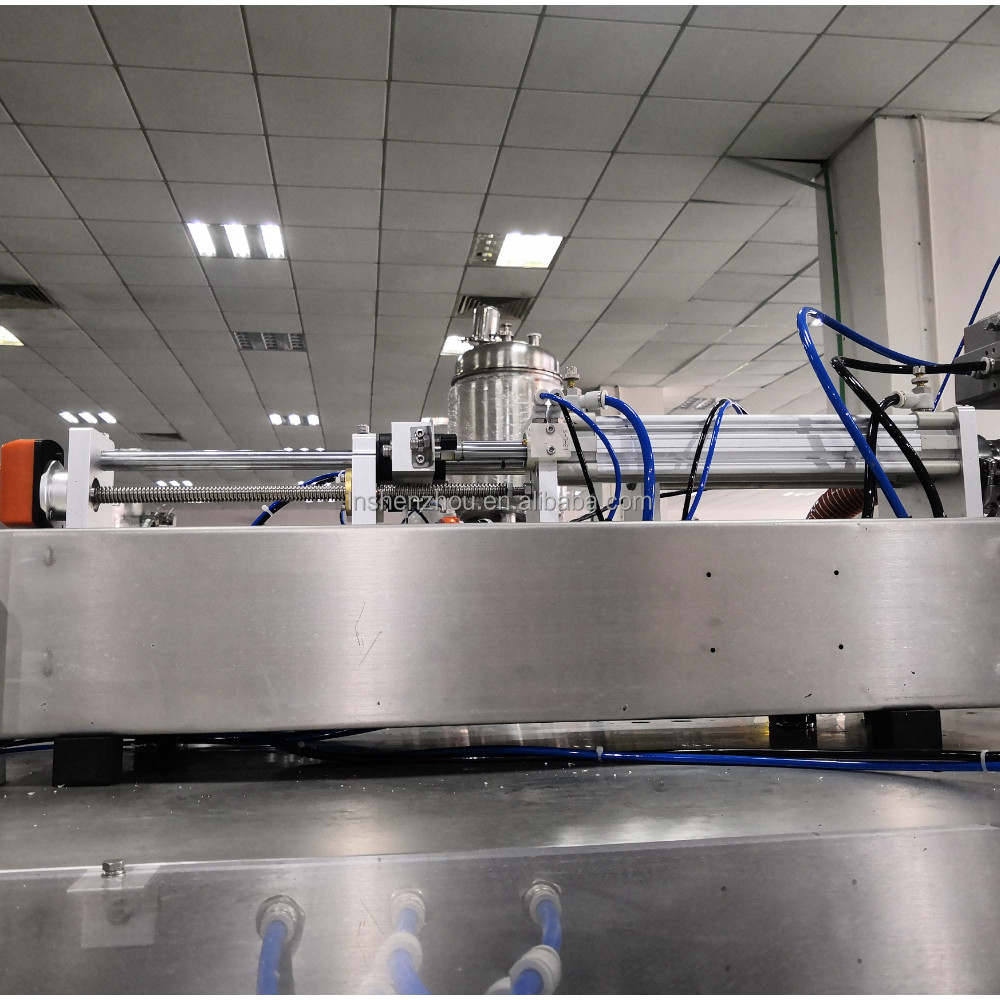

Filling devices
this machine filling machine is piston pump, which is suitable for liquid product: viscous or colloidal liquid, cream and other non free-flowing liquid.
we also have other filling devices, for your different filling production.such as powder, granules, tablets, solid etc.
this machine filling machine is piston pump, which is suitable for liquid product: viscous or colloidal liquid, cream and other non free-flowing liquid.
we also have other filling devices, for your different filling production.such as powder, granules, tablets, solid etc.
Principle application
This machine is suitable for liquids, sauces, powders and granules. It can pack doypack（standup pouch ）with straight and Corner spout，flat pouch with spout.
It is used in a wide range of applications and are suitable for many different industries,such as orange juice,tomato paste,fruit juice,TomatoSauce,Washing Liquid,Milk Beverage,Water,ketchup,peanut ketchup,jam,chili sauce,Juice ,yogurt, Fresh Milk, Chili Sauce,Viscosity Paste,Viscosity,oil,Mango Juice ,fruit powder,spice,chili powder and more.
It is used in a wide range of applications and are suitable for many different industries,such as orange juice,tomato paste,fruit juice,TomatoSauce,Washing Liquid,Milk Beverage,Water,ketchup,peanut ketchup,jam,chili sauce,Juice ,yogurt, Fresh Milk, Chili Sauce,Viscosity Paste,Viscosity,oil,Mango Juice ,fruit powder,spice,chili powder and more.
Suitable for packing for various kinds of powder,such as Solid beverage,white sugar,glucose,chicken essence etc
Features&Advantages
Servo Advance System
1.Easy Computerized Specification change
2.Big torquemoment of pouch advance
3.Stable Pouch advance with less deviation
Unique Piston Filler with Filling Nozzle
1.High filling accuracy
2.No drop after filling
3.High velocity
Light Walking Beam
1.Easy computerized specition change
2.Longer operational life span
1.Easy Computerized Specification change
2.Big torquemoment of pouch advance
3.Stable Pouch advance with less deviation
Unique Piston Filler with Filling Nozzle
1.High filling accuracy
2.No drop after filling
3.High velocity
Light Walking Beam
1.Easy computerized specition change
2.Longer operational life span
Company Profile
Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so onAt the same time,our product with best prices and good quality,welcome to Shenzhou!

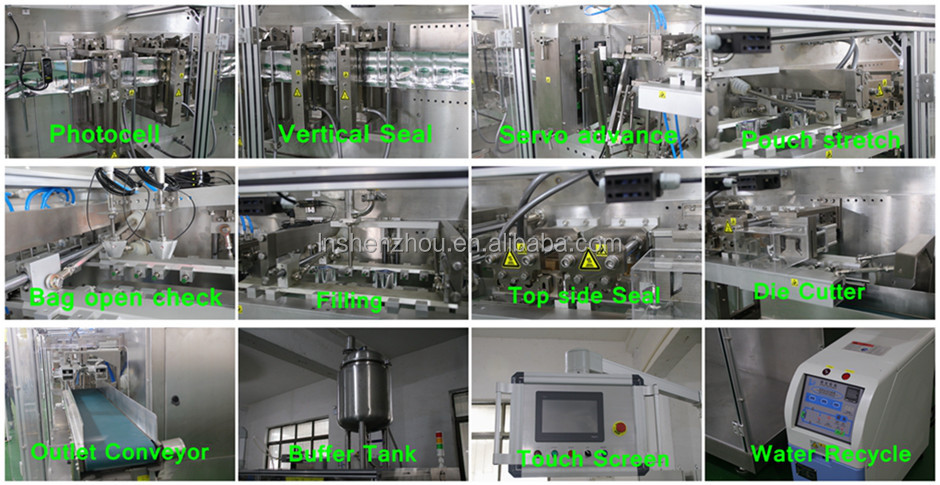

Details Images
Features&Advantages
We have standard configuration for general industry, also we can customize special configuration for you.
1.Control System: PLC programmable computer controller , touch screen, photocell sensor, encoder and inverter with high
integration guarantee reliable operation.
2.Advanced photoelectric sensor tracking system and servo motor puller for precise bag width and position of film.
3.Independent digital temperature controller for vertical and horizontal sealing, intuitive and accurate.
4.easy and fast adjustment of change over, smooth performance and low noise, perfect package appearance, Sensible safety device and no pollution during production.
We have standard configuration for general industry, also we can customize special configuration for you.
1.Control System: PLC programmable computer controller , touch screen, photocell sensor, encoder and inverter with high
integration guarantee reliable operation.
2.Advanced photoelectric sensor tracking system and servo motor puller for precise bag width and position of film.
3.Independent digital temperature controller for vertical and horizontal sealing, intuitive and accurate.
4.easy and fast adjustment of change over, smooth performance and low noise, perfect package appearance, Sensible safety device and no pollution during production.

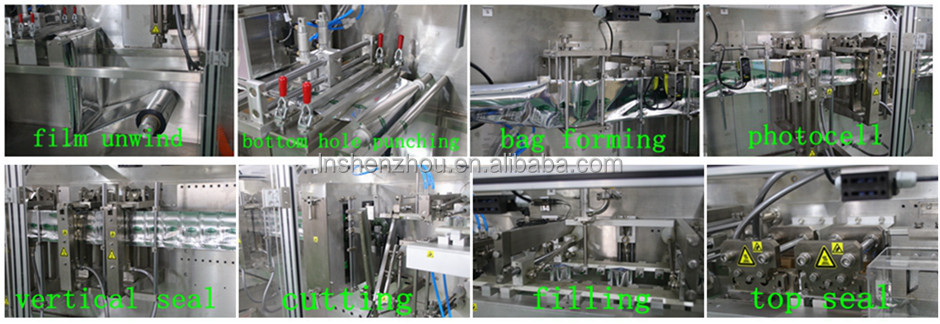

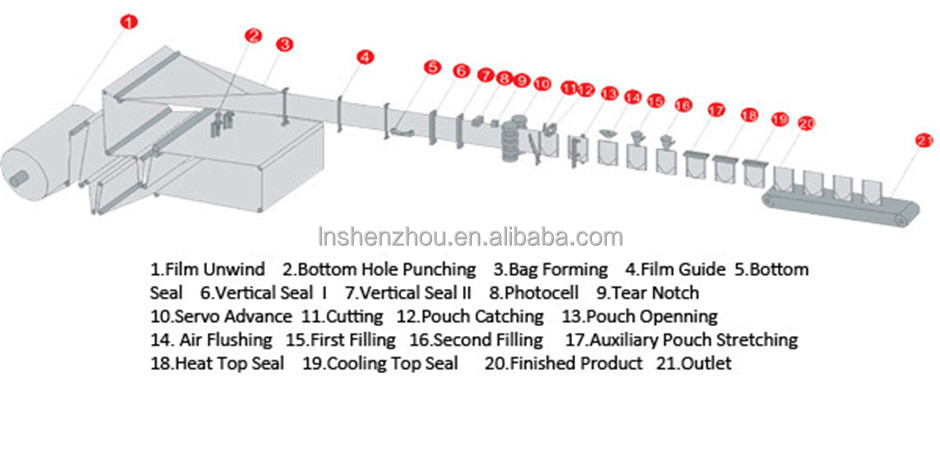

Machine packing Process
Main Components
Electrical and Pneumatic Components:
Please specify, if you require specified vendor to electrical and pneumatic components. If not, we will use our default vendor.
You may ask us for our default vendor list.
Please note that cost may increase, if specified vendor is selected.
Electrical and Pneumatic Components:
Please specify, if you require specified vendor to electrical and pneumatic components. If not, we will use our default vendor.
You may ask us for our default vendor list.
Please note that cost may increase, if specified vendor is selected.
Main Components | Vendor |
PLC | Allan Bradley USA/Siemens/Mitsubishi |
Touch Screen | Allan Bradley USA/Siemens/Mitsubishi |
Inverter | Siemens/Mitsubishi Japan |
Servo Motor | Siemens/Panasonic Japan |
Photocell | Autonics Korea |
Main Motor | ABB Switzerland |
Pneumatic Parts | Festo German/SMC/CAMOZZ |
Vacuum Generator | Festo German/SMC/CAMOZZ |
Selected Configuration
Date code printer
Straight Line Cut with easy tear
Hole punching device
Auger screw Filler(for powder)
Volumetric Cup Filler(for granule)
Electrical Gear Pump(for liquid)
Piston Pump(for liquid or cream)
Date code printer
Straight Line Cut with easy tear
Hole punching device
Auger screw Filler(for powder)
Volumetric Cup Filler(for granule)
Electrical Gear Pump(for liquid)
Piston Pump(for liquid or cream)
FAQ
1. who are we?
We are based in Liaoning, China, start from 2018,sell to South America(12.00%),Southeast Asia(10.00%),Northern Europe(10.00%),Southern Europe(10.00%),Domestic Market(10.00%),South Asia(8.00%),Central America(6.00%),North America(5.00%),Eastern Europe(5.00%),Africa(5.00%),Oceania(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Mid East(4.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Centrifuge,Separator,Packing machine,Drying machine,Filling & Sealing machine
4. why should you buy from us not from other suppliers?
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
We are based in Liaoning, China, start from 2018,sell to South America(12.00%),Southeast Asia(10.00%),Northern Europe(10.00%),Southern Europe(10.00%),Domestic Market(10.00%),South Asia(8.00%),Central America(6.00%),North America(5.00%),Eastern Europe(5.00%),Africa(5.00%),Oceania(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Mid East(4.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Centrifuge,Separator,Packing machine,Drying machine,Filling & Sealing machine
4. why should you buy from us not from other suppliers?
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
