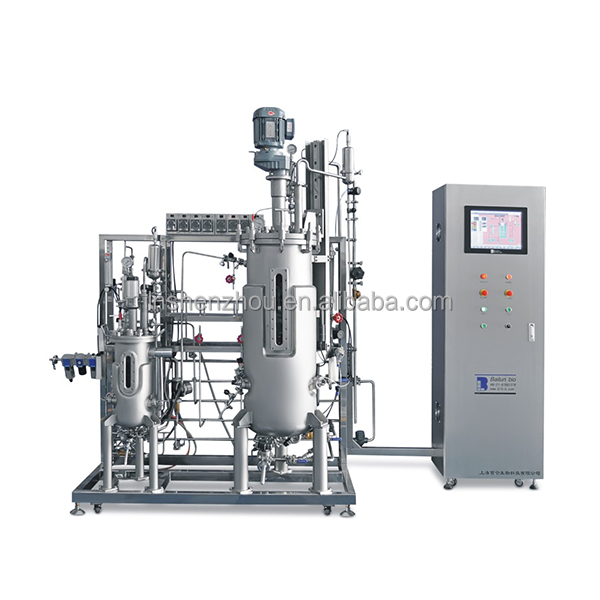

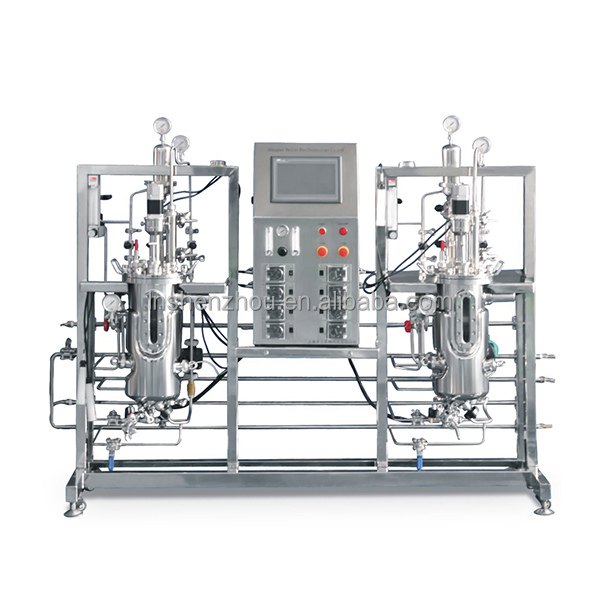

Shenzhou - Fermentor bioreactor for yeast Fermenting equipment fermentation tank 500l fermenter 100000 l fermentationt Fermentation & Mixing machine 1

Shenzhou - Fermentor bioreactor for yeast Fermenting equipment fermentation tank 500l fermenter 100000 l fermentationt Fermentation & Mixing machine

Since inception, we have been emphasizing the importance of technology. We have continuously upgraded technology and tried to make full use of the technologies to make finished products multi-functional and characteristic. Throughout the field(s) of Fermenting Equipment, the product is particularly useful.

Customization:

Customized logo (Min. Order: 1 Units),Customized packaging (Min. Order: 1 Units),Graphic customization (Min. Order: 1 Units)

shipping:

Support Sea freight · Land freight

Inquiry

Write a Review

Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd has been focusing on improving technologies to develop new products on a regular basis. We have successfully made Fermentor bioreactor for yeast Fermenting equipment fermentation tank 500l fermenter 100000 l fermentationt launch to the public as scheduled. With its new features, Decanter centrifuge,Disc Centrifuge,Tubular Centrifuge,Plate Centrifuge is expected to lead the industry trend. Processed by elaborate craft, the appearance of Fermentor bioreactor for yeast Fermenting equipment fermentation tank 500l fermenter 100000 l fermentationt is vivid. Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd adhere to the corporate philosophy of 'people orientation' and always advocate honesty, innovation, and fairness. We hope to occupy an important position in the industry and become one of the most leading brands in the future.

Processing:	Fermenting Equipment	Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Showroom Location:	None	Condition:	New
Place of Origin:	China	Brand Name:	LYSZ
Processing Types:	Alcohol	Voltage:	110v,220v, 380v, adjustable
Power:	adjustable according to volume	Dimension(LWH):	customized
Weight:	380 KG	Warranty:	1 Year
Machinery Capacity:	50L, 100L, 200L	Machinery Test Report:	Provided
Warranty of core components:	1 Year	Core Components:	Motor
Key Selling Points:	Easy to Operate	Marketing Type:	New Product 2020
Video outgoing-inspection:	Provided

Product Description

Fermentor bioreactor for yeast Fermenting equipment fermentation tank 500l fermenter 100000 l fermentationt

Based on the research of European fermenters, the automatic control of the sterilization process of fermenters is realized through simple pipelines and heat exchange systems, which reduces the labor intensity of experimenters, has simple structure and stable operation.

Diameter to height ratio: 1:2-3; filling factor: 70%

500 liter tank: the main material is all stainless steel 316L tank, there is no dead corner in the tank; with special sampling and discharge valve for fermentation tank, and transplanting pipeline. Adopt a large-view tank liquid level observation mirror, 12V safety light, with temperature, PH, DO, defoaming, liquid level interface, inoculation port, refilling port, and multiple spare ports, all welds are firm, neat and beautiful .

Tank body: design pressure 0.3Mpa Jacket: design pressure 0.3Mpa, using optimized diversion design to improve exchange efficiency and temperature uniformity in the tank Tank function: John Crane mechanical seal, air inlet sterilization filter, exhaust condenser, air inlet system with air distributor, flame inoculation port (also feeding port and cleaning port), discharge port, sampling port, Feeding port; the five electrodes that automatically control parameters are: PH electrode, DO electrode, defoaming electrode, and temperature electrode port; four peristaltic pumps are automatically controlled to replenish acid/alkali/foam/culture agent respectively; Motor: SEW AC motor dedicated to fermentation tanks to ensure that the motor can run in harsh environments; Ventilation: Adopt one way of deep ventilation, the rotor flowmeter displays, adjust the gas flow according to the process requirements, the air distributor in the tank evenly distributes the gas; adopts a sterilization filter (Dominica or Shanghai Yiming) with a precision of 0.2μm, with anti-bacterial Material backflow device to ensure safety and greatly extend the service life; Mixing system: mechanical mixing system, SEW AC motor, Fuji inverter Mixing form: straight blade agitating paddle (secondary), oblique blade agitating paddle (first class), mechanically compressed defoaming paddle (first class), four baffle plates; Fermentation pH control function: using intelligent PID control, dedicated Swiss Mettler PH electrode; Fermentation dissolved oxygen degree control function: using intelligent PID control, dedicated Swiss Mettler DO electrode; Temperature control: electric heating, water cooling, circulating pump temperature control, air escape function and water cut, over-temperature protection function, with good heat exchange efficiency; intelligent module control not only ensures the rapidity of temperature control, but also realizes energy saving . Feeding: a complete feeding system (acid, alkali, foaming enemy, culture agent), which can be fed regularly and quantitatively; the four peristaltic pumps can be set separately on the control interface, which is convenient and flexible in actual use. Equipped with specially designed replenishment pins to ensure the safe operation of replenishment; Pressure detection: Swiss transmitter automatically detects the tank pressure, and the pressure is automatically released Tank cover automatic lifting system (optional): BLBIO-UIP500 automatic tank cover lifting system through the electric system to lift the tank cover to facilitate cleaning and maintenance of the equipment in the tank Sterilization method: BLBIO-SIP automatic program sterilization (leading technology, stable quality, low failure rate, reducing the labor intensity of the operator) Temperature: cooling water temperature +5℃~80℃±0.2℃ tap water or ice water cooling, external circulation heating, avoid local overheating, and stable temperature control. pH: 2.00~12.00±0.05 Two-way switch control of two peristaltic pumps DO: 0~100%±3% Stirring: 50~1000rpm±10% stepless speed regulation, shaft coupling drive mechanical stirring or magnetic drive mechanical stirring Feeding: peristaltic pump duty cycle switch control Defoaming: Sensitivity 100~100000Ω electrode detection, peristaltic pump duty cycle switch control, adding defoaming agent Pressure: automatic pressure detection BLBIO-S type control system is optional: Siemens S7-200 series PLC control system, mature, stable and general-purpose PLC, can be suitable for various applications of automation, especially the application in manufacturing process control. Its modularity, easy to realize distributed configuration and easy to master features, Siemens PLC control core has become an economical and advanced control system in the implementation of biological reaction process control. The system uses a tablet computer above 10 inches to control 7 direct parameters such as pH, DO, tank pressure, temperature, speed, defoaming, and refilling, and the automatic sterilization process of the tank pipeline The pH and DO electrodes can be easily calibrated through the software; the initial control state of the parameters can be set

Specification

item	value
Processing	Fermenting Equipment
Applicable Industries	Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Showroom Location	None
Condition	New
Place of Origin	China
Brand Name	LYSZ
Processing Types	Alcohol
Voltage	110v,220v, 380v, adjustable
Power	adjustable according to volume
Dimension(LWH)	customized
Weight	380adjustable
Warranty	1 Year
Machinery Capacity	50L, 100L, 200L
Machinery Test Report	Provided
Warranty of core components	1 Year
Core Components	Motor
Key Selling Points	Easy to Operate
Marketing Type	New Product 2020
Video outgoing-inspection	Provided

Add optional functions: b Weighing with replenishing balance W Tank weighing d Air flow automatic control e Tank pressure detection f Bypass pure oxygen g Redox potential online detection h Methyl (ethyl) alcohol content online detection and control I Tail gas O2, CO2 content online detection A Automatic sterilization function C Automatic tank cleaning function U Automatic lid lifting function Model comment: BLBIO- XABC-D X-total tank volume: A-tank material: -G: glass/-S: stainless steel -C animal cell tank -V vaccine tank -M enzyme reactor B—Transmission mode: -C: Magnetic drive mechanical stirring/-J direct drive mechanical stirring/ -Q airflow stirring -S solid stirring -G provide light source C --Add optional features -A automatic sterilization 　-no manual sterilization -Y glass in-situ manual sterilization -U automatic lid lifting D-Controller model-A is industrial control computer + control module-Wuwei B type controller is our company's standard controller-C is 10 inch LCD touch screen + PLC-D is 15 inch LCD touch screen + Siemens PLC + imported transmitter Device

Details

50L300L automatic sterilization fermentation tank (automatic lifting system with tank cover)

200L2000L automatic fermentation tank

50L200L3000L automatic fermentation tank

500L5000L automatic fermentation tank

Packing & Delivery

wooden case

Company Profile

Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so onAt the same time,our product with best prices and good quality,welcome to Shenzhou!
