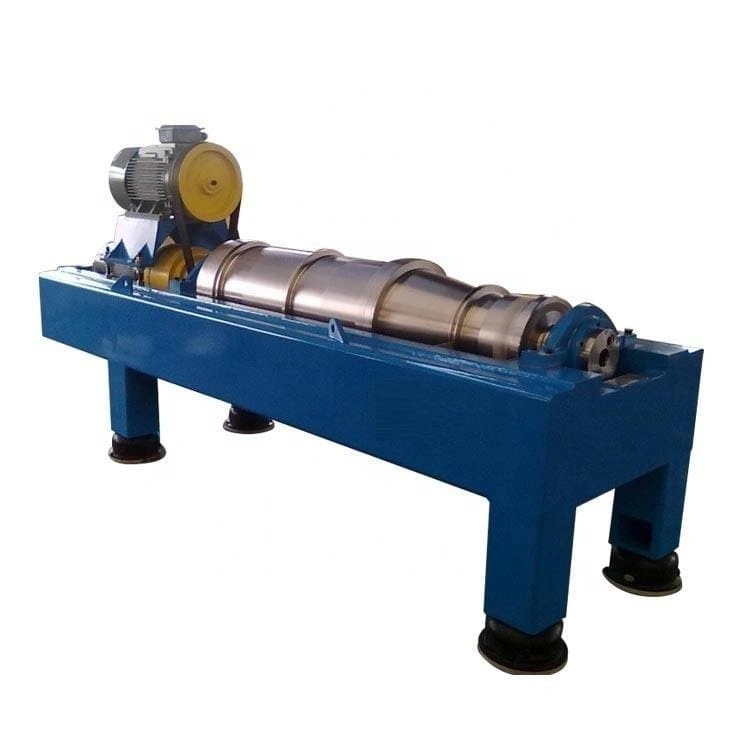

Shenzhou - wine beverage centrifuge machine With High - Dryness Screw Conveyor Decanter centrifuge

Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd after long-term market research, we have created a brand-new product that is different from its peers. Our technical team has many years of experience in this field and can provide professional opinions, suggestions and solutions experience. When customers encounter technical problems, they can provide door-to-door service. Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd have long desired to become one of the most influential enterprises in the industry. At present, we are busy improving our capabilities in product manufacturing, and gathering talents especially technical talents to develop our own core technologies.

Product Description

Beverage Industry Food Processing Centrifuge With High - Dryness Screw Conveyor

There are many types of centrifuges have been designed and developed successfully by SHENZHOU , and they all have beenworked in Beverage and Food fields as following: such as palm oil centrifuge, olive oil centrifuge, plant oil centrifuge, ethanol centrifuge, beer centrifuge , alcohol centrifuge, fish separation centrifuge, red wine centrifuge , grape wine centrifuge, DDGS separation centrifuge, vegetable oil centrifuge, VCO centrifuge, avocado oil centrifuge, protein centrifuge, starch centrifuge, plant milk centrifuge, virgin coconut oil centrifuge, soy milk centrifuge, coconut milk centrifuge, grain milk centrifuge , rice milk centrifuge , coffee centrifuge , instant coffee centrifuge, coffee clarification centrifuge, tea centrifuge, tea extract centrifuge, fruit juice centrifuge, bacteria-removing centrifuge, vegetable juice centrifuge.
Warmly welcome customers to choose and come to visit the factory in Chengdu, China.

Note: The throughput is related to material characteristics.
Control method: ① direct control using an inverter (double-motor double-frequency conversion mode); ② PLC+ touch screen control (intelligent control mode)

Material: AIS1321, AIS1316, AIS1316L, SAF2205, etc.
Safety protection: devices for measuring vibration and temperature, emergency stop button, and measures to prevent faulty operation such as hood not being covered.
II. Technical characteristics of the high-efficiency centrifuge for glutamic acid

Scope of application:

Beverage & Food Centrifuge

SHENZHOU Beverage & Food centrifuges are considered to be an effective solution for multiple applications in Beverage &
Food industry.
The Beverage & Food industry centrifuges widely used in many fields, SHENZHOU factory designs 2 or 3 phase VFD type centrifuges specially used to extract and separate fish, ethanol, palm oil, olive oil, vegetable oil, tea, VCO, fruit juice, avocado oil, protein, plant milk, vegetable milk, vegetable juice.

Also most of centrifuges are usually used for vegetable oil process, protein process, starch process, tea process, soybean
process, palm oil recovery, palm oil water separation, palm oil separation, olive oil recovery, olive oil separation, olive oil
water separation, plant oil separation, plant oil recovery, vegetable oil recovery, vegetable oil separation, VCO recovery, VCO separation, virgin coconut oil separation ,virgin coconut oil recovery ,avocado oil recovery, avocado oil separation, protein separation, protein water separation, starch separation , plant milk recovery, vegetable milk recovery ,vegetable milk separation, plant milk separation, soy milk separation, soy milk recovery, coconut milk recovery, coconut milk separation, grain milk separation, grain milk recovery, rice milk recovery , rice milk separation, tea extract separation, bacteria-removing separation, fruit juice separation ,vegetable juice separation

Corn, cassava, rice and wheat are the most widely used raw materials in the food fermentation industry. Due to the high
efficiency, stability and environmental protection of centrifuge dewatering, the use of centrifuge dewatering technology in the food fermentation industry provides protection for efficient dehydration and energy conservation of subsequent processes.

Material Available: AIS1321, AIS1316, AIS1316L, SAF2205, etc.Or can be customerized !

Safety protection: devices for measuring vibration and temperature, emergency stop button, and measures to prevent faulty operation such as hood not being covered.

★ CIP washing system
The fully automatic control system is equipped with a CIP washing system, which can effectively solve the problem that it is not completely cleaned during the shutdown process and effectively avoid the equipment troubles caused by artificial factors.

Specification

Model	Diameter(mm)	Lenght(mm)	Max speed	L/D ratio	G-force	Capacity(m3/h)	Main motor power(Kw)	Weight(kg)	Dimension (mm)
LW250*1000	250	1000	5000	4	2722	0.5-5	7.5	950	2120*1250*680
LW300*900	300	900	4200	3	2964	1-6	11	1160	2150*1300*900
LW300*1200	300	1200	4000	4	2784	2-6	11	1350	2450*1300*900
LW355*1160	355	1160	3600	3.3	2576	2-8	15	1400	2470*1350*830
LW355*1460	355	1460	3600	4	2576	2-10	15	1800	2750*1350*830
LW400*1200	400	1200	3200	3	2294	3-12	18.5	1800	2730*1600*1080
LW400*1600	400	1600	3000	4	2016	3-15	22	2000	3130*1600*1080
LW450*1800	450	1800	2800	4	1976	4-25	37	2500	3320*1700*1130
LW500*2000	500	2000	2800	4	1750	5-35	45	4000	3520*1800*1170
LW530*1855	530	1855	2600	3.5	2006	5-38	55	4680	3885*1350*1600
LW530*2120	530	2120	2400	4	1709	5-40	55	4800	4150*1350*1600
LW550*2000	550	2000	2800	4	2414	6-40	55	5700	4570*1380*1600
LW650*1950	650	1950	2200	3	1761	6-45	75	5000	4840*1510*1720
LW650*2600	650	2600	2000	4	1456	6-65	90	6000	5490*1510*1720
LW720*2160	720	2160	2000	3	1612	7-80	120	6000	5200*1600*1800
LW720*2880	720	2880	2000	4	1306	7-90	120	8000	3100*1600*1800
LW800*2400	800	2400	1800	3	1451	20-100	150	12000	5820*2000*1300
LW800*3200	800	3200	1800	4	1451	20-120	150	1300	7100*2000*1300

Main technical features

1. Industrial design

Whole machine set design follows concept of advanced industrial design,ensures stability,functionality and safety of whole machine.Also effectively absorbs shear force of dynamic load during operation.


2. Effectively ease resonance during rotating of bi-rotor

When centrifuge works,there is no obvious first-order and two-order resonance regions within designed speed range,meanwhile ,whole vibration intensity of bearing seat is definited within 2mm/s-4mm/s.All of this eliminates extra fatigue damage to components and assembly units from high frequency vibration during operation and sudden vibration when shut down.

3. Thoroughly eliminate phenomenon of liquid ring stalling

Phenomenon of liquid ring stalling happens during heavy duty boot or shutdown process of complete set machine,especially for LW550 and even larger models,It would makes bounce or wild shake,causes extra impact fatigue damage to main bearings,screw bearings and inner parts of rotary bowl.Fortunately ,our engineers have solved this problem thoroughly.
4. Unique technique adopt in main component work-blanks

The manufacturing methods of main component work-blanks are adopt centrifugal casting technique and overall mould-making forging technique,thoroughly avoid risks such as inter-granular corrosion and relaxation of residual stress release in welding joint.

5. Main bearing selection

We use origin bearings of international first-line brands such as SKF,FAG and so on.

6. Constant temperature detection

All fashioning components and assembly units are detected in constant temperature condition,to make sure of actual processing quality meets the requirements of designed precision accuracy.

7. Inter-change ability

Whole machine physical design and processing technique adopted in critical position,ensure all assembly units and bowls of the same centrifuge model interchangeable.It is not only easy to maintain ,but also greatly improve the reliability and safety of equipment.

8. Simplyand safely in bearing disassemblement

One layer of oil film is injected into contact surfaces between bearing and work-piece by high-
pressure,during disassemblement bearing from the machine.which would fundamentally eliminate friction within different parts.As a result,it would reduce 90% of pulling force and lower the risk of damage to high-precision parts when disassemble bearing.
9.Main bearing lubrication system
There are two kinds of lubrication system for specific product models :
A thin oil lubrication
* Oil pump offers an uninterruptedly power to ensure oil works circularly;
* Jet oil lubrication constantly clean and lubricate bearings and reduce temperature;
* Oil filter system ensure lubricant’s cleanliness;
* Oil pressure energy storage system ensure lubrication pump offers an extra oil supply(the pressure is no less than 0.4Mpa) for 5-6 minutes,when power fails accidentally;
* Constant temperature system is available.


B grease lubrication
* Adopt a grease with properties of extreme pressure resistance ,oxidation resistance ,abrasion resistance,water scour
resistance,corrosion-proof and high temperature resistance.
* Optional automatic grease system fills grease on main bearing at designed hours and quantity.

10. Main bearing BH device (patent design)

There are two spare safe bearings at either end of main bearing.When machine works well,they keep certain clearance from bearing inside track to chief axis.When unexpected condition occurs,main bearing got damaged or circle center deviation causing an amplitude of vibration reaches to designed clearance,safe bearings begin to work as main bearing Meanwhile,computer automatic control system would get a feedback of abnormal vibration value on bearing position immediately then activates emergency shutdown and goes a smooth shut down.This system protects machine free from damaging and ensure production safety.

11. GSRL feeding device (potent design)

New design of internal spiral core tube has got following achieves.Without reducing centrifugal acceleration,shorten triangle belt's traction time,reduce disorder of swirling flow and extend separation time.Meanwhile increases inner working pressure of centrifuge,and restrains liquid foaming.

Production workshop

Screw production1

Screw production2:

.

High speed dynamic balance detection1

High speed dynamic balance detection2

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

Q1.What's your advantage? Why we choose you?
A:1) More than 50 years experience of centrifuge & separator production and R&D.We have the most professional techniques and team. More advantage in price
2)Great production capacity Sustainable Supply . According to customer requirements, We support the customized include package.
3)We use famouse good quality materials and the best production process

Q2.What's the Payment?
A:T/T would be better with quick transfer and few bank fees. LC could also be accept, but the
procedure is complex and the fee is high. You can also use Western Union and Paypal.

Q3.Are you a factory or trading company?
A:We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.

Q4.How long is the warranty period ?
A:12 months.
