Shenzhou - High speed Separation Tubular Bowl Separator Centrifuge Tubular centrifuge

Name: Shenzhou - High speed Separation Tubular Bowl Separator Centrifuge Tubular centrifuge
Uploaded: 2022-04-25T00:56:25+08:00
Duration: 30 s
Description: Since inception, we have been emphasizing the importance of technology. We have continuously upgraded technology and tried to make full use of the technologies to make finished products multi-functional and characteristic. Throughout the field(s) of Separation Equipment, the product is particularly useful.

Since inception, we have been emphasizing the importance of technology. We have continuously upgraded technology and tried to make full use of the technologies to make finished products multi-functional and characteristic. Throughout the field(s) of Separation Equipment, the product is particularly useful.

SEND INQUIRY NOW

Model Number:: GQ/GF

shipping:: Support Sea freight · Land freight

Customization:: Customized logo (Min. Order: 1 Units) , Customized packaging (Min. Order: 1 Units) , Graphic customization (Min. Order: 1 Units)

SEND INQUIRY NOW

Product Details

After months of furious yet meaningful development work, Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd has made it a great success to work out High speed Separation Tubular Bowl Separator Centrifuge. The product is supplied with multiple features and a broad range of applications. The product is widely used to tackle the problems arising in the field(s) of Separation Equipment. Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd always stick to the market-oriented business philosophy and regard 'honesty & sincerity' as the enterprise tenet. We are trying to establish a sound distribution network and aim to provide customers all over the world with the best services.

Place of Origin:	Liaoning, China	Type:	Centrifuge
Product Type:	Plant	Condition:	New
Video outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Hot Product 2019	Warranty of core components:	1 Year
Core Components:	Bearing, Motor	Brand Name:	Shenzhou
Voltage:	Customerized	Power:	Model choosing
Weight:	460	Dimension(LWH):	8507501650mm
Warranty:	1 Year	Key Selling Points:	Easy to Operate
Applicable Industries:	Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Printing Shops, Construction works , Food & Beverage Shops, Advertising Company, centrifuge, animal feed factory, Blood plasma factory	Showroom Location:	None
Certification:	GMP/CE

Product Description

HIGH-SPEED TUBULAR SEPARATOR
High Speed Tubular Bowl Separator
Structure and principle: The separator consists of machine body, driving part ,bowl, liquid collecting pan and liquid-in bearing seat etc. The material is sprayed onto the bowl from the inlet on the bottom and strong centrifuge force is formed when the bowl rotates with the material and that makes the material flow upper along the wall of the bowl and then separated because of the different gravity by the centrifugal force.

GF-for separation: Heavy liquid forms outer ring and light liquid forms inner ring. They flow to the top of the bowl and discharge from their respective outlet. And the little solid is settled on the wall of the bowl and discharged manually after the machine stops.
GQ-for clarification: Heavy solid is deposited on the inner wall of the bowl，and forms the sludge. And it will be
discharged by manual after the machine stops. The clear liquid flows out of outlet from the top of the bowl. It is mainly used for separating all kinds of suspension difficult to be separated, especially suitable for separation of solid-liquid suspension with light concentration, heavy viscosity, fine particles and very small differential gravity of the two phases. The motor connect with the big pulley and delivery the power to the spindle through the belt, tensioner and small pulley and rotate with the bowl in high-speed as the clockwise. The high speed tubular centrifuge is mainly used in liquid-solid separation, liquid-liquid-solid separation in bio-pharmacy, beverage, chemical industry. It is an ideal separation equipment by centrifuging, especially for those feeding with little gravity difference, and small dimension in diameter.

Working principle of Tubular Separator
Consist of the machine cover, driving device, drum, liquid catch tray, the liquid inlet and bearing seat, this separator with high running speed, belongs to sedimentation separator. The upper drum is a flexible shaft, while the lower is damping floating bearing. The main shaft is connected by a coupling buffer and a passive wheel. Motor transmit power from the transmission belt and tension wheel to passive wheel, to drive the drum rotate around its own axis with high-speed, and thus form a strong centrifugal force field. All the materials are fed from liquid inlet under the bottom, and flow upward along the drum wall by centrifugal force fluid. During this process, the dense liquid phase forms the outer ring, and the small liquid phase forms the inner ring,
which separately flow to respective liquid outlet mounted on the upper drum.
When the thickness of the sediment affect the liquid phase clarification or the capacity of the rated slag weight in the drum, the dregs of the drum wall should be removed manually after the shutdown.

Application：Tubular Separator is mainly used for separating all kinds of suspension which is difficult to be separated, especially suitable for separation of solid-liquid suspension with light concentration, heavy viscosity, fine particles and very small differential gravity of the two phases. such as clarification of herbs plants extracts, various medicine liquor, liquid medicine, oral liquid, the extraction of paint, dye, as well as various proteins, alga, fruit gels, and purification of rubber solution, coal tar, graphite, saponin, pectin, sirup, vaccine mycelia and all kinds of glucose; refining resin, and latex solution, enzyme (SOD) of oxide, various kinds of albumens, the glucoside of the soap, etc.

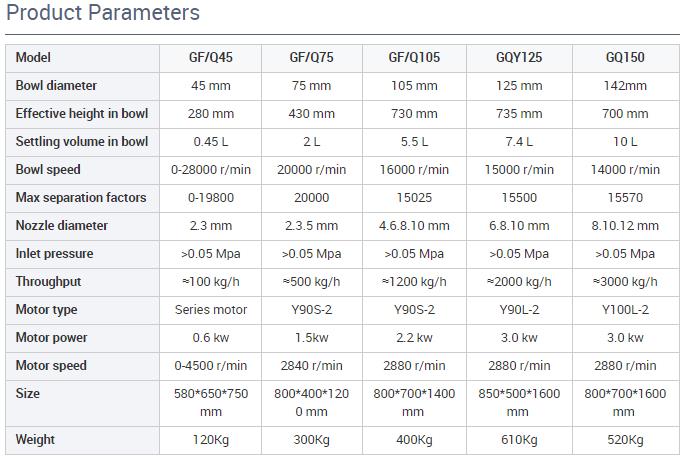

Specification

Main technical features

1. The unique design of interior blade is more suitable for the isolation of the fermentation bacteria than the conventional
tubular separators. Equipped with reverse stop device, the residual mother liquid can be retained completely without loss once the machine stop.
2.With advantages of high separation factor and strong separation ability, It is applicable to separate and clarify the materials which is difficult to separate by ordinary centrifuge and all kinds of emulsion liquid such as transformer oil, lubricating oil, fuel oil, turbine oil, grease, dyes, and saponification separation and so on.
3.Simple structure in linear type ,easy in installation and maintation.
4.Adopting advanced world famous brand components in bearing parts, electric parts and operation parts.
5.Running in a high automatization and intellectualization,no pollution
6.Simple to set up, use and clean for minimal down-time between separations
7. No replacement membranes or costly disposables
8.3-phase electric motors provide power for rapid acceleration and quieter operation.
9.Small footprint.

Details Images

Points for Operating the Tubular Separator
* When the percentage of impurities or solids in the liquid is less than 0.5%, the ideal separation effect will be realized. If
the percentage is higher than 0.5%, the solution should be clarified first
* High groove is used to feed materials. If the liquid is of large viscosity, it can also be pumped.
* Measurement for proper materials inlet pressure: when materials are fed by the nozzle into the separator, the proper inlet
pressure is depended on property of materials the nozzle into the separator,to spray materials at least half up onto the drum.
Low pressure will cause part of the liquid not fed into drum and slide into the bearing seat at the bottom of the drum to
outflow from overflow mouth, while the high pressure will affect the separation quality and lead to the vibration of the
machine.
* The inside diameter of feeding tube shall be large enough to be controlled by valve and be convenient for user to adjust
according to flow rate and output.
* The separator is equipped with nozzle in different diameter, to fit different the separation quality and yield.If small
production with high quality, the small nozzle is used, and vice versa.

Suggestion from SHENZHOU
Earned high reputation and good feedback from global customer among all of our products, High-speed Tubular Separator is capable of applied in a variety of biological processes from cell harvesting and clarify to separation of chemical, food, blood and pharmaceuticals.
High performance is consistently achieved in continuous, semi-continuous or batch operations. Include a range of sizes from research to production, our tubular separator provide an efficient and cost-effective technology to separate from one to several thousand liters of biological cultures and other mixtures. For extremely high solids concentrations, drum centrifuge for high performance separations can be supplied.

Customer’s working Show

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

1. What certificates do you have?
We can provide CE, ISO 9001, etc

2. What is the warranty period of the equipment?
Normally 1 year warranty.

3. Can we visit your factory?
Of course, we sincerely invite you to visit, If it's not convenient for you to come to our factory, you can also visit by
telephone video conference.

4. What's payment you accept?
A4: T/T, Western Union, L/C, Ali Pay, etc

5. Can it be customized?
Of course, our equipment can be customized according to the actual requirements of customers.
