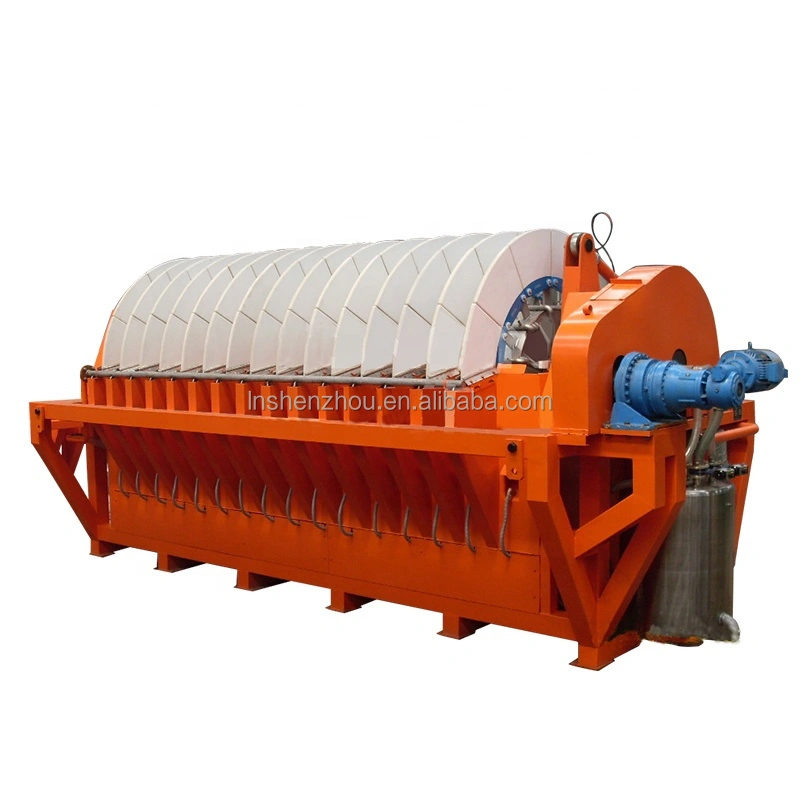

Shenzhou - Rotary Vacuum Filter for Gold Processing Separation Ceramic Disc Vacuum Filter Centrifuge & Separator
In essence, Decanter centrifuge,Disc Centrifuge,Tubular Centrifuge,Plate Centrifuge performance and its quality are largely decided by its raw materials. In terms of raw materials of Other Industrial Filtration Equipment,they have gone through plenty of tests on their chemical components and performance. In this way, the product quality is guaranteed from the source. At present, the product has been tested to be of excellent and other properties.
5.0
Customization:
Customized logo (Min. Order: 1 Units),Customized packaging (Min. Order: 1 Units),Graphic customization (Min. Order: 1 Units)
shipping:
Support Sea freight · Land freight
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
With experienced, professional, and well-educated employees,Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd is efficient and excellent in developing products, one of which is Rotary Vacuum Filter for Gold Processing Separation Ceramic Disc Vacuum Filter. It has some unique features. High-end technologies are used to manufacture Rotary Vacuum Filter for Gold Processing Separation Ceramic Disc Vacuum Filter.The product can play out its greatest effect in the field(s) of Other Industrial Filtration Equipment. In this technology-driven society, 2018 focus on improving R&D strength and keep developing new technologies so as to increase our competitiveness in the industry. We aim to become one of the leading enterprises in the market.
| Condition: | New | Applicable Industries: | Energy & Mining |
| Showroom Location: | None | Video outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty of core components: | 1 Year | Core Components: | PLC, Engine, Motor |
| Place of Origin: | China | Brand Name: | LYSZ |
| Warranty: | 1 Year | Material: | Stainless Steel 304/316 |
| After Warranty Service: | Online support, Field maintenance and repair service | Local Service Location: | None |
| After-sales Service Provided: | Field installation, commissioning and training |
Product Description

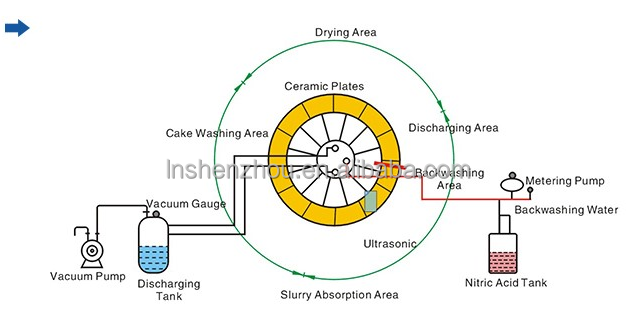

* Slime absorbing zone: Filter plate immersed in the slime while in operation produces a surface absorption of filter cake, with the action of capillarity and integrated with vacuum pressure. Filtrate enters distributing valve and drainage tank through filter plate.
* Leaching zone:Filter cake coming out from slime hopper receives spray washing.
* Drying zone:Continuous dehydration for filter cake is conducted with the action of high vacuum force.
* Discharging Zone: Scraper will automaticly discharge materials once entering the vacuum-free condition.
* Back flushing:Service water or filtrate enters the ceramic plate through distributing valve and cleaning the blocked minihole entoectad. Cleaning with ultrasonic and low density acid after ceramic plate is used for one period to maintain
the efficient service life of ceramic plate.
* Leaching zone:Filter cake coming out from slime hopper receives spray washing.
* Drying zone:Continuous dehydration for filter cake is conducted with the action of high vacuum force.
* Discharging Zone: Scraper will automaticly discharge materials once entering the vacuum-free condition.
* Back flushing:Service water or filtrate enters the ceramic plate through distributing valve and cleaning the blocked minihole entoectad. Cleaning with ultrasonic and low density acid after ceramic plate is used for one period to maintain
the efficient service life of ceramic plate.
Specification
item | value |
Condition | New |
Applicable Industries | Energy & Mining |
After Warranty Service | Online support, Field maintenance and repair service |
Local Service Location | None |
Showroom Location | None |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | New Product 2020 |
Warranty of core components | 1 Year |
Core Components | PLC, Engine, Motor |
Place of Origin | China |
Brand Name | LYSZ |
Warranty | 1 Year |
After-sales Service Provided | Field installation, commissioning and training |
Material | Stainless Steel 304/316 |

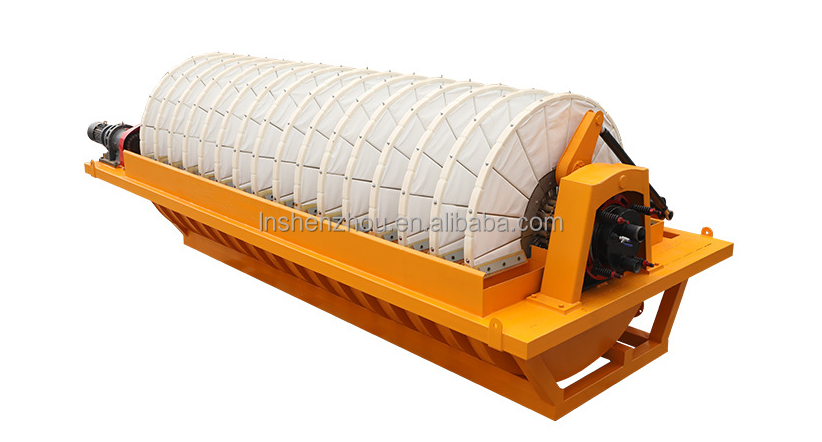

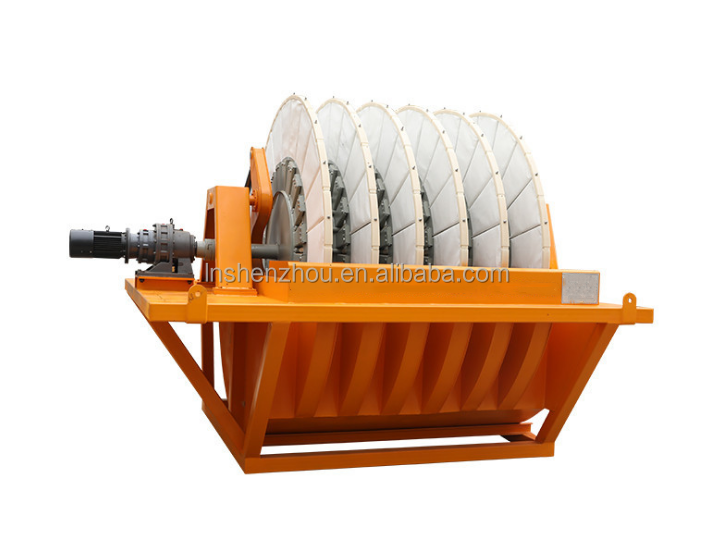

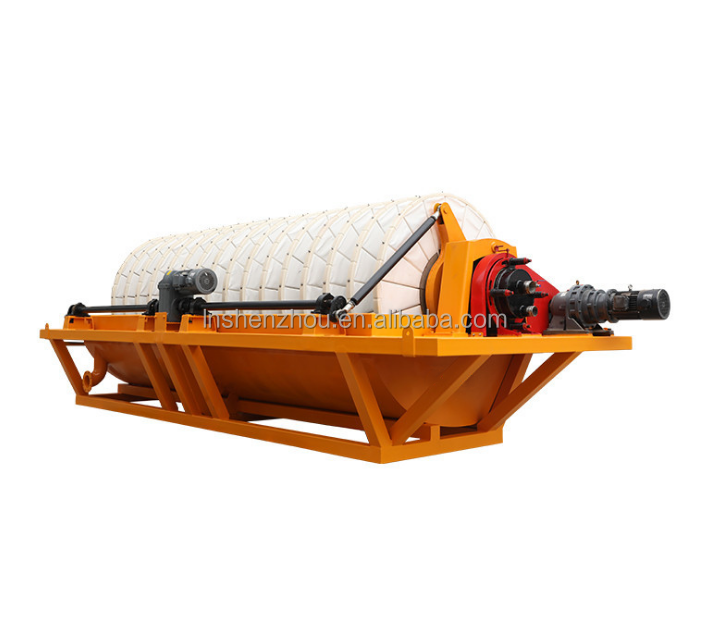

TC series ceramic vacuum filter is a new type high-effect, energy saving filtration equipment, using vacuum and ceramic plate with micro-holes for solid-liquid separation. The plate material is corundum, resisting to almost all temperatures, and has a long operation life. The micro-holes in plates only allows liquid to flow through but not air and solid. Filtrate is drawn through the ceramic plates as they are immersed into the slurry cabin, and cakes forms on the surface of the Plates.
(1) Filter cake has low water content because of the high vacuum degree (0.090.098MPa).
(2) The solid content of filtrate is below 50ppm. This means filtrate can be recycled.
(3) It can save 90% energy or even higher on the contrary of traditional filter.
(4) Filter cake cleaning process is added to clean some specific materials.
(5) It is highly automatic and the labor input is low.
(6) Compact structure covers less floor area, and is easy to install and maintenance.
(7) Advanced drainage system fits for different working conditions.
(2) The solid content of filtrate is below 50ppm. This means filtrate can be recycled.
(3) It can save 90% energy or even higher on the contrary of traditional filter.
(4) Filter cake cleaning process is added to clean some specific materials.
(5) It is highly automatic and the labor input is low.
(6) Compact structure covers less floor area, and is easy to install and maintenance.
(7) Advanced drainage system fits for different working conditions.
Details Images
Packing & Delivery
wooden case
Company Profile
Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so onAt the same time,our product with best prices and good quality,welcome to Shenzhou!
