Products Description

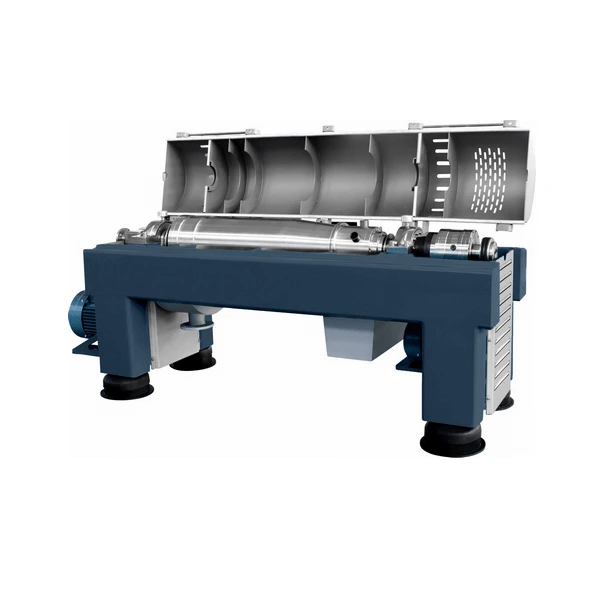

LW650 Sludge Dewatering Decanter Centrifuges
LW Sedimentation Centrifuge is a horizontal, continuously working and continuously spiral discharging sedimentation centrifuge. It is used in a variety or industries for separating all kinds of solid liquid suspension, defecating liquid phase with graded rains, and dehydrating sludge.
2 phase Decanter Centrifuge:
After entering into the high-speed turning drum, the solid-phase particles in the mixed liquid run and settle on the drum
wall under the action of greatest centrifugal force; the light liquid settles at the innermost place of the drum under minimum centrifugal force; same as the drum's turning direction, a screw feeder also turns at a high speed, and a constant speed difference is generated by the differential mechanism, then the liquid will be discharged by the liquid outlet.
Client Field
1. Industrial and municipal wastewater treatment
2. Oil & gas drilling mud/fluid control
3. Washing, classification and dewatering of amylum and starch
4. Mycelium separation from zymotic fluid and antibiotic
5. Dewatering of soybean and wheat protein
6. Dewatering of fish power and fish meat
7. Dewatering of grains
8. Clarification and extraction of fruit juice
9. Clarification and purification for animal and vegetable oil
10. Production and extraction of olive oil, palm oil, avocado oil
11. Separation and purification for coal tar
12. Grading of kalin and graphite, etc.
Properties and uses
LW decanter centrifuge is a horizontal centrifuge with continuous feeding and continuous discharging.
Operating principle
Separation takes place in a horizontal bowl equipped with a scroll conveyor. The process material is fed into the bowl through a stationary inlet tube and is smoothly accelerated in the accelerate chamber. Centrifuge forces cause instant sedimentation of the solids on the wall of the bowl. The conveyor rotates in the same direction as the bowl, but a different speed, thus moving the solids towards the conical of the bowl.
Main Characteristics:
1. Continuous working, spiral discharging, high capacity.
2. Compact structure and easy maintenance.
3. Wide applicability for chemical, oil, foodstuff, pharmacy industries and green industry in which solid-liquid separation is required.
4. Suitable for various products, capable for separating wide-ranging solid phase grains (0.005-2mm), especially when separating solid phase has different size grains.
Special Allocation:
Following allocation can be possible to meet customers' demand.
1. Frequency conversion plus PLC controlling system
2. Protection system for vibration and temperature rising
3. Feeding speed control

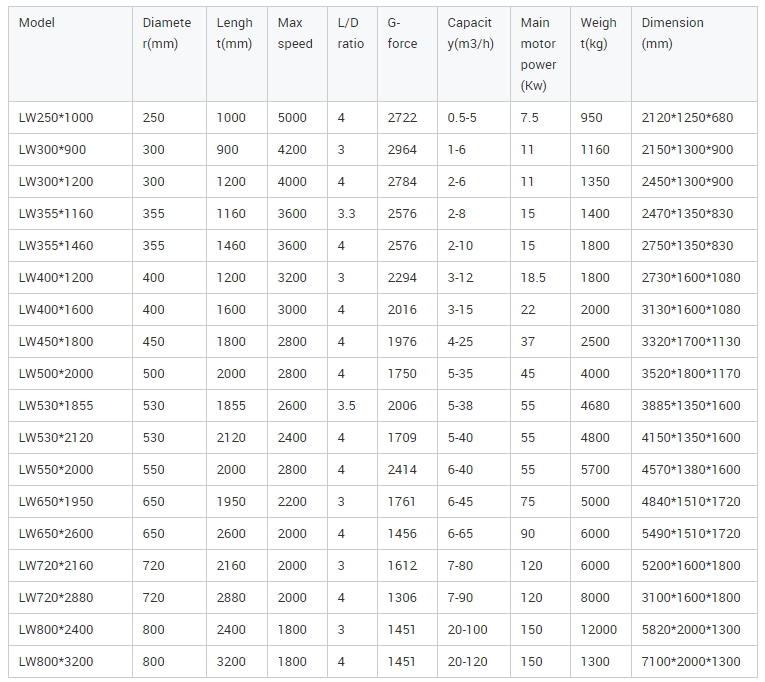

Technical parameter:
