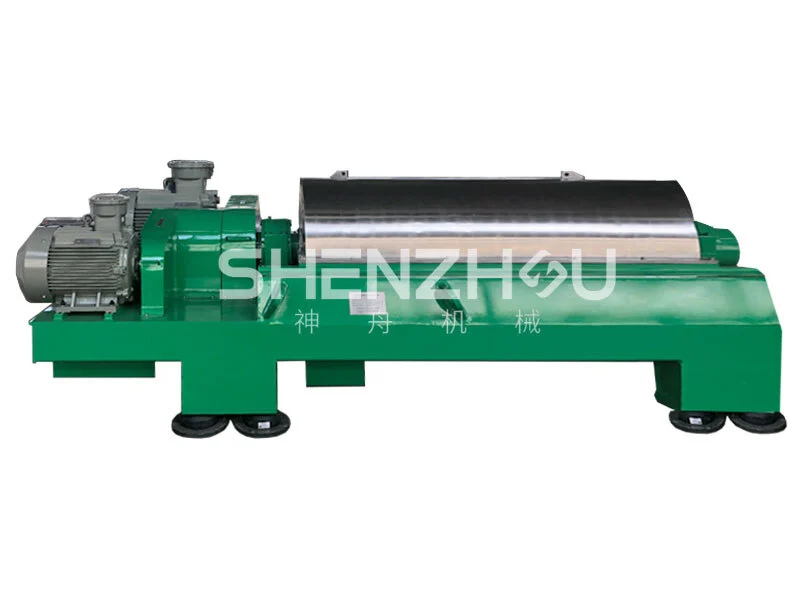

3 Phase Separating Centrifuge Horizontal Continuous Operation Tricanter
Product Description
The horizontal screw discharge sedimentation centrifuge is a mechanical device for continuously separating the suspension containing the density difference by the principle of centrifugal sedimentation. The centrifuge produced by the company can clarify, dehydrate or classify the suspension containing solid phase particles with a particle size of 0.002~3mm and a concentration range of 0.5~40%. According to the material characteristics, it is divided into LW two-phase horizontal screw centrifuge and LWS three-phase horizontal screw centrifuge. It can be applied to the separation of different materials under different working conditions, and is widely used in pharmaceutical, food, chemical, environmental protection and other industries.
Working Principle
This 3-phase separation horizontal decanter centrifuge is primarily employed for solid-liquid-liquid separation, namely the simultaneous separation of one solid phase and two immiscible liquid phases with different densities. The premise is that the solid phase is the heaviest. The working principle can be explicated as follows.
Under the centrifugal force, the material will be formed with three relatively stable layers including solid phase layer, as well as heavy and light liquid layers, from the bowl wall to the inside. The solid phase will be driven to the small end of the rotary bowl by the screw conveyor and then will be expelled from the slagging hole. The heavy and light liquid phases will flow towards the big end of the rotating bowl along passages among screw flights and then will be drained from different outlets. Therefore, the continuous 3-phase separation is achieved.
The 3-phase separation horizontal decanter centrifuge is developed on the basis of technology of Germany and our years of sufficient market research and practices. The rotor and housing of this product are both made of 316L or 304 or 2304 or 2507 stainless steel. The chassis and important seals are manufactured from carbon steel and fluororubber, respectively. The crucial parts adopt hard alloy for excellent wear resistance. Our product also makes use of the mechanical differential and the multi-point automatic centralized lubrication system.
SHENZHOU is a specialized 3-phase separation horizontal...
SHENZHOU is a specialized 3-phase separation horizontal decanter centrifuge manufacturer and supplier in China. We offer a vast range of products, including high speed tubular centrifuge, 2-phase separation horizontal decanter centrifuge, biological centrifuge, and sludge dewatering system, among others. Related Names Equipment for Three Decanter Centrifuge | Three Phase Decanter | Solid Bowl Centrifuge | Three Phase Liquid Solid Separation

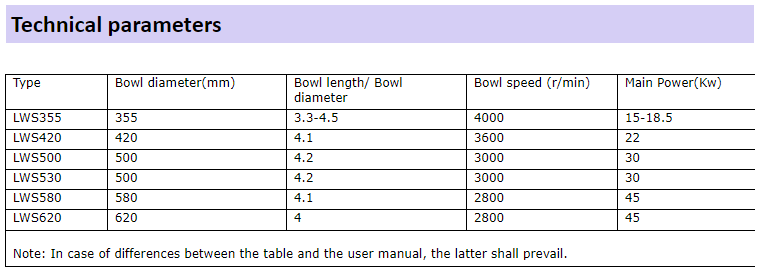

Technical Paramter:
