Intro to Industrial Palm Oil Separator Decanter Centrifuge Horizontal Type Shenzhou
Description

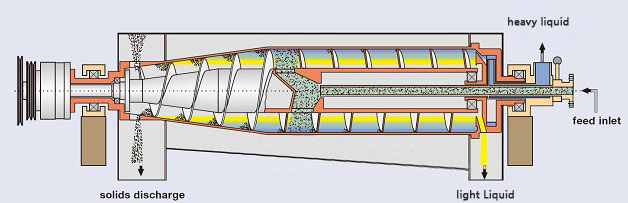

Three phase palm oil decanter centrifuges, the light and heavy liquids are discharged via the force of gravity and the centrifugal force, which effectively prevents the phases mixture and incomplete separation. Ordinary three phase decanter centrifuges often generate incomplete separation because of unstable light / heavy phase liquid compositions, while in our centrifuges, the interface of light / heavyphase liquids can be regulated with constantly changing material compositions in the machine working, thus optimal separation effect is achieved. Currently, our three-phase decanter centrifuges are used in the separation of oils, water and slags / dregs in the coal tar industry, the petrochemical industry, the fish powder industry, the swill oil industry, the electrolytic copper industry, and the waste scraps in the slaughter houses.
Shenzhou decanter centrifuge competitive Advantages
Horizontal centrifuge characteristics:All parts coming into contact with the product are made of stainless steel.
3-phase AC motor for controlled torque starting via frequency converter
Bowl speed is adjustable via VFD to obtain the required G-force for optimized separation
Pond depth in the bowl is adjustable for optimized balance between liquid clarity and solids dryness
Conveying speed is adjustable for optimized balance between liquid
Low personnel costs due to continuous and automatic operation.
Highest g-force for higher solids output
Automatic adjustment of differential speed via VFD
Two motor drive
Belts for both primary motor and secondary motor
Material: DSS2205+SS316L
Bearing: SKF brand. A special selection and arrangement of bearings provides for long life and exceptional reliability
Wear protection: carbide sheets of spiral feeder and replaceable alloy sleeves of drum outlet and spiral feeder outlet
Aftersales
Pre-Service
1. 24 hours onlinne consult and service
2. Introduce the details of products to the customers, answer the question raised by customer at firstly;
3. Providing the operation , installation and working video for customers.
4. Providing the different solutions for choice according to the needs and requirements of customers;
Sale Service
1. Ensure new product with high quality before delivery;
2. Packing according to the export requirements and shiping carefully;
3. Provide full set of documents as customer's requirements.
4. Providing one year sparing parts for you for free.
5. Delivery on time
Gravity separation
On account of difference in density, the mixed liquid in the container, after a period of time, is gradually divided into 2 layers. The heavy phase particle of the mixed liquid deposits to the bottom of the container, while the light phase one suspends to the upper surface. A rather distinctive dividing plane forms between the light and heavy phases.
The separation speed is affected by the difference in density between the light and heavy phases that make up the mixed liquid. The larger the difference in density is, the faster the separation speed will be.
