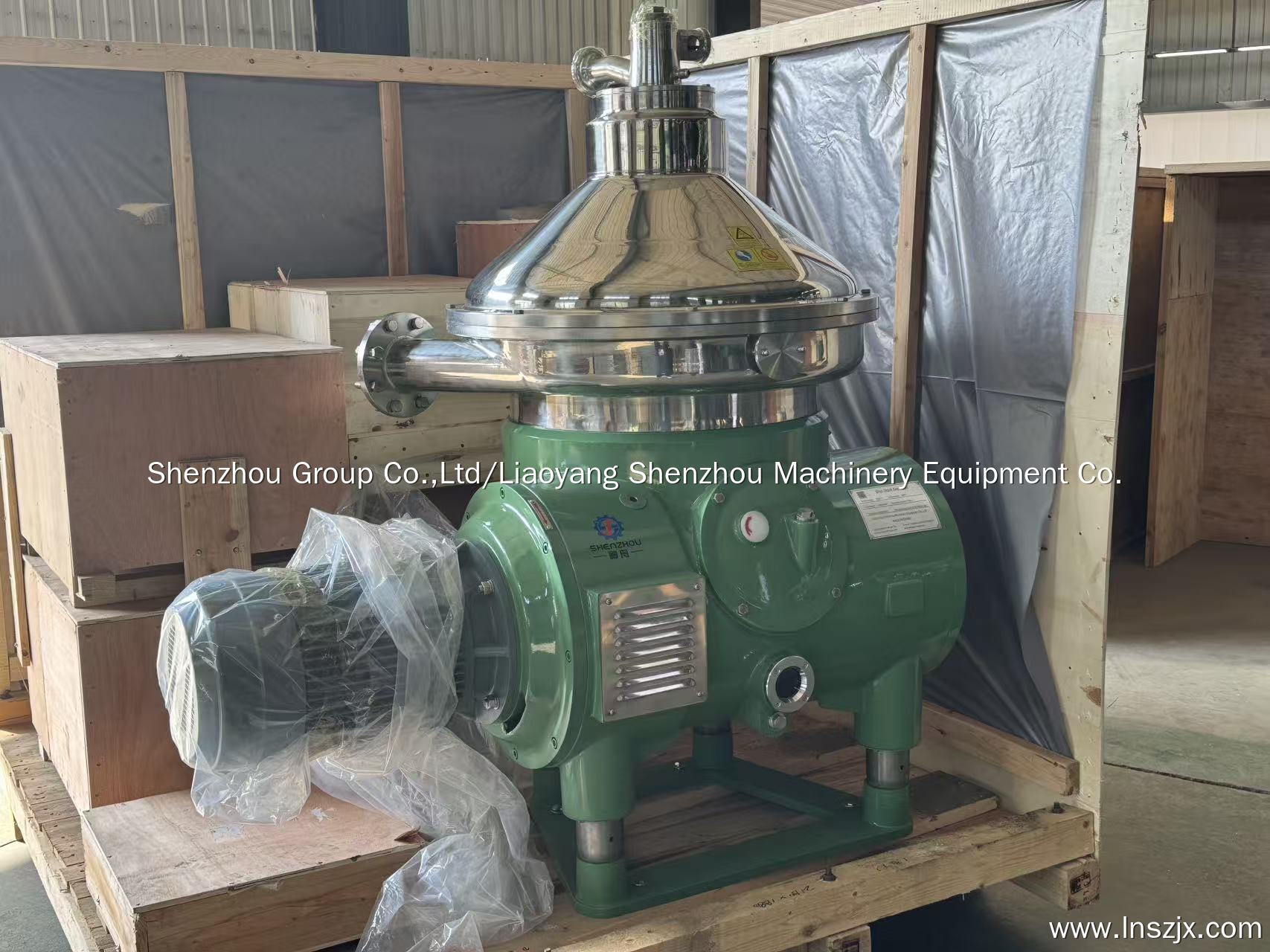

3 Phase Disc Oil Separator Centrifuge for Oil and Soap Separation
Disc separator, called dish centrifuge as well, is a kind of advanced automatic machine with high efficiency and large output, and can be applied for liquid separation in pharmaceutical, food, chemical, biological products, beverage products and other industries. With new automatic control, this advanced disc separator is superior to other separator, to achieve ideal separation effect by producing different centrifugal force onto materials in different proportion, which make it more suitable for suspension with low solid content ,and mutually insoluble liquid with a smaller specific gravity.
In addition, Disc separator is also be used for regenerating lubricating oils and purifying fuel used on ships or on-land electric stations. It can quickly separate water and impurity from the oil to ensure the regular operation of machines.In the centrifugal force field, different materials will be settled down at different velocity according to their respective attribute, thus separating impurities. The mixture in the high speed rotor drum will form a cirque. From the outside to the inside, the materials lay according to their different density. For the centrifugal force is more than gravity, centrifugal separation work when gravity separation does not.
According to different separation methods, the whole series of disc separators can be divided into three-phase disc separator (DHY) for liquid-liquid -solid separation and two-phase separator (for liquid-solid separation) disc separator (DHC). and according to different methods in slag discharge, the auto slog discharging disc separator can be divided into manual automatic slag discharge disc separator and the PLC system fully controlled automatic slag discharge disc separator. Disc separator according to the internal slagging different ways, the disc separator can be divided into piston-type slag discharge disc separator and nozzle-type slag separator, In general, the mode of slag discharge can be selected according to the characteristics of the material!
About SHENZHOU:
Shenzhou Separator has been at the forefront in the field of disc stack centrifugal separation technology for more than 50 years - which is why disc stack centrifuges from Shenzhou Separator perform this crucial separation function exceptionally well.
Today, Shenzhou Separator is the leader in mechanical separating technology in China. Shenzhou developments are used in a wide range of areas - in the beverage and dairy industries, in recovering and processing oils and fats, as well as in chemicals, pharmaceuticals, biotechnology and starch technology. Other applications include marine engineering, energy, oil fields and industry.
Centrifuge machine Main Parameter:
Model | Bowl Speed(rpm) | Capacity(Per Hour) | Running Load(Watts) | Dimensions, Overall (mm) | ||
Width | Front-to-Back | Height | ||||
250 | 8500 | 500-800 | 4.0 | 850 | 850 | 1200 |
270 | 7300 | 1000 | 4.0 | 950 | 950 | 1200 |
300 | 7150 | 1500 | 5.5 | 1025 | 1300 | 1300 |
360 | 7056 | 2000-3000 | 7.5 | 1500 | 1100 | 1500 |
400 | 7038 | 3000 | 7.5 | 1500 | 1100 | 1550 |
500 | 6600 | 5000-8000 | 15.5 | 1772 | 1500 | 1855 |
550 | 6200 | 8000-15000 | 18.5 | 1970 | 1560 | 1970 |
730 | 4900 | 50000-80000 | 55.0 | 2580 | 1980 | 2340 |
Application :
discharge, suitable for pastoral herdsmen's home use ; large separators for industrial production, electric drive, automatic or artifical discharge.
Mineral oil separator: for fuel oil, diesel oil, lubricating oil and transformers oil etc similar emulsion,remove mechanical
impurities and water.
Vegetable oil separator: for vegetable oil refining.
Animal oil separator: for refining animal fat in meat processing, or for fish oil concentration and separation processing.
Yeast separator: for concentrated yeast, nozzle discharge.
Starch separator: for removing protein in the starch and concentrating starch, nozzle discharge.
Lanolin separator:in wool industry for extracting lanolin,nozzle discharge.
Pharmaceutical disc separator: for the extraction of antibiotics, vitamins in the pharmaceutical industry;also for separating
liquid-solid three-phase mixture in the pharmaceutical and chemical industry.
Beer separator: for beer, malt juice and other beverages clarification.
Latex separator: for concentrating rubber latex and out of impurities.
Paint separator: for separating impurities in the coating, to improve the quality of the coating.
