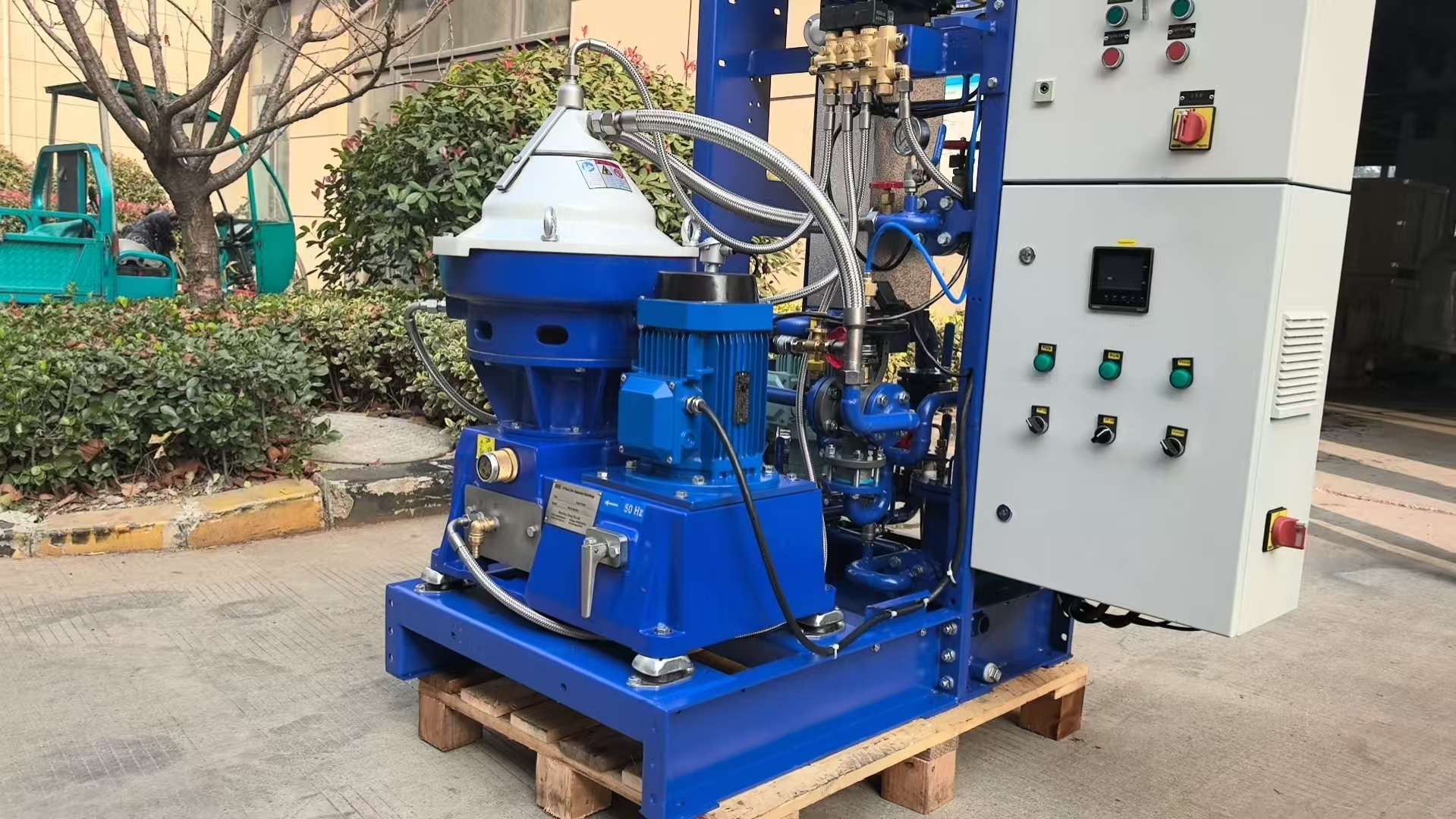

Centrifugal Machine for Ship Waste Oil Recycling Project
Oil Separator(Special Design for Marine Oil Separation Purification)
KYDB Series marine separator is mainly used for cleaning up the moisture and mechanical impurity in the fuel ( Light diesel oil,heavy diesel oil, fuel oil) and lubricating oil of ships and diesel engine, which is good to reduce the abrasion and prolong itsservice-life.
The design, manufacture and inspect are accord with GB/T5745-2002 << Marine Disk Separator>>. Stable operation, the vibration is much lower than the national standard value. All materials are made of stainless steel, so effectively reduce the corrosion of separation materials.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Configuration description for SEPARATION UNIT
* Applicable material:viscosity 380cst-700cst @50ºC,density (1010kg/m3) heavy fuel oil;also lubricating oil,diesel etc * Adopt none gravity disc operation method,the complete module meets the CSSC standards.
* Moisture sensor,to ensure the final oil quality. *Complete hydraulic drum structure,slag discharge thoroughly.
* High rotation speed to ensure better separation effect.
* Low energy consumption and light weight
* Reliable transmission structure, simpler mechanical structure
* PLC program control,Chinese and English operation interface,automatic control of the slag discharge process of the separator, manual operation, and panel setting parameters. With high and low temperature, high and low pressure, motor overload, oil pump overload alarm.Automaticallyswitch oil circuit after alarm, and provide external passive alarm contact

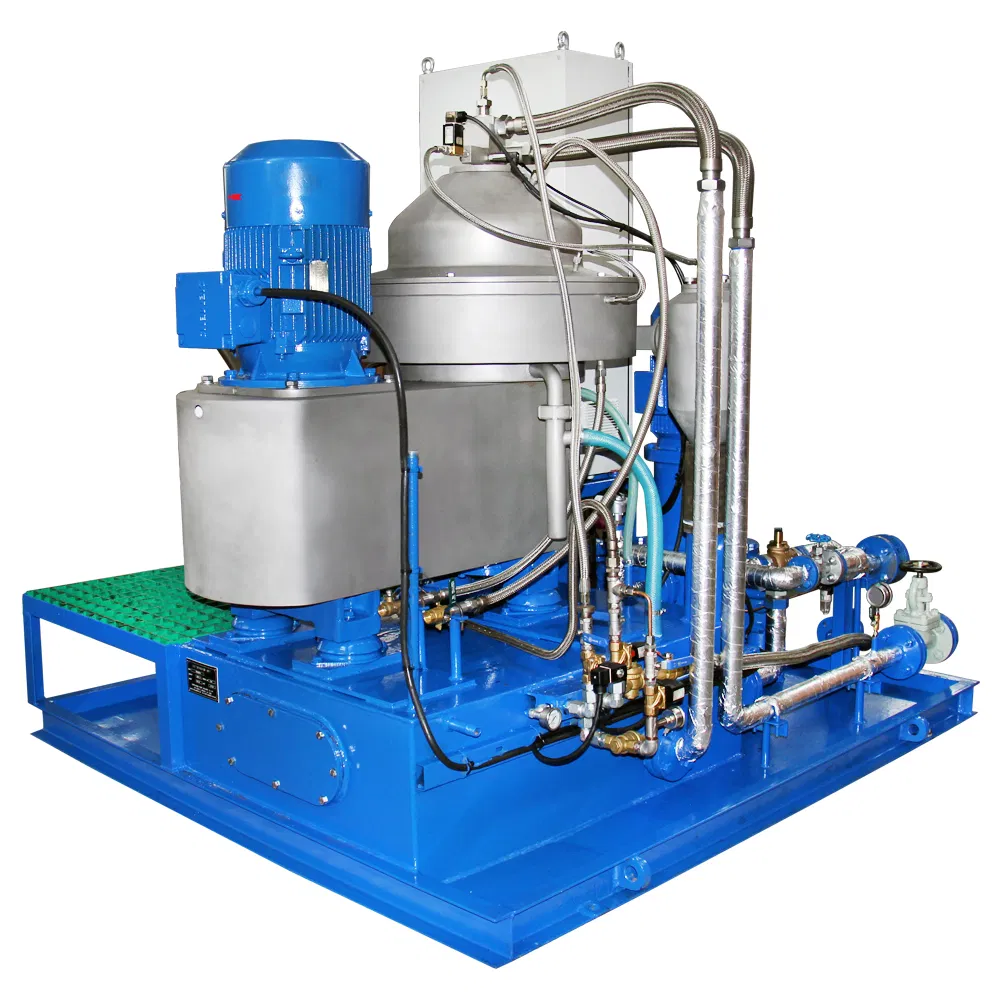

![Centrifugal Machine for Ship Waste Oil Recycling Project]()
* Applicable material:viscosity 380cst-700cst @50ºC,density (1010kg/m3) heavy fuel oil;also lubricating oil,diesel etc * Adopt none gravity disc operation method,the complete module meets the CSSC standards.
* Moisture sensor,to ensure the final oil quality. *Complete hydraulic drum structure,slag discharge thoroughly.
* High rotation speed to ensure better separation effect.
* Low energy consumption and light weight
* Reliable transmission structure, simpler mechanical structure
* PLC program control,Chinese and English operation interface,automatic control of the slag discharge process of the separator, manual operation, and panel setting parameters. With high and low temperature, high and low pressure, motor overload, oil pump overload alarm.Automaticallyswitch oil circuit after alarm, and provide external passive alarm contact
Buzzer Control:
Monitor oil temperature, pressure, over loading, non-discharging and leaking, and Offer a group of passive contactor stretching out to control panel.
Temperature Control:
Automatic control the temperature of the oil line, also control separately or with electric control cabinet at the same time.
Water Control:
Automatic control unlocking water, sealing water and water-seal/water switching.
Pneumatic Control: Filter and adjust compressed air, control three-way changeover pneumatic valve.
Pneumatic Control: Filter and adjust compressed air, control three-way changeover pneumatic valve.
Shenzhou separator is mainly used to remove water and mechanical impurities from diesel oil, lubricating oil and other mineral oil in marine diesel engine unit and land-used diesel generator unit of power station so as to reduce wear of the diesel engine and other machine, and prolong engine life. The model is also used to separate two unsolvable liquids with different specific gravity or remove small amount of solid particle from liquid.
The machine adopts automatic control, and has the advantages of high efficiency, low oil consumption, convenient operation and economic maintenance cost.
The clear oil and dirty water are pumped out by centripetal pump, the sludge is discharged automatically and fully.
The machine is one kind of rotary machine with high speed. After accurate dynamic balancing, it can run for long time with low vibration, safety and security.
Features
Features
1. The piston type slag removal and self cleaning automatically discharging. 2. Belt drive(No second tensioning required).
3. Full hydraulic discharge structure, quicker Respond and slag discharge more thoroughly.
4. Internally installed with three sets of programs applied to the Separation of HFO, LO and DO.
5. Automatically detection of water sealed water and slag discharge time.
6. Master the technology of ''no-gravity ring'' automatically adjusting the ''oil water interface'' for the first time in China
after world famous brand.
7. Suitable for the separation of high viscosity(380cSt/50°C) and high density(~1010Kg/m3 /15 °C )HFO.
1. The piston type slag removal and self cleaning automatically discharging. 2. Belt drive(No second tensioning required).
3. Full hydraulic discharge structure, quicker Respond and slag discharge more thoroughly.
4. Internally installed with three sets of programs applied to the Separation of HFO, LO and DO.
5. Automatically detection of water sealed water and slag discharge time.
6. Master the technology of ''no-gravity ring'' automatically adjusting the ''oil water interface'' for the first time in China
after world famous brand.
7. Suitable for the separation of high viscosity(380cSt/50°C) and high density(~1010Kg/m3 /15 °C )HFO.
Oil Types | Fuel Oil | Lubrication Oil | ||||||
Light Fuel Oil | Heavy Fuel Oil | SAE30,40 | Detergence Oil | Steam Turbine Oi | ||||
Kinematical Viscosity(mm2/s) | 1.9-5.5 | 5.5-24 | 120 | 180 | 380 | 100-120 | 61.2-74.8 | |
40ºC | 50ºC | 40ºC | 40ºC | |||||
Density(kg/m3) | <900 | 900-991 | 880-900 | <900 | ||||
Separating Temperature(ºC) | Normal temperature, 40-60ºC best | 90-98 | 80-95 | |||||
Recommended Capacity(l/h) | 2400 | 2000 | 1100-1200 | 900-1000 | 700-800 | 1000-1200 | 500-600 | 1600-1700 |
Contact:owen tang
Advantages
1. The piston type slag removal and self cleaning automatically discharging
2. belt drive(No second tensioning required)
3. Full hydraulic discharge structure, quicker Respond and slag discharge more thoroughly
4. Internally installed with three sets of programs applied to the Separation of HFO, LO and DO
5. Automatically detection of water sealed water and slag discharge time
6. Master the technology of ''no-gravity ring'' automatically adjusting the ''oil water interface'' for the first time in China
after alfalaval and westfalia.
7. Suitable for the separation of high viscosity(380cSt/50°C) and high density(~1010Kg/m3 /15 °C ) HFO
2. belt drive(No second tensioning required)
3. Full hydraulic discharge structure, quicker Respond and slag discharge more thoroughly
4. Internally installed with three sets of programs applied to the Separation of HFO, LO and DO
5. Automatically detection of water sealed water and slag discharge time
6. Master the technology of ''no-gravity ring'' automatically adjusting the ''oil water interface'' for the first time in China
after alfalaval and westfalia.
7. Suitable for the separation of high viscosity(380cSt/50°C) and high density(~1010Kg/m3 /15 °C ) HFO

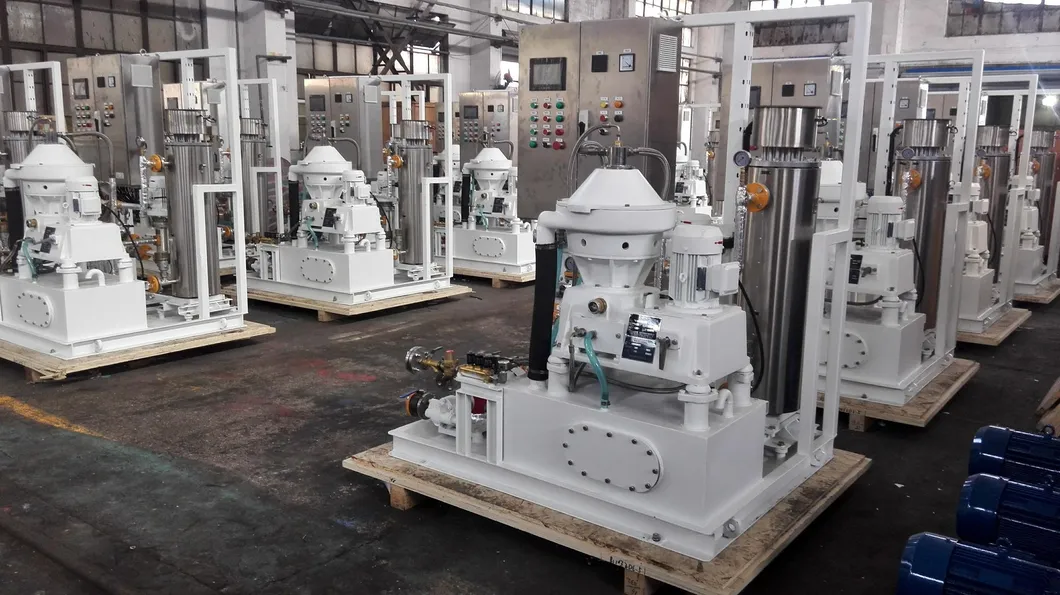

Working shop show![Centrifugal Machine for Ship Waste Oil Recycling Project]()
Disc separator is vertical centrifuge. The drum is installed on the upper side of the vertical shaft. Driven by the motor, it will
rotate at a high speed through the gearing. Inside the drum there is a group of dish parts overlaying each other - disc. There is very small gap between the disc. Suspension (or emulsion) is fed into the drum through the inlet in the middle of the drum. When the suspension (or emulsion) flows through the gap between the disc, under the action of the centrifuge, the solid particles (or droplets) go down to the disc in the formation of sediment (or liquid layer). Along the disc surface, the sediment slides out of the disc and accumulates at the part with the largest diameter inside the drum. After the separation, the liquid is discharge out of the drum from the drain outlet. The role of the disc is to reduce the sediment distance of solid particles (or droplets) and enlarge the sediment area of the drum. With the disc inside the drum, the capacity of the separator is improved greatly. The solid gathering inside the drum is manually removed by taking apart the drum after power off, or discharges from the drum through the slag-off part with the separator power on.
rotate at a high speed through the gearing. Inside the drum there is a group of dish parts overlaying each other - disc. There is very small gap between the disc. Suspension (or emulsion) is fed into the drum through the inlet in the middle of the drum. When the suspension (or emulsion) flows through the gap between the disc, under the action of the centrifuge, the solid particles (or droplets) go down to the disc in the formation of sediment (or liquid layer). Along the disc surface, the sediment slides out of the disc and accumulates at the part with the largest diameter inside the drum. After the separation, the liquid is discharge out of the drum from the drain outlet. The role of the disc is to reduce the sediment distance of solid particles (or droplets) and enlarge the sediment area of the drum. With the disc inside the drum, the capacity of the separator is improved greatly. The solid gathering inside the drum is manually removed by taking apart the drum after power off, or discharges from the drum through the slag-off part with the separator power on.
