Best Quality Activated sludge dewatering horizontal spiral centrifuge Factory
Sludge Dewatering Horizontal Type Spiral Centrifugal Machine For Industrial And Domestic Sewage Treatment Horizontal Screw Centrifuge
Applied in our manufacturing process, the technologies have speeded up the whole process and guaranteed the product quality.In the application range(s) of Water Treatment Machinery,Sludge Dewatering Horizontal Type Spiral Centrifugal Machine for Industrial and Domestic Sewage Treatment is of great use.
Product Description

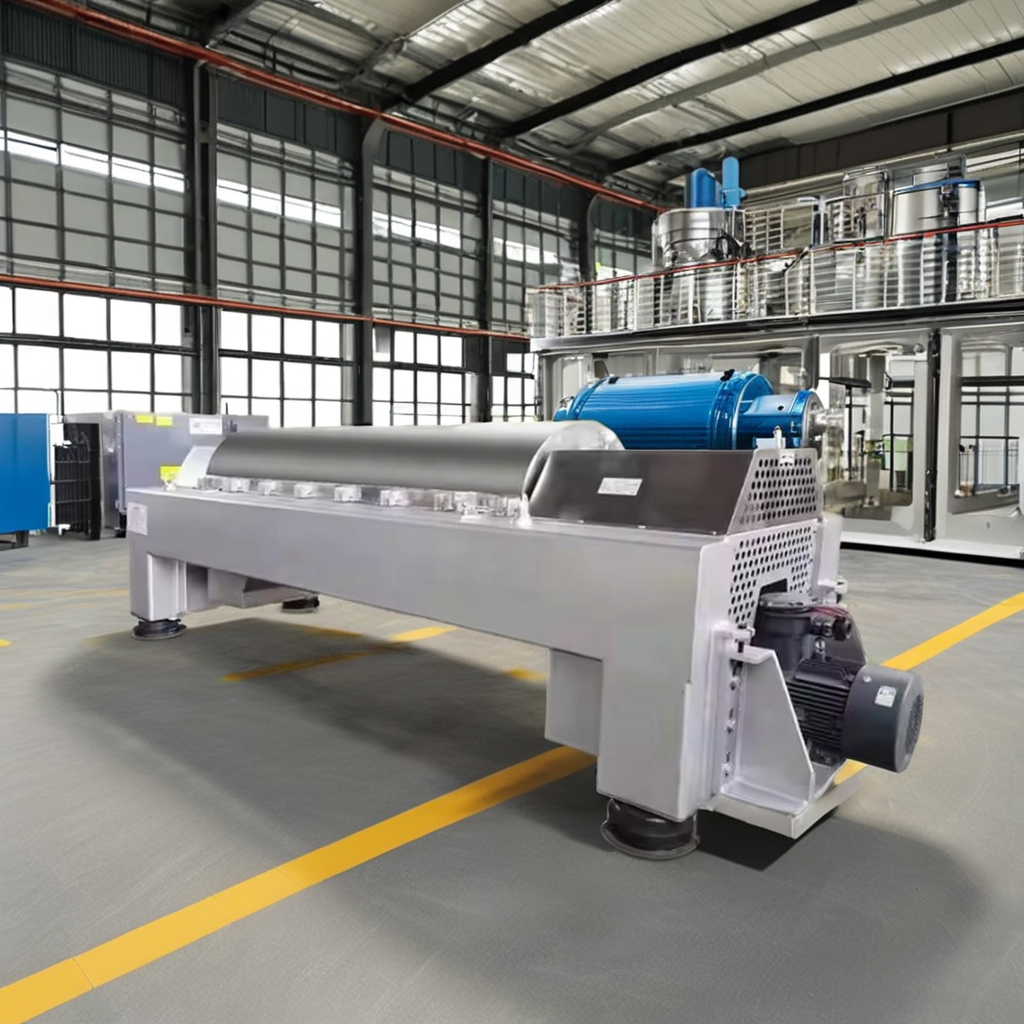

Horizontal type spiral precipitated centrifugal machine is called horizontal type spiral centrifugal machine for short. lt is a high efficiency horizontal type spiral centrifugal equipment for discharging and precipitation. Generally, it can be divided into horizontal type spiral filtering centrifugal centrifugal machine and horizontal type spiral pricipitated centrifugal machine. lt is widelly used for dehydration for the sludge in industrial and domestic sewage, besides, it is also used in pharmaceutical factory, chemical industry and food-making industry.
Application
|  |
 | Characteristics 1. low power consumption 2. large handling capacity 3. automatic running 4. 24 hours continuous operation 5.High corrosion resistance 6.Reliable safety guard |

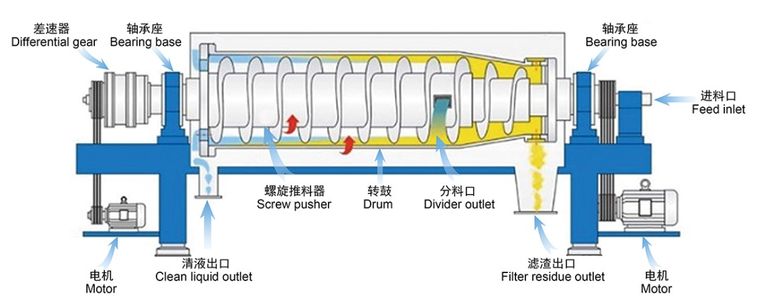

Horizontal Decanter Centrifuge is mainly composed of a conical drum, screw pusher, differential system, bearing base, frame, housing, main and auxiliary motor and electrical system. The main motor drive the drum and the second motor drives the planetary gear differential, which generates the drum and spiral differential. Under the strong centrifugal force produced by the high-speed rotation, the centrifuge can be separated continuously.
The drum and the screw pusher rotate at a certain differential speed and high speed. The material continuously enters the feeding tube's spiral feeding chamber and then accelerates and enters the drum. Under the centrifugal force field, the heavier solid phase deposits on the drum wall to form the sediment layer.
The solid deposits are continuously pushed to the drum's cone end by the screw pusher and discharged from the slag discharge outlet after drying in the drying zone. The lighter liquid phase forms an inner liquid ring, which continuously overflows the drum from the overflow outlet at the drum's large end and discharges out of the machine through the outlet.

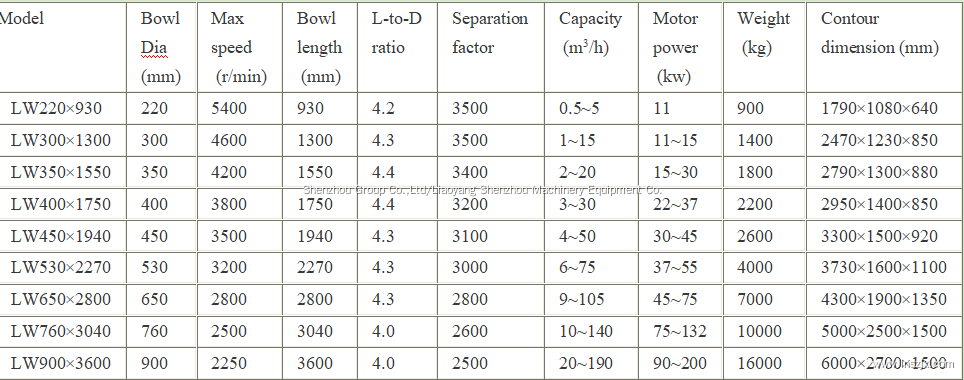

Technical Parameters:
