Biological fermentation liquid disc centrifuge
Disc stack centrifuge is essential in many industries, including biological fermentation, biodiesel, plant extraction, beverages, vegetable oil, animal oil, dairy, chemical industry, starch, etc. INNOVA can provide high-quality disc centrifuges that are independent or can be integrated into a complete production line.
FEATURES
The disc stack centrifuge, is also known as a disc bowl centrifuge or disc stack separator, is a type of centrifuge that has a series of conical discs which provides a parallel configuration of centrifugation spaces
Application range of disc stack centrifuge：

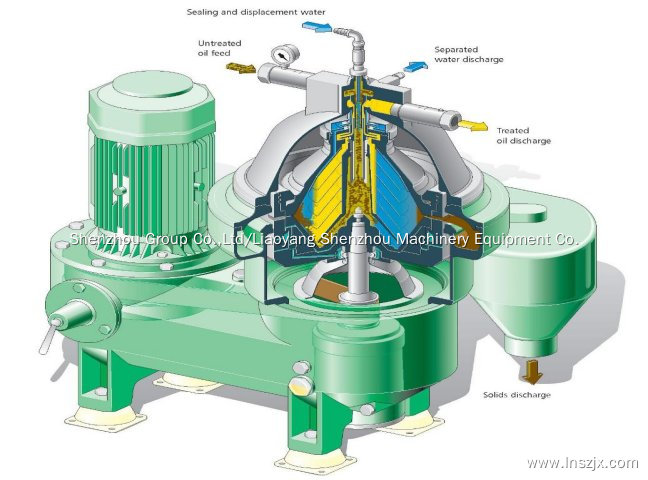

Working principle
The disc stack centrifuge separates solids and one or two liquid phases from each other in one single continuous process, using extremely high centrifugal forces. When the denser solids are subjected to such forces, they are forced outwards against the rotating bowl wall, while the less dense liquid phases form concentric inner layers. The area where these two different liquid phases meet is called the interface position. This can be easily varied in order to ensure that the separation takes place with maximum efficiency.
The disc stack provides additional surface settling area, which contributes to speeding up the separation process dramatically. It is the particular configuration, shape and design of these plates that make it possible for a disc stack centrifuge to undertake the continuous separation of a wide range of different solids from either one or two liquids.

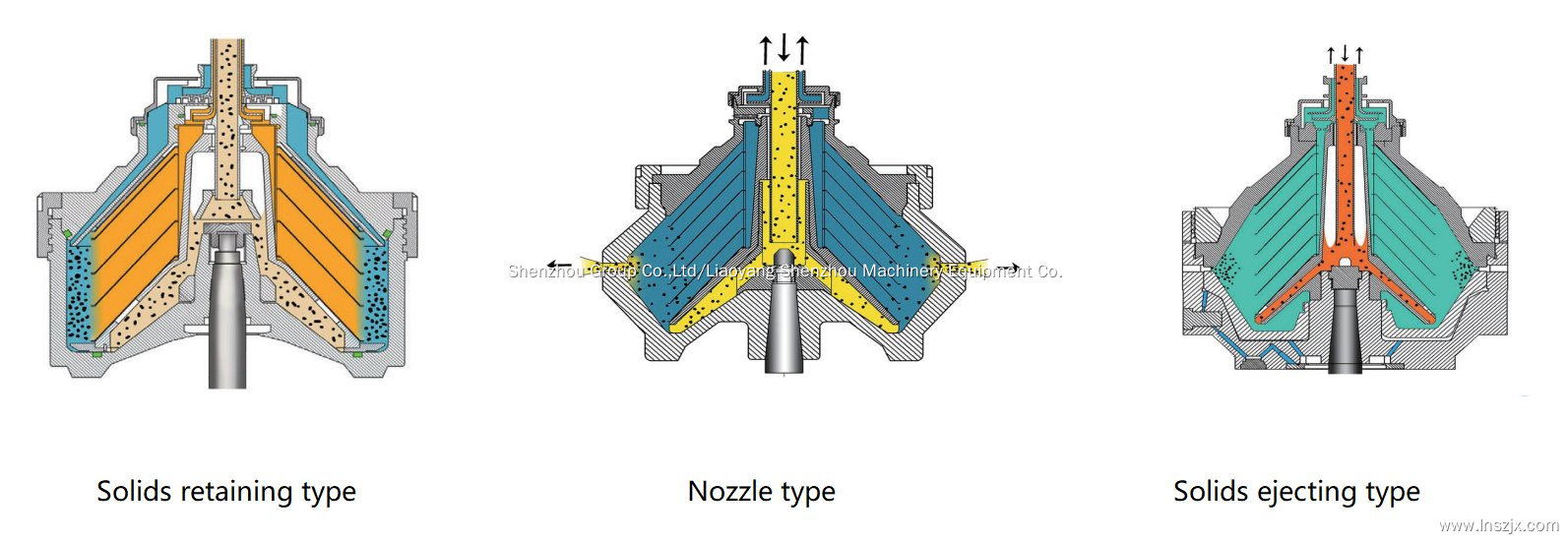

The concentrated solids phase formed by the particles can be removed continuously, intermittently or manually, depending on centrifuge type and the amount of solids involved in the specific application.
 |  |

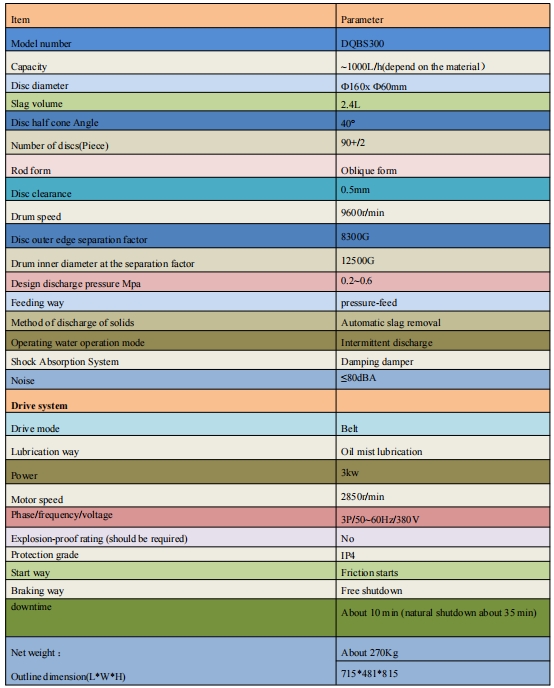

Parameters:
