High Speed Tubular Centrifuge Separator Fruit Juice Centrifuge

Name: High Speed Tubular Centrifuge Separator Fruit Juice Centrifuge
Uploaded: 2026-01-12T11:18:41+08:00
Description: GQ type two phase solid-liquid separator is suitable for solid content lower than 3% solution ,widely used for juice ,algae , bacteria ,fermentation liquid ,clarification process . After separation , the solid will collect in the drum .Then stop the centrifuge and take out the drum for solid discharge .

GQ type two phase solid-liquid separator is suitable for solid content lower than 3% solution ,widely used for juice ,algae , bacteria ,fermentation liquid ,clarification process . After separation , the solid will collect in the drum .Then stop the centrifuge and take out the drum for solid discharge .

Inquiry

Write a Review

Product Description

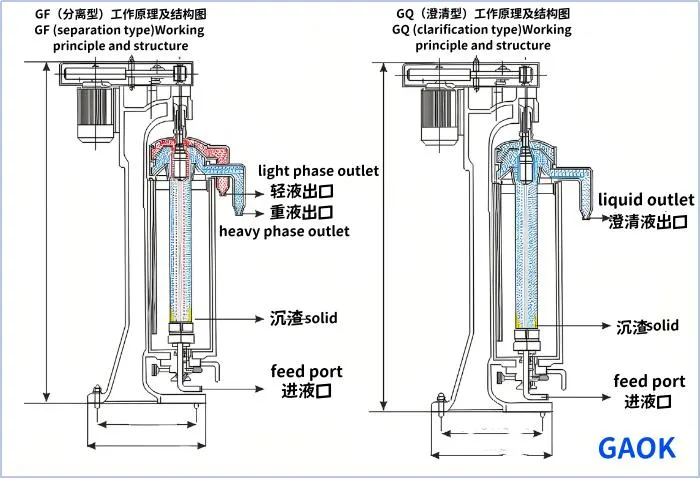

The separator consists of machine body, driving part, bowl, liquid collecting pan and liquid-in bearing seat etc.
The material is sprayed onto the bowl from the inlet on the bottom and strong centrifuge force is formed when the bowl rotates with the material and that makes the material flow upper along the wall of the bowl and then separated because of the different gravity by the centrifuge force.

GQ-clarification

It is mainly used for separating all kinds of suspension difficult to be separated, especially suitable for separation of solid-liquid suspension with light concentration, heavy viscosity, fine particles and very small differential gravity of the two phases.

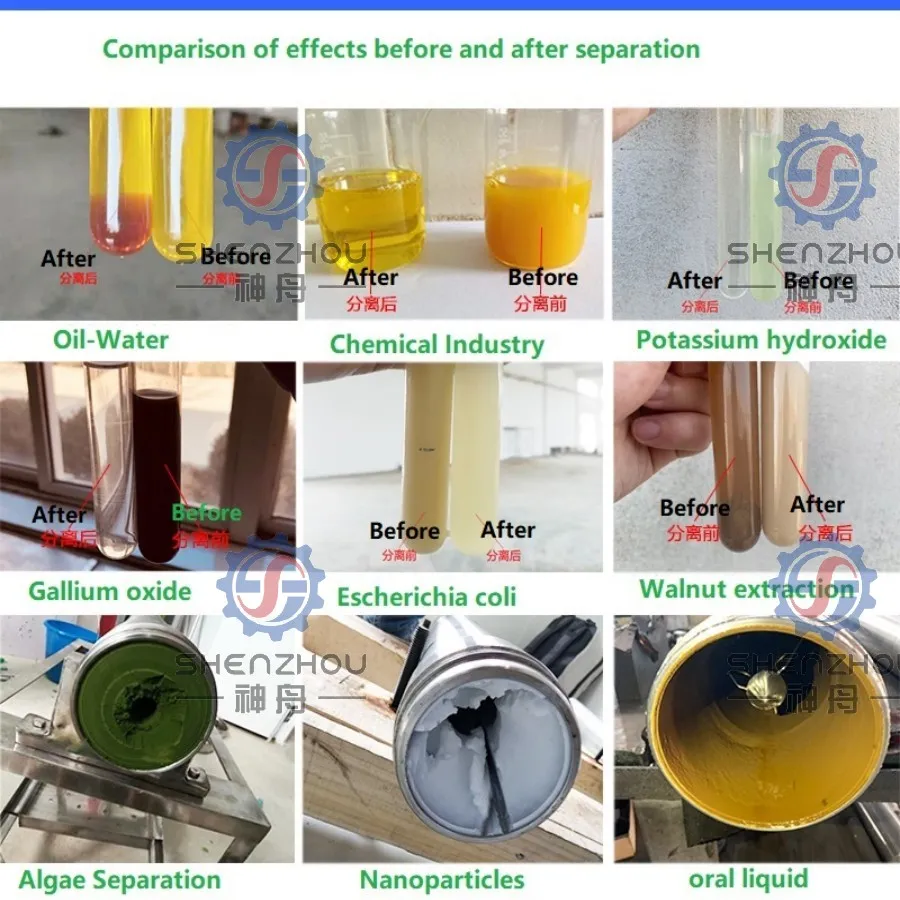

For example clarifying all kinds of glucose chlorhexidine, Various fruit juices ,malic acid, oral solution, radix soghorae tonkinensis,coal tar and graphite; extracting protein,algae, saponin, pectin, sirup; blood separation and all kinds of glucose; refining paint, resin, and latex solution.

It is used for separating various emulsion, especially adaptable for liquid-liquid separation with slight gravity difference and liquid-liquid-solid separation with a little foreign matter, such as separation of various oil and micropowder, extract liquid from plants, separation of plasma and cell, separation of milk cream.

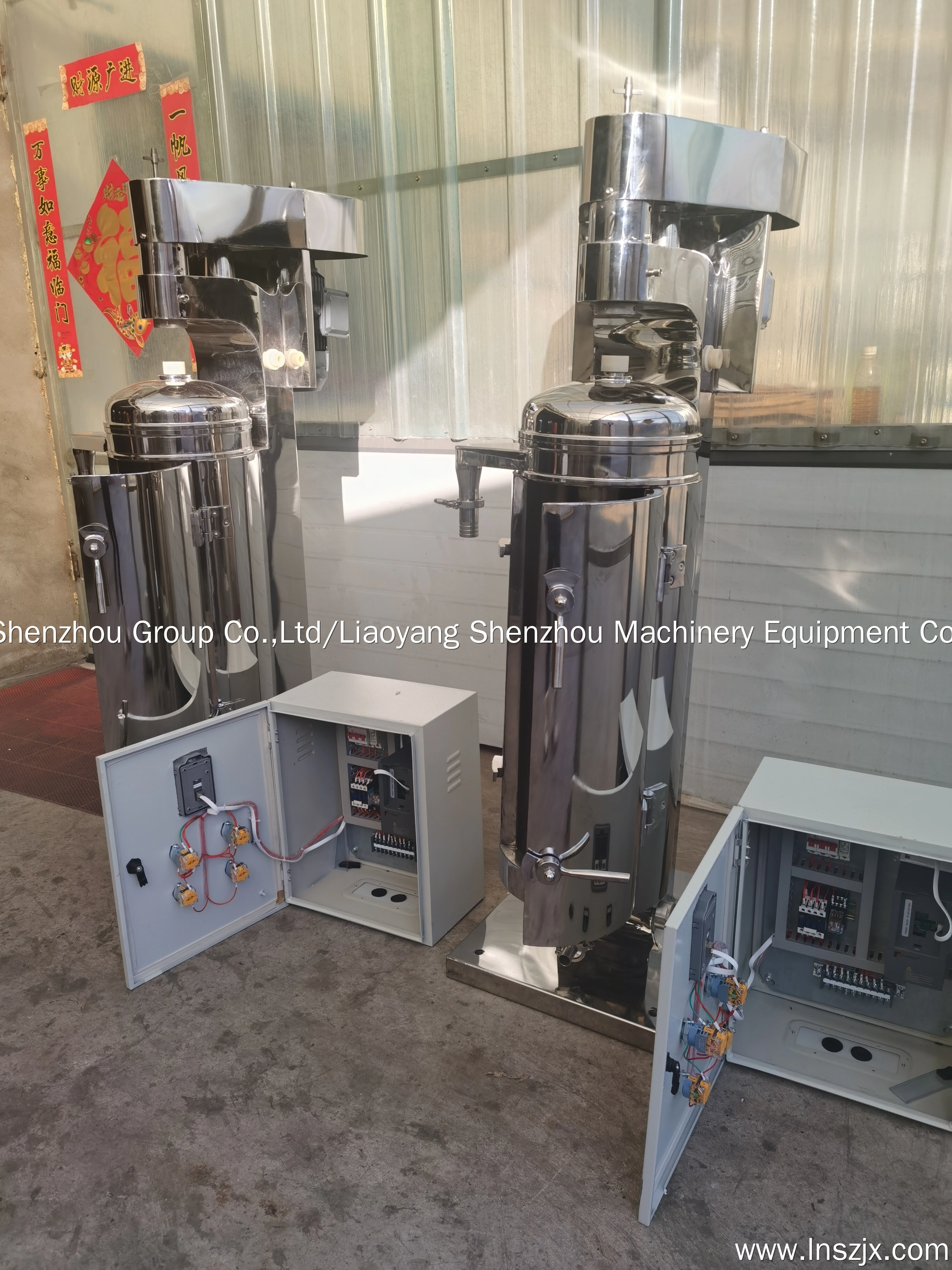

High Speed Tubular Centrifuge Separator Fruit Juice Centrifuge 2

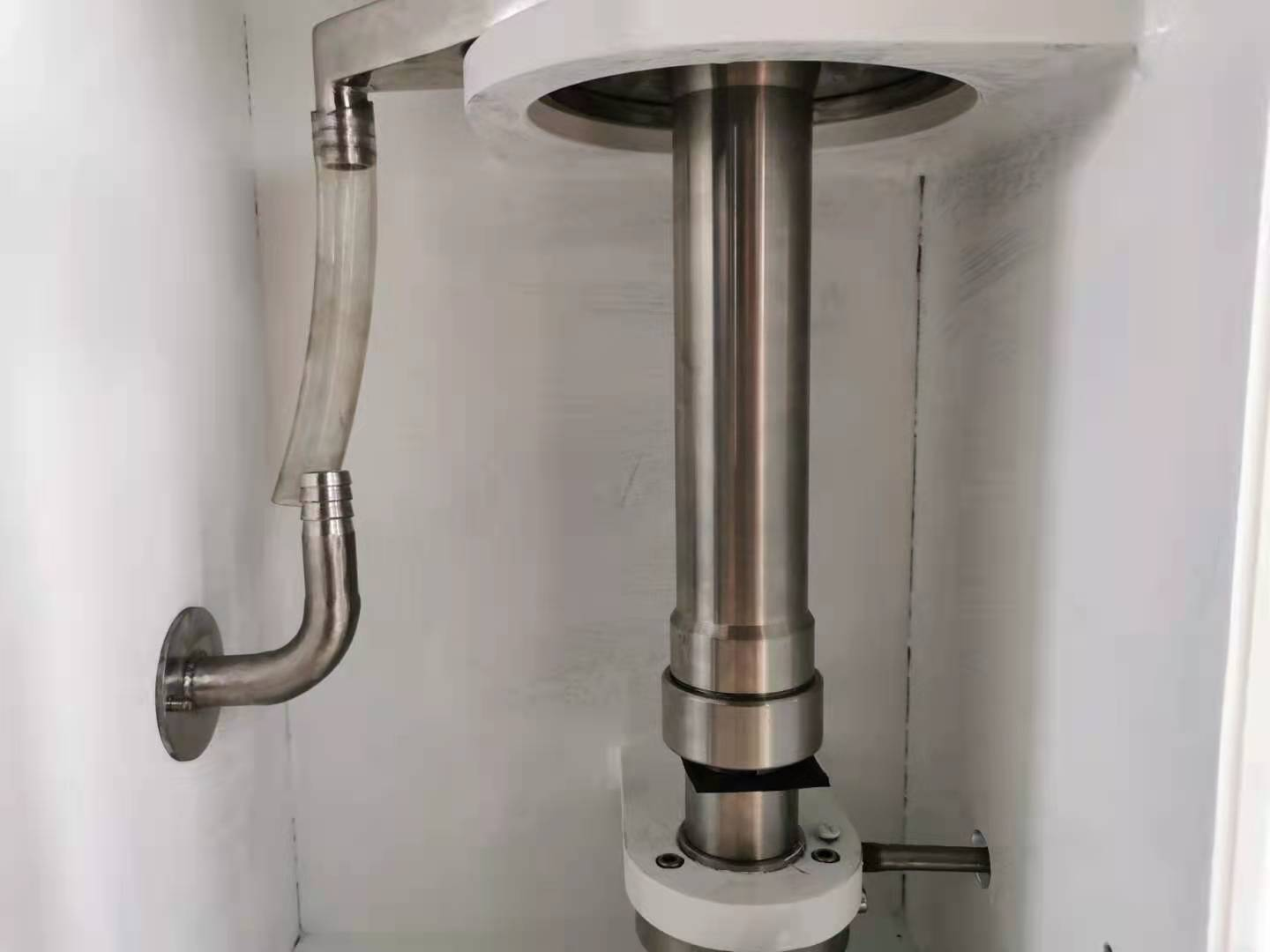

High Speed Tubular Centrifuge Separator Fruit Juice Centrifuge 3

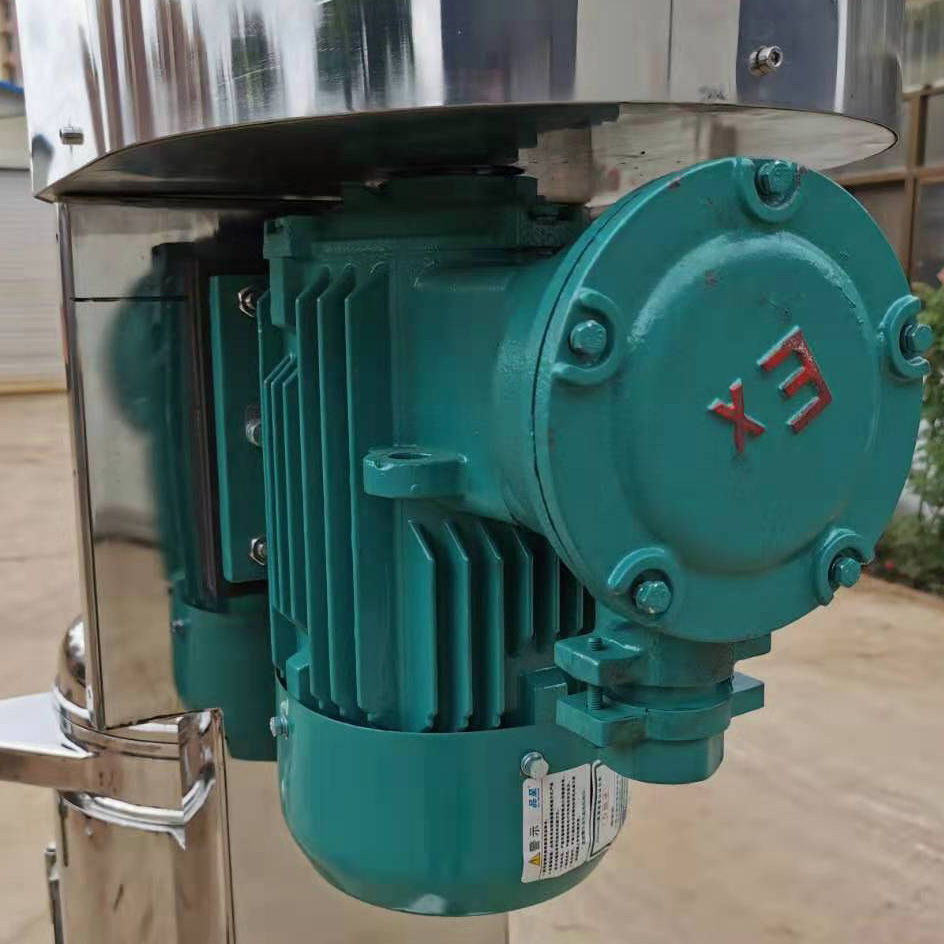

High Speed Tubular Centrifuge Separator Fruit Juice Centrifuge 4

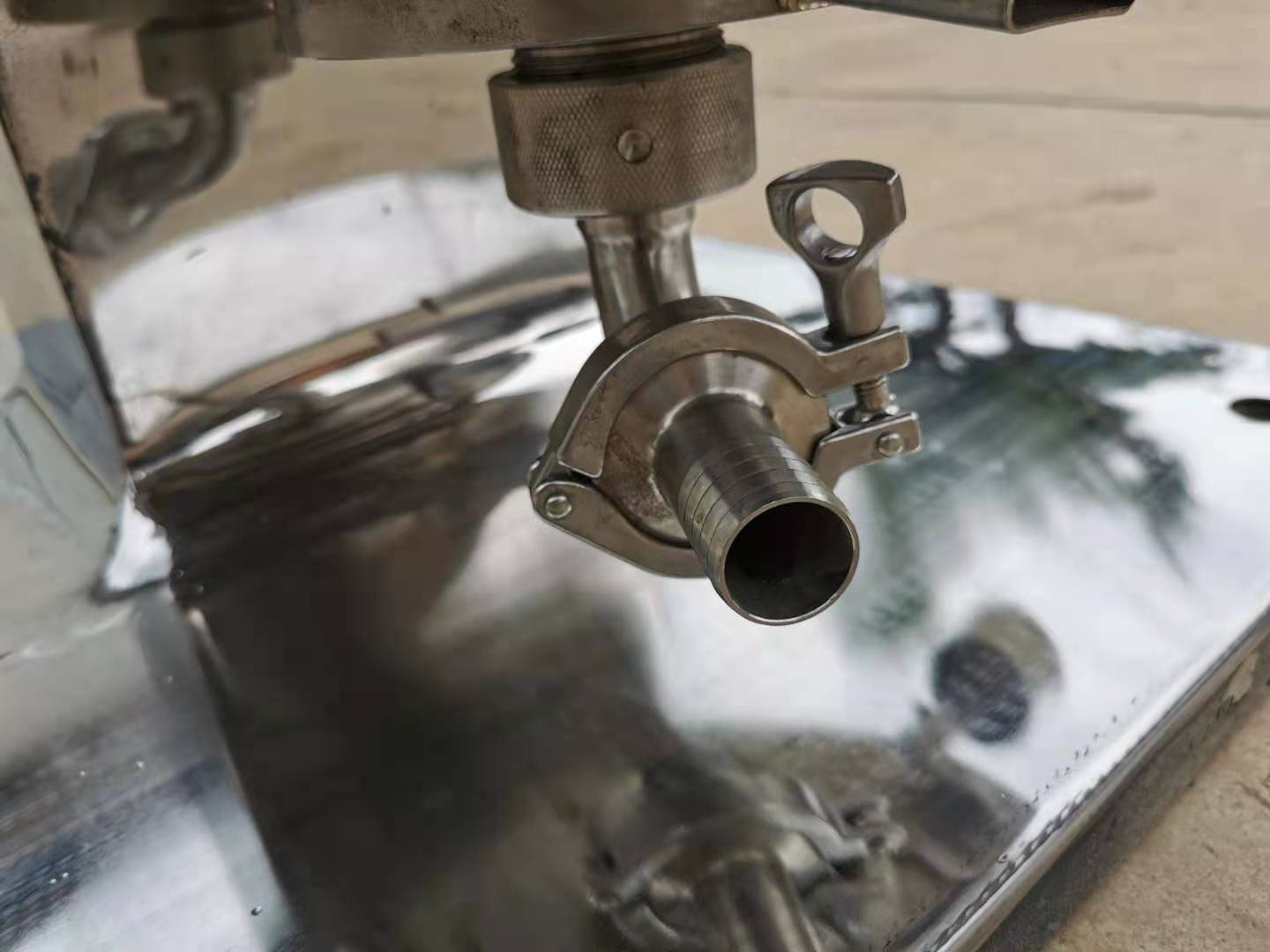

High Speed Tubular Centrifuge Separator Fruit Juice Centrifuge 5

High Speed Tubular Centrifuge Separator Fruit Juice Centrifuge 6

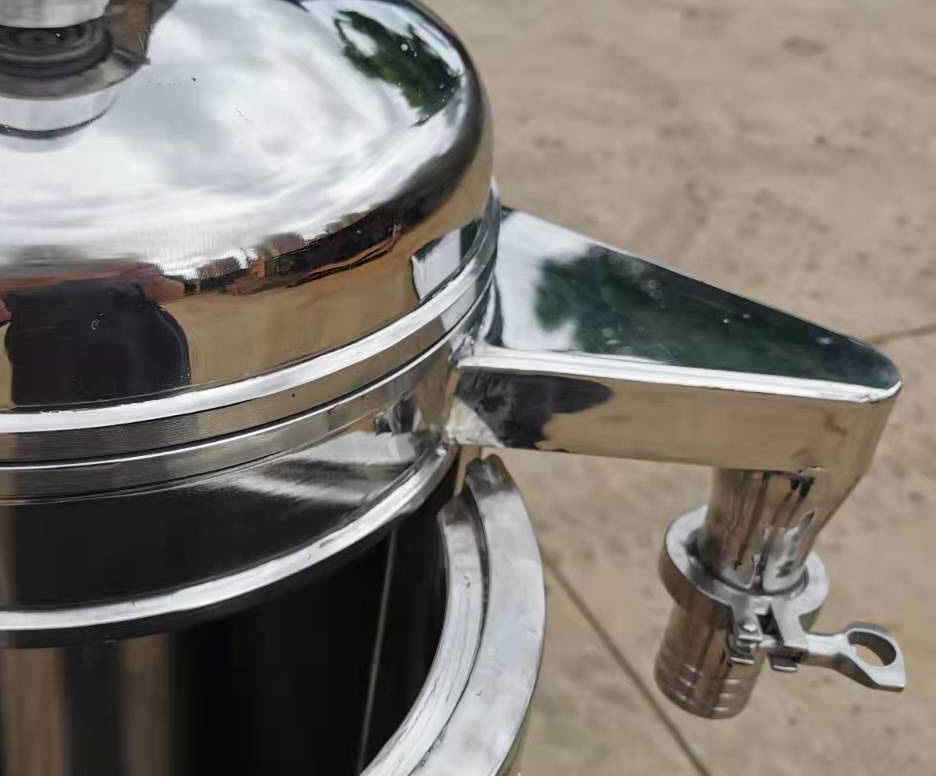

High Speed Tubular Centrifuge Separator Fruit Juice Centrifuge 7

High Speed Tubular Centrifuge Separator Fruit Juice Centrifuge 8

Specification

Items	GF75/GQ75	GF105/GQ105	GF125/GQ125	GF150/GQ150
Diameter/mm	75	105	125	150
Height/mm	450	730	730	730
Volume/L	2.2	6	8	10
Rotation/min	19200	16300	15000	14000
Working Pressure	≥0.05MPa
Water Flow/L	500/600	1200	2000	2500/3000
Gross Power	1.5	3	3	3
Dimension	7604501120	8405001600	9005501600	9005501600
Weight	300	570	610	665
