Pharmaceutical Liquid Separator Separation Equipment
We specialize in the technical development, product testing, manufacturing, sales, and after-sales of disc separators. Our professional team of experts with over 30 years of experience can customize separation solutions for customers in the pharmaceutical, biomedicine, and biochemical industries. We also provide timely and efficient preventive maintenance, troubleshooting, repair, machine refurbishment, and upgrade services.
Working Principle of Separator
In the suspended liquid, multiple phase materials with different densities and indissolubilization obtain different sedimentation rates in the centrifugal force field. Based on this principle, rapidly rotating the disc stake can generate a great G force & more great equivalent sedimentation area, which the differential phase materials can be separated in a short time.
Disc Separator Features:
No filter media consumption, eliminating secondary pollution
Continuous and stable operation
Fast processing speed
Effective treatment
Low energy consumption
Moderate capacity
SIP and CIP functions
Compact footprint
Low operating cost
High automation, reliable operation, and low labor intensity

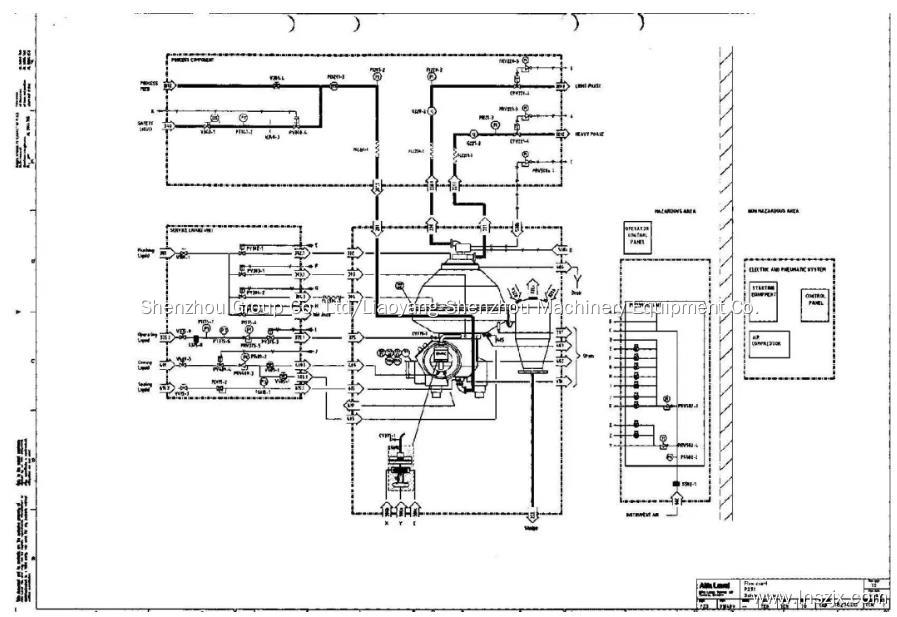

Disc Separator Separation Module System Diagram:
Product Description:

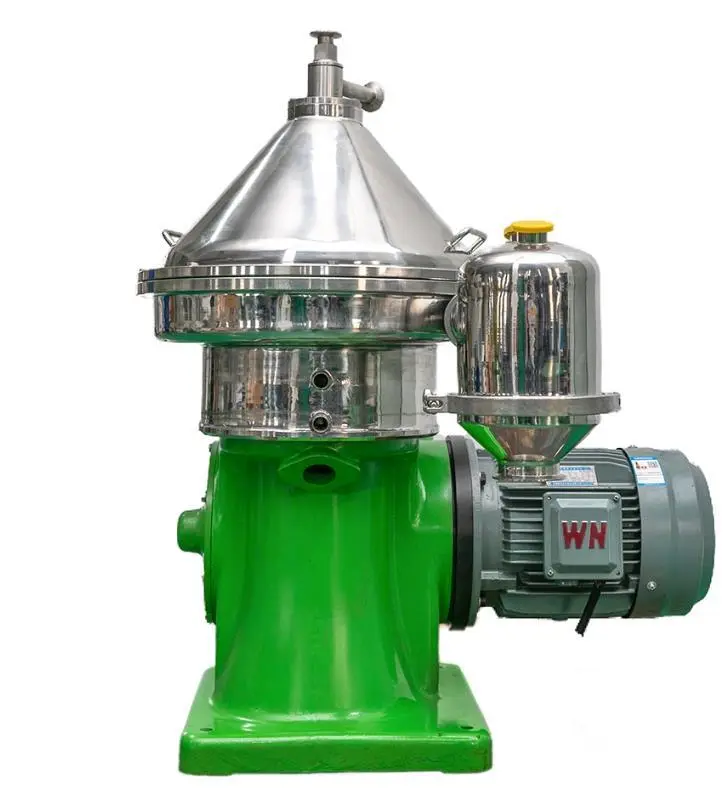

The separator from SHENZHOU
efficiently separates liquid/liquid/solid three-phase and liquid/solid two-phase materials. It can separate non-emulsified liquid particles as small as 2μm and solid particles (including cell debris) smaller than 0.5 microns with a density above 1.02g/ml.
Cell Collection Equipment for Fermentation Industry
SHENZHOU offers DFBS and DQBS series models specifically designed for the biological fermentation industry. These models are crucial for cell collection, impacting product quality, yield, and downstream processing costs.
Model Features:
Meets GMP and CIP/SIP requirements
High separation G force up to 14500G for efficiency and stability
Customizable design options, including single separator or modular design
Typical Applications:
Concentration and clarification of fermented mash (e.g., escherichia coli, bacillus, probiotics)
Extraction of vitamins, antibiotics, hormones
Collection of microbial cells
Extraction of blood product components
Separation and concentration of yeast
Processing Chinese medicine extracts, pharmaceutical intermediates, synthetic pharmaceutical products
Extraction and separation in genetic engineering
