Bacteria Tube Separation Centrifuge For Solid-Liquid Separation
Bacteria Tube Separation Centrifuge is designed for efficient oil-water-residue separation and three-phase separation applications. Using high-speed centrifugal force, it separates fine solid particles from liquids while enabling the continuous separation of two immiscible liquid phases and solids. It is suitable for bacteria processing, fermentation broth clarification, bio-based production, and other applications requiring high-efficiency separation of oil, water, and residue.

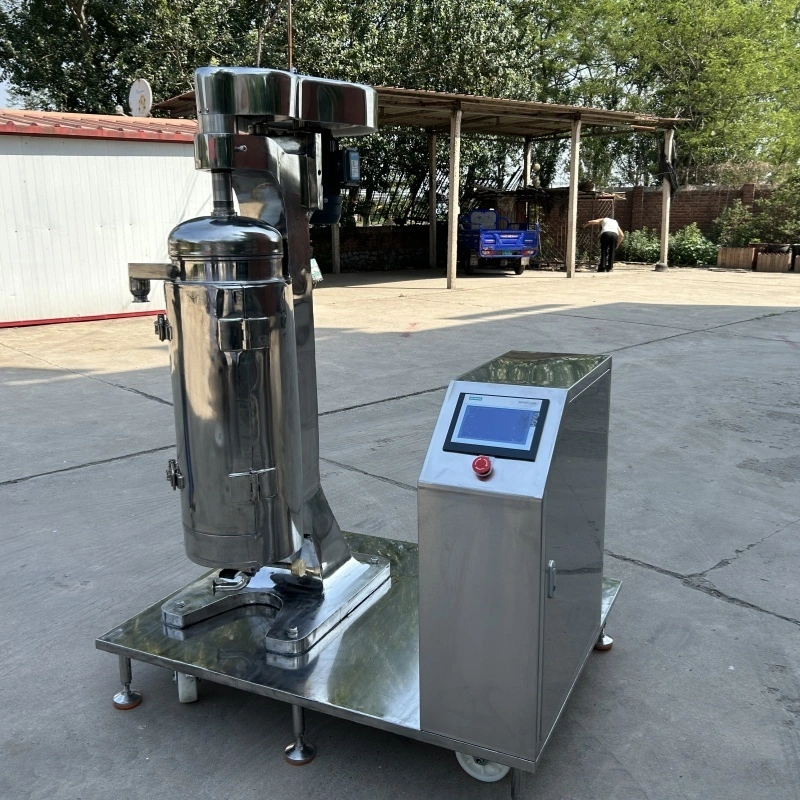

Bacteria Tubular Centrifuge with Cooling and Sterilization Functions
The GQ Type Bacteria Tubular Centrifuge is designed for efficient solid-liquid separation, featuring integrated cooling and sterilization functions for bacteria and other sensitive material processing applications.
The tubular centrifuge consists of a main body, transmission device, high-speed drum, liquid collecting tray, and liquid-feeding bearing base. A flexible main shaft is installed at the top of the drum, while a damping floating bearing supports the lower end. The main shaft is connected to the driven wheel through a buffering device. Power from the motor is transmitted through the conveyor and fastening wheel, driving the drum to rotate at high speed around its central axis and generating a strong centrifugal force field.
During operation, the material enters through the bottom feeding inlet. Under the action of high centrifugal force, the liquid flows upward along the inner wall of the drum. Materials with different densities are separated into different layers, enabling efficient and reliable solid-liquid separation.
This bacteria tubular centrifuge is widely used for many fermentation broth liquid -solid separation process , such as escherichia coli Probiotics and vaccines extraction process . if need low separation temperaturer , this tubular centrifuge also can have cooling coil ,for low separation temperature . it has over 14000rpm speed , also can remove 99% solid from liquid .if need this bacteria centrifuge , contact us , we need to according to your treat capacity to choose suitable model , different model different price .
Technical Parameter:
