Tube type high-speed centrifuge solid-liquid separator oil-water separator

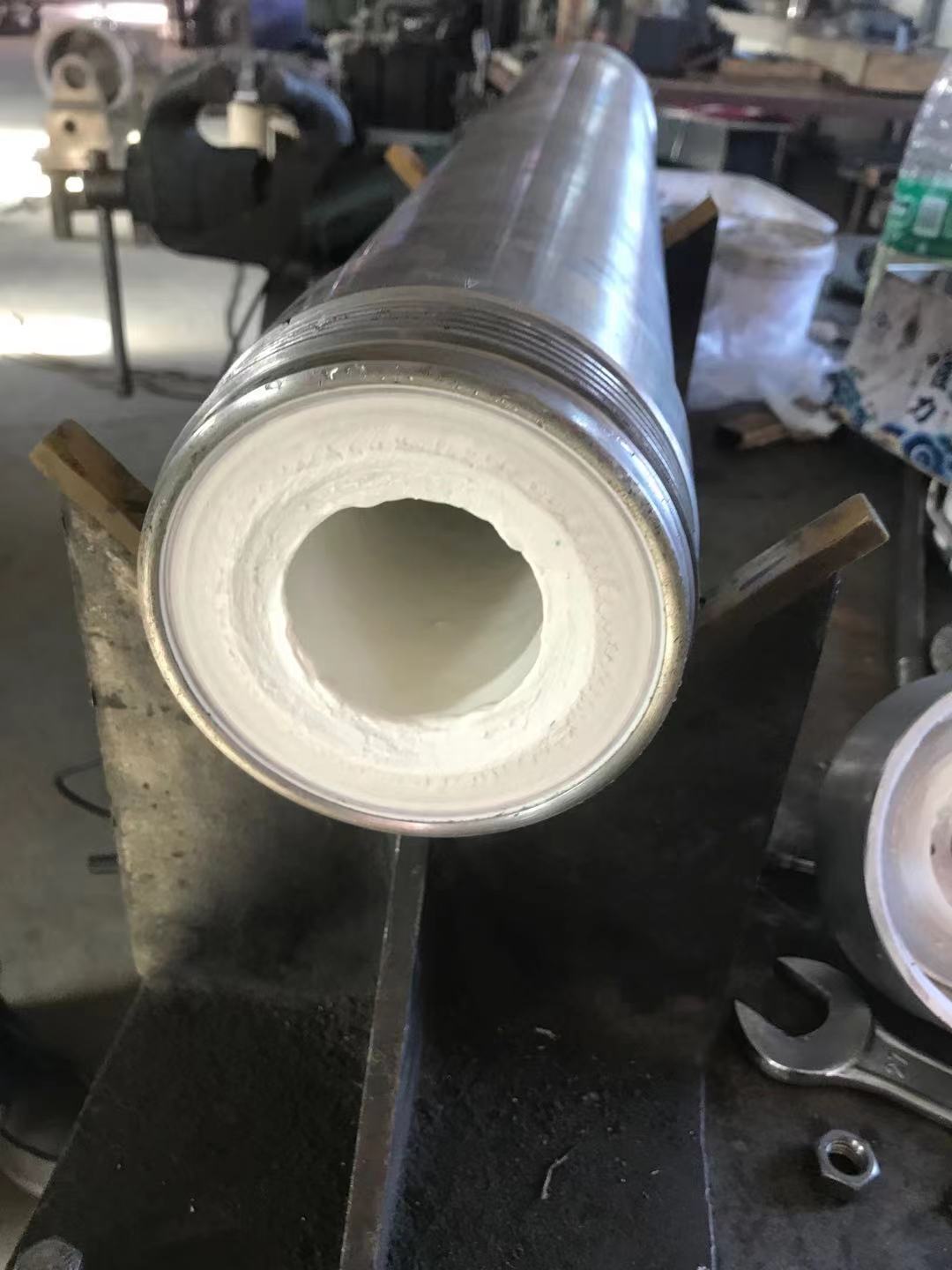

The working principle of a tube centrifuge is based on the action of centrifugal force to achieve material separation. Specifically, a tubular centrifuge is driven by an electric motor to rotate a tubular drum at high speed, and there are no holes on the side of the drum. The suspension enters from the center of the bottom of the drum, and under the action of centrifugal force, the solid with higher density quickly settles on the inside of the drum to form a solid layer. The clarified liquid is drawn out from the clarified liquid outlet at the central axis of the drum, achieving solid-liquid separation. one
There are two main types of tube centrifuges: separation type and clarification type. The separation type is mainly used to separate various difficult to separate emulsions, especially suitable for liquid-liquid separation with minimal density difference between two phases, as well as liquid-liquid solid three-phase separation with small amounts of impurities. Clarifying type is mainly used for separating various suspensions that are difficult to separate, especially suitable for solid-liquid separation with low concentration, high viscosity, fine solid particles, and small solid-liquid density difference. one thousand two hundred and thirty-four
The advantages of tube centrifuge are simple structure, small drum diameter, high speed, and good separation effect, which are suitable for processing difficult to separate emulsions and suspensions
Bacteria Tubular Centrifuge with Cooling Function and Sterilization Function

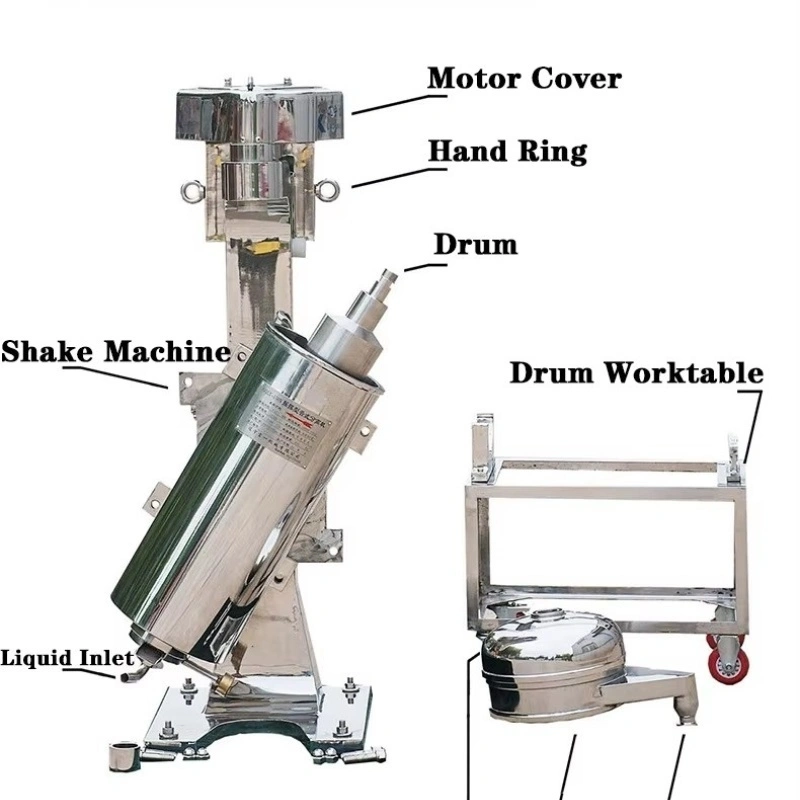

GQ Type tubular centrifuge is composed of main body, transmission device, drum, liquid collecting tray, and liquid-feeding bearing base. There is a flexible main axis on the top of drum, and a damping floating bearing at its bottom. With the linked buffering device, the main axis is connected with the passive wheel. Through the conveyor and the fastening wheel, motor provides power for the passive wheel, so the drum rotates around itself axis by high speed, and form strong centrifuge force field. Materials are launched from the bottom feeding inlet, by the centrifugal force, liquid flows upward along the drum wall, and is separated to layers because their different density.
This bacteria tubular centrifuge is widely used for many fermentation broth liquid -solid separation process , such as escherichia coli Probiotics and vaccines extraction process . if need low separation temperaturer , this tubular centrifuge also can have cooling coil ,for low separation temperature . it has over 14000rpm speed , also can remove 99% solid from liquid .if need this bacteria centrifuge , contact us , we need to according to your treat capacity to choose suitable model , different model different price .
Technical Parameter:
