Always striving toward excellence, Shenzhou has developed to be a market-driven and customer-oriented enterprise. We focus on strengthening the capabilities of scientific research and completing service businesses. We have set up a customer service department to better provide customers with prompt services including order tracking notice. disc stack centrifuge We will do our best to serve customers throughout the whole process from product design, R&D, to delivery. Welcome to contact us for further information about our new product disc stack centrifuge or our company.Advanced technology and latest machines & equipment are used to manufacture Shenzhou disc stack centrifuge in accordance with the international production standards.

Are you planning to buy the bulk of High Rotating Speed Industrial Oil Separator For Vegetable / Animal Oil Purifying Disc centrifuge? High-end technologies helps us ensure High Rotating Speed Industrial Oil Separator For Vegetable / Animal Oil Purifying Disc centrifuge quality, improve manufacturing efficiency, and reduce manpower input. It has extensive uses in the field(s) of Separation Equipment. Our capable staff has been devoted to the improvement and upgrades of technology.In the Separation Equipment,the product is widely used.

Product Description

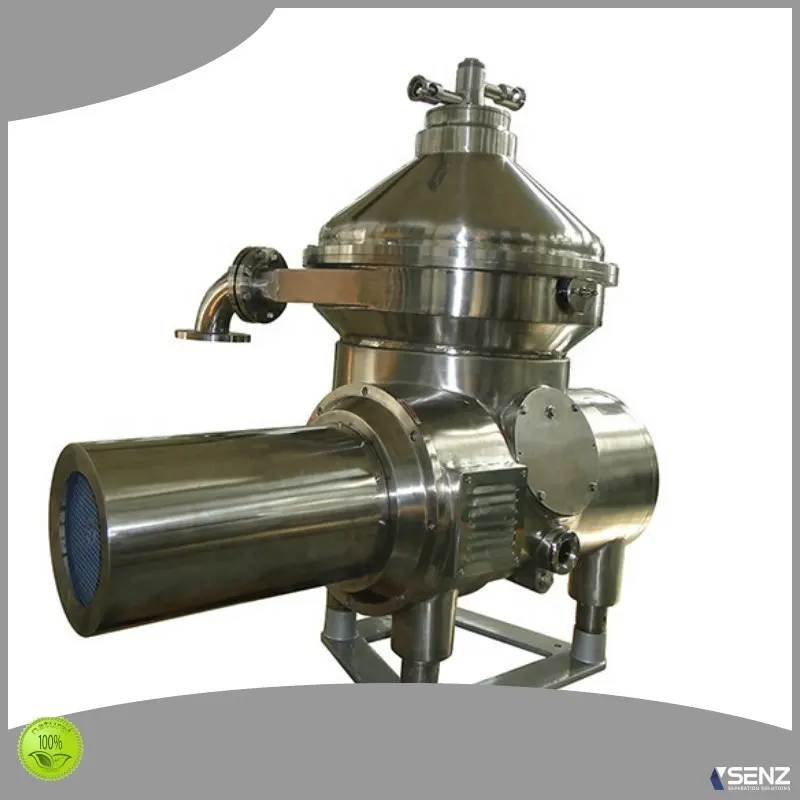

High Rotating Speed Industrial Oil Separator For Vegetable / Animal Oil Purifying Disc centrifuge

The separator mainly consists of inlet/outlet, drum, cover, vertical shaft, cross shaft, base, motor and automatic control box, etc.

DHZ series disc centrifuge for vegetable oil refining are widely used in continuous degumming, neutralizing, dewaxing, and washing of vegetable oils. The DHNZ series cream separator from SHENZHOU have been designed to create a soft separation environment which could ensure the active ingredient in the material is not destroyed. Max. capacity: 10,000 L/h

Model	Treatment capacity (L/H)	Inlet Pressure (Mpa)	Outlet pressure (Mpa)	Motor power (Kw)	Weight (Kg)	Outline dimension (mm)
DHN360	2000-5000	0.05	0.1-0.35	7.5	1200	1530*1150*1500
DHN470	5000-10000	0.05	0.1-0.4	15	1600	1800*1200*1750
DHN550	10000-20000	0.05	0.1-0.4	22	2300	1950*1550*1960
DHN616	25000-35000	0.1	0.3	37	3000	2185*1728*2082

Specification

Model	DHNZ360
Treatment capacity (L/H)	2000-5000
Inlet Pressure (Mpa)	0.05
Outlet pressure (Mpa)	0.1-0.35
Motor power (Kw)	7.5
Weight (Kg)	1200
Outline dimension (mm)	1530*1150*1500

Application area:
* 1Warm milk separation
* 2 Cold milk separation
* 3 Whey separation
* 4 Buttermilk separation
* 5 Milk and whey clarification
* 6 Milk standardisation

This series cream separator come complete with control unit, electric motor, inlet and outlet devices, set of erosion-protective parts, illuminated sight glass box for light phase outlet, vibration switch, base plate, set of tools and standard set of spares

Working Principle

How does Disc Separator work?
The disc separator is in vertical structure. The drum is mounted on the upper end of the vertical axis, which is driven by a motor and rotates at a high speed. There is a set of disc - shaped parts that are stacked together in the drum, with a small gap among them. When the suspension (or emulsion), which is pumped into the drum by feeding tube located in the center of the drum, pass through the gap between the discs, solid particles (or droplets) would settle down to form sediment (or liquid layer) on the disc by centrifuge force, and then the sediment slid along the surface of the disc and separated from the disc to accumulate in the largest diameter of the drum. At last, the separated liquid discharged from the outlet. The disc is utilized to shorten the settling distance of solid particles or droplets, enlarge the settlement area of the drum, and improve the production capacity of the separator. The solids accumulated in the drum are removed from the drum by manual after the machine stop, or out of the drum in the case of a dregs machine without stopping.

Main Structure

Powerful Motor provide power through the thermal coupling to drive drum in high-speed rotating around the main axis. And the liquid material is carried by feeding pipe located in the upper center into the bottom of the drum, and then led in the porthole below the disc and driven to the drum wall. Under centrifugal force, solid- liquid-liquid do the below motion to complete thorough separation:solid phrase, which is heavier than liquid, would sink into the inner wall of the drum for sediment formation; light liquid flow in centripetal pump, and be discharged by liquid outlet; The heavy liquid tends to the drum wall along the cone inside the disc, and then flows upward through through the heavy liquid concentric pump to be discharge from the outlet.

Due to the double-conical design of the inner cavity of the drum, it can compress the slag and increase its concentration.
Besides, some nozzles is mounted around the drum to spray slurry sediment, whose number and aperture are determined on the properties of the suspension, the degree of concentration and the amount of treatment.
In order to improve the slag concentration, recovery device is configured with this disc separator to the discharged sediment for reuse. For the solid concentration of the slag can be increased by 5~20 times than that of the feeding materials.
The processing capacity of the separator is up to 30t/h, which is suitable for suspension with solid phrase in diameter of 0.1~100 microns and concentration less than 10% (maximum to 25%).

Company Profile

Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so onAt the same time,our product with best prices and good quality,welcome to Shenzhou!

Packing & Delivery

wooden case
