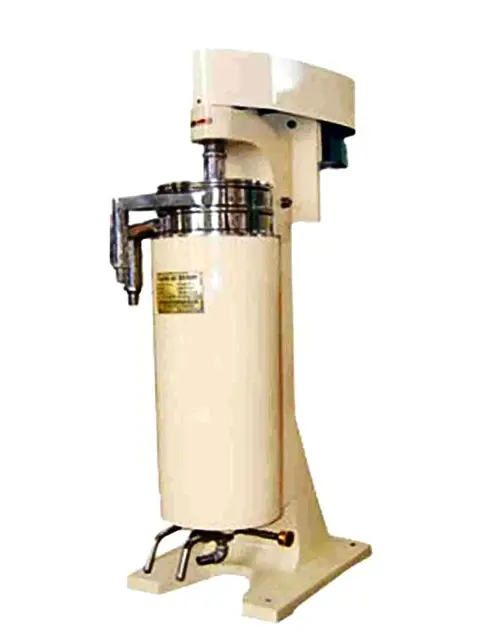

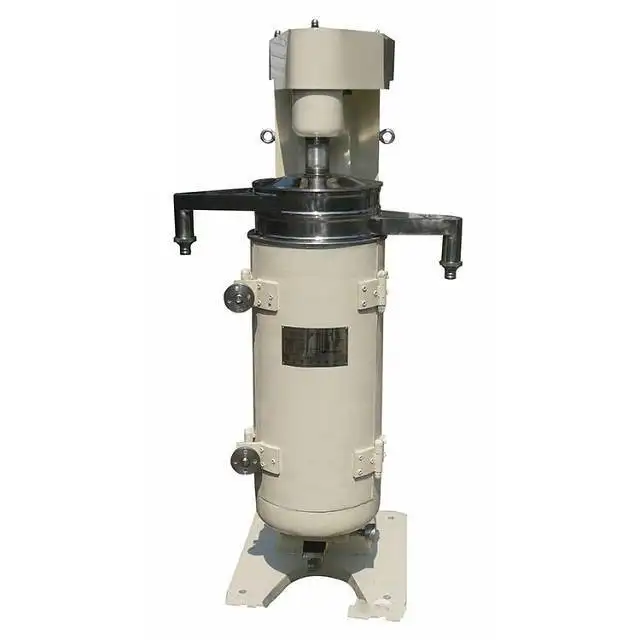

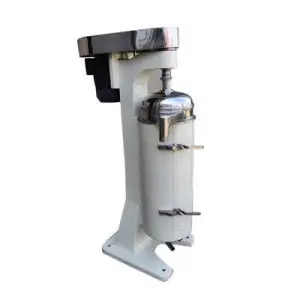

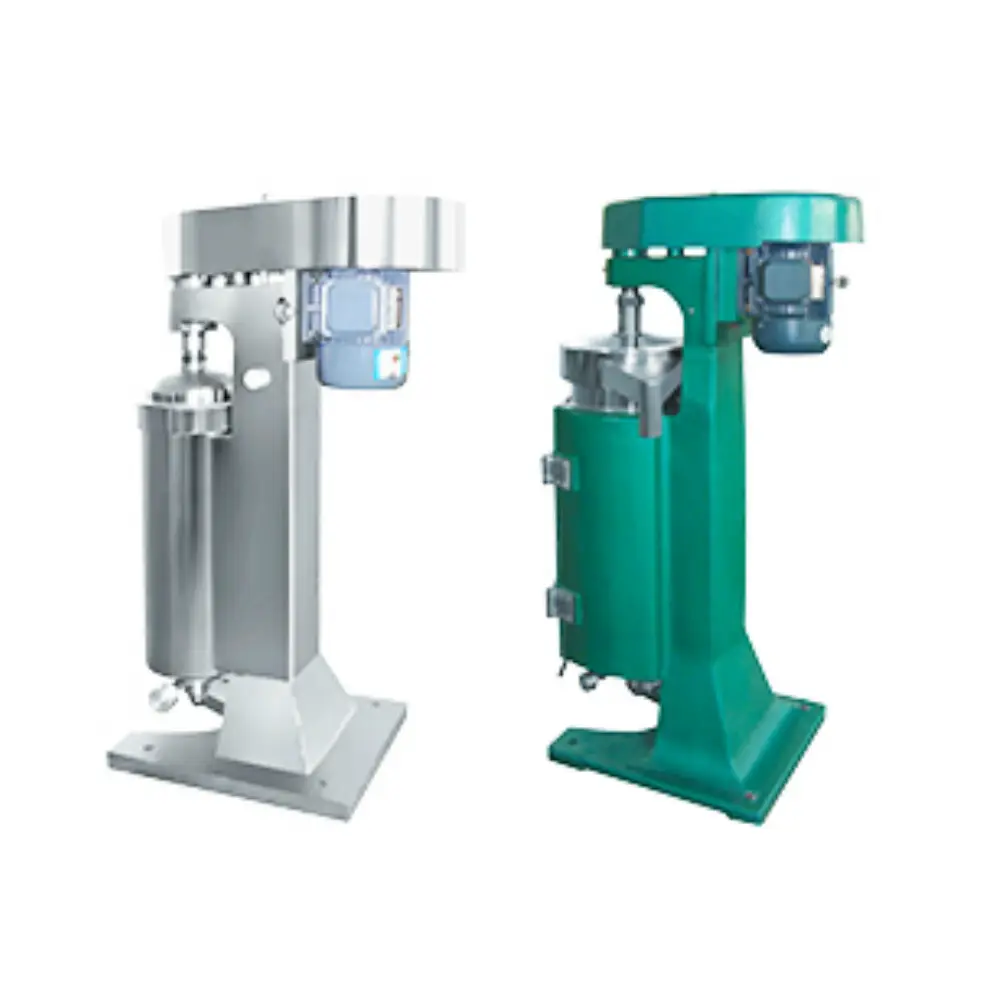

    Environment-Friendly Tubular Centrifuge Machine

    The Environment-Friendly Tubular Centrifuge Machine is a high-speed centrifugal separator that is designed to separate liquids and solids efficiently. It is equipped with advanced technology that minimizes energy consumption and reduces environmental impact. With its efficient performance, low maintenance requirements, and eco-friendly design, this machine offers a sustainable solution for various industries.
    SEND INQUIRY NOW
    Products Details
  • Feedback

    • Product advantages

    The Environment-Friendly Tubular Centrifuge Machine is designed with eco-friendly materials and production processes, keeping in mind the impact on the environment. Its innovative design allows for efficient separation of liquids and solids with minimal energy consumption, making it a sustainable choice for industrial applications. With features such as high-speed operation and easy maintenance, the tubular centrifuge machine offers a reliable and environmentally conscious solution for various industries.

    Company profile

    Company Profile:

    Our company is dedicated to providing innovative solutions for industrial separation processes. With a focus on environmental sustainability, we have developed the Environment-Friendly Tubular Centrifuge Machine. This cutting-edge technology offers efficient separation of liquids and solids while minimizing energy consumption and waste generation. Our team of engineers and experts is committed to delivering high-quality products that meet the needs of our customers while helping to protect the planet. Choose our Tubular Centrifuge Machine for a reliable and eco-friendly solution for your separation needs.

    Why choose us

    With a commitment to sustainability and innovation, our company specializes in providing environment-friendly tubular centrifuge machines. Our cutting-edge technology allows for efficient separation of liquids and solids, making it an essential tool for various industries. We prioritize eco-friendly practices in our manufacturing process, ensuring that our products meet the highest standards of environmental responsibility. Our team of experts are dedicated to delivering top-quality centrifuge machines that not only meet the needs of our customers but also contribute to a cleaner and greener future. Choose our company for reliable and environmentally-conscious solutions.

    Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd always keeps well informed about the technical development and new product R&D, which guarantees we can develop new products on a regular basis. Our range of Separation Equipment are made with the best ingredient. Over the years,Ink Tubular Centrifuge for Liquid Liquid Solid has been widely recognized by customers who have cooperated.

    Place of Origin:Liaoning, ChinaType:Centrifuge
    Product Type:PlantCondition:New
    Video outgoing-inspection:ProvidedMachinery Test Report:Provided
    Marketing Type:Hot Product 2019Warranty of core components:1 Year
    Core Components:Bearing, MotorBrand Name:Shenzhou
    Voltage:CustomerizedPower:Model choosing
    Weight:460Dimension(L*W*H):850*750*1650mm
    Warranty:1 YearKey Selling Points:Easy to Operate
    Applicable Industries:Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Printing Shops, Construction works , Food & Beverage Shops, Advertising Company, centrifuge, animal feed factory, Blood plasma factoryShowroom Location:None
    Certification:GMP/CE

    Product Description
    Ink Tubular Centrifuge for Liquid Liquid Solid
    Liquid-Liquid-Solid Centrifugal Filters Oil Water Separation Tubular Centrifuge
    Structure and principle: The separator consists of machine body, driving part ,bowl, liquid collecting pan and liquid-in bearing seat etc. The material is sprayed onto the bowl from the inlet on the bottom and strong centrifuge force is formed when the bowl rotates with the material and that makes the material flow upper along the wall of the bowl and then separated because of the different gravity by the centrifugal force.
    GF-for separation: Heavy liquid forms outer ring and light liquid forms inner ring. They flow to the top of the bowl and discharge from their respective outlet. And the little solid is settled on the wall of the bowl and discharged manually after the machine stops.
    GQ-for clarification: Heavy solid is deposited on the inner wall of the bowl，and forms the sludge. And it will be
    discharged by manual after the machine stops. The clear liquid flows out of outlet from the top of the bowl. It is mainly used for separating all kinds of suspension difficult to be separated, especially suitable for separation of solid-liquid suspension with light concentration, heavy viscosity, fine particles and very small differential gravity of the two phases. The motor connect with the big pulley and delivery the power to the spindle through the belt, tensioner and small pulley and rotate with the bowl in high-speed as the clockwise. The high speed tubular centrifuge is mainly used in liquid-solid separation, liquid-liquid-solid separation in bio-pharmacy, beverage, chemical industry. It is an ideal separation equipment by centrifuging, especially for those feeding with little gravity difference, and small dimension in diameter.
    Working principle of Tubular Separator
    Consist of the machine cover, driving device, drum, liquid catch tray, the liquid inlet and bearing seat, this separator with high running speed, belongs to sedimentation separator. The upper drum is a flexible shaft, while the lower is damping floating bearing. The main shaft is connected by a coupling buffer and a passive wheel. Motor transmit power from the transmission belt and tension wheel to passive wheel, to drive the drum rotate around its own axis with high-speed, and thus form a strong centrifugal force field. All the materials are fed from liquid inlet under the bottom, and flow upward along the drum wall by centrifugal force fluid. During this process, the dense liquid phase forms the outer ring, and the small liquid phase forms the inner ring,
    which separately flow to respective liquid outlet mounted on the upper drum.
    When the thickness of the sediment affect the liquid phase clarification or the capacity of the rated slag weight in the drum, the dregs of the drum wall should be removed manually after the shutdown.

    Application：Tubular Separator is mainly used for separating all kinds of suspension which is difficult to be separated, especially suitable for separation of solid-liquid suspension with light concentration, heavy viscosity, fine particles and very small differential gravity of the two phases. such as clarification of herbs plants extracts, various medicine liquor, liquid medicine, oral liquid, the extraction of paint, dye, as well as various proteins, alga, fruit gels, and purification of rubber solution, coal tar, graphite, saponin, pectin, sirup, vaccine mycelia and all kinds of glucose; refining resin, and latex solution, enzyme (SOD) of oxide, various kinds of albumens, the glucoside of the soap, etc.
    Specification
    Item
    GQ(F)L45
    GQ(F)L75
    GQ(F)L105
    GQ(F)L125
    GQ(F)L150


    Drum
    Inner
    diameter
    (mm)


    45


    75


    105


    124


    142
    Effective
    height(mm)


    280


    430


    730


    735


    700
    sediment
    capacity(L)


    0.45


    2


    5.5


    7.5


    10
    Rotating
    speed(r/min)
    28000
    20000
    16000
    15000
    14000
    Separating
    factor


    19800


    16770


    15025


    15500


    15570
    Material inlet pressure (Mpa)


    >0.05


    >0.05


    >0.05


    >0.05


    >0.05
    Production capacity(Kg/h)


    ~100


    ~500


    ~1000


    ~2000


    ~3000


    Motor


    Item
    Universal motor


    Y90S-2


    Y90L-2


    Y(B)112M-2-B5


    Y100L-2
    Power(Kw)
    0.6
    1.5
    2.2
    4.0
    3.0
    Rotating
    speed(r/min)


    4500


    2840


    2880


    2890


    2880
    DimensionL×W×H(mm)
    580×650×750
    950×1230×1600
    800×1200×1600
    1010×510×1715
    1020×600×1558
    Weight(Kg)
    120
    300
    400
    565
    500


    Cooling tube
    Heat dissipation


    0.5


    0.5


    1.3


    0.553
    Loading
    pressure (Mpa)


    1


    1


    1


    <2.4
    Main technical features
    1. The unique design of interior blade is more suitable for the isolation of the fermentation bacteria than the conventional
    tubular separators. Equipped with reverse stop device, the residual mother liquid can be retained completely without loss once the machine stop.
    2.With advantages of high separation factor and strong separation ability, It is applicable to separate and clarify the materials which is difficult to separate by ordinary centrifuge and all kinds of emulsion liquid such as transformer oil, lubricating oil, fuel oil, turbine oil, grease, dyes, and saponification separation and so on.
    3.Simple structure in linear type ,easy in installation and maintation.
    4.Adopting advanced world famous brand components in bearing parts, electric parts and operation parts.
    5.Running in a high automatization and intellectualization,no pollution
    6.Simple to set up, use and clean for minimal down-time between separations
    7. No replacement membranes or costly disposables
    8.3-phase electric motors provide power for rapid acceleration and quieter operation.
    9.Small footprint.
    Details Images
    Points for Operating the Tubular Separator
    * When the percentage of impurities or solids in the liquid is less than 0.5%, the ideal separation effect will be realized. If
    the percentage is higher than 0.5%, the solution should be clarified first
    * High groove is used to feed materials. If the liquid is of large viscosity, it can also be pumped.
    * Measurement for proper materials inlet pressure: when materials are fed by the nozzle into the separator, the proper inlet
    pressure is depended on property of materials the nozzle into the separator,to spray materials at least half up onto the drum.
    Low pressure will cause part of the liquid not fed into drum and slide into the bearing seat at the bottom of the drum to
    outflow from overflow mouth, while the high pressure will affect the separation quality and lead to the vibration of the
    machine.
    * The inside diameter of feeding tube shall be large enough to be controlled by valve and be convenient for user to adjust
    according to flow rate and output.
    * The separator is equipped with nozzle in different diameter, to fit different the separation quality and yield.If small
    production with high quality, the small nozzle is used, and vice versa.

    Suggestion from SHENZHOU
    Earned high reputation and good feedback from global customer among all of our products, High-speed Tubular Separator is capable of applied in a variety of biological processes from cell harvesting and clarify to separation of chemical, food, blood and pharmaceuticals.
    High performance is consistently achieved in continuous, semi-continuous or batch operations. Include a range of sizes from research to production, our tubular separator provide an efficient and cost-effective technology to separate from one to several thousand liters of biological cultures and other mixtures. For extremely high solids concentrations, drum centrifuge for high performance separations can be supplied.
    Customer’s working Show

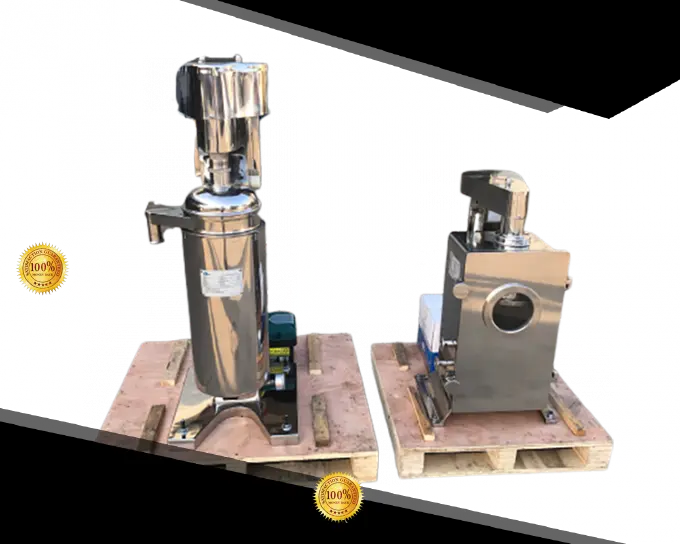

    Packing & Delivery
    To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
    FAQ
    1. What certificates do you have?
    We can provide CE, ISO 9001, etc

    2. What is the warranty period of the equipment?
    Normally 1 year warranty.

    3. Can we visit your factory?
    Of course, we sincerely invite you to visit, If it's not convenient for you to come to our factory, you can also visit by
    telephone video conference.

    4. What's payment you accept?
    A4: T/T, Western Union, L/C, Ali Pay, etc

    5. Can it be customized?
    Of course, our equipment can be customized according to the actual requirements of customers.
