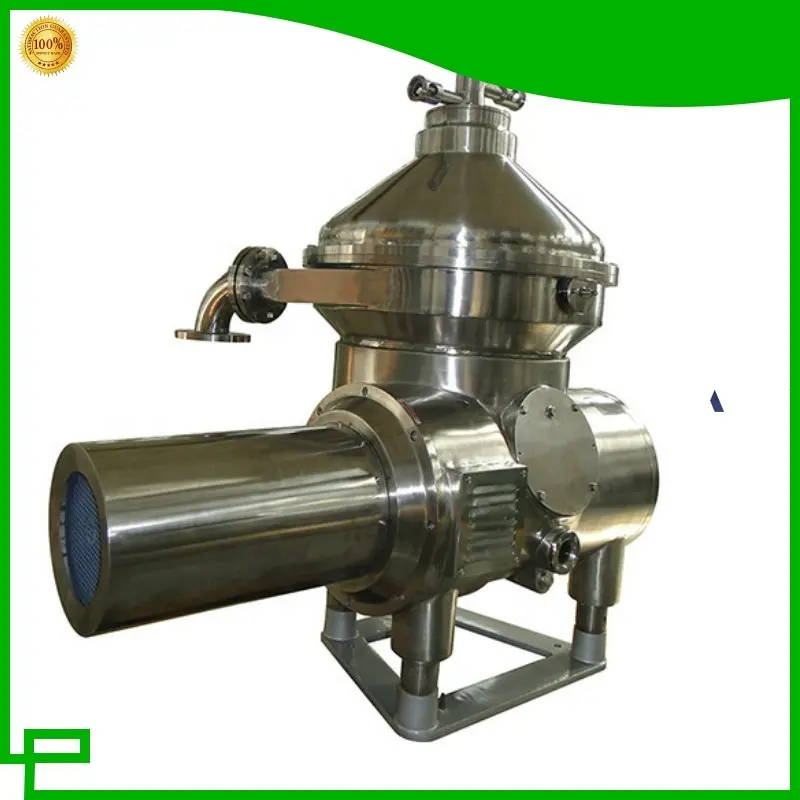

High Speed Disc Bowl Centrifuge - High Efficiency 3 Phase Separator
Product features
The SHEN ZHOU High Speed Disc Bowl Centrifuge is a 3 phase centrifuge that delivers high-speed centrifugation to efficiently remove oil, grease, and sludge impurities. With strong emulsification ability and low energy consumption, this centrifuge offers easy operation and saves money with full automation possible through a PLC automatic control panel. The centrifuge boasts a high reliability drive train system, superior separation performance with a bowl design, and a superior partial discharger option to minimize liquid loss and maximize thickening of solid fractions for discharge.
Team strength
Our High Speed Disc Bowl Centrifuge - High Efficiency 3 Phase Separator is a product of exceptional team strength. Our dedicated team of experts in engineering, design, and innovation have come together to create a high-speed, efficient separator that guarantees optimum performance in separating liquids and solids. With a focus on precision and reliability, our team has collaborated closely to ensure that this centrifuge meets the highest standards of quality and efficiency. Trust in our team's expertise and commitment to excellence when selecting our disc bowl centrifuge for your separation needs.
Enterprise core strength
At our company, we take pride in the strength of our team when it comes to delivering high-quality products like the High Speed Disc Bowl Centrifuge. Our dedicated team of experts works together to ensure the efficiency and effectiveness of this 3 Phase Separator. With years of experience and expertise in centrifuge technology, our team collaborates seamlessly to provide our customers with top-notch solutions for their industrial separation needs. From design and manufacturing to customer support, our team's commitment to excellence is unmatched, making us the go-to choice for high-speed centrifuge solutions. Trust in our team's strength for top-tier performance every time.
High Speed Disc Bowl Centrifuge / Vegetable Oil Separator For Fats Refining launched by Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd has a clear positioning and is a product designed to solve industry pain points. Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd offers a high standard of service together with being competitively priced. Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd has developed a market-leading reputation in the industry for delivering outstanding products and solutions. The exceptional ability sees our efforts in R&D.
| Place of Origin: | China | Type: | Separating Plant |
| Condition: | New | Video outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Hot product |
| Warranty of core components: | 1 Year | Core Components: | Bearing, Motor |
| Brand Name: | Shenzhou | Voltage: | 220v/300v/380v/optional |
| Power: | Model | Weight: | 460 |
| Dimension(L*W*H): | variable | Warranty: | 1 Year |
| Key Selling Points: | Easy to Operate | Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Food Shop, Food & Beverage Shops, Advertising Company, Pharmaceutical plant, Chemical plant |
| Showroom Location: | None | Material: | Stainless Sheel |
| Certification: | CE BV ISO |
* High speed centrifugation to remove oil grease and sludge impurities
* Strong emulsification ability
* Low energy consumption,saves money
* Full automation possible with PLC automatic control panel.
* Centrifugal separation requiring no filter media.
* High reliability drive train system backed by delivery of over 1,000 units a year.
* Bowl design with superior separation performance and with good response to discharge loads.
* Pilot valve regulates total/partial discharge of solids.
* Super partial discharger (option) minimizes liquid loss and maximizes thickening of solid
* Fraction for discharge.
* Vibration-proof design realizes long working life.
The disc separator is in vertical structure. The drum is mounted on the upper end of the vertical axis, which is driven by a motor and rotates at a high speed. There is a set of disc - shaped parts that are stacked together in the drum, with a small gap among them. When the suspension (or emulsion), which is pumped into the drum by feeding tube located in the center of the drum, pass through the gap between the discs, solid particles (or droplets) would settle down to form sediment (or liquid layer) on the disc by centrifuge force, and then the sediment slid along the surface of the disc and separated from the disc to accumulate in the largest diameter of the drum. At last, the separated liquid discharged from the outlet. The disc is utilized to shorten the settling distance of solid particles or droplets, enlarge the settlement area of the drum, and improve the production capacity of the separator. The solids accumulated in the drum are removed from the drum by manual after the machine stop, or out of the drum in the case of a dregs machine without stopping.
Besides, some nozzles is mounted around the drum to spray slurry sediment, whose number and aperture are determined on the properties of the suspension, the degree of concentration and the amount of treatment.
In order to improve the slag concentration, recovery device is configured with this disc separator to the discharged sediment for reuse. For the solid concentration of the slag can be increased by 5~20 times than that of the feeding materials.
The processing capacity of the separator is up to 30t/h, which is suitable for suspension with solid phrase in diameter of 0.1~100 microns and concentration less than 10% (maximum to 25%).
Treatment of oil, water and solid substances
Treatment of drilling slurry
Water removal of crude oil
Treatment of cooling lubricant
Treatment and water removal of lubricant and hydraulic oil
Treatment of waste emulsion and waste oil
Treatment of aging oil
Model | Treatment capacity (L/H) | Inlet Pressure (Mpa) | Outlet pressure (Mpa) | Motor power (Kw) | Weight (Kg) | Outline dimension (mm) |
DHZ360 | 1200-2500 | 0.05 | 0.1-0.25 | 7.5 | 1280 | 1500*1150*1500 |
DHZ470 | 2500-7000 | 0.05 | 0.1-0.25 | 15 | 1880 | 1800*1200*1800 |
DHZ550A | 5000-10000 | 0.05 | 0.1-0.25 | 18.5 | 2200 | 1850*1550*2050 |
DHZ550E | 6000-15000 | 0.05 | 0.1-0.25 | 22 | 2200 | 1850*1550*2050 |
DHZ700 | 15000-30000 | 0.1 | 0.2 | 30 | 3300 | 2100*1650*2300 |
DRZ360 | 1200-2500 | 0.05 | 0.1-0.25 | 5.5 | 750 | 1250*1050*1500 |
DRZ400A | 2000-6000 | 0.05 | 0.1-0.3 | 7.5 | 1150 | 1300*900*1450 |
DRZ400E | 4000-7500 | 0.05 | 0.1-0.3 | 7.5 | 1300 | 1300*900*1500 |
DRZ550 | 6000-18000 | 0.05 | 0.1-0.3 | 22 | 2200 | 1620*1300*2200 |
We are based in Liaoning, China, start from 1980 sell to South America(12.00%),Southeast Asia(10.00%),Northern Europe(10.00%),Southern Europe(10.00%),Domestic Market(10.00%),South Asia(8.00%),Central America(6.00%),North America(5.00%),Eastern Europe(5.00%),Africa(5.00%),Oceania(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Mid East(4.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Centrifuge,Separator,Packing machine,Drying machine,Filling & Sealing machine
4. why should you buy from us not from other suppliers?
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
