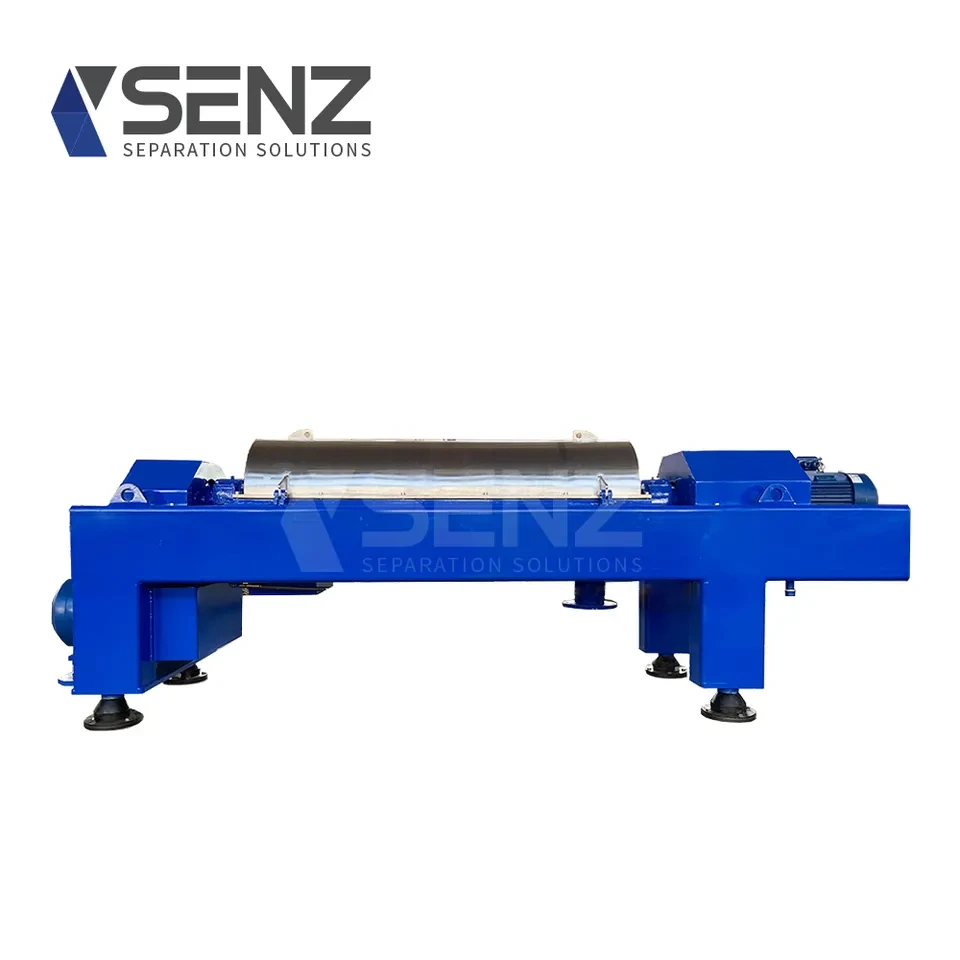

High Speed Industrial Decanter Machine 3-Phase Centrifuge Oil Refineries and Related Industries Centrifuge
High Speed Industrial Decanter Machine 3-Phase Centrifuge Oil Refineries and Related Industries Centrifuge
LWS three-phase horizontal screw centrifugal dehydrator is a high-speed, stable and efficient automatic control equipment, which is mainly used for solid-liquid oil clarification and separation in food waste treatment, petrochemical and other industries. All parts and components in contact with materials are made of high-grade stainless steel materials, which effectively reduces the corrosion of the separated materials and the surfaces of the parts in contact. The separated materials enter the drum of the centrifuge. Under the strong centrifugal force field, the materials are accelerated by the accelerating cone and then enter the material separation zone between the screw pusher and the straight section drum. The solid materials with large specific gravity move along the direction of the drum wall, accumulate in the sediment zone of the drum wall, and are transported out of the centrifuge by the screw pusher. The liquid phase materials with small specific gravity are pushed on the surface of the sedimentation tank by the heavy phase materials, and move toward the light phase outlet under the axial force of the cone section drum. The separated light phase material is thrown out by the centrifugal force of the drum itself, and flows out of the centrifuge after free convergence.
The main engine starts and accelerates automatically. When the predetermined index is reached and the drum speed reaches the feeding speed, the feeding valve opens.
The suspension waiting to be separated enters the silo of the screw pusher from the feeding pipe, and enters the drum through the outlet of the silo after initial acceleration.
The suspension passes the outlet of the compart ment and into the revolving drum. In response to the centrifugal force,the suspension in the drum is quickly divided into two phases：the heavier solid phase deposits to the inner wall of the drum and
driven by the differential gear which results in the nonsynch ronous movement between the spiral feeder and the drum.
The solid phase is transferred into the small end for further dehydration and is finally discharged through waste exit.
The separated liquid is discharged through the big end or driven out by the centripetal pump.
1. Industrial and municipal waste water treatment
2. Petrolum and Natural gas drilling
3. washing, classification and dewatering of amylum and starch
4. Antibiotic zymotic mycelium separation
5. wheat and soybean protein dewatering
6. fish powder and meat dewatering
7. vinasse dewatering
8. peach, orange, pineapple fruit juice clarification and separation
9. animal and vegetable oil separation and purification
10. olive, palm, avocado and coconut oil extraction and separation
11. coar tar separation and classification
12. graphite and kaolin partical grading
13. dyestuff and pigment dewatering
14. coal mud dewatering
15. mineral dewatering
1. Bowl and scroll conveyor made by stainless steel
2. Bowl stepless speed adjusting
3. Safety protection for speed, over-vibration, motor over-loading, differential speed
4. Options for hydraulic differential speed and special material
