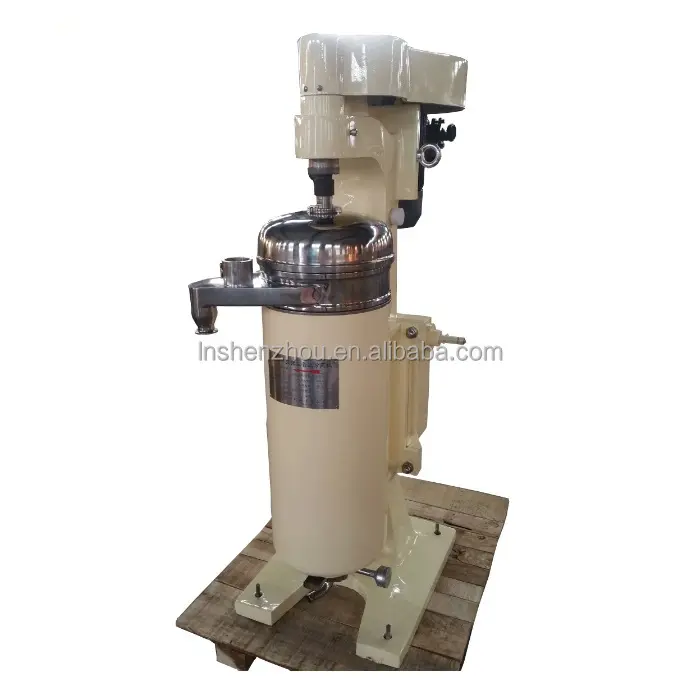

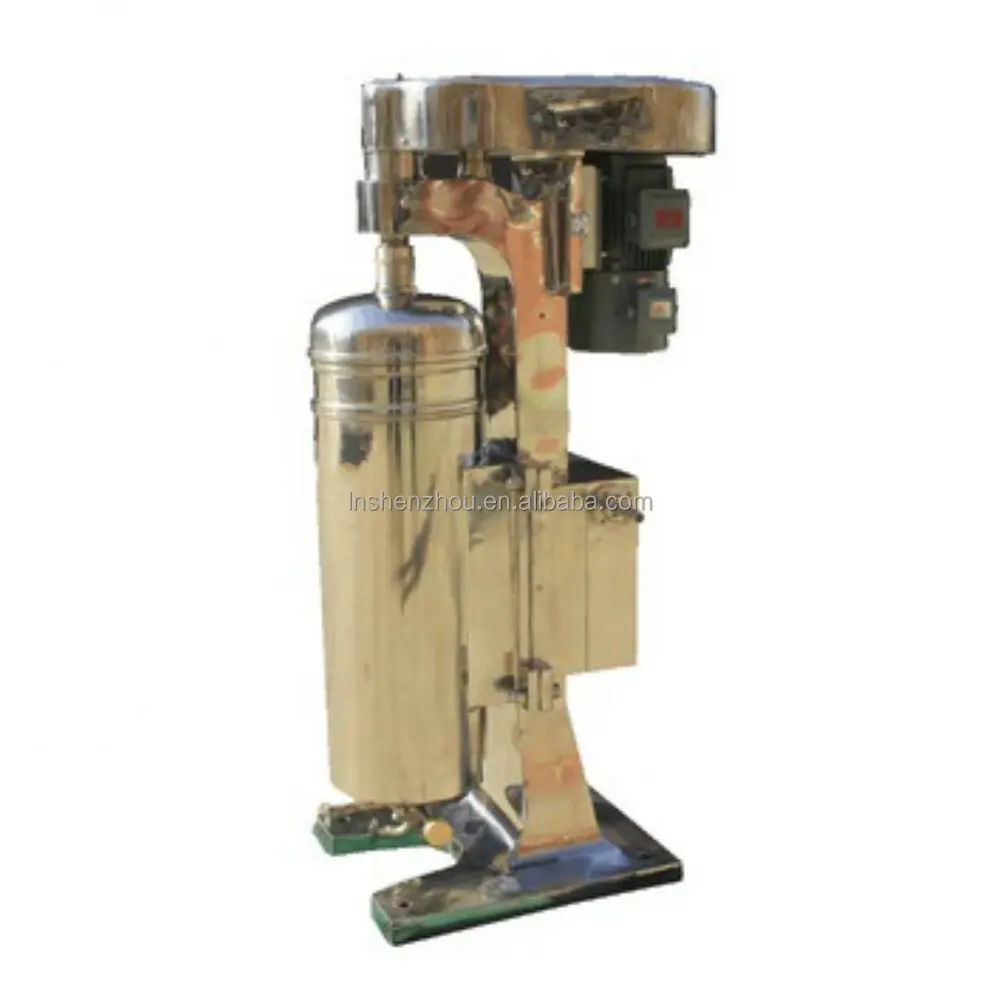

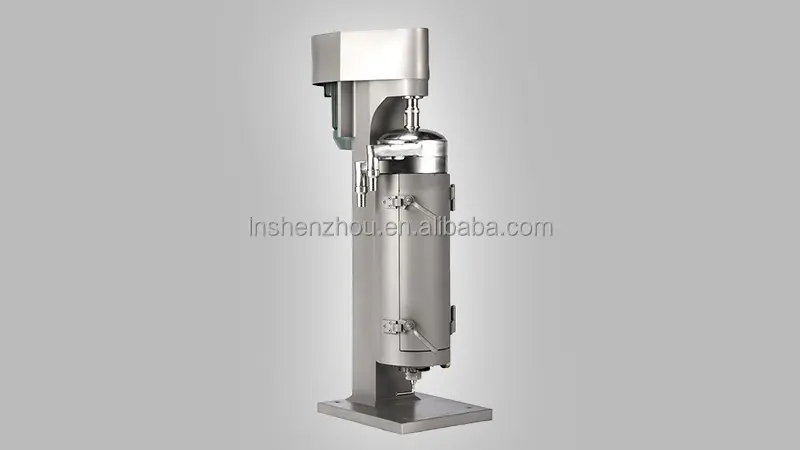

    High-Speed Tubular Centrifuge for Fine Separation - Easy to Operate

    The High-Speed Tubular Centrifuge for Fine Separation is a user-friendly machine that efficiently separates fine particles from liquids at high speeds. It is easy to operate, requiring minimal training for users to achieve optimal results. This versatile centrifuge can be used in various industries such as pharmaceuticals, food and beverage, and chemical processing for applications like clarifying liquids, separating solid particles, and purifying components.
    SEND INQUIRY NOW
    Products Details
  • Feedback

    • Product features

    The high-speed tubular centrifuge for fine separation by SZ features a cast structure enclosure with stainless steel 304 lining, along with stainless steel 316L parts for slurry contact and a Teflon sealing ring on the rotor. With a smooth body design meeting GMP standards, VFD control panel options for motor control, and convenient rotor disassembly, this centrifuge is easy to operate and efficient for various separation tasks. Its high-speed rotation generates a strong centrifugal force field for liquid-liquid-solid separation and superior clarification and concentration capabilities, making it ideal for applications in manufacturing plants, food and beverage factories, animal feed factories, and more.

    Company profile

    Our company is a leading manufacturer of high-speed tubular centrifuges for fine separation, offering a range of innovative solutions for various industries. Our centrifuges are designed for easy operation, allowing for efficient and precise separation of solids from liquids. With a focus on quality and reliability, our products are trusted by customers worldwide for their superior performance and durability. We are committed to providing exceptional customer service and support, ensuring that our clients have the tools they need to succeed. Choose our high-speed tubular centrifuge for reliable separation solutions that deliver outstanding results every time.

    Enterprise core strength

    Our company is a leading manufacturer of high-speed tubular centrifuges, specializing in fine separation technology. With a focus on innovation and precision engineering, we pride ourselves on producing easy-to-operate machines that deliver reliable and efficient results. Our team of experts is committed to providing top-notch customer service and technical support, ensuring a seamless experience from purchase to operation. Trust in our proven track record of success in the industry, and choose our high-speed tubular centrifuge for your fine separation needs. Experience the difference that quality and reliability can make in your operations.

    SZ launched high-speed tubular centrifuge for fine separation is created with fashionable design idea. It caters to the foreign markets. Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd have the aspiration to become a leading enterprise in the market. To achieve this goal, we will continually follow the market rules strictly and make bold changes and innovations to cater to market trends.

    Place of Origin:Liaoning, ChinaType:Centrifuge
    Product Type:PlantCondition:New
    Video outgoing-inspection:ProvidedMachinery Test Report:Provided
    Marketing Type:Hot Product 2019Warranty of core components:1 Year
    Core Components:Bearing, MotorBrand Name:Shenzhou
    Voltage:CustomerizedPower:Model choosing
    Weight:460Dimension(L*W*H):850*750*1650mm
    Warranty:1 YearKey Selling Points:Easy to Operate
    Applicable Industries:Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Printing Shops, Construction works , Food & Beverage Shops, Advertising Company, centrifuge, animal feed factory, Blood plasma factoryShowroom Location:None
    After-sales Service Provided:Video technical support

    Product Description
    SZ launched high-speed tubular centrifuge for fine separation
    Being a separation solution provider, SZ is able to provide various centrifugal separation equipment. The tubular centrifuge is a kind of fine separation equipment with high speed to create higher centrifugal G force, which enable the tubular centrifuge to do some separation job that other ordinary centrifuge cannot do.
    There are two types of tubular centrifuges （GF and GQ）
    GF separation tubular centrifuge is used for liquid-liquid separation and emulsion separation with trace amount solid phase. The main function is to process the three-phase separation of liquid (light liquid), liquid (heavy liquid) and a small amount of solid, which is referred to as liquid-liquid-solid separation, or liquid-liquid separation. The common applications include vegetable oil, animal oil for oil-water separation and blood separation (pig blood, chicken blood, duck blood, cow blood and other animal blood).
    GQ clarifying tubular centrifuge is used for the separation of suspension containing solid concentration less than or equal to 1%. Its main function is to process the separation of liquid and solid phases. The separated solid phase is deposited on the inner wall of the bowl and needs to be removed manually. Common applications include clarification and concentration in Chinese medicine water extraction or alcohol extraction, removal of large particle impurities from ink, separation of fermentation broth of biological products, such as various fermented low-density bacteria of vaccine, etc.
    Working principle of high speed tubular centrifuge The high-speed tubular centrifuge is fed from the bottom. After the slurry entering into the centrifuge, with the high-speed rotation of the bowl (the speed can be adjusted through the electric control cabinet), the substances with large specific gravity cling to the inner wall of the rotor/bowl, and the substances with light specific gravity are in the middle part of the rotor. The liquid gradually rises spirally from bottom to top and flows out from the upper outlet of the rotor. The upper part of the tubular centrifuge will have liquid outlets for light liquid phase and heavy liquid phase respectively. When the material contains solid phase, the solid will be accumulated inside the rotor. After the accumulation is full, operator need to shut down and disassemble
    the rotor, clean the inside of the rotor, install the rotor again, and then enters into the next separation process.
    Features of SZ high speed tubular centrifuge
    1. The enclosure is of cast structure, and then heating treated to eliminate stress. The inner and outer surfaces are lined with stainless steel 304.
    2. The rotor, feed pipe, liquid collecting tray and other parts in contact with slurry are made of stainless steel 316L.
    3. The lower end cover of the rotor is sealed with Teflon sealing ring, which fully meets the GMP requirements.
    4. The surface treatment of the centrifuge meets the GMP requirements of the pharmaceutical industry, the body is smooth without convex and concave, and the corner part is circular arc transition;

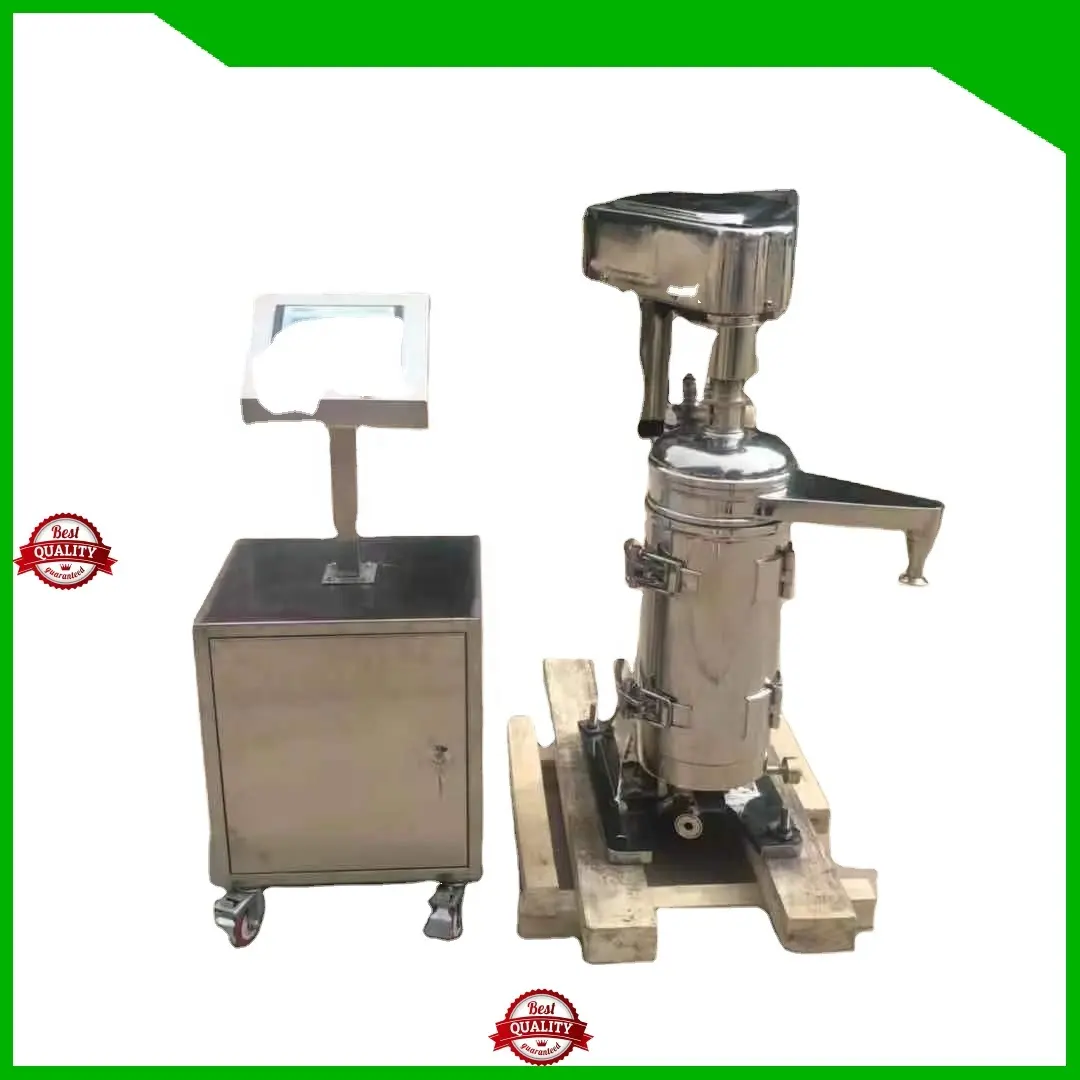

    5. It can be equipped with VFD control panel to reduce the motor starting current, reduce the damage of transmission parts and wearing parts, and improve the service life of equipment and motor.

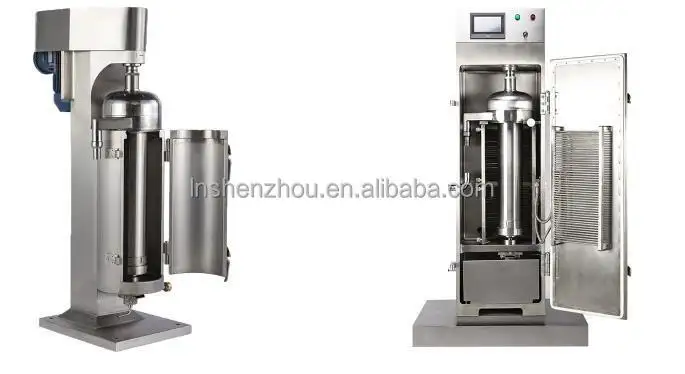

    6. The enclosure of some models is designed as open door or swing type, which is convenient for disassembly and assembly of the rotor when slag removal, which reduces labor intensity and improves production efficiency, and it does not affect the separation effect of the centrifuge.
    For more information about high-speed tubular centrifuges, please contact SZ Separation. SZ Separation is a professional
    manufacturer of separation equipment. Centrifuge product series include horizontal decanter centrifuge, disc separator and high-speed tubular centrifuge; the product series applied to sludge dewatering include sludge dewatering centrifuge, screw press and polymer dosing unit. In addition, SZ Solids Control brand specializes in providing drilling mud recycling and oilfield waste treatment solutions. If any requirements aroused, please contact SZ company.

    Working principle of Tubular Separator
    Consist of the machine cover, driving device, drum, liquid catch tray, the liquid inlet and bearing seat, this separator with high running speed, belongs to sedimentation separator. The upper drum is a flexible shaft, while the lower is damping floating bearing. The main shaft is connected by a coupling buffer and a passive wheel. Motor transmit power from the transmission belt and tension wheel to passive wheel, to drive the drum rotate around its own axis with high-speed, and thus form a strong centrifugal force field. All the materials are fed from liquid inlet under the bottom, and flow upward along the drum wall by centrifugal force fluid. During this process, the dense liquid phase forms the outer ring, and the small liquid phase forms the inner ring,
    which separately flow to respective liquid outlet mounted on the upper drum.
    When the thickness of the sediment affect the liquid phase clarification or the capacity of the rated slag weight in the drum, the dregs of the drum wall should be removed manually after the shutdown.

    Application：Tubular Separator is mainly used for separating all kinds of suspension which is difficult to be separated, especially suitable for separation of solid-liquid suspension with light concentration, heavy viscosity, fine particles and very small differential gravity of the two phases. such as clarification of herbs plants extracts, various medicine liquor, liquid medicine, oral liquid, the extraction of paint, dye, as well as various proteins, alga, fruit gels, and purification of rubber solution, coal tar, graphite, saponin, pectin, sirup, vaccine mycelia and all kinds of glucose; refining resin, and latex solution, enzyme (SOD) of oxide, various kinds of albumens, the glucoside of the soap, etc.
    Specification
    Model
    GF/GQ75
    GF/GQ105
    GQ/GF125
    GQ/GQ150
    Diameter(mm)
    75
    105
    125
    147
    Height (mm)
    450
    730
    730
    730
    Sedimentation volume（L)
    2.67
    6
    8
    10
    Max speed（r/min)
    20000
    16800
    15800
    14500
    Max separation factor
    21000
    15300
    16300
    15600
    Inlet nozzle diameter (mm)
    3/4
    4/6/8
    4/6/8
    4/6/8/10
    Material inlet pressure (Mpa)
    ≥0.05
    ≧0.05
    ≧0.05
    Capacity (Water capacity)L
    670
    1600
    2200
    3200
    Motor model
    3 phase two pole motor
    3 phase two pole motor
    3 phase two pole motor
    3 phase two pole motor
    Motor power (kw)
    1.5
    2.2
    3
    3
    Machine dimension (mm)
    500*700*1300
    600*1000*1600
    600*1000*1600
    600*1000*1600
    Machine weight (kg)
    260
    490
    510
    550
    Main technical features
    1. The unique design of interior blade is more suitable for the isolation of the fermentation bacteria than the conventional
    tubular separators. Equipped with reverse stop device, the residual mother liquid can be retained completely without loss once the machine stop.
    2.With advantages of high separation factor and strong separation ability, It is applicable to separate and clarify the materials which is difficult to separate by ordinary centrifuge and all kinds of emulsion liquid such as transformer oil, lubricating oil, fuel oil, turbine oil, grease, dyes, and saponification separation and so on.
    3.Simple structure in linear type ,easy in installation and maintation.
    4.Adopting advanced world famous brand components in bearing parts, electric parts and operation parts.
    5.Running in a high automatization and intellectualization,no pollution
    6.Simple to set up, use and clean for minimal down-time between separations
    7. No replacement membranes or costly disposables
    8.3-phase electric motors provide power for rapid acceleration and quieter operation.
    9.Small footprint.
    Details Images
    Points for Operating the Tubular Separator
    * When the percentage of impurities or solids in the liquid is less than 0.5%, the ideal separation effect will be realized. If
    the percentage is higher than 0.5%, the solution should be clarified first
    * High groove is used to feed materials. If the liquid is of large viscosity, it can also be pumped.
    * Measurement for proper materials inlet pressure: when materials are fed by the nozzle into the separator, the proper inlet
    pressure is depended on property of materials the nozzle into the separator,to spray materials at least half up onto the drum.
    Low pressure will cause part of the liquid not fed into drum and slide into the bearing seat at the bottom of the drum to
    outflow from overflow mouth, while the high pressure will affect the separation quality and lead to the vibration of the
    machine.
    * The inside diameter of feeding tube shall be large enough to be controlled by valve and be convenient for user to adjust
    according to flow rate and output.
    * The separator is equipped with nozzle in different diameter, to fit different the separation quality and yield.If small
    production with high quality, the small nozzle is used, and vice versa.

    Suggestion from SHENZHOU
    Earned high reputation and good feedback from global customer among all of our products, High-speed Tubular Separator is capable of applied in a variety of biological processes from cell harvesting and clarify to separation of chemical, food, blood and pharmaceuticals.
    High performance is consistently achieved in continuous, semi-continuous or batch operations. Include a range of sizes from research to production, our tubular separator provide an efficient and cost-effective technology to separate from one to several thousand liters of biological cultures and other mixtures. For extremely high solids concentrations, drum centrifuge for high performance separations can be supplied.
    Customer’s working Show
    Packing & Delivery
    To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
    FAQ
    1. What certificates do you have?
    We can provide CE, ISO 9001, etc

    2. What is the warranty period of the equipment?
    Normally 1 year warranty.

    3. Can we visit your factory?
    Of course, we sincerely invite you to visit, If it's not convenient for you to come to our factory, you can also visit by
    telephone video conference.

    4. What's payment you accept?
    A4: T/T, Western Union, L/C, Ali Pay, etc

    5. Can it be customized?
    Of course, our equipment can be customized according to the actual requirements of customers.
