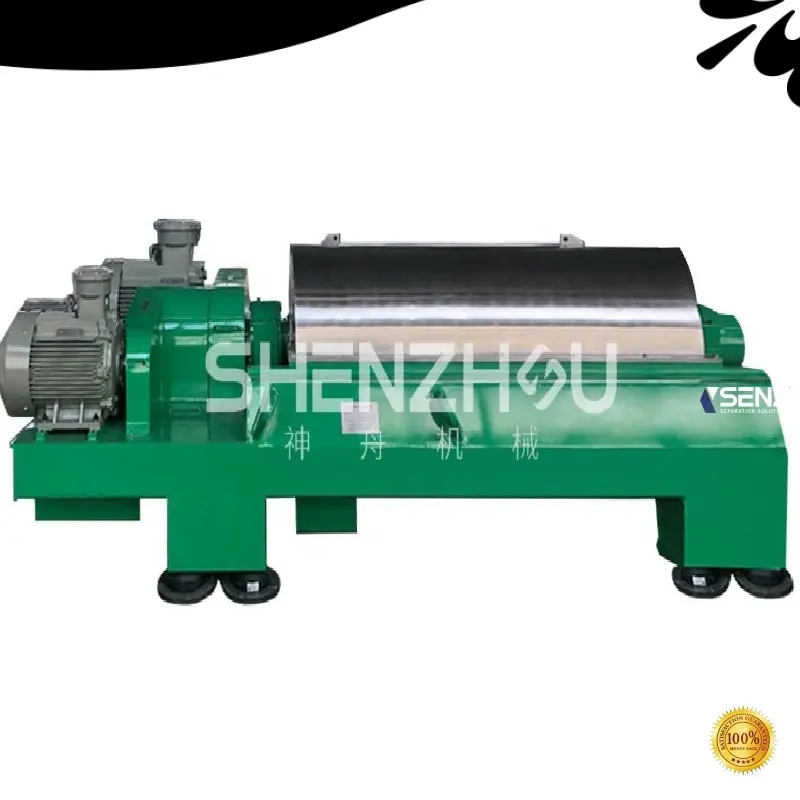

Shenzhou vertical decanter centrifuge manufacturers | Shenzhou

Shenzhou has developed to be a professional manufacturer and reliable supplier of high-quality products. Throughout the whole production process, we strictly implement the ISO quality management system control. Since established, we always adhere to independent innovation, scientific management, and continuous improvement, and provide high-quality services to meet and even exceed customers' requirements. We guarantee our new product vertical decanter centrifuge will bring you a lot of benefits. We are always standby to receive your inquiry. vertical decanter centrifuge We promise that we provide every customer with high-quality products including vertical decanter centrifuge and comprehensive services. If you want to know more details, we are glad to tell you.The product has a long service life and many other technical superiorities.

Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd is considered one of the leading suppliers of decanterer separation. Technological innovation promotes products to achieve an invincible position in fierce competition. Since established, Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd have always been in strict compliance with international standards and high ethical standards, thus offering customers highly reliable products. We have always been following the business principle of 'honesty & integrity', which ensures that the most credible services are delivered to every customer.

Product Description

decanterer separation part

Decanter centrifuge, also known as solid bowl centrifuge, generates separation force through high-speed rotation. It can clarify liquids and separate solids from one or two liquid phases in a single continuous process. Its application to the dewatering of waste sludges has made it a most valuable tool in combating environmental pollution. This has made the decanter a well-known and widely appreciated piece of equipment.

SZ Decanter Centrifuge Product Series
The prime virtue of the SZ decanter is its ability to remove quite high levels of suspended solids from a liquid, with a
reasonably low level of retained liquids in the separated solids. SZ decanter can handle slurries containing solids occupying 100% of the volume of the slurry. So long as the slurry is pumpable, the decanter will handle it. SZ provides custom-made decanter centrifuges. We can provide the most suitable centrifuge models according to the actual needs of different industries.

SZ Decanter Centrifuge Features and Benefits

Decanter centrifuge, as a horizontal solid bowl centrifuge that can be continuously operated, separates liquid and solid in the wastewater through a rapidly rotating cylindrical bowl. Because of its advantages such as long-term continuous work and huge processing capacity，it is widely used in the sludge dewatering treatment industry and become an indispensable equipment for sludge
dewatering and thickening treatment

Widely Used in Solid-Liquid Separation

The decanter centrifuge can be used for most types of liquid-solid and liquid-liquid separation, and its ability to handle various feed slurry concentrations increases its versatility. And it can separate suspensions composed of two or more phases of different densities. Applications range from food, beverage and pharmaceuticals to marine and energy, to water and waste treatment, mineral
oil and mineral oil product processing, and pigment recovery in paints.

High Clarifying Efficiency

SZ clarifying decanter centrifuge can continuously separate suspension into solid and clarified liquid. It is suitable for
materials with small particle size, low density difference between solid and liquid, moderate viscosity and moderate
concentration. It can be used in the separation and Extraction of edible oil, including palm oil, olive oil, fish oil, etc. At the same time, it is also widely used in the clarification, extraction and recovery process of protein starch, fruit juice beverage and animal raw materials.

Scope of application:

Some Key Industry Application Cases
Decanter centrifuges (Solid Bowl Centrifuge) are widely used in industrial production and environmental protection, and are the main equipment in the solid-liquid separation process. Especially in the sludge dewatering, suspension clarification, mixed particle size solid phase classification and slurry concentration and other separation processes, has a large market application.
According to the main purpose of the separation process, the separation applications of SZ decanter centrifuges can be groupedinto five broad types: clarification, classification, thickening, dewatering and washing.

APPLICABLE MATERIAL FOR CLARIFYING DECANTER:
* Edible oil: separation and extraction of palm oil, olive oil, sesame oil, fish oil and other crude oils
* Pectin: extraction and separation of pectin from fruits and vegetables such as apple, citrus, beet
* Plant protein: separation and extraction of plant protein such as soybean protein, pea protein, potato protein
* Animal protein: separation and extraction of animal protein such as fish meal protein, pig brain protein, casing protein, etc.
* Starch: separation and extraction of plant starch such as wheat starch, corn starch, cassava starch
* Juice: extraction of juice from a variety of fruits, berries and vegetables
* Biofuel: treatment and recycling of fuel ethanol, distiller grains, and spent grains
* Others: beverage industry, fruit, vegetable and food industry, the clarification, extraction and recycling of animal raw
materials.

Specification

Model	Diameter(mm)	Lenght(mm)	Max speed	L/D ratio	G-force	Capacity(m3/h)	Main motor power(Kw)	Weight(kg)	Dimension (mm)
LW250*1000	250	1000	5000	4	2722	0.5-5	7.5	950	2120*1250*680
LW300*900	300	900	4200	3	2964	1-6	11	1160	2150*1300*900
LW300*1200	300	1200	4000	4	2784	2-6	11	1350	2450*1300*900
LW355*1160	355	1160	3600	3.3	2576	2-8	15	1400	2470*1350*830
LW355*1460	355	1460	3600	4	2576	2-10	15	1800	2750*1350*830
LW400*1200	400	1200	3200	3	2294	3-12	18.5	1800	2730*1600*1080
LW400*1600	400	1600	3000	4	2016	3-15	22	2000	3130*1600*1080
LW450*1800	450	1800	2800	4	1976	4-25	37	2500	3320*1700*1130
LW500*2000	500	2000	2800	4	1750	5-35	45	4000	3520*1800*1170
LW530*1855	530	1855	2600	3.5	2006	5-38	55	4680	3885*1350*1600
LW530*2120	530	2120	2400	4	1709	5-40	55	4800	4150*1350*1600
LW550*2000	550	2000	2800	4	2414	6-40	55	5700	4570*1380*1600
LW650*1950	650	1950	2200	3	1761	6-45	75	5000	4840*1510*1720
LW650*2600	650	2600	2000	4	1456	6-65	90	6000	5490*1510*1720
LW720*2160	720	2160	2000	3	1612	7-80	120	6000	5200*1600*1800
LW720*2880	720	2880	2000	4	1306	7-90	120	8000	3100*1600*1800
LW800*2400	800	2400	1800	3	1451	20-100	150	12000	5820*2000*1300
LW800*3200	800	3200	1800	4	1451	20-120	150	1300	7100*2000*1300

Main technical features

Decanter Centrifuge Working Principle
Decanter centrifuge is a kind of sedimentation equipment with horizontal screw discharged and continuous operation. It is mainly composed of a feed port, a decanter bowl, a decanter screw conveyor, a solid phase discharged outlet, and a liquid phase outlet.
First, the raw material is pumped into the decanter centrifuge through the feed port, and then into a horizontal bowl (also called a rotating drum) composed of a cylindrical and a conical part. Then, the bowl and the screw (the screw conveyor of decanter centrifuge) rotate at a high speed in the same direction at a certain differential speed. Due to the higher density, the solids contained in the product settled on the inner wall of the bowl under the action of centrifugal force. The conveying screw continuously pushes the solid phase deposited on the bowl to the cone end of the bowl, then solids is discharged out of the machine. The clarified lighter liquid phase forms an inner liquid ring, which continuously overflows the bowl from the overflow port at the large end of the bowl, and is discharged out of the machine through the liquid discharge port. Eventually to achieve the purpose of separating the solid phase from one or two liquid phases.

Decanter centrifuge is a very important and necessary industrial equipment. Therefore, it is very important and necessary to understand how the centrifuge works.
One of the commonly used industrial machines for separating solids from the liquid is a decanter centrifuge through the high-speed rotation. It has main components such as bowl and screw conveyor.

Centrifugal Force
As you can see from your house washing machine, it uses centrifugal force to dewater the clothes effectively. Also, you can feel a bit unbalanced when you are driving and taking turns. It is also due to centrifugal force.
Centrifugal force causes an object to move in a circular or curved path to move away from the center of this circle or arc path.

Decanter
Imaging you can a pond filled with muddy sand and water, the sand will eventually accumulated at the bottom of the pond in time.
This is due to sand is heavier than water and by the force of the gravity there will finally be two distinct layers in this pond: water layer in the top and sand layer in the bottom.
Decanting Using Centrifugal Force

To accelerate the decanter time, centrifugal force has brought in to generate as high as 4000 times of the gravity force, Thus reducing the separation time from hours to seconds.

Decanter Centrifuge Design
Decanter centrifuge has both horizontal and vertical types, in this article we only discuss the most used one: horizontal decanter centrifuge.
As shown below, the main components of a centrifuge is:
* 1. Bowl – a rotation assembly where the feeding is processed here. Normally it has a horizontal section and a conical section, the angle of the conical section, also known as beach angle will be adjusted due to different feeding and process requirement.
* 2. Screw conveyor – a helix with spiral flights, its speed is controlled by gearbox and drives.
* 3. Gearbox – mechanism to generate a differential speed. this can be cyclo or planetary gearbox.
* 4. Drive – this can be hydraulical drive or electrical motor.
* 5. Weir plates – adjusting plates for control the performance of the separation.
* 6. Control panels – centrifuge is installed with many electrical sensors, so the control panel can monitor the running operation in terms of feeding capacity, temperature and vibration alarm as well as adjust the parameters such as bowl speed, and differential speed. Also it adapts the PLC programming, where certain level of automation can be achieved, such as auto stop when alarming occurs, increase or decrease of the torque force accordingly.
* 7. Cover, stand and Pipes: some cleaning pipe allowing CIP function while operation.
When in operation, the feed is put into the main chamber of the bowl to achieve separation in the following steps:
* 1. Feeding slurry is sprayed into the main chamber of the bowl.
* 2. High speed rotation of the bowl will generate centrifugal force, this will force the heavier solids move to the wall of the bowl (as the sand decants towards the bottom of the muddy water pond). While the lighter liquid will move to the center layer of the bowl.
* 3. Screw conveyor rotates at a different speed from the bowl by using gearbox and motor drives. This will push the solids to one end of the decanter. At this end, the conical section bowl forms a “beach”, where the solids can be pushed out and discharged. And the liquid is discharged n by overflowing to the exit of the other end of the bowl.
* 4. The outcome performance of the separation, in terms of dryness of the solid and purification of liquid, can be adjusted by weir plates in the bowl end.

Additionally, three phase, liquid /liquid/solid separation can be achieved, this is implemented by letting the light liquid phase to be overflowed from the heavier liquid phase. Moreover solid/solid/liquid separation can also be achieved for the decanter centrifuge.
Through this complete basic guide that introduces the working principle of a decanter centrifuge, I believe you have a very good idea of how the centrifuge works.
Yes, the decanter centrifuge uses the centrifugal force generated by the high-speed rotation, and then realizes the pollution-free sedimentation and separation according to the weight difference between different solid and liquid substances.
The decanter centrifuge of SZ Separation is also developed using this principle. It can not only realize the two-phase separation of solid and liquid, but also realize the liquid/liquid/solid three-phase separation.

Production workshop

Screw production1

Screw production2:

.

High speed dynamic balance detection1

High speed dynamic balance detection2

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

Q1.What's your advantage? Why we choose you?
A:1) More than 50 years experience of centrifuge & separator production and R&D.We have the most professional techniques and team. More advantage in price
2)Great production capacity Sustainable Supply . According to customer requirements, We support the customized include package.
3)We use famouse good quality materials and the best production process

Q2.What's the Payment?
A:T/T would be better with quick transfer and few bank fees. LC could also be accept, but the
procedure is complex and the fee is high. You can also use Western Union and Paypal.

Q3.Are you a factory or trading company?
A:We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.

Q4.How long is the warranty period ?
A:12 months.
