    Wholesale tubular centrifuge suppliers | Shenzhou

    Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd has professional R&D and production capabilities.
    SEND INQUIRY NOW
    Products Details
  • Feedback

    • Set up years ago, Shenzhou is a professional manufacturer and also a supplier with strong capabilities in production, design, and R&D. tubular centrifuge Shenzhou have a group of service professionals who are responsible for answering questions raised by customers through the Internet or phone, tracking the logistics status, and helping customers solve any problem. Whether you'd like to get more info on what, why and how we do, try our new product - Wholesale tubular centrifuge suppliers, or would like to partner up, we'd love to hear from you.Shenzhou tubular centrifuge is endowed with exceptional appearance. Its beautiful design comes from our exclusive designers with strong innovation and design capabilities.

    Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd provides a large number of products each year, and has strong research and development capabilities, and the cycle time required for the product from design to finished product is short. The use of the technology contributes to the perfect manufacturing of Shenzhou.High speed separation & clarification GF series Tubular Centrifuge is widely used in the field(s) of Separation Equipment and the like. After years of growth and development,Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd have constructed characteristic corporate culture systems and confirmed our business principle of 'customer first'. We will always focus on customers' needs and promise that we will provide the most satisfying and valuable products.

    Place of Origin:Liaoning, ChinaType:Centrifuge
    Product Type:PlantCondition:New
    Video outgoing-inspection:ProvidedMachinery Test Report:Provided
    Marketing Type:Hot Product 2019Warranty of core components:1 Year
    Core Components:Bearing, MotorBrand Name:Shenzhou
    Voltage:CustomerizedPower:Model choosing
    Weight:460Dimension(L*W*H):850*750*1650mm
    Warranty:1 YearKey Selling Points:Easy to Operate
    Applicable Industries:Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Printing Shops, Construction works , Food & Beverage Shops, Advertising Company, centrifuge, animal feed factory, Blood plasma factoryShowroom Location:None
    Material:304/316L Stainless SteelBearing:Import Bearing
    Usage:Liquid Liquid solid Centrifugal separatorApplication:Liquid solid Centrifugal separator
    name:Centrifuge SeparatorAfter-sales Service Provided:Video technical support
    Certification:GMP/CE

    Product Description
    High speed separation & clarification GF series Tubular Centrifuge
    HIGH-SPEED TUBULAR SEPARATOR
    High Speed Tubular Bowl Separator
    Structure and principle: The separator consists of machine body, driving part ,bowl, liquid collecting pan and liquid-in bearing seat etc. The material is sprayed onto the bowl from the inlet on the bottom and strong centrifuge force is formed when the bowl rotates with the material and that makes the material flow upper along the wall of the bowl and then separated because of the different gravity by the centrifugal force.
    GF-for separation: Heavy liquid forms outer ring and light liquid forms inner ring. They flow to the top of the bowl and discharge from their respective outlet. And the little solid is settled on the wall of the bowl and discharged manually after the machine stops.
    GQ-for clarification: Heavy solid is deposited on the inner wall of the bowl，and forms the sludge. And it will be
    discharged by manual after the machine stops. The clear liquid flows out of outlet from the top of the bowl. It is mainly used for separating all kinds of suspension difficult to be separated, especially suitable for separation of solid-liquid suspension with light concentration, heavy viscosity, fine particles and very small differential gravity of the two phases. The motor connect with the big pulley and delivery the power to the spindle through the belt, tensioner and small pulley and rotate with the bowl in high-speed as the clockwise. The high speed tubular centrifuge is mainly used in liquid-solid separation, liquid-liquid-solid separation in bio-pharmacy, beverage, chemical industry. It is an ideal separation equipment by centrifuging, especially for those feeding with little gravity difference, and small dimension in diameter.
    Working principle of Tubular Separator
    Consist of the machine cover, driving device, drum, liquid catch tray, the liquid inlet and bearing seat, this separator with high running speed, belongs to sedimentation separator. The upper drum is a flexible shaft, while the lower is damping floating bearing. The main shaft is connected by a coupling buffer and a passive wheel. Motor transmit power from the transmission belt and tension wheel to passive wheel, to drive the drum rotate around its own axis with high-speed, and thus form a strong centrifugal force field. All the materials are fed from liquid inlet under the bottom, and flow upward along the drum wall by centrifugal force fluid. During this process, the dense liquid phase forms the outer ring, and the small liquid phase forms the inner ring,
    which separately flow to respective liquid outlet mounted on the upper drum.
    When the thickness of the sediment affect the liquid phase clarification or the capacity of the rated slag weight in the drum, the dregs of the drum wall should be removed manually after the shutdown.

    Application：Tubular Separator is mainly used for separating all kinds of suspension which is difficult to be separated, especially suitable for separation of solid-liquid suspension with light concentration, heavy viscosity, fine particles and very small differential gravity of the two phases. such as clarification of herbs plants extracts, various medicine liquor, liquid medicine, oral liquid, the extraction of paint, dye, as well as various proteins, alga, fruit gels, and purification of rubber solution, coal tar, graphite, saponin, pectin, sirup, vaccine mycelia and all kinds of glucose; refining resin, and latex solution, enzyme (SOD) of oxide, various kinds of albumens, the glucoside of the soap, etc.
    Specification
    Model
    GF/GQ75
    GF/GQ105
    GQ/GF125
    GQ/GQ150
    Diameter(mm)
    75
    105
    125
    147
    Height (mm)
    450
    730
    730
    730
    Sedimentation volume（L)
    2.67
    6
    8
    10
    Max speed（r/min)
    20000
    16800
    15800
    14500
    Max separation factor
    21000
    15300
    16300
    15600
    Inlet nozzle diameter (mm)
    3/4
    4/6/8
    4/6/8
    4/6/8/10
    Material inlet pressure (Mpa)
    ≥0.05
    ≧0.05
    ≧0.05
    Capacity (Water capacity)L
    670
    1600
    2200
    3200
    Motor model
    3 phase two pole motor
    3 phase two pole motor
    3 phase two pole motor
    3 phase two pole motor
    Motor power (kw)
    1.5
    2.2
    3
    3
    Machine dimension (mm)
    500*700*1300
    600*1000*1600
    600*1000*1600
    600*1000*1600
    Machine weight (kg)
    260
    490
    510
    550
    Main technical features
    1. The unique design of interior blade is more suitable for the isolation of the fermentation bacteria than the conventional
    tubular separators. Equipped with reverse stop device, the residual mother liquid can be retained completely without loss once the machine stop.
    2.With advantages of high separation factor and strong separation ability, It is applicable to separate and clarify the materials which is difficult to separate by ordinary centrifuge and all kinds of emulsion liquid such as transformer oil, lubricating oil, fuel oil, turbine oil, grease, dyes, and saponification separation and so on.
    3.Simple structure in linear type ,easy in installation and maintation.
    4.Adopting advanced world famous brand components in bearing parts, electric parts and operation parts.
    5.Running in a high automatization and intellectualization,no pollution
    6.Simple to set up, use and clean for minimal down-time between separations
    7. No replacement membranes or costly disposables
    8.3-phase electric motors provide power for rapid acceleration and quieter operation.
    9.Small footprint.
    Details Images
    Points for Operating the Tubular Separator
    * When the percentage of impurities or solids in the liquid is less than 0.5%, the ideal separation effect will be realized. If
    the percentage is higher than 0.5%, the solution should be clarified first
    * High groove is used to feed materials. If the liquid is of large viscosity, it can also be pumped.
    * Measurement for proper materials inlet pressure: when materials are fed by the nozzle into the separator, the proper inlet
    pressure is depended on property of materials the nozzle into the separator,to spray materials at least half up onto the drum.
    Low pressure will cause part of the liquid not fed into drum and slide into the bearing seat at the bottom of the drum to
    outflow from overflow mouth, while the high pressure will affect the separation quality and lead to the vibration of the
    machine.
    * The inside diameter of feeding tube shall be large enough to be controlled by valve and be convenient for user to adjust
    according to flow rate and output.
    * The separator is equipped with nozzle in different diameter, to fit different the separation quality and yield.If small
    production with high quality, the small nozzle is used, and vice versa.

    Suggestion from SHENZHOU
    Earned high reputation and good feedback from global customer among all of our products, High-speed Tubular Separator is capable of applied in a variety of biological processes from cell harvesting and clarify to separation of chemical, food, blood and pharmaceuticals.
    High performance is consistently achieved in continuous, semi-continuous or batch operations. Include a range of sizes from research to production, our tubular separator provide an efficient and cost-effective technology to separate from one to several thousand liters of biological cultures and other mixtures. For extremely high solids concentrations, drum centrifuge for high performance separations can be supplied.

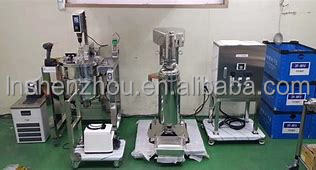

    Customer’s working Show
    Company Profile
    Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so onAt the same time,our product with best prices and good quality,welcome to Shenzhou!
    Packing & Delivery
    To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
    FAQ
    1. What certificates do you have?
    We can provide CE, ISO 9001, etc

    2. What is the warranty period of the equipment?
    Normally 1 year warranty.

    3. Can we visit your factory?
    Of course, we sincerely invite you to visit, If it's not convenient for you to come to our factory, you can also visit by
    telephone video conference.

    4. What's payment you accept?
    A4: T/T, Western Union, L/C, Ali Pay, etc

    5. Can it be customized?
    Of course, our equipment can be customized according to the actual requirements of customers.
