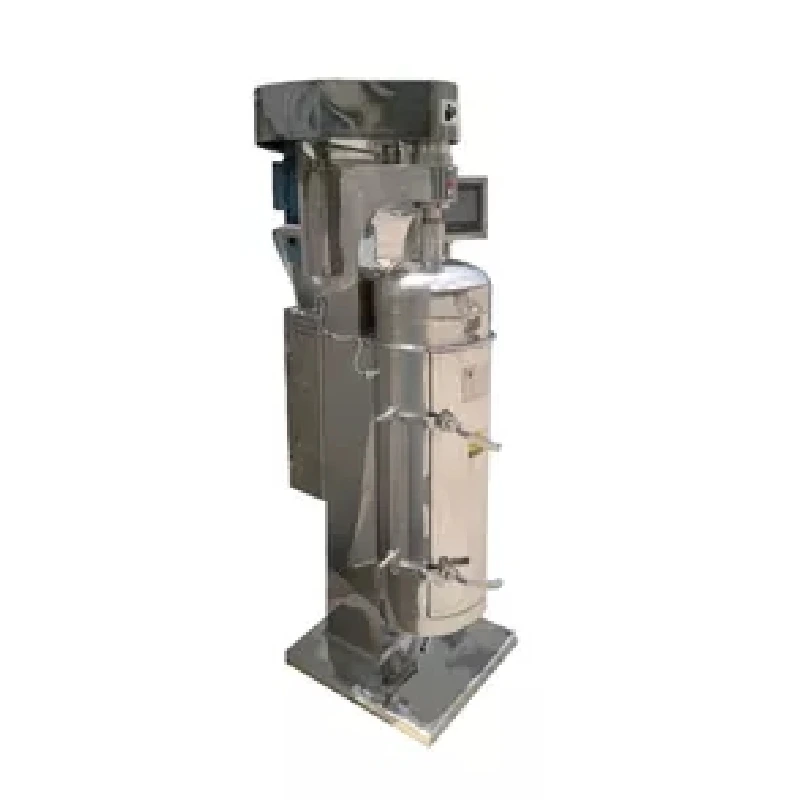

Professional GQ105 Spirulina Algae Harvest Separator Tubular Centrifuge in Chinese Factory manufacturers
Shenzhou makes tubular centrifuges designed to separate algae from fresh and sea water!
Shenzhou alage separator Working principle

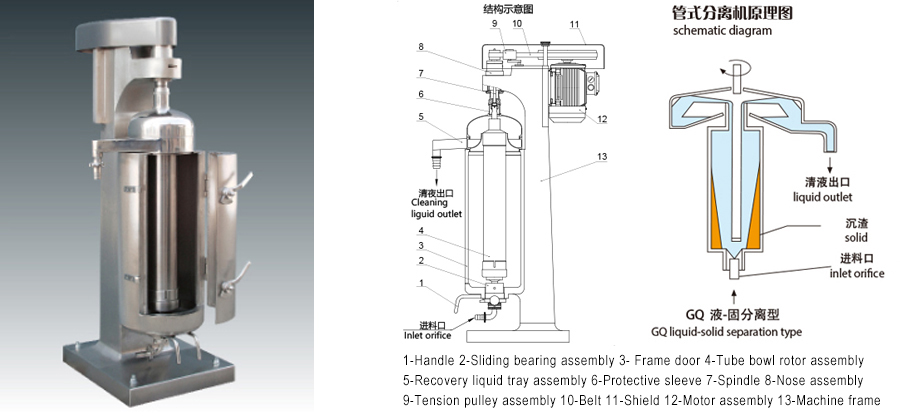

It is high speed separator. It has better separation. The separator is consisted of main body, driving device, bowl collecting pan and liquid-in bearing seats. The upper of the bowl is flexible main shaft and the lower of it is damp floating. The main shaft is connected with a driven wheel by the coupling seat with the buffer. The power is transmitted to the driven wheel by the motor through the transmission belt and the tensioner to make the bowl rotate around its axis at an over speed and form a strong centrifugal force field. The product sprays into the liquid inlet from the bottom and liquid is forced to flow upward along the inner wall of the bowl and then is separated into different layers according to different density.

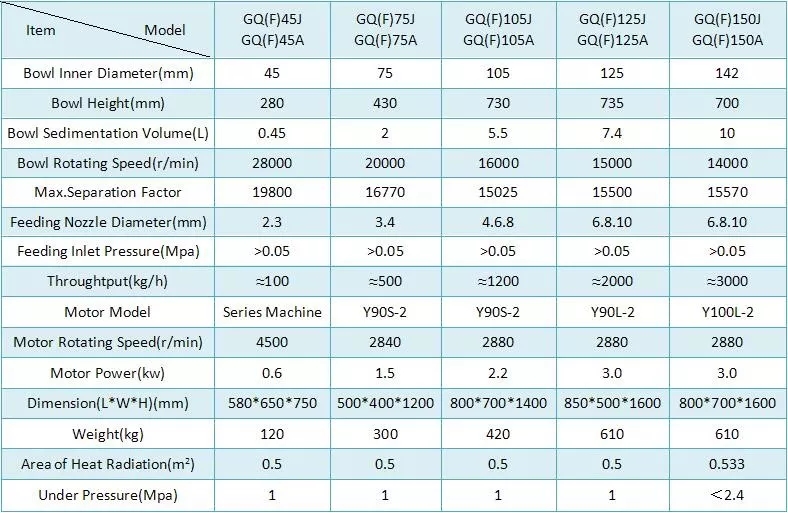

Shenzhou alage separator Specification
