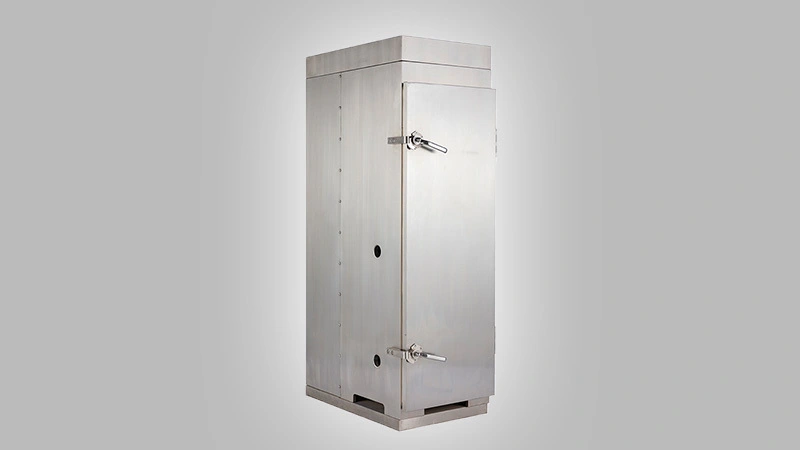

Professional GQ142G Square box tubular centrifuge manufacturers
The square box type tubular centrifuge has better sound insulation effect. The equipment is heavy and operates stably.
Product information：
The GQ142G Square box tubular centrifuge is composed of machine frame, nose assembly, liquid tray assembly, tube bowl rotor assembly, sliding bearing assembly, motor drive assembly, rear cover and other components. The motor rotates at a high speed and transmits power to the belt pulley and the main shaft on the machine nose through the transmission belt and the belt wheel. The feed liquid is injected into the rotating bowl from the feed port at the bottom. Under the strong centrifugal force, the feed liquid is forced to separate in different layers. The light weight liquid, which is in the center of the bowl, flows to the upper part of the bowl and is thrown out and can be collected through the liquid collecting tray. Heavy solids are deposited on the inner wall of the bowl and can be manually unloaded after shutdown.
High-speed tubular centrifuges are mainly used for liquid-solid separation in industries such as biopharmaceuticals, Chinese medicine clarification, bacterial recovery, blood products, plant extraction, health food, beverages, and chemical industries. High-speed tubular centrifuge is one of the most ideal equipments for material separation by centrifugal method. It is especially suitable for the extraction, concentration and clarification of materials with small liquid-solid weight difference, large viscosity, fine solid particle size and low content, and strong material corrosion.
Technical parameter：
| Model | Bowl diameter | Bowl speed | Bowl volume | Maximum centrifugal force | Maximum water capacity | Motor power | Weight | Dimensions | Power supply |
| GQ142G | 142 mm | 14000 | 11L | 15600 g | 3000L | 3.0kw | 900kg | 910×620×1770 mm | customized |
Shenzhou Group Co.,Ltd Specially manufacturing centrifuge & separator:More details of the tubular centrifuge separator as following:
