Professional Hydraulic Drive Decanter Centrifuge manufacturers
Shenzhou has collaborated with a renowned Swiss hydraulic drive system brand to develop a fully hydraulic-driven horizontal spiral centrifuge that meets high-standard requirements from customers both domestically and internationally. The hydraulic drive system for the centrifuge drum and propeller is powered by a single motor, driving oil pumps to create two hydraulic circuits to operate the hydraulic motor and hydraulic differential. The advantages of this fully hydraulic-driven horizontal spiral centrifuge make it suitable for the separation of heavy mud in high-temperature environments."

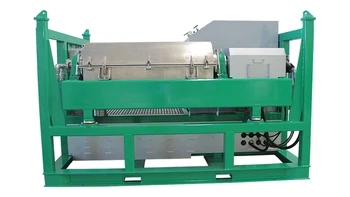

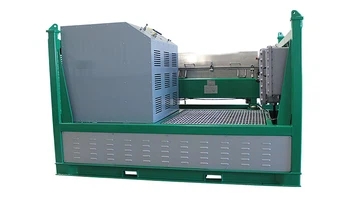

Hydraulic Drive Decanter Centrifuge Product Introduction
Shenzhou is a prominent manufacturer of oilfield Hydraulic Drive decanter centrifuges, has been dedicated to the development of fully hydraulic-driven centrifuges, ensuring they meet the highest global standards.
The hydraulic system powers both the conveyor and the bowl of a decanter centrifuge through two hydraulic oil circuits, offering distinct advantages.
This design excels in high-temperature environments, making it suitable for heavy mud applications due to its adaptable bowl and differential speed capabilities. Additionally, the compact single-skid design simplifies installation and setup.
Techinical Parameter
Model: LWL360Bowl Size 360x1270mm
Bowl Speed 0-3400RPM （2328G）
Differential Speed 0-70RPM
Motor Power 45 KW
Driving System Switzerland Hydraulic Drive
Max Capacity 200GPM(45m3/h)
Max Torque 4163 N.M
Dimension(mm) 3000x2400x1860mm
Weight (KG) 3400KG

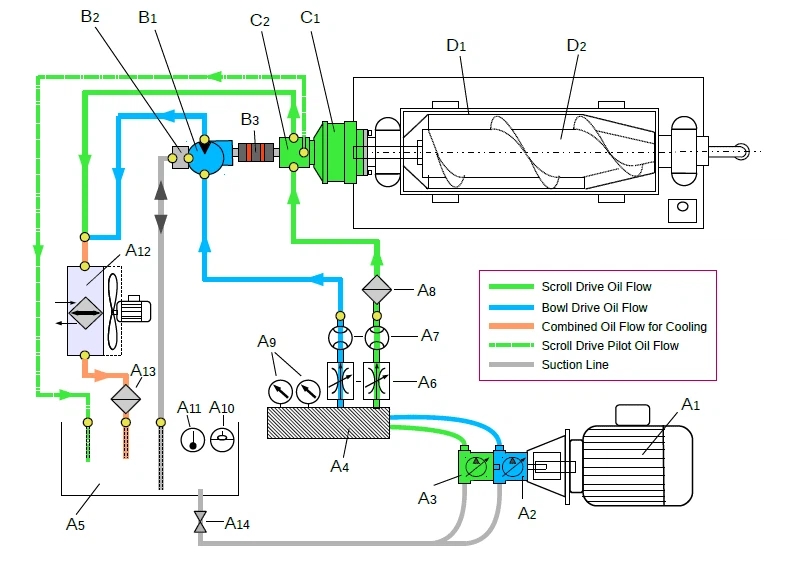

Principle Of The Hydraulic Drive System
The complete hydraulic system comprises three primary components: A - the Hydraulic Pump Unit, B - the Bowl Drive Hydraulic Motor, and C - the Scroll Drive.
Hydraulic Pump Unit A is responsible for delivering hydraulic oil to both the scroll drive C and the bowl drive B through two distinct and fully independent operating circuits.
An electric motor labeled A1 powers the combined pumps A2 and A3. Each operating circuit is equipped with its dedicated hydraulic pump and its individual control mechanisms. The pump unit includes all necessary adjustment devices, safety valves, and pressure gauges.
This system enables the manual adjustment of the bowl's rotational speed and the scroll's differential speed independently of each other, offering continuous and infinitely variable control options throughout the centrifuge's operation.
