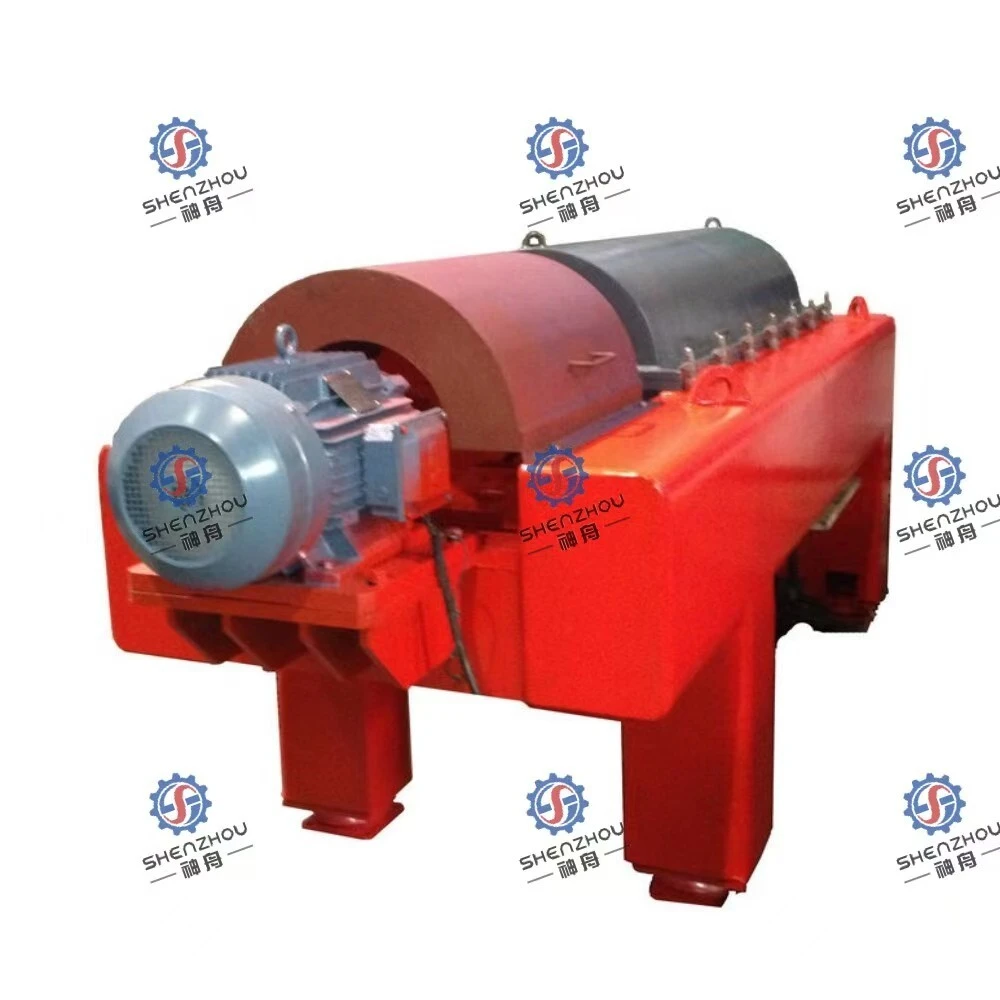

Industrial Horizontal Sedimentation Decanter Centrifuge for Slurry Separation
The working principle of the horizontal decanter centrifuge is that the slurry mixture enters the drum through the feed pipe and spiral discharge port. Under the centrifugal force generated by the high-speed rotation of the host, solid particles with a high density deposit on the inner wall of the drum. The spiral blades that move relative to the drum continuously scrape off the solid particles deposited on the inner wall of the drum and push them out of the slag discharge outlet. The separated clear liquid flows out of the drum through the opening of the weir plate. The relative motion between the spiral and the drum is achieved by a differential. The differential housing is connected to the drum, the output shaft is connected to the screw, and the input shaft is connected to the auxiliary motor. The main motor drives the rotation of the drum and also drives the rotation of the differential housing. Due to the connection between the input shaft and the auxiliary motor, the auxiliary motor generates braking torque, which drives the planetary gears to operate according to the designed transmission relationship and transmits the torque to the screw in a certain proportion, achieving continuous separation of materials in the horizontal spiral settling centrifuge.
Product Description
Horizontal spiral centrifuge is one of our company main products. According to the requirement of the material used, we design the horizontal spiral centrifuge with one motor, two motors driving. At the same time, we design two motors separately on both sides of the machine and motors on the same place of the machine. We also develop three column horizontal spiral centrifuge, used in the separation of coal tar oil, water, slag in the industry, in petrochemical in the separation of oil, water, slag.
Main motor drive at full speed rotating drum, material put into spiral continuously by feed tube, evenly distributed to the spiral discharging port. Under centrifugal force, solid content settles to the drum wall and is pushed out cone drum slag notch by the spiral pusher. Liquid is overflow along the spiral to the drum big end. It form big end set out liquid and small end set out solid.
Tenchical parameters
|
1 |
Drum diamter (mm) |
290 |
360 |
450 |
530 |
580 |
640 |
730 |
820 |
890 |
|
2 |
(L/D) |
4.0 ~ 4.7 |
4.0 ~ 4.7 |
4.0 ~ 4.7 |
4.0 ~ 4.7 |
4.0 ~ 4.7 |
4.0 ~ 4.7 |
4.0 ~ 4.7 |
4.0 ~ 4.7 |
4.0 ~ 4.7 |
|
3 |
Capcacity (m3/h) |
1 ~ 2.5 |
2 ~ 4 |
4 ~ 8 |
6 ~ 15 |
10~25 |
12 ~ 35 |
20 ~ 50 |
25 ~ 60 |
30 ~ 80 |
|
4 |
Drum speed(rpm) |
Max.5000 |
Max.4600 |
Max.3800 |
Max.3500 |
Max.3200 |
Max.3000 |
Max.2700 |
Max.2400 |
Max.2300 |
|
5 |
Separation factor |
Max.5040 |
Max.4265 |
Max.3640 |
Max.3635 |
Max.3326 |
Max.3225 |
Max.2980 |
Max.2680 |
Max.2635 |
|
6 |
Differential speed (rpm) |
0.5～30 |
0.5～30 |
0.5～30 |
0.5～30 |
0.5～30 |
0.5～30 |
0.5～30 |
0.5～30 |
0.5～30 |
|
7 |
Lubrication Method |
Grease Lubrication |
Grease Lubrication |
Grease Lubrication |
Grease Lubrication / Oil Spray Lubrication |
Grease Lubrication / Oil Spray Lubrication |
Oil Spray Lubrication |
Oil Spray Lubrication |
Oil Spray Lubrication |
Oil Spray Lubrication |
|
8 |
Feed Solid Content(%) |
1~40 |
1~40 |
1~40 |
1~40 |
1~40 |
1~40 |
1~40 |
1~40 |
1~40 |
|
9 |
Main Motor Power (kW) |
18.5 |
22 |
45 |
55 |
75 |
90/110 |
132 |
160 |
200 |
|
10 |
Auxiliary Motor Power (kW) |
7.5 |
11 |
15/18.5 |
22/30 |
22/30 |
30 |
37/45 |
45 |
55 |
|
11 |
Overall Reference Weight(kg) |
≈2500 |
≈3800 |
≈4600 |
≈6200 |
≈7500 |
≈10500 |
≈15000 |
≈17500 |
≈20500 |
Working Principle
Separation takes place in a horizontal cylindrical bowl equipped with a scroll conveyor. The processing material is fed into the bowl through a stationery inlet tube and is smoothly accelerated in the accelerate chamber. Centrifugal forces cause instant sedimentation of the solids on the wall of the bowl. The conveyor rotates in the same direction as the bowl, but at a different speed, thus moving the solids towards the conical end of the bowl.
Main parts
The major parts are: ①rotary drum ②spiral feeder ③engine base ④stainless steel cover ⑤stainless steel cover ⑥absorber ⑦electrical machine.
Application
Currently, our three-phase decanter centrifuges are used in the separation of olive oil , soybean oil , oils,water and slags / dregs in the coal tar industry, the petrochemical industry, the fish powder industry, the swill oil industry, the electrolytic copper industry, and the waste scraps in the slaughter houses.
Packing and shipping
Machine freight by truck or container. Container machine be fixed by steel wire, to make sure all of them not be damage by transport jolt.
