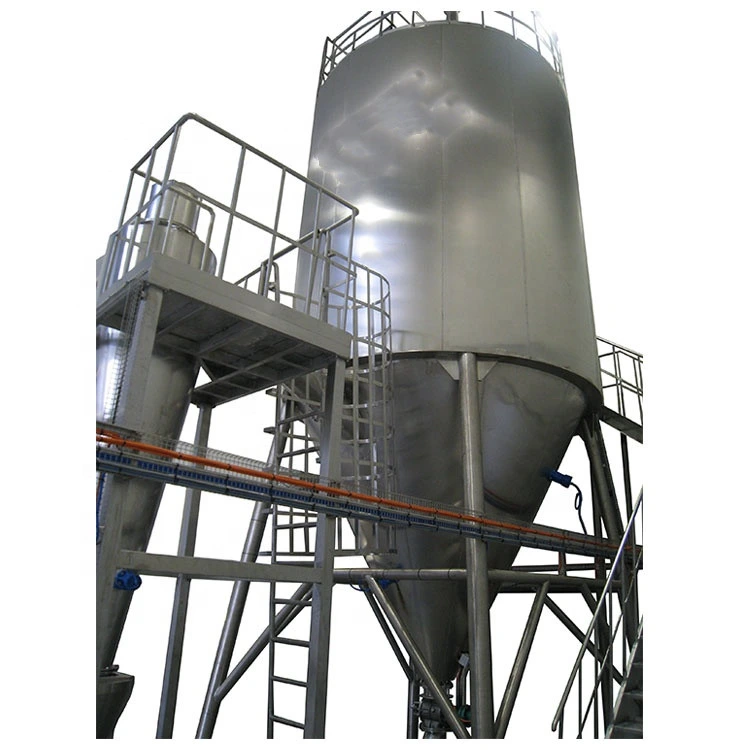

Name: Shenzhou - ZPG series of spraying and drying machine for Chinese medical extract Drying & granulator Machine
Uploaded: 2026-01-12T11:29:07+08:00
Description: After the ZPG series of spraying and drying machine for Chinese medical extract was launched, most customers have given positive feedback, believing that this type of product meets their expectations for high-quality products.Moreover,customization service is offered to meet different demands.

After the ZPG series of spraying and drying machine for Chinese medical extract was launched, most customers have given positive feedback, believing that this type of product meets their expectations for high-quality products.Moreover,customization service is offered to meet different demands.

Customization:

Customized logo (Min. Order: 1 Units),Customized packaging (Min. Order: 1 Units),Graphic customization (Min. Order: 1 Units)

shipping:

Support Sea freight · Land freight

Inquiry

Write a Review

Products Description

Product Description

ZPG series of spraying and drying machine for Chinese medical extract

Brief introduction: In this machine, the fully-closed structure is adopted, all parts are made of stainless steel, and there is the 3-stage purifying device. After the filtering, the air meets the 100000-grade standard. There are cooling devices for the reactor, the temperature of the container wall is less than 80℃, and even the raw products are stayed on the wall, will not be burned. The powder rate is as high as more than 95%, and there is no powders mixing or wall hanging.

Working principle：In this machine, the centrifugal spraying and drying technology is adopted. With the high-speed centrifugal atomizer, after the spraying, powders are atomized, can be contacted with hot air completely, and the drying is completed instantly.

Shenzhou - ZPG series of spraying and drying machine for Chinese medical extract Drying & granulator Machine 7

Details Images

Shenzhou - ZPG series of spraying and drying machine for Chinese medical extract Drying & granulator Machine 8

Shenzhou - ZPG series of spraying and drying machine for Chinese medical extract Drying & granulator Machine 9

Features：

1.With the 3-stage purifying device, the air meets the 100000-grade standard.

2.There are cooling devices for the reactor, the temperature of the container wall is less than 80℃, and even the raw products are stayed on the wall, will not be burned.

3.With the flushing device, the machine can be applied for the drying for many kinds of products.

4.The wet-type dust collecting is adopted, which meets the environment protecting standard.

5.There is the air cleaning device.

6.In the atomizer, the variable-frequency speed regulating is equipped.

7.There is the touch screen and the PLC.

8.CIP

Shenzhou - ZPG series of spraying and drying machine for Chinese medical extract Drying & granulator Machine 10

Specification

S.N.	Items	Requirement
1	Raw product	Concentrated liquid from fruit puree
2	Air temperature at inlet	150 ~ 200℃
3	Air temperature at outlet	80 ~ 100℃
4	Dewatering	90Kg/h
5	Water content in raw product	80 ~ 90%
6	Water content in final product	1 ~ 3%
7	Heating	Electric heating: 210Kw / Natural gas: 220m2
8	Electric high-speed centrifugal atomizer	1 set
9	Vibrator for tower wall	3pcs
10	Total power	38.25Kw (Electric heating of 270Kw is not included)
11	Gas furnace(optional)	600000kilocalorie
12	Material	Stainless steel 304 Thickness of inner plate in the drying tower: 3mm Insulation: 80mm Outer seal: 1.2mm (Stainless steel 304)

Shenzhou - ZPG series of spraying and drying machine for Chinese medical extract Drying & granulator Machine 11

Packing & Delivery

Shenzhou - ZPG series of spraying and drying machine for Chinese medical extract Drying & granulator Machine 12

Shenzhou - ZPG series of spraying and drying machine for Chinese medical extract Drying & granulator Machine 13

wooden case
