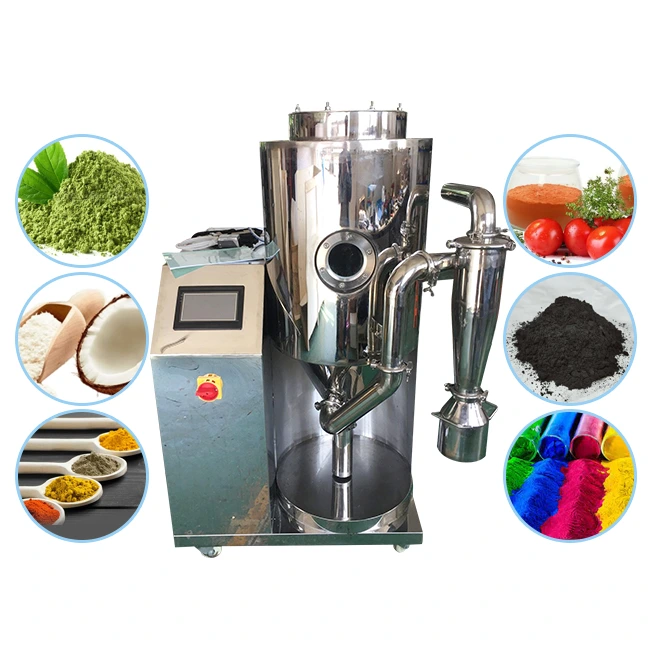

Shenzhou - Hot Sale spray dryer/centrifuge spray dryer machine/Spray Drying Equipment Drying & granulator Machine
Driven by business needs, we have been constantly optimizing and upgrading our technologies including. These technologies contribute to our high-efficiency manufacturing process.In the application field(s) of Drying Equipments.the Hot Sale spray dryer/centrifuge spray dryer machine/Spray Drying Equipment proves to be very useful.
5.0
Customization:
Customized logo (Min. Order: 1 Units),Customized packaging (Min. Order: 1 Units),Graphic customization (Min. Order: 1 Units)
shipping:
Support Sea freight · Land freight
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
After a long period of exploration,Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd has launched Hot Sale spray dryer/centrifuge spray dryer machine/Spray Drying Equipment. Hot Sale spray dryer/centrifuge spray dryer machine/Spray Drying Equipment is of high quality and moderate price, so you can buy with confidence. With regard to its design, Hot Sale spray dryer/centrifuge spray dryer machine/Spray Drying Equipment is designed by a team of our designers who are always close to the industry trend and keep alert to the changes.
| Place of Origin: | Liaoning, China | Brand Name: | lysz |
| Application: | Medicine Processing | Condition: | New |
| Production Capacity: | 3L/h | Warranty: | 1 Year |
| Dimension(L*W*H): | 1630*930*1150mm | Power: | 3KW |
| Voltage: | 220V | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company |
| Weight (KG): | 260 | Showroom Location: | None |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Hot Product 2021 | Warranty of core components: | 1 Year |
| Core Components: | PLC, Gearbox |
Product Description
spray dryer is a kind of continuous atmospheric dryer.Use pneumatic or electric atomization device to make liquid high-speed centrifugal spray as fog droplet, make these fog droplet contact with the hot air in the drying chamber and instantaneous drying.
Specification
Model | TP-S15 | TP-S30 | TP-S50 | TP-S100 | |||
Max capacity | 1500-2000 ml/h | 3000 ml/h | 5000 ml/h | 10000 ml/h | |||
Temperature range of inlet air | 40℃ ~ 300℃ | 30℃ ~ 300℃ | 140°C ~ 300°C | 50°C ~ 300°C | |||
Temperature range of outlet air | 40℃ ~ 140℃ | 30℃ ~ 140℃ | 80°C ~ 90°C | 30°C ~ 150°C | |||
Spray system | Two-fluid nozzle | Centrifugal nozzle | Centrifugal nozzle | Centrifugal nozzle | |||
Precision of temp | ±1 ℃ | ||||||
Dryer time | 1.0 ~ 1.5 S | ||||||
Speed of squirt pump | 50 ~ 2000 | 3000 | 5000 | 10000 | |||
Spray direction | Downwards co-current | ||||||
Heater Power | 3KW 220V | ||||||
Total power | 10KW 380V | ||||||
Heat source | Electric | ||||||

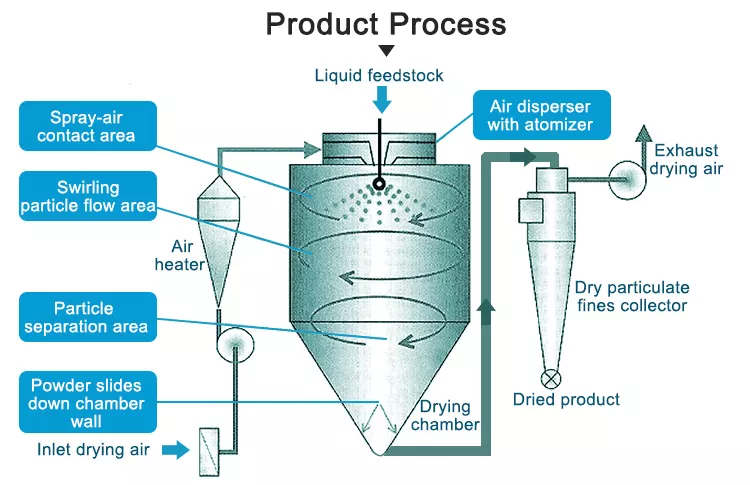

1. After the air passes through the filter and the heating device, it enters the hot air distributor on the top of the drying
room, and the hot air passing through the hot air distributor evenly enters the drying room and rotates in a spiral shape.
room, and the hot air passing through the hot air distributor evenly enters the drying room and rotates in a spiral shape.
2. At the same time, the material liquid is sent to the centrifugal spray head (atomizer) installed at the top of the drying chamber, and the material liquid is sprayed into performance mist droplets.
3. The contact surface area of the material liquid and the hot air is greatly increased, and the water evaporates quickly, and the finished product is dried in a very short time.
4. The powder is recovered by the collection tube at the bottom of the dryer, and the exhaust gas is discharged by the
centrifugal fan.
4. The powder is recovered by the collection tube at the bottom of the dryer, and the exhaust gas is discharged by the
centrifugal fan.
1. Stainless steel material, arc corner design and polyester powder coated shell, prevents corrosion of acidity and alkaline air effectively.
2. Imported Schneider electrical components which is more stability.
3. PLC control system, make your research more easier and efficient. 4. Build in oil-free air compressor, without any noise. 5. Self-priming peristaltic pump, avoid secondary pollution, make sure whole process conducted steady and smoothly.
6. Narrow size distribution, more than 95% of the dry powders are in the same range of particles.
7. Innovative tower wall purging device, improves the material recycling rate.
8. High speed of drying, after spraying of the material liquid, the surface area of material will be increased greatly, make your research more efficient.
9. In the hot-air flow, 95%~98% of water can be evaporated at a moment. You can finish material drying only in several
seconds.
10. Especially suitable for drying the heat sensitive materials, after drying, there's no need for smashing and sorting,
so as to reduce the operation procedures and save your time.
so as to reduce the operation procedures and save your time.
Packing & Delivery
wooden case
Company Profile
Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so onAt the same time,our product with best prices and good quality,welcome to Shenzhou!
FAQ
1. who are we?
We are based in Liaoning, China, start from 2018,sell to North America(30.00%),South America(10.00%),Southeast Asia(10.00%),South Asia(7.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),Africa(3.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Separator,Centrifuge,Packing & Filling,Drying,Tabling Machine
4. why should you buy from us not from other suppliers?
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
We are based in Liaoning, China, start from 2018,sell to North America(30.00%),South America(10.00%),Southeast Asia(10.00%),South Asia(7.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),Africa(3.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Separator,Centrifuge,Packing & Filling,Drying,Tabling Machine
4. why should you buy from us not from other suppliers?
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
