Shenzhou - Chilli Grinder Machine Drying & granulator Machine
The applied technologies are utilized to ensure Chilli Grinder Machine performance is stable. Its scopes of application are wide enough to cover the field(s) of Grinding Equipment.
5.0
Customization:
Customized logo (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets),Graphic customization (Min. Order: 1 Sets)
shipping:
Support Sea freight · Land freight
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Thanks to the efforts of our staff,Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd can launch our Chilli Grinder Machine release meeting as scheduled. Our Grinding Equipment is supplied with a competitive price . Chilli Grinder Machine are superior to other similar products in terms of appearance, performance, and operation methods, and have been unanimously recognized by customers in the market, and market feedback is good. Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd has always insisted on winning by "quality", and has won wide recognition and praise from many companies with high-quality services.
| Output (kg/h): | 5 - 2500 kg/h | Feeding Size (mm): | 6 - 20 mm |
| Power (kW): | 2.2 | Range of Spindle Speed(r.p.m): | 1800 - 5300 r.p.m |
| Material: | SUS304, SUS304L, SUS316, SUS316L | Application: | Medicine Processing, Chemicals Processing, Food Processing |
| Condition: | New | Type: | Grinder |
| Product Type: | Food | Place of Origin: | China |
| Brand Name: | Shenzhou | Voltage: | 220V, 380V, 440V |
| Dimension(L*W*H): | 520*510*1000 | Weight (KG): | 120 KG |
| Warranty: | 12 months after installation. | Key Selling Points: | Multifunctional |
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company | Showroom Location: | None |
| Marketing Type: | Hot Product 2019 | Machinery Test Report: | Provided |
| Video outgoing-inspection: | Provided | Warranty of core components: | 1 Year |
| Core Components: | Motor | After Warranty Service: | Spare parts |
Product Description

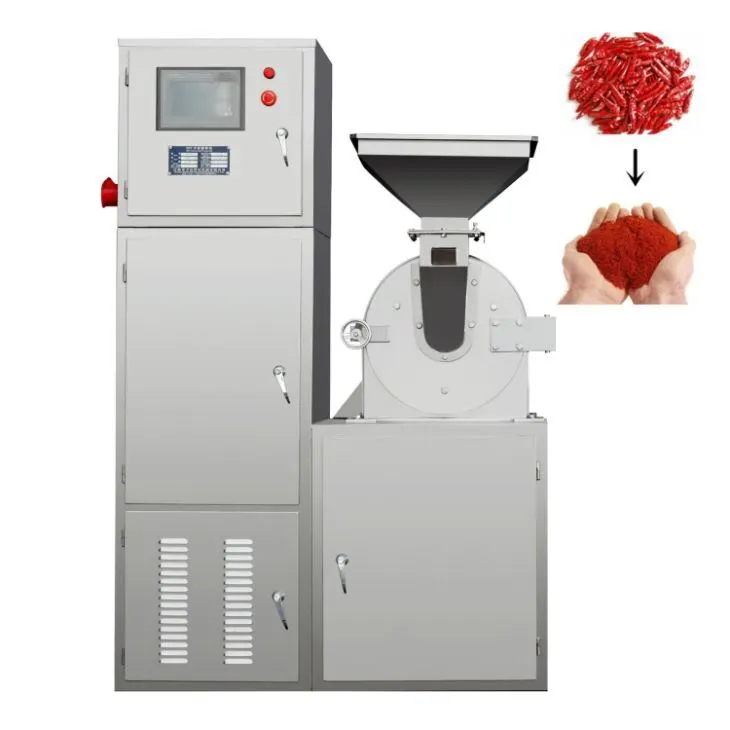

Chilli Grinder Machine
This dust removal chilli grinder machine utilizes the relative movement between the movable toothed discs to cause the material to be crushed by the impact of the toothed disc, the friction and the impact of the materials.
Product Description
This dust removal chilli grinder machine utilizes the relative movement between the movable toothed discs to cause the material to be crushed by the impact of the toothed disc, the friction and the impact of the materials. the pulverized material automatically enters the collecting bag by the rotating centrefugal force, and the dust is filtered and recovered by the dust box through the cloth bag.
The chilli grinder machine is designed according to the "GMP" standard, all made of stainless steel, and there is no dust flying during the production process, moreover, it can improve the utilization rate of materials and reduce the cost of enterprises, and ha reached the international advanced level.
Main Features
The chilli grinder machine adopts a wind wheel type high-speed rotary knife. the sixed knife is used for impact, shearing and grinding. it not only has a good pulverizing, and the heat of the crushing chamber and finished product flow out from the screen together. the crusing fineness can be determined by changing the screen.
Main Purpose
This dust removal grinder machine is mainly used in chemical, pharmaceutical (Chinese medicine), food, spices, resin powder,powder coating and other weak electrical substances and high temperature resistant materials.
This dust removal chilli grinder machine utilizes the relative movement between the movable toothed discs to cause the material to be crushed by the impact of the toothed disc, the friction and the impact of the materials. the pulverized material automatically enters the collecting bag by the rotating centrefugal force, and the dust is filtered and recovered by the dust box through the cloth bag.
The chilli grinder machine is designed according to the "GMP" standard, all made of stainless steel, and there is no dust flying during the production process, moreover, it can improve the utilization rate of materials and reduce the cost of enterprises, and ha reached the international advanced level.
Main Features
The chilli grinder machine adopts a wind wheel type high-speed rotary knife. the sixed knife is used for impact, shearing and grinding. it not only has a good pulverizing, and the heat of the crushing chamber and finished product flow out from the screen together. the crusing fineness can be determined by changing the screen.
Main Purpose
This dust removal grinder machine is mainly used in chemical, pharmaceutical (Chinese medicine), food, spices, resin powder,powder coating and other weak electrical substances and high temperature resistant materials.
Specification
Model | SZWF-180 | SZWF-20B | SZWF-30B | SZWF-40B | SZWF-50B | SZWF-60B | SZWF-80B | SZWF-100B |
Capacity(kg/h) | 5-30 | 60-150 | 100-300 | 160-800 | 300-1500 | 400-2000 | 500-2500 | 600-3000 |
Spindle rotation speed(r/min) | 5300 | 4600 | 3800 | 3400 | 2900 | 2300 | 1800 | 1400 |
Feeding granularity(mm) | ≤6 | ≤6 | ≤10 | ≤12 | ≤15 | ≤15 | ≤20 | ≤20 |
Crushing granularity(mesh) | 12-120 | 12-120 | 12-120 | 12-120 | 12-120 | 12-120 | 12-120 | 12-120 |
Crushing motor(kw) | 2.2 | 4 | 7.5 | 11 | 18.5 | 22 | 30 | 45 |
Dimensions(mm) | 520x510x1000 | 650x570x1240 | 700x670x1370 | 900x800x1550 | 1150x850x1900 | 1250x950x2150 | 1400x1100x2250 | 1500x1300x2400 |
Packing & Delivery
WOODEN CASE
Company Profile
Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so onAt the same time,our product with best prices and good quality,welcome to Shenzhou!
FAQ
FAQ
Q1. What kind of materials can be grinded by the chilli powder grinding machine?
A: Coal, gypsum, salt, sugar, various seasonings, pepper, pepper, fennel, fennel, cinnamon, herbs, spices, etc.
Q2. What are the material processing requirements?
A: The moisture content of the material is less than 5%, and the oil content is less than 20%.
Q3. What is the fineness of the powder grinding machine?
A: The general material is 20-120 mesh, the theory is the finest to 120 mesh, and 100 mesh is the best in actual use.
A: Q4. What is the chilli powder machine consumables?
Screen, pulley, bearing, smashing outer knife
Q5. How to adjust the fineness of the finished product?
A: By changing the screen size, the screen size is 85*910mm
Q6. Water cooling device settings
A: When the material is highly sensitive to heat (at 50 °C), the water cooling device can be added, that is, the water-cooling
jacket is added in the crushing chamber, and the cooling water is circulated in the crushing chamber to achieve the purpose of cooling.
Q1. What kind of materials can be grinded by the chilli powder grinding machine?
A: Coal, gypsum, salt, sugar, various seasonings, pepper, pepper, fennel, fennel, cinnamon, herbs, spices, etc.
Q2. What are the material processing requirements?
A: The moisture content of the material is less than 5%, and the oil content is less than 20%.
Q3. What is the fineness of the powder grinding machine?
A: The general material is 20-120 mesh, the theory is the finest to 120 mesh, and 100 mesh is the best in actual use.
A: Q4. What is the chilli powder machine consumables?
Screen, pulley, bearing, smashing outer knife
Q5. How to adjust the fineness of the finished product?
A: By changing the screen size, the screen size is 85*910mm
Q6. Water cooling device settings
A: When the material is highly sensitive to heat (at 50 °C), the water cooling device can be added, that is, the water-cooling
jacket is added in the crushing chamber, and the cooling water is circulated in the crushing chamber to achieve the purpose of cooling.
