Shenzhou - Superfine Powder Grinding Machine Drying & granulator Machine

Product Description

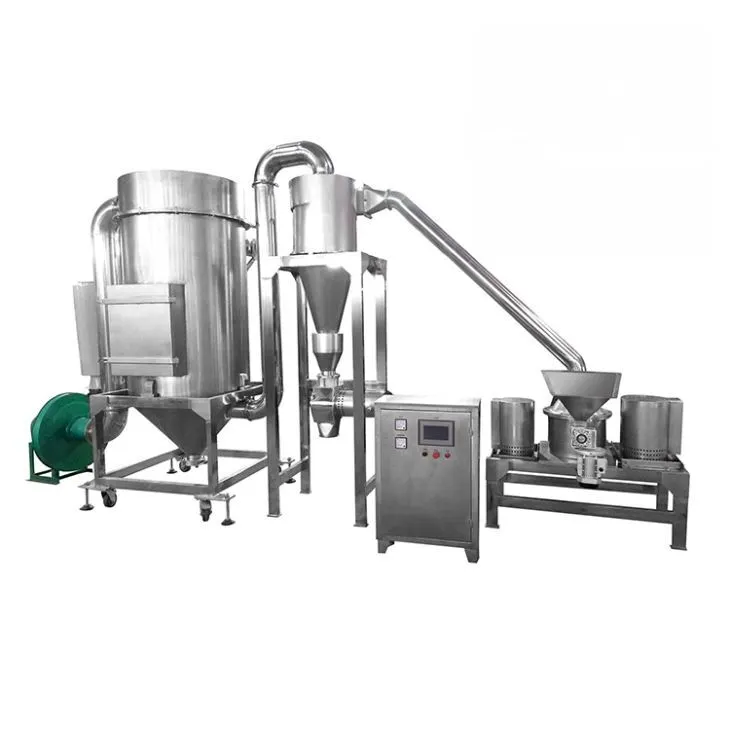

WFJ Series superfine powder grinding machine is composed of three parts: main machine, auxiliary machine and electric control box.
It has various features such as air selection, no screen, no screen, uniform particle size, etc. The production process is
continuous. The machine does not heat up during the crushing operation and can crush various heat-sensitive materials. Its comprehensive performance has reached the international advanced level. This machine is widely used in ultra-fine crushing of low hardness materials such as food, chemicals, pharmaceuticals, feed, tobacco, calcium carbonate, plant fibers, dyes, coatings, pesticides and so on.

Main Purpose
This ultra fine powder grinding machine is widely used in pharmaceutical, chemical, food, traditional Chinese medicine, food, chemical, health care, root, diameter, corn, rice, pepper, oilwheat, soybean, garlic, octagonal, cinnamon, dehydrated vegetables, hawthorn, ginger, garlic slice, sugar, saccharin, food, shrimp skin, pumpkin powder, seasoning and other industries. The machine is suitable for grinding icing sugar, can make 500 mesh icing sugar powder.

Working Principle
The material enters the crushing chamber through the screw conveyor from the hopper, and is cut and crushed by the high-speed rotating blade. The material section is transported into the cyclone separator and the bag type dust remover by the method of negative pressure air transportation, and the discharged material meets the requirements of the product.

The material enters the crushing chamber through the screw conveyor from the hopper and is sheared and crushed by the high-speed rotating blade. The powder enters the grading chamber through the guide ring. Because the grading wheel is rotating, the powder flowing into the blade passage is affected by the aerodynamic force and centrifugal force at the same time. The particles larger
than the critical diameter (grading particle size) in the powder are thrown back to the crushing chamber for continuous crushing due to their high quality. The particles smaller than the critical diameter enter the cyclone separator and bag filter through the discharge pipe through the method of negative pressure air transportation, and the discharged materials meet the requirements of the product.

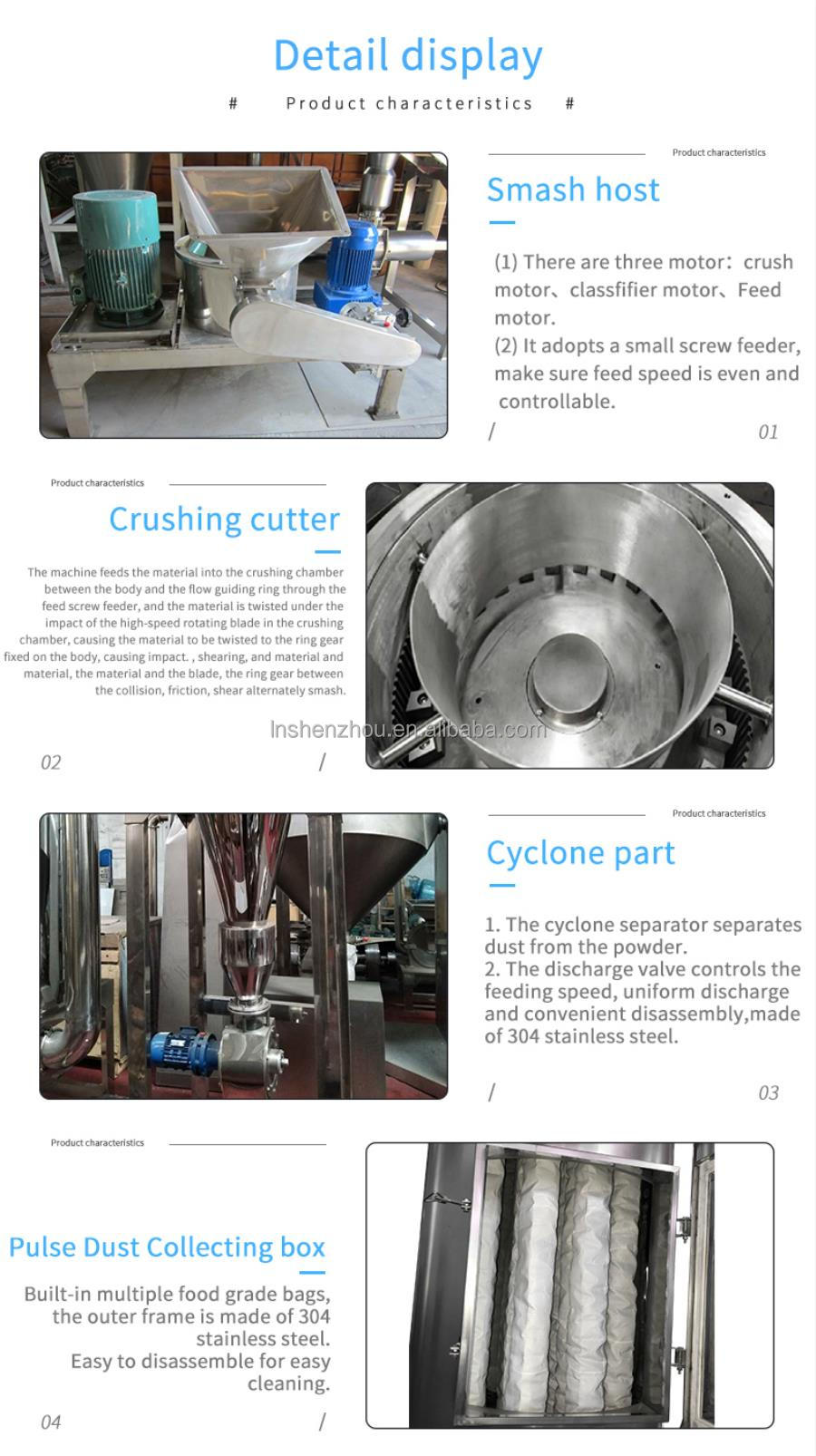

(1) Cyclone can seperate dust from powder(granules)
(2) Rotary valve make powder discharge speed even
(3) Rotary valve is also made of stainless steel and to clean it and dismantle is convinien.

WOODEN CASE
