Shenzhou - Ultra Fine Grinding Machine Drying & granulator Machine
Our Ultra Fine Grinding Machine are of high quality and good price, and high comprehensive cost performance. Once launched, they have received extensive attention from the market.Of cause,customized product is available.
5.0
Customization:
Customized logo (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets),Graphic customization (Min. Order: 1 Sets)
shipping:
Support Sea freight · Land freight
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
It is Ultra Fine Grinding Machine features and appearance that differentiates it from other products in the market. We pay close attention to the selection of raw materials and the use of manufacturing technologies. In this way, the quality and performance of Decanter centrifuge,Disc Centrifuge,Tubular Centrifuge,Plate Centrifuge can be better guaranteed. After years of special research and development, the products developed successfully break through the bottleneck of the pain points. In the future, Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd will continue to provide customers with better service, and continue to focus on technological innovation, is committed to building a complete product system, to provide customers with more diversified products.
| Output (kg/h): | 10 - 2000 kg/h | Feeding Size (mm): | 6 - 20 mm |
| Output Size (mesh): | 60 - 500 mesh | Power (kW): | 13.5 |
| Range of Spindle Speed(r.p.m): | 2000 - 6000 r.p.m | Material: | SUS304, SUS304L, SUS316, SUS316L |
| Application: | Medicine Processing, Chemicals Processing, Food Processing | Condition: | New |
| Type: | Grinder | Product Type: | POWDER |
| Place of Origin: | China | Brand Name: | Shenhou |
| Voltage: | 380V/220V/upon | Dimension(L*W*H): | ACCORDING TO MODEL |
| Weight (KG): | 1100 KG | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Applicable Industries: | Garment Shops, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company |
| Showroom Location: | None | Marketing Type: | Available |
| Machinery Test Report: | Provided | Video outgoing-inspection: | Provided |
| Warranty of core components: | 1 Year | Core Components: | Motor |
| After-sales Service Provided: | Video technical support, Online support | After Warranty Service: | Video technical support, Online support, Spare parts, Field maintenance and repair service |
| Local Service Location: | None | Certification: | ISO CE |
Product Description

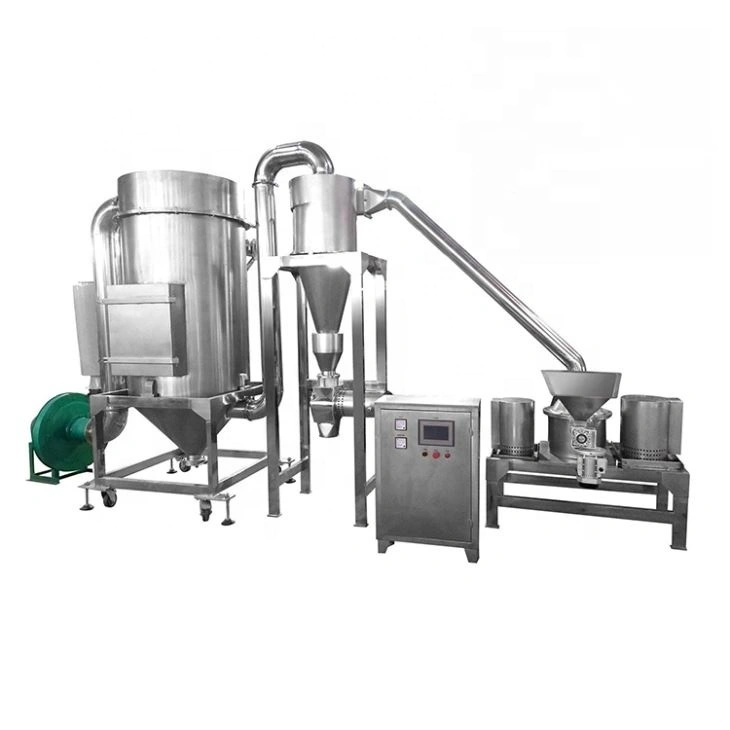

Ultra Fine Grinding Machine
WFJ Series ultra fine grinding machine is composed of three parts: main machine, auxiliary machine and electric control box. It has many performances, such as air separation, no screen, no net, even particle size and so on.
Product Description
WFJ Series ultra fine grinding machine is composed of three parts: main machine, auxiliary machine and electric control box. It has many performances, such as air separation, no screen, no net, even particle size and so on. The production process is continuous. This machine can crush all kinds of heat sensitive materials without heating up the main machine during crushing operation.
WFJ Series ultra fine grinding machine is composed of three parts: main machine, auxiliary machine and electric control box. It has many performances, such as air separation, no screen, no net, even particle size and so on. The production process is continuous. This machine can crush all kinds of heat sensitive materials without heating up the main machine during crushing operation.
Main Purpose
This ultra fine powder grinding machine is widely used in pharmaceutical, chemical, food, traditional Chinese medicine, food, chemical, health care, root, diameter, corn, rice, pepper, oilwheat, soybean, garlic, octagonal, cinnamon, dehydrated vegetables, hawthorn, ginger, garlic slice, sugar, saccharin, food, shrimp skin, pumpkin powder, seasoning and other industries. The machine is suitable for grinding icing sugar, can make 500 mesh icing sugar powder.
This ultra fine powder grinding machine is widely used in pharmaceutical, chemical, food, traditional Chinese medicine, food, chemical, health care, root, diameter, corn, rice, pepper, oilwheat, soybean, garlic, octagonal, cinnamon, dehydrated vegetables, hawthorn, ginger, garlic slice, sugar, saccharin, food, shrimp skin, pumpkin powder, seasoning and other industries. The machine is suitable for grinding icing sugar, can make 500 mesh icing sugar powder.
Working Principle
The material enters the crushing chamber through the screw conveyor from the hopper, and is cut and crushed by the high-speed rotating blade. The material section is transported into the cyclone separator and the bag type dust remover by the method of negative pressure air transportation, and the discharged material meets the requirements of the product.
The material enters the crushing chamber through the screw conveyor from the hopper, and is cut and crushed by the high-speed rotating blade. The material section is transported into the cyclone separator and the bag type dust remover by the method of negative pressure air transportation, and the discharged material meets the requirements of the product.
Details Images
Smashing Main Part
(1) The left motor is crush motor.
(2) The right motor is classfifier motor.
(3) It adopts a small screw feeder, make sure feed speed is even and controllable.
The material enters the crushing chamber through the screw conveyor from the hopper and is sheared and crushed by the high-speed rotating blade. The powder enters the grading chamber through the guide ring. Because the grading wheel is rotating, the powder flowing into the blade passage is affected by the aerodynamic force and centrifugal force at the same time. The particles larger
than the critical diameter (grading particle size) in the powder are thrown back to the crushing chamber for continuous crushing due to their high quality. The particles smaller than the critical diameter enter the cyclone separator and bag filter through the discharge pipe through the method of negative pressure air transportation, and the discharged materials meet the requirements of the product.
than the critical diameter (grading particle size) in the powder are thrown back to the crushing chamber for continuous crushing due to their high quality. The particles smaller than the critical diameter enter the cyclone separator and bag filter through the discharge pipe through the method of negative pressure air transportation, and the discharged materials meet the requirements of the product.
Cyclone Part
(1) Cyclone can seperate dust from powder(granules)
(2) Rotary valve make powder discharge speed even
(3) Rotary valve is also made of stainless steel and to clean it and dismantle is convinien.
Pulse Dust Collecting Box
(1) Dust is collected inside the dust collecting box.
(2) Inside box, there are many dust collecting bags and the bag frames are also made of stainless steel and can be disassembled
easily.
(3) With pulse-jet cleaning, dust can be collected very conviniently.
(2) Inside box, there are many dust collecting bags and the bag frames are also made of stainless steel and can be disassembled
easily.
(3) With pulse-jet cleaning, dust can be collected very conviniently.
Specification
Model | Dimensions | Capacity | Input particle size | Output particle size | Machine weight | Speed | Total power |
mm | Kg/h | mm | Mesh | kg | R/min | kw | |
WFJ-15 | 4800x1450x2640 | 10-150 | ≤6 | 60-500 | 1100 | 6000 | 13.5 |
WFJ-20 | 5900x1450x2800 | 20-200 | ≤10 | 60-500 | 1300 | 5400 | 21 |
WFJ-30 | 7050x1550x3200 | 50-600 | ≤12 | 60-500 | 2000 | 3800 | 46 |
WFJ-60 | 8100x2000x3700 | 100-1000 | ≤15 | 60-500 | 3800 | 2900 | 84 |
WFJ-80 | 9200x2300x4250 | 120-1500 | ≤15 | 60-500 | 5100 | 2500 | 123 |
WFJ-100 | 10100x2500x4500 | 150-2000 | ≤20 | 60-500 | 7400 | 2000 | 183 |
Packing & Delivery
WOODEN CASE
Company Profile
Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so onAt the same time,our product with best prices and good quality,welcome to Shenzhou!
