Shenzhou - Small Bottle Linear Type Filling Machine Filling&Packing Machine
It has a very important significance in applying technology into the manufacturing practice of the Small Bottle Linear Type Filling Machine.In the field(s) of Filling Machines, the product is widely accepted.
5.0
Customization:
Customized logo (Min. Order: 1 Units),Customized packaging (Min. Order: 1 Units),Graphic customization (Min. Order: 1 Units)
shipping:
Support Sea freight · Land freight
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Our professional engineers have expertise in using technologies. It has a wide scope of range and is widely seen in the field(s) of Filling Machines. Designed by professional designers, Small Bottle Linear Type Filling Machine is attractive in its appearance. Having analyzed the industry dynamics and researched the market development, we ensure our Decanter centrifuge,Disc Centrifuge,Tubular Centrifuge,Plate Centrifuge has advantages in both its appearance and performance. It is designed to be of a unique structure and look, making it highly attractive to potential customers. In addition, the features of our Small Bottle Linear Type Filling Machine makes it more valuable.
| Type: | Filling Machine | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company |
| Showroom Location: | None | Condition: | New |
| Application: | Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles, Cigarettes, Tobacco | Packaging Type: | Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags, Pouch, Capsule, case, Other |
| Packaging Material: | Plastic, Paper, Metal, Glass, Wood, Other | Automatic Grade: | Automatic |
| Driven Type: | Electric | Voltage: | 110V/220/,50HZ/60HZ |
| Place of Origin: | China | Brand Name: | LYSZ |
| Dimension(L*W*H): | 2500*1000*1600 mm | Weight: | 1000 KG |
| Warranty: | 1 Year | Key Selling Points: | Easy to Operate |
| Machinery Capacity: | 2000BPH | Filling Material: | Beer, Other, Milk, Water, Oil, Juice, Powder |
| Filling Accuracy: | less than 1% | Marketing Type: | Hot Product 2022 |
| Machinery Test Report: | Provided | Video outgoing-inspection: | Provided |
| Warranty of core components: | 1 Year | Core Components: | Motor |
Product Description

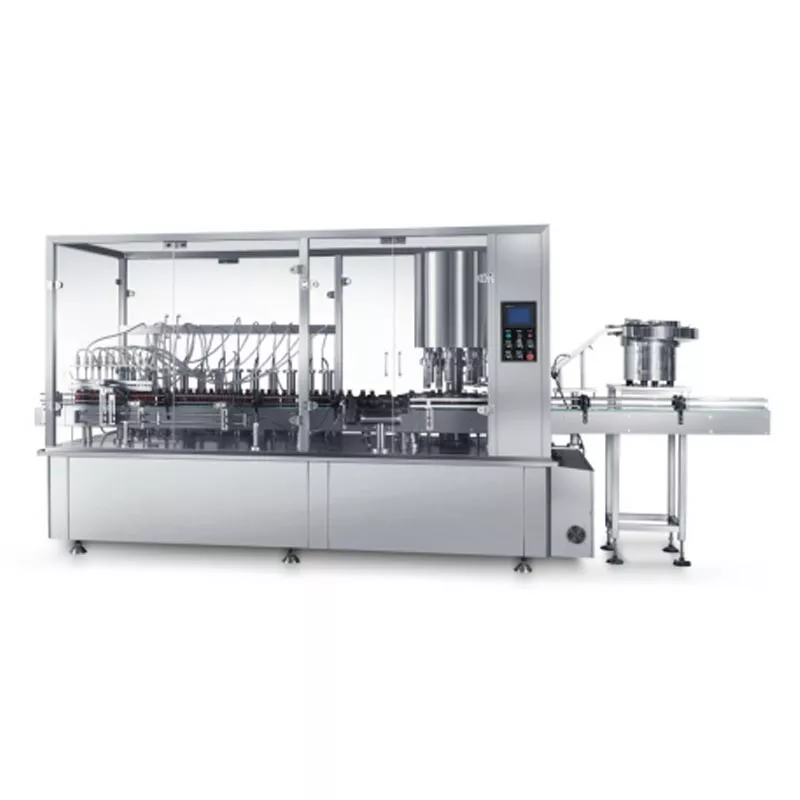

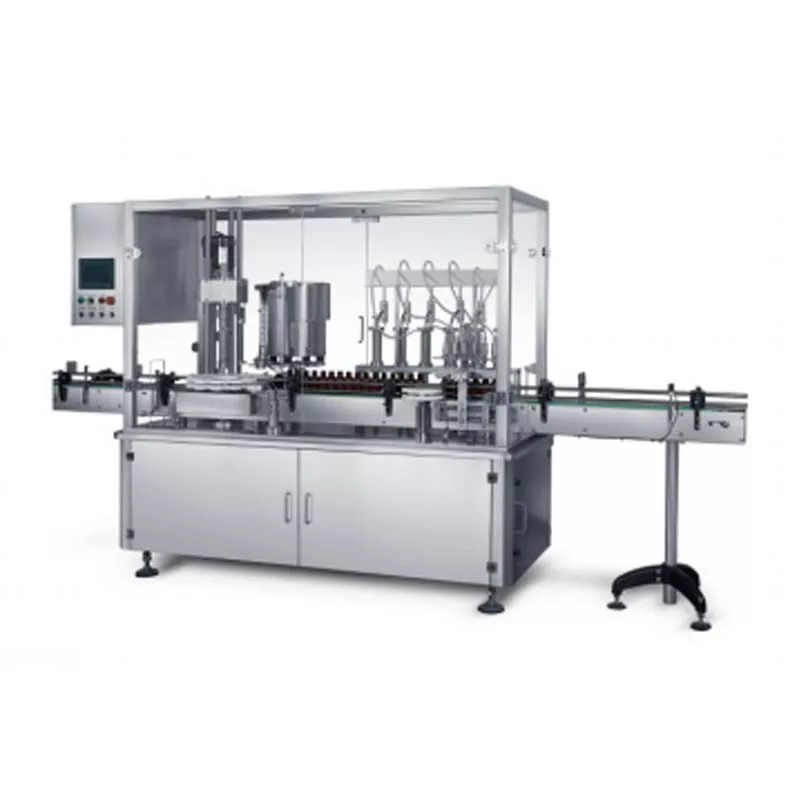

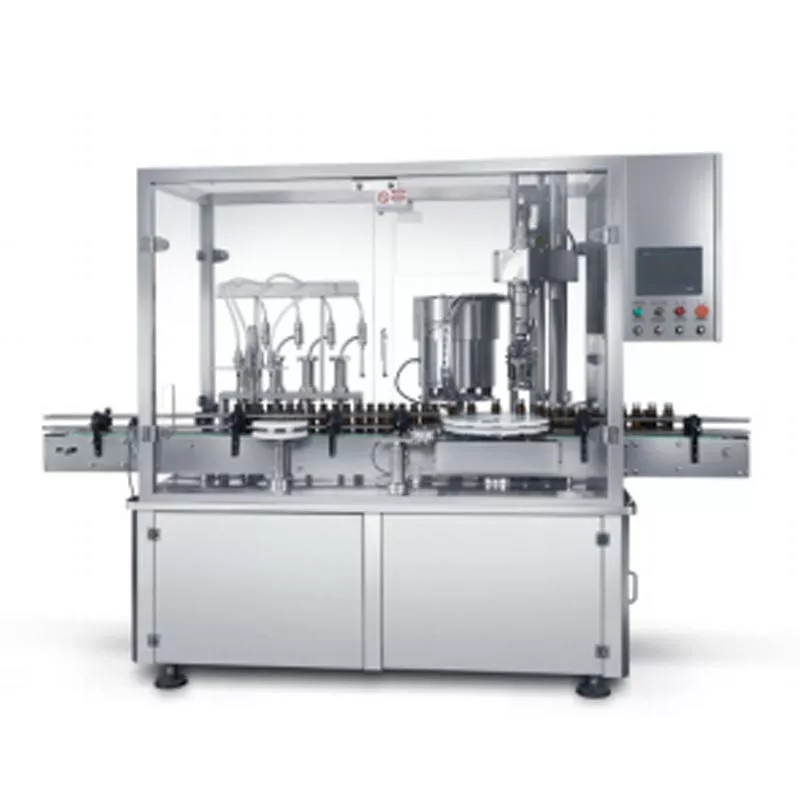

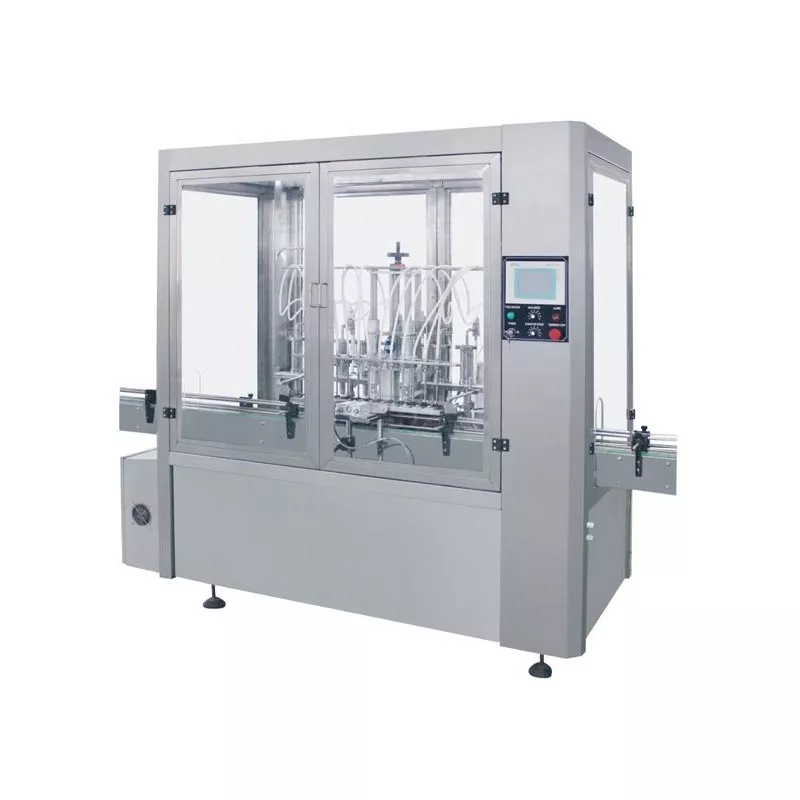

Filling and cap screwing (sealing) integrated machine for plastic bottles and glass bottles
The YGS linear filling cap screwing (sealing) integrated machine is a new product developed by our company after introducing internationally advanced technology to meet market demand. The machine adopts the 316L stainless steel plunger metering pump to perform filling, and combines automatic cap feeding and automatic cap screwing (sealing) with mechanical, electrical and pneumatic integration. It is economical and practical, taking small floor space. It is widely used for liquid packaging in such industries as medicine, food, pesticide, chemical industry, cosmetics, etc., fully conforming to GMP requirements.
Performance Features
1.Integrating filling and cap screwing (sealing) and taking small floor space. With servo driving, the filling volume is adjusted on the man-machine interfsce, featured by convenient operation and quick adjustment.
2.It adopts the plunger metering pump to fill liquids of various viscosities with high precision. The pump can be easily
disassembled, making cleaning and sterilization convenient. It can be equipped with CIP/SIP cleaning and sterilization system.
3.The seal ring of the plunger metering pump is made of silicon rubber, Teflon or other materiais depending on different
industries and liquid ingredients. Ceramic material can be used in special applications. The filling principle also includes the use of peristaltic pump, negative pressure type, weighing type, self-flow type, reflux defoaming type, etc.
4.PLC control system with variable frequency speed control and high degree of automation.
5.The filling system is provided with the anti-leaking device, realizing filling from the bottom of the bottle, rising slowly and
avoiding bubbles.
6.The tightness of the air gripper type cap screwing head can be adjusted without damaging the bottle and cap. It can be equipped with servo motor driving with adjustable torque. The capping head adopts flexible design with easy adjustment, and can also be designed to be used for pull caps.
7.It can be equipped with the cap storage and lifting mechanism and the mechanism for identifying reverse caps and eliminating nonconforming products.
8.The whole machine is suitable for various specifications of bottles and adjustments can be completed conveniently within a short time.
9.The whole machine is designed according to GMP requirements.
1.Integrating filling and cap screwing (sealing) and taking small floor space. With servo driving, the filling volume is adjusted on the man-machine interfsce, featured by convenient operation and quick adjustment.
2.It adopts the plunger metering pump to fill liquids of various viscosities with high precision. The pump can be easily
disassembled, making cleaning and sterilization convenient. It can be equipped with CIP/SIP cleaning and sterilization system.
3.The seal ring of the plunger metering pump is made of silicon rubber, Teflon or other materiais depending on different
industries and liquid ingredients. Ceramic material can be used in special applications. The filling principle also includes the use of peristaltic pump, negative pressure type, weighing type, self-flow type, reflux defoaming type, etc.
4.PLC control system with variable frequency speed control and high degree of automation.
5.The filling system is provided with the anti-leaking device, realizing filling from the bottom of the bottle, rising slowly and
avoiding bubbles.
6.The tightness of the air gripper type cap screwing head can be adjusted without damaging the bottle and cap. It can be equipped with servo motor driving with adjustable torque. The capping head adopts flexible design with easy adjustment, and can also be designed to be used for pull caps.
7.It can be equipped with the cap storage and lifting mechanism and the mechanism for identifying reverse caps and eliminating nonconforming products.
8.The whole machine is suitable for various specifications of bottles and adjustments can be completed conveniently within a short time.
9.The whole machine is designed according to GMP requirements.
Specification
Product model | YGS16/8 | YGS12/8 | YGS8/4 | YGS6/1 | YGS4/1 | ||||
Number of filling heads | 16 | 12 | 8 | 6 | 4 | ||||
Number of cap screwing (sealing)heads | 8 | 8 | 4 | 1 | 1 | ||||
Filling range | 20-1000ml | ||||||||
Ideal filling range | 20-500ml | ||||||||
Optional cap types | Anti-theft cap, screw cap, ROPP aluminum cap | ||||||||
Filling speed bottles/minute | 100-120 | 90-120 | 60-80 | 45-50 | 40-50 | ||||
Filling accuracy | ≤1% | ||||||||
Cap screwing and (pressing) pass rate | ≥99.8% | ||||||||
Power supply | 220V 50/60Hz | ||||||||
Power | ≤2.2kw | ≤2.2kw | ≤1.2kw | ≤1.2kw | ≤1.2kw | ||||
Compressed air pressure | 0.4-0.6Mpa | ||||||||
Net weight | 2000kg | 2000kg | 1200kg | 1000kg | 800kg | ||||
Outline dimensions(mm) | 3600*1000*1800 | 3600*1000*1800 | 3000*1000*1800 | 2800*1000*1600 | 2500*1000*1600 | ||||
Note:The products of our company may always be updated, and are subject to change without (the real products shall prevail).
