The sealing machine comes with heating and cooling blocks made of pure copper. Heat and shape evenly. Sealing Width: 6-15 mm;
Sealing Length: Unlimited. Film Sealing Speed: 0-16m/min.
Shenzhou - SZ-900 Continuous Vertical / Horizontal Sealing Machine 700W Filling&Packing Machine
Our engineers and employees are well trained to utilize state-of-the-art technologies skillfully. So SZ-900 Continuous Vertical / Horizontal Sealing Machine 700W can be specially designed to meet the widely varying needs. At present, it is typically used in the field(s) of Sealing Machines.
5.0
Customization:
Customized logo (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets),Graphic customization (Min. Order: 1 Sets)
shipping:
Support Sea freight · Land freight
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Relying on professional technicians,Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd has rich experience in researching and developing products, one of which is our SZ-900 Continuous Vertical / Horizontal Sealing Machine 700W. It is developed based on the latest industry trend and customers' needs. The result of upgrades in technologies proves to be very positive. The finished SZ-900 Continuous Vertical / Horizontal Sealing Machine 700W is characterized by stable quality.It can play out its greatest value in the field(s) of Sealing Machines. Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd will continue to work hard to improve our capabilities in R&D strength and technologies because they are the core competitiveness of our company. We aim to provide customers with the most satisfying and cost-effective products with our full efforts.
| Type: | SEALING MACHINE | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company |
| Showroom Location: | None | Condition: | New |
| Application: | Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles | Packaging Type: | Bags |
| Packaging Material: | Plastic | Automatic Grade: | Semi-automatic |
| Driven Type: | Electric | Voltage: | 110v/220v/380V 50Hz |
| Place of Origin: | China | Brand Name: | shenzhou |
| Dimension(L*W*H): | 930*400*300mm | Weight: | 30 KG |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Not Available |
| Video outgoing-inspection: | Provided | Warranty of core components: | 1 Year |
| Core Components: | Motor | Max Speed: | 12m/min |
| After Warranty Service: | Online support | Product name: | Vertical Bag Sealing Machine |
Product Description

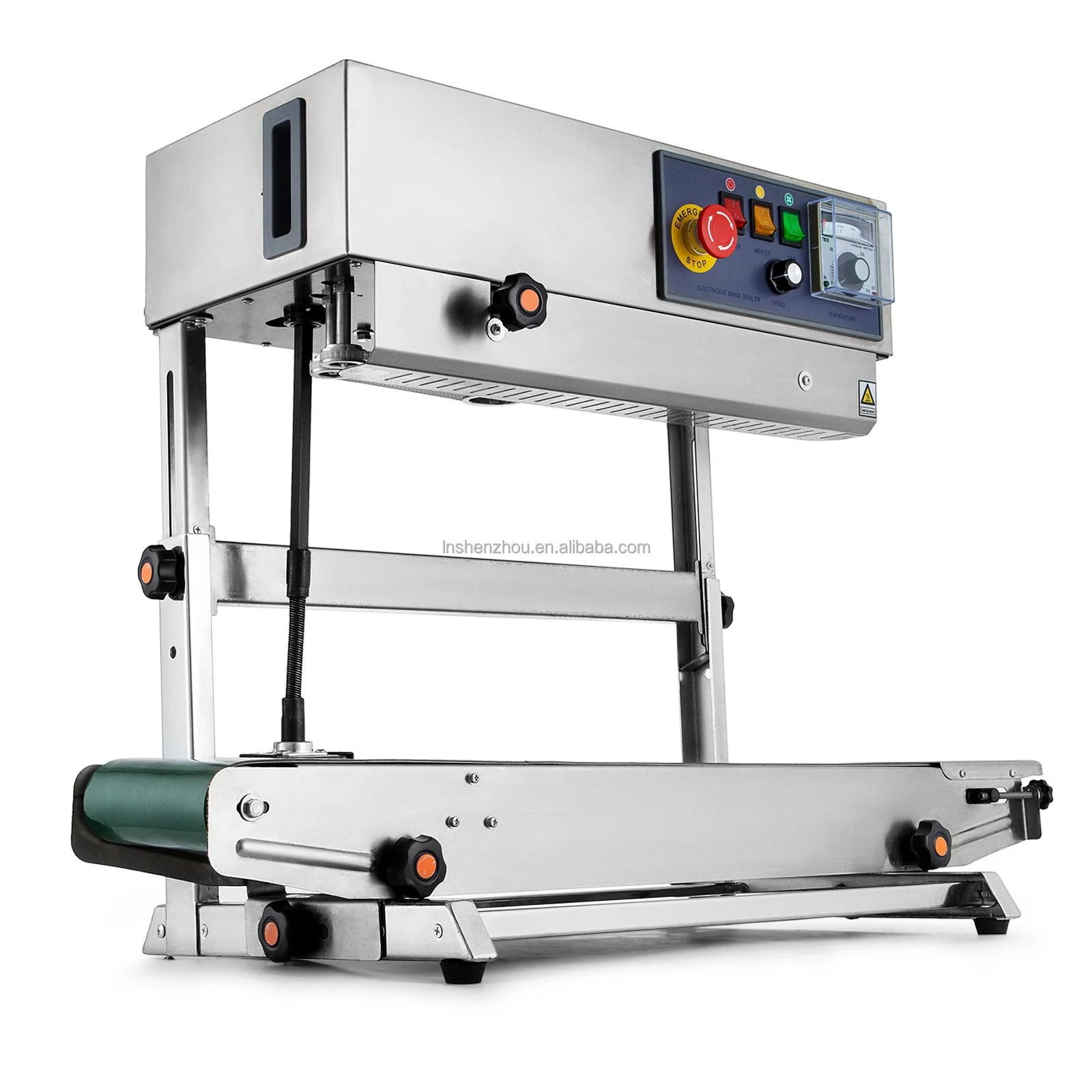

SZ-900 Continuous Vertical / Horizontal Sealing Machine 700W
This auto sealer can seal all kinds of length size and have different sealing pattern effects. Equipped with an embossing wheel and a printing wheel, it can print date, remark, time, logo simultaneously. The pressure is adjustable.
Our continuous vertical band sealer is for packing and sealing of solid and liquid goods and suitable for sealing and bag-making of various plastic and compound films. It uses an electronic constant temperature mechanism and speed adjusting transmission mechanism, making it suitable for the assembly line. You can print the production date, logo, etc., on the package of your products simultaneously.
This kind of seal machine is suitable for bags with a thickness of 0.02 mm-0.08 mm on both sides, fit for the sealing of the plastic bags, aluminum foil bags, compound bags in the industry of the medicine, the agricultural chemicals, food, etc.
The continuous sealer has an all-metal construction with durable electrostatic paint treatment, solid and wear-resistant. The heating block and cooling block are made of pure copper. Two handles make it a portable machine.
Specification
* Pattern: Vertical
* Voltage: 110V/60 Hz 220V/50 Hz
* Heating power: 700W
* Seal width: 6-15 mm/0.24-0.59 inch
* Sealing speed: 0-16 m/min
* Sealing thickness: 0.02-0.08 mm/0.0008-0.03 inch
* Temperature control range: 0 - 400 °C/32 ℉ - 752 ℉
* Conveyor Load: Max. 5.0 kg
* Number of printing: ≤39pcs
* Motor Power: 80W
Technical Parameters
Model | SZ-770LW | SZ-880LW | SZ900 | SZ-1000 |
Voltage | AC220V/50Hz | AC220V/50Hz | AC 220V/50HZ 1 Phase | 220V/50HZ 1Phase |
Machine power | 500W | 500W | 500W | 600W |
Sealing width/thickness | 6-12mm | 6-12mm | 0-13m/min | 6-12mm |
Adjustable length/height | Limitless/15-32cm | Limitless/15-32cm | Limitless/15-32cm | Limitless/15-32cm |
Sealing speed | 0-12m/min | 0-16m/min | 0-300ºC | 13m/min |
Sealing materials | Electronic stepless speed regulation | Embossed steel print | embossed stamp,15 letters/line | 2 lines 30 letters with symbol (English letters need customized) |
Printing type | PP,PE,PET,PVC, aluminum foil bags and etc. | PP,PE,PET,PVC, aluminum foil bags and etc. | PP,PE,PET,PVC, aluminum foil bags and etc. | PP,PE,PET,PVC, aluminum foil bags and etc. |
Working temperature | 0-300 ºC | 0-400 ºC | 0-400 ºC | 0-400 ºC |
Conveying load | ≤5kg | ≤5kg | ≤5kg | ≤8kg |
Packaging size | 896*420*375mm | 880*460*340mm (carton) | 860*410*360mm | 930*400*300mm |
Gross Weight | 23kg | 23kg | 23kg | 30kg |
Details Images
Automatic Sealing
Superior Quality
The continuous bag sealer machine has a reasonable stainless steel frame, solid and robust. The conveyor belt is thickened, which
makes our sealing machine unlimited length.
makes our sealing machine unlimited length.
Simple Operation Panel
Easy to operate the continuous band sealer with an easy-to-understand control panel. You can control the fan, heat, and speed. A
temperature adjusting device and an emergency stop button are practical.
temperature adjusting device and an emergency stop button are practical.
Adjustable & Portable
The up and down and front and behind of the conveying table are adjustable. The pressure control button can be adjusted to meet
the different thicknesses of films. Two handles are for easy carry.
the different thicknesses of films. Two handles are for easy carry.
Polytef Teflon Belt & Motor
The continuous bag sealer machine has a reasonable frame. It comes with a spare Polytef Teflon belt, which is high temperature
resistant. Besides, the enlarged motor features low noise and stable performance.
resistant. Besides, the enlarged motor features low noise and stable performance.
Applications:
This automatic sealer is perfect for the production line, suitable for food, medicine, daily necessities, seeds packaging, and
suits many different film materials, such as PP, PE, PV, OPP, PS.
suits many different film materials, such as PP, PE, PV, OPP, PS.
Packing & Delivery
Wood case
Company Profile
Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so onAt the same time,our product with best prices and good quality,welcome to Shenzhou!
FAQ
1. who are we?
We are based in Liaoning, China, start from 2018,sell to South America(12.00%),Southeast Asia(10.00%),Northern Europe(10.00%),Southern Europe(10.00%),Domestic Market(10.00%),South Asia(8.00%),Central America(6.00%),North America(5.00%),Eastern Europe(5.00%),Africa(5.00%),Oceania(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Mid East(4.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Centrifuge,Separator,Packing machine,Drying machine,Filling & Sealing machine
4. why should you buy from us not from other suppliers?
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
We are based in Liaoning, China, start from 2018,sell to South America(12.00%),Southeast Asia(10.00%),Northern Europe(10.00%),Southern Europe(10.00%),Domestic Market(10.00%),South Asia(8.00%),Central America(6.00%),North America(5.00%),Eastern Europe(5.00%),Africa(5.00%),Oceania(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Mid East(4.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Centrifuge,Separator,Packing machine,Drying machine,Filling & Sealing machine
4. why should you buy from us not from other suppliers?
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
