Shenzhou - blister packaging machine Filling&Packing Machine
Talents and technology are indispensable supporting factors for the blister packaging machine to be widely praised.The widespread use in Blister Packaging Machines of the product helps it win a lot of attention in the market.
5.0
Customization:
Customized logo (Min. Order: 1 Units),Customized packaging (Min. Order: 1 Units),Graphic customization (Min. Order: 1 Units)
shipping:
Support Sea freight · Land freight
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd devotes many years to developing and producing superb blister packaging machine as well as offering professional customer service. The accumulated rich experience and strong technological innovation capabilities have kept Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd at the forefront of the market, and blister packaging machine developed have perfectly solved the pain points of the industry and the market. Following scientific and advanced production standards, we have successfully made blister packaging machine excellent in its performance. Through multiple times of tests, the Decanter centrifuge,Disc Centrifuge,Tubular Centrifuge,Plate Centrifuge is proved to be of great and so on. Before its launch, it has passed the certifications of several international and national authorities.
| Type: | Blister Packaging Machine | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company |
| Showroom Location: | None | Video outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Hot Product 2019 |
| Warranty of core components: | 1 Year | Core Components: | Motor |
| Condition: | New | Application: | Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware |
| Automatic Grade: | Automatic | Driven Type: | Electric |
| Voltage: | 380V/50Hz 220V/60Hz | Place of Origin: | China |
| Brand Name: | LYSZ | Weight: | 460 KG |
| Warranty: | 1 Year | Key Selling Points: | Easy to Operate |
Product Description

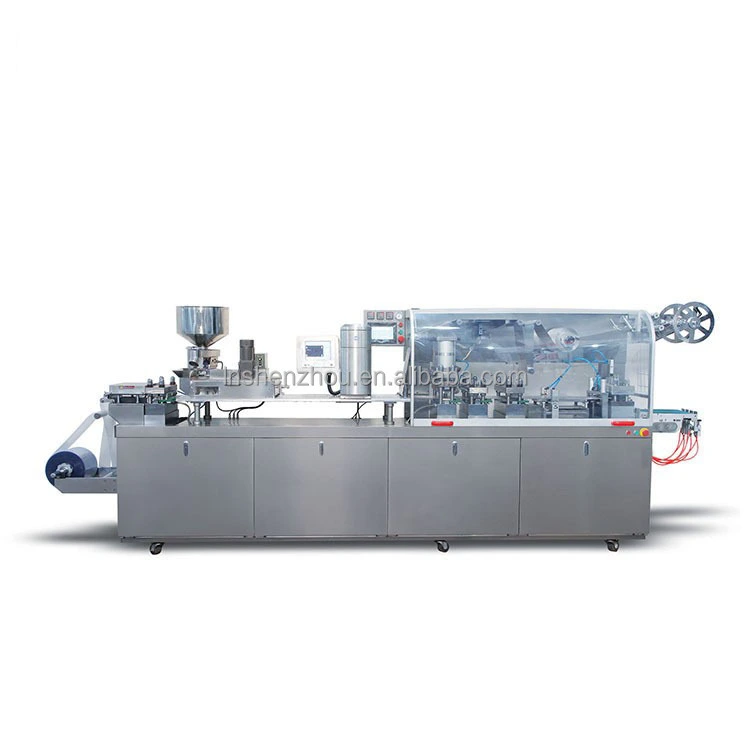

Blister packaging machine
DPP-series is a flat-plate aluminum-plastic blister packaging machine which integrates many functions including PVC feeding, PVC heating, PVC forming, PTP feeding, sealing of PVC and PTP, batch number printing, indentation line making, etc. It is suitable for all kinds of capsules, tablets, sugar coated tablets, honey pills, injections, ampoules, etc. Shenzhou The products have the characteristics of long shelf life, good sealing performance, beautiful appearance, safety and hygiene, conforming to the GMP production standards.
Common packaging products: tablets, pills, capsules, honey, electronic cigarettes, perfume, butter, tomato paste, soft capsule, candy, etc.
Specification
Remarks：
* Best option for small batches, pharmaceutical R&D and pilot plants.
* It allows forming thermoplastic and cold forming materials (Alu-Alu).
* It stands out for its simple operation, high reliability and compact design. Its main structure is made of stainless steel.
* Automation by PLC and operation through touch screen control panel.
* It has pneumatic drives, which lend it high robustness and low maintenance.
* It is suggested for R&D departments, considering that its easy operation and maintenance makes it user-friendly to personnel that are not familiar with the use of blister machines.
* It allows forming thermoplastic and cold forming materials (Alu-Alu).
* It stands out for its simple operation, high reliability and compact design. Its main structure is made of stainless steel.
* Automation by PLC and operation through touch screen control panel.
* It has pneumatic drives, which lend it high robustness and low maintenance.
* It is suggested for R&D departments, considering that its easy operation and maintenance makes it user-friendly to personnel that are not familiar with the use of blister machines.
DPP Automatic Blister Packaging Machine | ||||||
DPP-80 | DPP-140 | DPP-250 | ||||
Blanking frequency | PVC-AL: 10-40 times/min AL-AL: 10-30 times/min | PVC-AL: 10-40 times/min AL-AL: 10-30 times/min | PVC-AL: 10-40 times/min AL-AL: 10-30 times/min | |||
Adjustable scope of feed travel | 30-100mm(adjustable) | 30-120mm(adjustable) | 30-140mm(adjustable) | |||
The max forming area and depth | 120mm×90mm×20mm | 150mm×120mm×26mm | 240mm×130mm×26mm | |||
Wrapper: ALU | Length: 130mm, thickness: 0.02-0.035mm | Length: 160mm, thickness: 0.02-0.035mm | Length: 250mm, thickness: 0.02-0.035mm | |||
Wrapper: PVC | Length: 130mm, thickness: 0.25-0.5mm | Length: 160mm, thickness: 0.25-0.5mm | Length: 250mm, thickness: 0.25-0.5mm | |||
Wrapper: PTP | Length: 130mm, thickness: 0.02-0.035mm | Length: 160mm, thickness: 0.02-0.035mm | Length: 250mm, thickness: 0.02-0.035mm | |||
Wrapper:Dialysis paper | Length:130mm, specification:50-100 gram | Length:160mm, specification:50-100 gram | Length:250mm, specification:50-100 gram | |||
Power of forming heating | 1.5KW | 2.4KW | 3KW | |||
Power of sealing heating | 1.5KW | 2.4KW | 3KW | |||
Main motor power | 0.75KW | 1.5KW | 1.5KW | |||
Machine Voltage | 380V/220V 50Hz | |||||
Capacity of air compressor | ≥0.2m3/min Pressure: 0.4～0.6MPa | ≥0.2m3/min Pressure: 0.5～0.7MPa | ≥0.2m3/min Pressure: 0.5～0.7MPa | |||
Overall dimension | 2070mm×650mm×1060mm | 2350×580×1500 mm | 3100×670×1650mm | |||
Weight | 560Kg | 800KG | 1500KG | |||
Details
Packing & Delivery
wooden case
Company Profile
Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so onAt the same time,our product with best prices and good quality,welcome to Shenzhou!
FAQ
1. who are we?
We are based in Liaoning, China, start from 2018,sell to North America(30.00%),South America(10.00%),Southeast Asia(10.00%),South Asia(7.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),Africa(3.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Separator,Centrifuge,Packing & Filling,Drying,Tabling Machine
4. why should you buy from us not from other suppliers?
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
We are based in Liaoning, China, start from 2018,sell to North America(30.00%),South America(10.00%),Southeast Asia(10.00%),South Asia(7.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),Africa(3.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Separator,Centrifuge,Packing & Filling,Drying,Tabling Machine
4. why should you buy from us not from other suppliers?
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
