Technologies play an important role in the development and manufacturing of Wholesale Automatic Pneumatic High Speed Juice Bottle Capping Table Top Screw Capping Machine.In the field(s) of Capping Machines , it functions extremely well and has received wide popularity.

Customization:

Customized logo (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets),Graphic customization (Min. Order: 1 Sets)

shipping:

Support Sea freight · Land freight

Inquiry

Write a Review

Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd has been investing a lot in product development and has gained positive results. Continuous innovation ability is the fundamental guarantee of product quality. In the future,Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd will open up channels for introducing talents, and improve technological innovation capabilities by introducing more outstanding talents as intellectual support, so as to achieve better and faster development.

Type:	Capping Machine	Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Showroom Location:	None	Video outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	New Product 2020
Warranty of core components:	1 Year	Core Components:	Motor
Condition:	New	Application:	Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles
Driven Type:	Electric	Automatic Grade:	Automatic
Voltage:	220V 50HZ	Packaging Type:	Bottles
Packaging Material:	Plastic, Paper, Metal, Glass, Wood	Place of Origin:	China
Dimension(LWH):	600450600 mm	Weight:	32 KG
Warranty:	1 Year	Key Selling Points:	High Productivity
Usage:	Capping Machine	Capping speed:	30-40bottles/min
Capping type:	Screw Capping Locking	Product name:	Screw Capping Machine
Function:	Hand Operation Capper Cap-locking Machine	After Warranty Service:	Video technical support, Online support
Local Service Location:	None	After-sales Service Provided:	Online support, Video technical support
Certification:	CE

Product Description

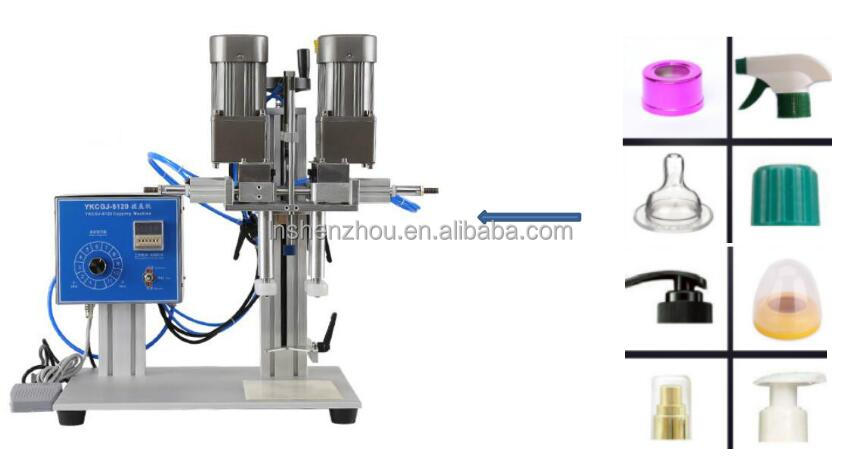

Wholesale Automatic Pneumatic High Speed Juice Bottle Capping Table Top Screw Capping Machine

This machine is suitable for the capping operation of sprayers, pump heads, round bottle caps and duck beak caps in various daily chemical, pharmaceutical, chemical and beverage industries. It adopts electric and pneumatic control operation, and can screw caps of different shapes and sizes. The capping force can be adjusted, and the tightness can be adjusted according to different caps.

Features

1.Compact and reasonable structure, strong universality, large rotating cover range, practical.
2.Stable operation, low noise, low energy consumption and high efficiency.
3.High head pressure, no leakage.
4.Tighten the cover, with gland device, silica gel wheel, without damage to the cover.
5.Safety positioning device, high efficiency.
6.The control panel is simple, and the locking time / working times and interval time can be adjusted.
7.Equipped with foot switch, which can be adjusted automatically and manually.
8.Could screw capping all kinds of shapes or sizes caps!

Specification

Model:	SZ-6120
Acceptable bottle height:	100-300mm(can customize)
Acceptable cap diameter:	20-50mm
Working air pressure:	0.4-0.6MPA
Power :	90w
Capacity:	30-45 bottles/min
Voltage:	220V (can customize)
Machine size:	403558cm
Packaging size:	606065cm
N.W./G.W.:	35kg

Note: We do not provide air compressors for the product.
This product is designed to be used with an air compressor (8 mm outer diameter air pipe). A small one with a power of 800 W and a capacity of 30L is sufficient, which we do not provide.

Details Images

Shenzhou - Wholesale Automatic Pneumatic High Speed Juice Bottle Capping Table Top Screw Capping Machine Filling&Packing Machine 8

Shenzhou - Wholesale Automatic Pneumatic High Speed Juice Bottle Capping Table Top Screw Capping Machine Filling&Packing Machine 9

Semi-automatic capping machine operating instructions

1. Adjust the height of the capping wheel of the whole machine to the height of the bottle cap, then adjust the height of the top cap, and pull the optical axis of the top cap cylinder to the lowest. The POM of the top cap is about 5 mm lower than the bottle cap when it is loosened.

2. Adjust the left and right sliders so that the wheels and the cap are in perfect contact, adjust the
width, and then lock the adjusting nut.

3. Adjust the positioning of the bottle so that the bottle cap is in the center of the
four wheels.

4. Connect the trachea and power supply, turn on the air and electricity. Press down the power switch, turn the
governor off, turn the third gear switch to manual gear, and then press the foot switch to operate the machine.

5. The left side of the dual-time relay is to adjust the interval time of the machine operation. Press + and-to adjust the time length, and the right side to adjust the screw cap time length. The operation method is the same as the left. Generally, the interval time is only used in the automatic mode, and not required in the manual mode.

Applications

This model can be used to seal duckbill cover, pointed mouth cover, irregular plastic cover, regular plastic round cover, etc.,
used in food, daily chemical, and other industries.

Shenzhou - Wholesale Automatic Pneumatic High Speed Juice Bottle Capping Table Top Screw Capping Machine Filling&Packing Machine 10

Packing & Delivery

Package Content
* 1 x Cap Screwing Machine
* 1 x US Plug
* 1 x Pedal
* 1 x Other accessories as shown

Shenzhou - Wholesale Automatic Pneumatic High Speed Juice Bottle Capping Table Top Screw Capping Machine Filling&Packing Machine 11

WOODEN CASE
