Shenzhou - Horizontal Ribbon Type Animal Feed Mixer Machine Fermentation & Mixing machine

is a kind of product that combines both functions and aesthetics. It is designed to be a reasonable structure and exquisite appearance, excellent enough to catch people's eyes. Made of raw materials that have passed the quality tests, it is special with the excellent performance.

Customization:

Customized logo (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets),Graphic customization (Min. Order: 1 Sets)

shipping:

Support Sea freight · Land freight

Inquiry

Write a Review

Our professional engineers have expertise in using technologies. It has a wide scope of range and is widely seen in the field(s) of Other Chemical Equipment. We can manufacture this product to your exact specifications. Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd have long desired to become one of the most influential enterprises in the industry. At present, we are busy improving our capabilities in product manufacturing, and gathering talents especially technical talents to develop our own core technologies.

Place of Origin:	China	Brand Name:	Shenzhou
Condition:	New	Weight (KG):	210
Showroom Location:	Thailand, South Korea, Japan, Malaysia	Video outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	Hot product
Warranty of core components:	1 Year	Core Components:	Motor
Warranty:	1 Year	Key Selling Points:	Easy to Operate
Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company	After-sales Service Provided:	Video technical support

Product Description

Double Ribbon Type Chemical Blending Equipment for Flavouring Powder

Questions for Buyer:
Please answer below questions and send answers to email, and then we will send you offer as soon as possible.1, What materials do you mix? (Names of raw materials?)
2, What is the power fineness (or particle size)? (mesh, mm)
3, What is the bulk density (or specific gravity) of mixed materials? (kg/liter, kg/m3)
4, How many kgs or liters to be mixed per batch?
5, What is the distance from bottom discharge outlet to ground? (cm, mm, m)
6, What construction materials do you require? (Please choose below option)
A, all construction materials mild steel;
B, contact parts stainless steel, non-contact parts mild steel;
C, all construction materials stainless steel;

Working Principle

SZPR series horizontal double ribbon mixer consist of horizontal U-shaped tank, top cover with (or without) openings, single shaft equipped with double layers ribbon mixing agitator, transmission unit, support frame, sealing element, discharge structure and so on. Ribbon blades are always two layers. Outer layer ribbon make materials get together from two ends to center and inner layer ribbon make materials spread from center to two ends. Materials forms vortex during repeatedly movement and homogeneous mixing are achieved.

Performance characteristics

2.01 Material: stainless steel 304 / 316L or mild steel Q235;
2.02 Surface treatment: paint (mild steel), polish/sandblasting (stainless steel);
2.03 Ribbon agitator: double layers & double directions;
2.04 Mixer tank: horizontal, U-shaped tank;
2.05 Shaft: horizontal, hollow, integral single shaft;
2.06 Mixing time: 5-15 minutes;
2.07 Working model: batch mixing;
2.08 Speed reducer: cycloid reducer;
2.09 Rotation speed: fixed speed;
2.10 Main shaft seal: (Teflon) stuffing seal or air purge seal;
2.11 Openings: feeding inlet, manhole, and inspection / connection port;
2.12 Discharge valve: pneumatic or manual flap discharge valve;
2.13 Working condition: NPT (normal pressure and temperature);
2.14 Not heavy duty: mixer can not be started with loading materials;
2.15 Power supply: 220V 50HZ single phase/ 380V 50HZ 3 phase;
2.16 Non ex-proof electronics (motor, electronic elements, control cabinet);

Optional features:

The following optional features are available: wear-resistant and anti-corrosion materials; surface treatment; single direction and single layer ribbons, three layers ribbons; three-parts shaft; continuous mixing; gear box reducer; changeable speed; mechanical seal; customized openings and discharge valves; temperature control; pressure requirement; heavy-duty configuration; motors, electronic elements, electronic control panel are customized to different power and ex-proof requirements; light glass; sampling device; liquid spraying device; scrappers etc.

Specification

Model	Working capacity (L)	Rotation speed (rpm)	Power (kw)	Dimension (mm)	Weight (kg)
SZPR-50	20-30	40	1.5	1000×500×510	210
SZPR-100	40-60	40	2.2	1200×570×750	300
SZPR-300	120-180	40	3	1300×950×1150	690
SZPR-500	200-300	40	4	1500×1100×1400	950
SZPR-1000	400-600	30	5.5	2000×1450×1550	1600
SZPR-1500	600-900	30	7.5	2200×1420×1790	1800
SZPR-2000	800-1200	30	11	2500×1500×1900	2000
SZPR-3000	1200-1800	30	15	2900×1900×2000	3100
SZPR-4000	1600-2400	25	22	3000×1900×2200	4100
SZPR-5000	2000-3000	20	30	3500×1950×2300	4700
SZPR-6000	2400-3600	20	37	3900×1700×2300	6000
SZPR-8000	3200-4800	20	45	4300×2000×3100	7500
SZPR-10000	4000-6000	15	45	4500×2100×2700	8000
SZPR-12000	4800-7200	15	55	4500×2250×2800	10000
SZPR-15000	6000-9000	15	55	5400×2300×3050	11000
SZPR-18000	7200-10800	12	75	5500×2400×3250	12000
SZPR-20000	8000-12000	12	75	5800×2500×3500	13500
SZPR-25000	10000-15000	10	90	6000×2600×3700	15000
SZPR-30000	12000-18000	10	110	6300×2900×3800	17000

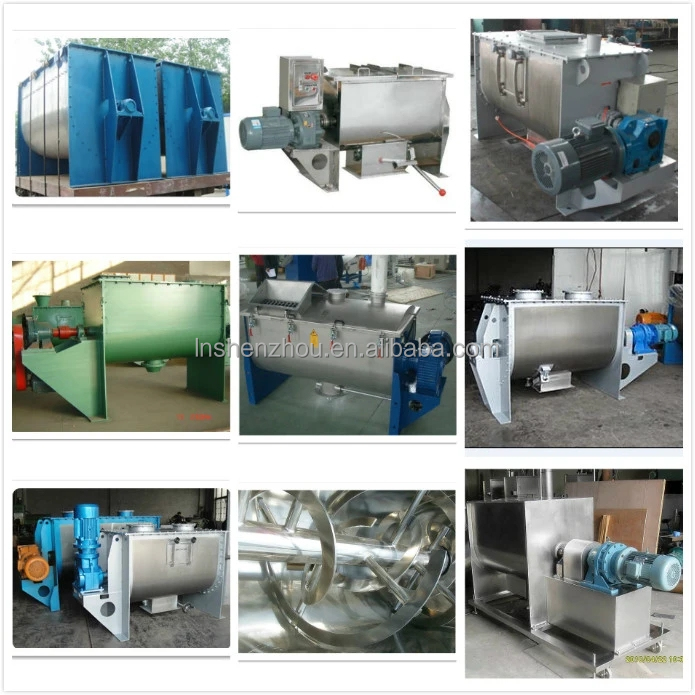

Shenzhou - Horizontal Ribbon Type Animal Feed Mixer Machine Fermentation & Mixing machine 7
