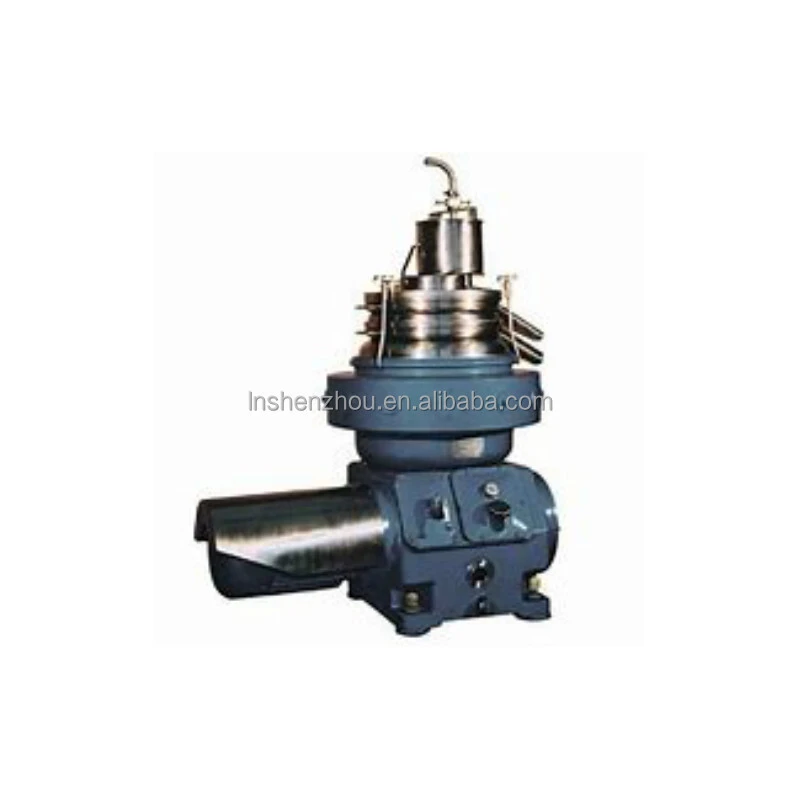

Shenzhou - Multi Functional Industrial Oil Separator Automatic High Oil Rate Disc centrifuge oil cleaning centrifuge Disc Centrifuge
The technologies are important in manufacturing the product.As a kind of multi-functional Multi Functional Industrial Oil Separator Automatic High Oil Rate Disc centrifuge oil cleaning centrifuge, it can be widely found in the application scenario(s) of Separation Equipment.
5.0
Customization:
Customized logo (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets),Graphic customization (Min. Order: 1 Sets)
shipping:
Support Sea freight · Land freight
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
As Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd continues to develop, we invest heavily in product development every year in order to keep us competitive in the industry. This year, we have successfully worked out the Multi Functional Industrial Oil Separator Automatic High Oil Rate Disc centrifuge oil cleaning centrifuge. After years of special research and development, the products developed successfully break through the bottleneck of the pain points. Multi Functional Industrial Oil Separator Automatic High Oil Rate Disc centrifuge oil cleaning centrifuge is not only manufactured to draw the attention of people but also to bring them convenience and benefits. Designed by creative designers, Decanter centrifuge,Disc Centrifuge,Tubular Centrifuge,Plate Centrifuge presents a style of aesthetics. In addition, it is excellent characterized thanks to the adopted high-quality raw materials and high-end technologies.
| Place of Origin: | China | Type: | Separating Plant |
| Condition: | New | Video outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Hot product 2022 |
| Warranty of core components: | 1 Year | Core Components: | Bearing, Motor |
| Brand Name: | Shenzhou | Voltage: | 220v/300v/380v/optional |
| Power: | Model | Weight: | 600 |
| Dimension(L*W*H): | variable | Warranty: | 1 Year |
| Key Selling Points: | Easy to Operate | Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Food Shop, Food & Beverage Shops, Advertising Company, Pharmaceutical plant, Chemical plant |
| Showroom Location: | None |
Product Description
Multi Functional Industrial Oil Separator Automatic High Oil Rate Disc centrifuge oil cleaning centrifuge
It is widely used in chemical, pharmaceutical, oil, foodstuff, milk industry, daily industry and defense industry such as:
1. Food stuff industry: For animal protein extraction and separation, as well as in meat processing for refining animal lipid or in concentrating and separating aquatic products of fish oil, in clarifying and degreasing milk, for the clarification of beer and malt, sparkling wine, fruit juice and drinks and so on.
2. Chemical industry: Mainly used in separating industrial chemicals, paint and coatings. Also it could be used in the
clarification and purification of wastewater from light, textile, chemical fiber industry as well as analogues of greater density solid-phase. Also it is used for concentrating and clarifying of natural rubber, it separates rubber milk into concentrated latex and clear pastern. At the same time it removes the solid impurities in serum.
3. Pharmaceutical Industry: Mainly used in separating biopharmaceuticals, pharmaceutical medicine, vaccines, mycelium, glucose, insulin, vitamins, antibiotics, pigments, proteins, spices and so on.
4. Oil industry: It can be used vegetable oil, animal fat, fish oil, soap oil, biodiesel and other lipid-foot, swill oil as raw
material, through new centrifugal separation process of trans- esterification and access .
1. Food stuff industry: For animal protein extraction and separation, as well as in meat processing for refining animal lipid or in concentrating and separating aquatic products of fish oil, in clarifying and degreasing milk, for the clarification of beer and malt, sparkling wine, fruit juice and drinks and so on.
2. Chemical industry: Mainly used in separating industrial chemicals, paint and coatings. Also it could be used in the
clarification and purification of wastewater from light, textile, chemical fiber industry as well as analogues of greater density solid-phase. Also it is used for concentrating and clarifying of natural rubber, it separates rubber milk into concentrated latex and clear pastern. At the same time it removes the solid impurities in serum.
3. Pharmaceutical Industry: Mainly used in separating biopharmaceuticals, pharmaceutical medicine, vaccines, mycelium, glucose, insulin, vitamins, antibiotics, pigments, proteins, spices and so on.
4. Oil industry: It can be used vegetable oil, animal fat, fish oil, soap oil, biodiesel and other lipid-foot, swill oil as raw
material, through new centrifugal separation process of trans- esterification and access .
Feature:
Features
* High speed centrifugation to remove oil grease and sludge impurities
* Strong emulsification ability
* Low energy consumption,saves money
* Full automation possible with PLC automatic control panel.
* Centrifugal separation requiring no filter media.
* High reliability drive train system backed by delivery of over 1,000 units a year.
* Bowl design with superior separation performance and with good response to discharge loads.
* Pilot valve regulates total/partial discharge of solids.
* Super partial discharger (option) minimizes liquid loss and maximizes thickening of solid
* Fraction for discharge.
* Vibration-proof design realizes long working life.
* High speed centrifugation to remove oil grease and sludge impurities
* Strong emulsification ability
* Low energy consumption,saves money
* Full automation possible with PLC automatic control panel.
* Centrifugal separation requiring no filter media.
* High reliability drive train system backed by delivery of over 1,000 units a year.
* Bowl design with superior separation performance and with good response to discharge loads.
* Pilot valve regulates total/partial discharge of solids.
* Super partial discharger (option) minimizes liquid loss and maximizes thickening of solid
* Fraction for discharge.
* Vibration-proof design realizes long working life.
Working Principle
How does Disc Separator work?
The disc separator is in vertical structure. The drum is mounted on the upper end of the vertical axis, which is driven by a motor and rotates at a high speed. There is a set of disc - shaped parts that are stacked together in the drum, with a small gap among them. When the suspension (or emulsion), which is pumped into the drum by feeding tube located in the center of the drum, pass through the gap between the discs, solid particles (or droplets) would settle down to form sediment (or liquid layer) on the disc by centrifuge force, and then the sediment slid along the surface of the disc and separated from the disc to accumulate in the largest diameter of the drum. At last, the separated liquid discharged from the outlet. The disc is utilized to shorten the settling distance of solid particles or droplets, enlarge the settlement area of the drum, and improve the production capacity of the separator. The solids accumulated in the drum are removed from the drum by manual after the machine stop, or out of the drum in the case of a dregs machine without stopping.
The disc separator is in vertical structure. The drum is mounted on the upper end of the vertical axis, which is driven by a motor and rotates at a high speed. There is a set of disc - shaped parts that are stacked together in the drum, with a small gap among them. When the suspension (or emulsion), which is pumped into the drum by feeding tube located in the center of the drum, pass through the gap between the discs, solid particles (or droplets) would settle down to form sediment (or liquid layer) on the disc by centrifuge force, and then the sediment slid along the surface of the disc and separated from the disc to accumulate in the largest diameter of the drum. At last, the separated liquid discharged from the outlet. The disc is utilized to shorten the settling distance of solid particles or droplets, enlarge the settlement area of the drum, and improve the production capacity of the separator. The solids accumulated in the drum are removed from the drum by manual after the machine stop, or out of the drum in the case of a dregs machine without stopping.
Main Structure
Powerful Motor provide power through the thermal coupling to drive drum in high-speed rotating around the main axis. And the liquid material is carried by feeding pipe located in the upper center into the bottom of the drum, and then led in the porthole below the disc and driven to the drum wall. Under centrifugal force, solid- liquid-liquid do the below motion to complete thorough separation:solid phrase, which is heavier than liquid, would sink into the inner wall of the drum for sediment formation; light liquid flow in centripetal pump, and be discharged by liquid outlet; The heavy liquid tends to the drum wall along the cone inside the disc, and then flows upward through through the heavy liquid concentric pump to be discharge from the outlet.
Due to the double-conical design of the inner cavity of the drum, it can compress the slag and increase its concentration.
Besides, some nozzles is mounted around the drum to spray slurry sediment, whose number and aperture are determined on the properties of the suspension, the degree of concentration and the amount of treatment.
In order to improve the slag concentration, recovery device is configured with this disc separator to the discharged sediment for reuse. For the solid concentration of the slag can be increased by 5~20 times than that of the feeding materials.
The processing capacity of the separator is up to 30t/h, which is suitable for suspension with solid phrase in diameter of 0.1~100 microns and concentration less than 10% (maximum to 25%).
Besides, some nozzles is mounted around the drum to spray slurry sediment, whose number and aperture are determined on the properties of the suspension, the degree of concentration and the amount of treatment.
In order to improve the slag concentration, recovery device is configured with this disc separator to the discharged sediment for reuse. For the solid concentration of the slag can be increased by 5~20 times than that of the feeding materials.
The processing capacity of the separator is up to 30t/h, which is suitable for suspension with solid phrase in diameter of 0.1~100 microns and concentration less than 10% (maximum to 25%).
Disc Oil Separator Application:
Treatment of lube
Treatment of oil, water and solid substances
Treatment of drilling slurry
Water removal of crude oil
Treatment of cooling lubricant
Treatment and water removal of lubricant and hydraulic oil
Treatment of waste emulsion and waste oil
Treatment of aging oil
Treatment of oil, water and solid substances
Treatment of drilling slurry
Water removal of crude oil
Treatment of cooling lubricant
Treatment and water removal of lubricant and hydraulic oil
Treatment of waste emulsion and waste oil
Treatment of aging oil
Specification
Model | Treatment capacity (L/H) | Inlet Pressure (Mpa) | Outlet pressure (Mpa) | Motor power (Kw) | Weight (Kg) | Outline dimension (mm) |
DHZ360 | 1200-2500 | 0.05 | 0.1-0.25 | 7.5 | 1280 | 1500*1150*1500 |
DHZ470 | 2500-7000 | 0.05 | 0.1-0.25 | 15 | 1880 | 1800*1200*1800 |
DHZ550A | 5000-10000 | 0.05 | 0.1-0.25 | 18.5 | 2200 | 1850*1550*2050 |
DHZ550E | 6000-15000 | 0.05 | 0.1-0.25 | 22 | 2200 | 1850*1550*2050 |
DHZ700 | 15000-30000 | 0.1 | 0.2 | 30 | 3300 | 2100*1650*2300 |
DRZ360 | 1200-2500 | 0.05 | 0.1-0.25 | 5.5 | 750 | 1250*1050*1500 |
DRZ400A | 2000-6000 | 0.05 | 0.1-0.3 | 7.5 | 1150 | 1300*900*1450 |
DRZ400E | 4000-7500 | 0.05 | 0.1-0.3 | 7.5 | 1300 | 1300*900*1500 |
DRZ550 | 6000-18000 | 0.05 | 0.1-0.3 | 22 | 2200 | 1620*1300*2200 |
