Shenzhou - home sewage treatment plant small stainless steel screw sludge dewatering filter press equipment with high efficiency Hot selling machine 1

Shenzhou - home sewage treatment plant small stainless steel screw sludge dewatering filter press equipment with high efficiency Hot selling machine

In essence, Decanter centrifuge,Disc Centrifuge,Tubular Centrifuge,Plate Centrifuge performance and its quality are largely decided by its raw materials. In terms of raw materials of Water Treatment Machinery,they have gone through plenty of tests on their chemical components and performance. In this way, the product quality is guaranteed from the source. At present, the product has been tested to be of excellent and other properties.

Customization:

Customized logo (Min. Order: 1 Units),Customized packaging (Min. Order: 1 Units),Graphic customization (Min. Order: 1 Units)

shipping:

Support Sea freight · Land freight

Inquiry

Write a Review

As a driven company,Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd has been developing products on our own on a regular basis, one of which is Decanter centrifuge,Disc Centrifuge,Tubular Centrifuge,Plate Centrifuge.It is the newest product and bound to bring benefits to customers. Designed by professional designers, home sewage treatment plant small stainless steel screw sludge dewatering filter press equipment with high efficiency is attractive in its appearance. Under the guidance of quality-oriented management theory, Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd continually ride the development trend of the times and continuously implement the strategic transformation. Our aim is to not only satisfy the needs of customers but also create needs for them.

Condition:	New	Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Showroom Location:	None	Video outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	New Product 2021

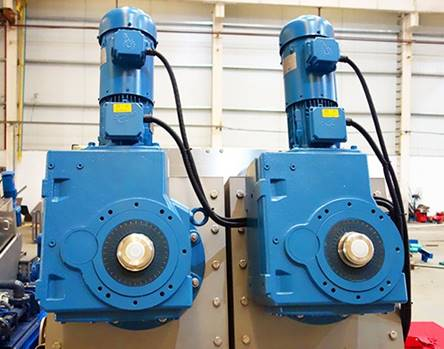

Warranty of core components:	1 Year	Core Components:	Motor
Place of Origin:	China	Brand Name:	LYSZ
Material:	Wooden case	Weight:	According to your order
Size:	According to your order	Warranty:	1 Year
Productivity:	50000L/Hour	Weight (KG):	1000 kg

Product Description

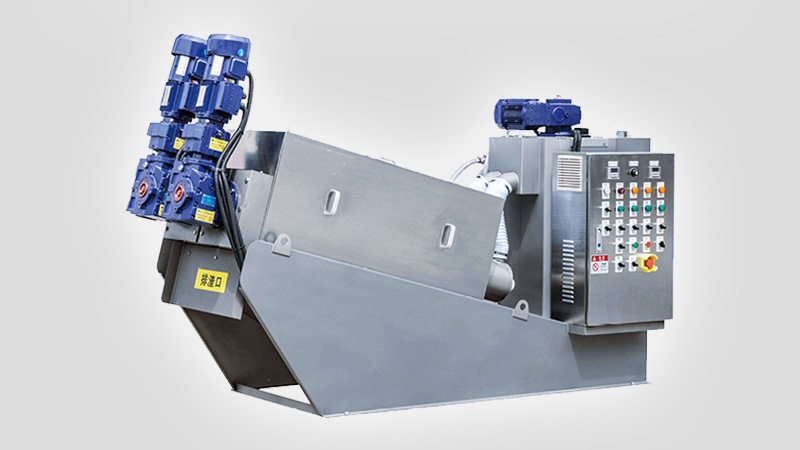

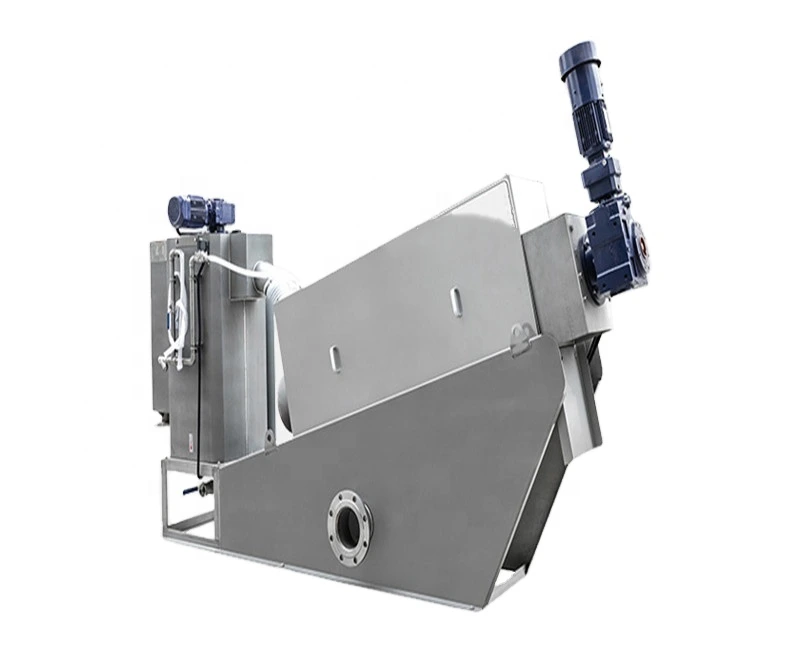

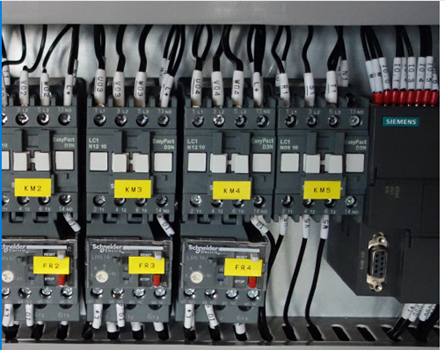

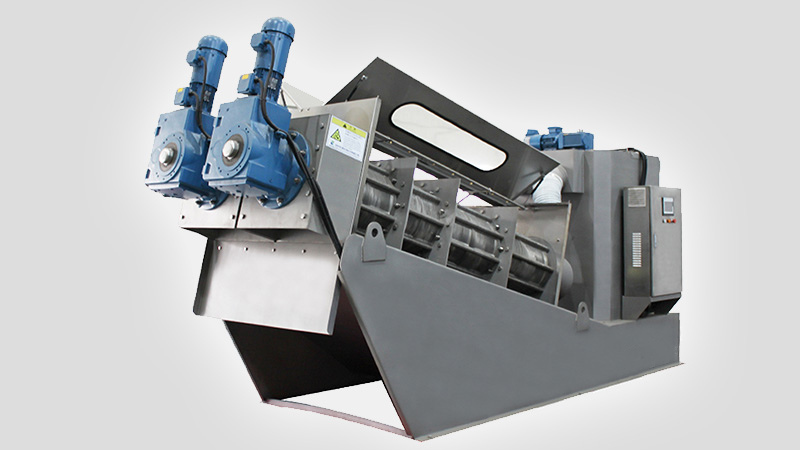

Manual Screw Press is a kind of economic and environmental friendly sludge dewatering equipment. It is a new type of sludge extrusion dewatering equipment by using the principle of screw extrusion, through the strong squeezing force generated by the change of screw diameter and screw pitch, and the tiny gap between the floating ring and the fixed ring, to realize solid-liquid separation. SZ dewatering screw press is composed of fully automatic control cabinet, flocculation modulation box, sludge thickening and dewatering device, and liquid collecting tank. SZ dewatering screw press is with automatic control technology, which can realize the flocculation fully automatic operation, and continuously complete the sludge thickening and squeezing, finally return or discharge the collected filtrate liquid.

SZ screw press dewatering machine is widely used in sewage treatment projects of municipal, aquaculture, food, starch, oil,pharmaceutical, chemical, paper, leather and other industries

Model 10000mg/L	DS Standard Capacity (Absolute Dry Sludge) 20000mg/L	Capacity for Sludge with Different Concentration 30000mg/L	40000mg/L	50000mg/L
SZDL101	5~7 kg/h	~0.5m³/h	~0.25m³/h	~0.2m³/h	~0.15m³/h	~0.14m³/h
SZDL201	15~20 kg/h	~1.5m³/h	~0.75m³/h	~0.6m³/h	~0.5m³/h	~0.4m³/h
SZDL202	30~40 kg/h	~3m³/h	~1.5m³/h	~1.2m³/h	~1m³/h	~0.8m³/h
SZDL301	50~70 kg/h	~5m³/h	~2.5m³/h	~2m³/h	~1.5m³/h	~1.4m³/h
SZDL302	100~140 kg/h	~10m³/h	~5m³/h	~4m³/h	~3m³/h	~2.8m³/h
SZDL303	150~210 kg/h	~15m³/h	~7.5m³/h	~6m³/h	~4.5m³/h	~4.2m³/h
SZDL401	130~160 kg/h	~13m³/h	~6.5m³/h	~5m³/h	~4m³/h	~3.2m³/h
SZDL402	260~320 kg/h	~26m³/h	~13m³/h	~10m³/h	~8m³/h	~6.4m³/h
SZDL403	390~480 kg/h	~39m³/h	~19.5m³/h	~15m³/h	~12m³/h	~9.6m³/h
SZDL404	520~640 kg/h	~52m³/h	~26m³/h	~20m³/h	~16m³/h

ADVANTAGES OF SCREW PRESS DEWATERING MACHINE

1. Suitable for wide range sludge dewatering and can be used for oily sludge treatment.
2. Operating continuously and automatically, not easy to block.
3. Low investment and operation cost, no secondary pollution.
4. Energy saving and environmental friendly, compact design with small footprint.
5. Sludge can be dewatered under aerobic conditions to avoid phosphorus release from anaerobic sludge dewatering.

FEATURES OF SCREW PRESS DEWATERING MACHINE

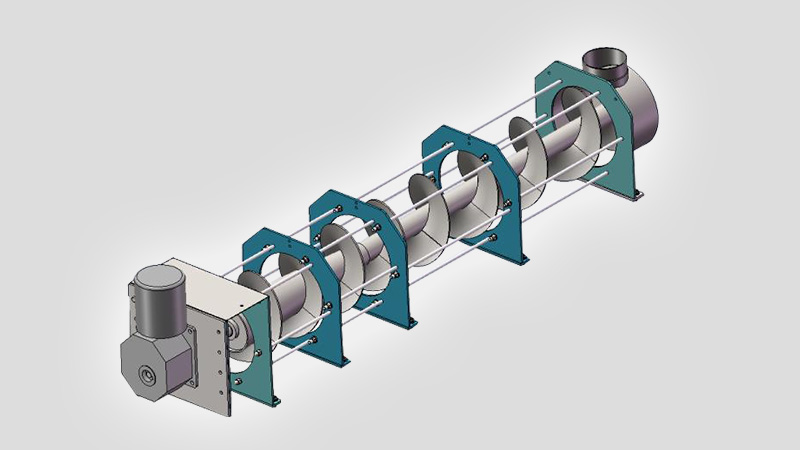

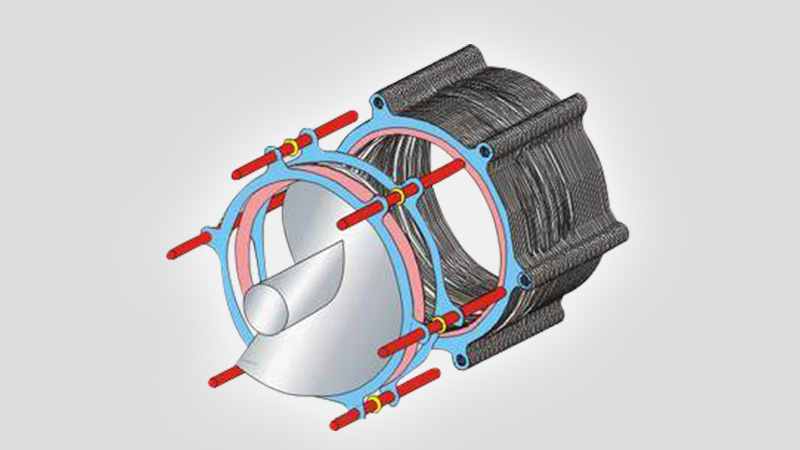

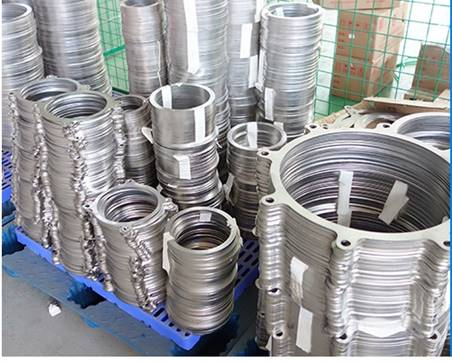

1. The main body of the screw press sludge dewatering machine is a filtration device composed of fixed ring and moving ring, in which the screw axis runs through. The front section is for concentration and the back section for dewatering.

2. The filtering gap formed between the fixed ring and the moving ring of the dewatering screw press and the pitch of the screw axis gradually decreased from the concentration section to the dewatering section.

3. The rotation of the screw press shaft not only pushes the sludge from the concentration section to the dewatering section, but also continuously drives the moving ring to clean the filtering gap to prevent clogging.

4. After gravity concentration in the concentration section, sludge is transported to the dewatering section. In the process of advance, with the gradual decrease of filtering gap and screw pitch, and the blocking effect of back pressure plate, a great internal pressure is generated; leading the volume is constantly reduced, so as to achieve the purpose of full dewatering.

5. Dewatering screw press is generally applicable to sludge concentration of 2000mg / L-50000mg / L
