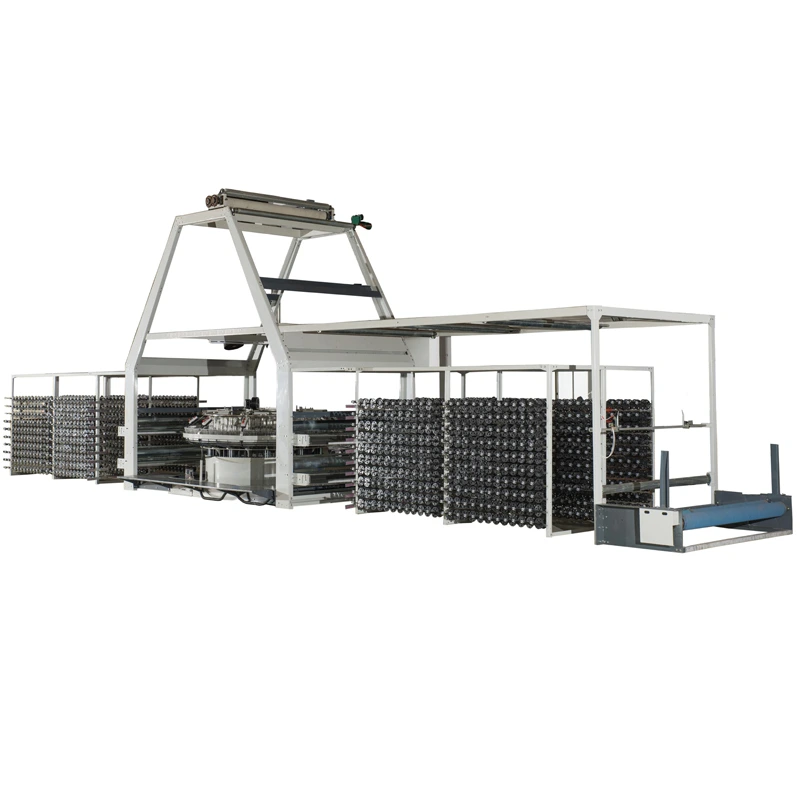

Shenzhou - bag fabric Sack making machine four/six/eight shuttles high speed circular loom weaving machine for bag production line Hot selling machine
In the manufacturing process, the technologies are adopted so as to make sure the process goes smoothly and efficiently.Its application range is very extensive. In the application field(s) of Weaving Machines, bag fabric Sack making machine four/six/eight shuttles high speed circular loom weaving machine for bag production line is widely used.
5.0
Customization:
Customized logo (Min. Order: 1 Units),Customized packaging (Min. Order: 1 Units),Graphic customization (Min. Order: 1 Units)
shipping:
Support Sea freight · Land freight
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
The core competitiveness of a company is its capabilities in research and development.Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd, as a technology-driven enterprise, has been striving forward to enhance our R&D capabilities and successfully developed bag fabric Sack making machine four/six/eight shuttles high speed circular loom weaving machine for bag production line. And precisely because of the clear core selling point of bag fabric Sack making machine four/six/eight shuttles high speed circular loom weaving machine for bag production line, not only does the product have a high reputation among customers, but also allows the product to have a high degree of intimacy among customers. To keep ourselves ahead of other competitors, we will strive forward to improve our R&D strength and technology ability. Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd hope that one day we will develop more and better products without relying on others' technologies.
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company | Showroom Location: | None |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Hot Product 2021 | Warranty of core components: | 1 Year |
| Core Components: | PLC, Motor | Condition: | New |
| Type: | Shuttle Loom | Production Capacity: | 40-150m/h |
| Place of Origin: | Liaoning, China | Brand Name: | lysz |
| Dimension(L*W*H): | 15500*3500*4560mm | Weight: | 7500 KG |
| Power: | 7.5kw | Warranty: | 1 Year |
| Key Selling Points: | Easy to Operate |
Product Description
Introduction:
This circle loom weaving machine can make pp flat yarn to woven rolls for woven bags or Jumbo bags .
With the scroll transmission by little cam and sewing-arm wheel, the machine runs easily and stable.
Rolling transmission is adopted in entire structure instead of slide block and slide rod, which doesn’t need lubricant and
decreases the wearing part. With the detector for warp-breaking, weft-breaking and weft-ending, the sensibility for automatic stop becomes reliable. It adopts the latest energy saving synchronous motor and the intelligent micro-computer controlling system can be instead if required. It can adjust the weft density and compensate the weft density in case of weft-braking, which can improve the evenness of woven fabrics.
This circle loom weaving machine can make pp flat yarn to woven rolls for woven bags or Jumbo bags .
With the scroll transmission by little cam and sewing-arm wheel, the machine runs easily and stable.
Rolling transmission is adopted in entire structure instead of slide block and slide rod, which doesn’t need lubricant and
decreases the wearing part. With the detector for warp-breaking, weft-breaking and weft-ending, the sensibility for automatic stop becomes reliable. It adopts the latest energy saving synchronous motor and the intelligent micro-computer controlling system can be instead if required. It can adjust the weft density and compensate the weft density in case of weft-braking, which can improve the evenness of woven fabrics.
Specification
Type | Number of spindle | Lay-flat width (mm) | Max. Warp (pcs) | Rotational speed of main body (r/min) | Power of main motor (kw) | Total Power (kw) | Production (m/min) (10-24warps/100mm) | Installing dimensions | weight |
YZJ-4/800 | 4 | 350-750 | 768 | 140-180 | 2.2 | 3.5 | 1.4-1.8 | 8400X2200X2650 | 1500 |
YZJ-4/1000 | 4 | 550-950 | 768/ 896 | 140-180 | 2.2 | 3.5 | 1.4-1.8 | 8400X2200X2650 | 1800 |
YZJ-4/1200 | 4 | 1000-1100 | 896/ 1020 | 120-160 | 2.2 | 4.5 | 1.2-1.6 | 8900X2350X2650 | 2000 |
YZJ-4/1500 | 4 | 800-1400 | 1040 | 90-125 | 4.0 | 5.5 | 0.9-1.25 | 9800X2500X2650 | 2300 |
YZJ-6/850 | 6 | 350-850 | 720 | 120-180 | 3.0 | 3.5 | 1.8-2.7 | 8700X2410X2650 | 2000 |
YZJ-6/1500 | 6 | 850-1450 | 1100 | 120-180 | 3.0 | 4.5 | 1.8-2.7 | 9100X2610X2650 | 3000 |
YZJ-6/1800 | 6 | 1450-1750 | 1440 | 120-180 | 4.0 | 5.5 | 1.8-2.7 | 9700X2810X2650 | 3500 |
Model | YZJ-2000X8S | YZJ-2250X10S | |
Number of Shuttles | 8 | 10 | |
Rotation Speed of Main Body | 60-65r/min | ||
Power of Main Motor | 7.5KW | ||
Lay-flat Width | 1500mm-1900mm | 1800mm-2200mm | |
Production Capacity | 40m/h-120m/h | ||
Max warps | 2280pcs | 2880pcs | |
Diameter of Warp Yarn | Max 130mm | ||
Diameter of Weft Yarn | Max 110mm | ||
Yarn Disc Diameter | 136mm | ||
Max Roll Diameter | 1500mm | ||
Machine Size(L*W*H) | 15.5mX3.5mX4.65m | 17.5mX3.7mX4.85m | |
Machine Weight | 7.5T | 8.5T | |
