Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd is reckoned for manufacturing and supplying Hot sale animal blood serum centrifuge selling in China/High speed liquid liquid separate centrifuge that is manufactured using supreme quality materials. Hot sale animal blood serum centrifuge selling in China/High speed liquid liquid separate centrifuge enables the company to have more market share, stronger competitiveness and higher visibility. Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd will always be led by market demand and respect customers' wishes. Based on the feedback given by customers, we will make changes accordingly in our product development so as to manufacture the most satisfying and profitable products.

Place of Origin:Liaoning, ChinaType:Centrifuge
Product Type:PlantCondition:New
Video outgoing-inspection:ProvidedMachinery Test Report:Provided
Marketing Type:Hot Product 2019Warranty of core components:1 Year
Core Components:Bearing, MotorBrand Name:Shenzhou
Voltage:CustomerizedPower:Model choosing
Weight:460Dimension(L*W*H):850*750*1650mm
Warranty:1 YearKey Selling Points:Easy to Operate
Applicable Industries:Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Printing Shops, Construction works , Food & Beverage Shops, Advertising Company, centrifuge, animal feed factory, Blood plasma factoryShowroom Location:None
Separation Mode:Gravity SeparateMaterial:Stainless Steel 304
Operating:Continuous TypeProduct name:Tubular Centrifuge
Installation:VerticalAfter-sales Service Provided:Video technical support
Certification:GMP/CE

Product Description

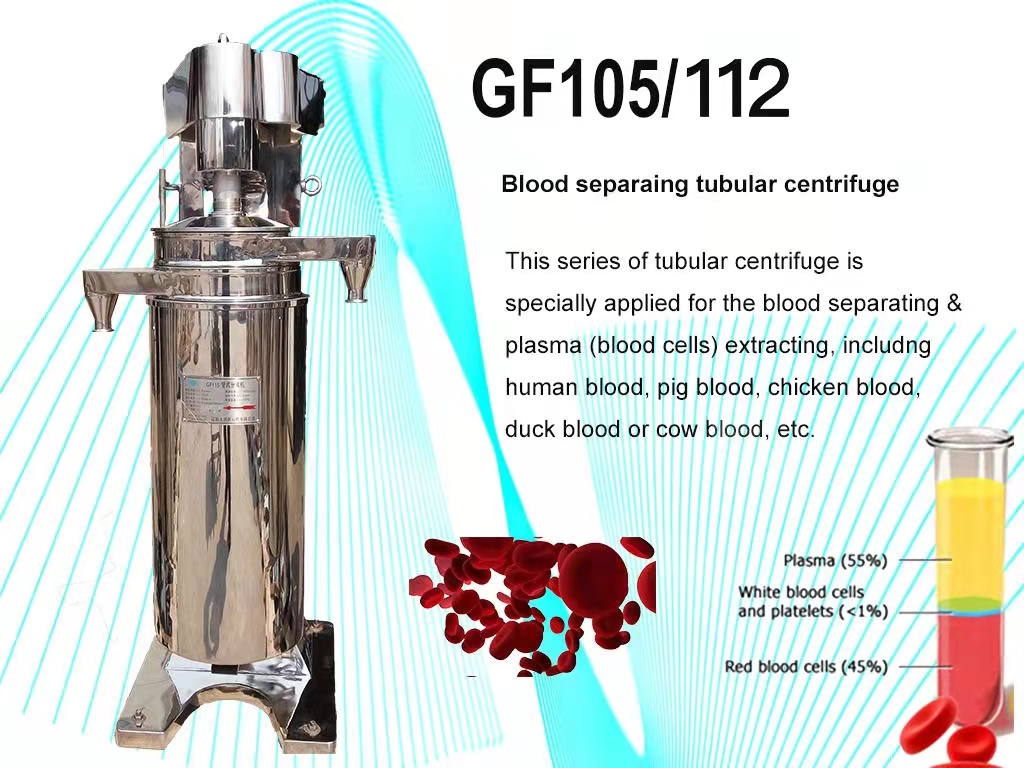

Hot sale animal blood serum centrifuge selling in China/High speed liquid liquid separate centrifuge
Shenzhou Blood plasma centrifuge:We can offere three models for blood separation:GFLX105,GFLX112,GFLB1125.In blood separation we have rich experience.We have many customers are using our centrifuge in blood separation.

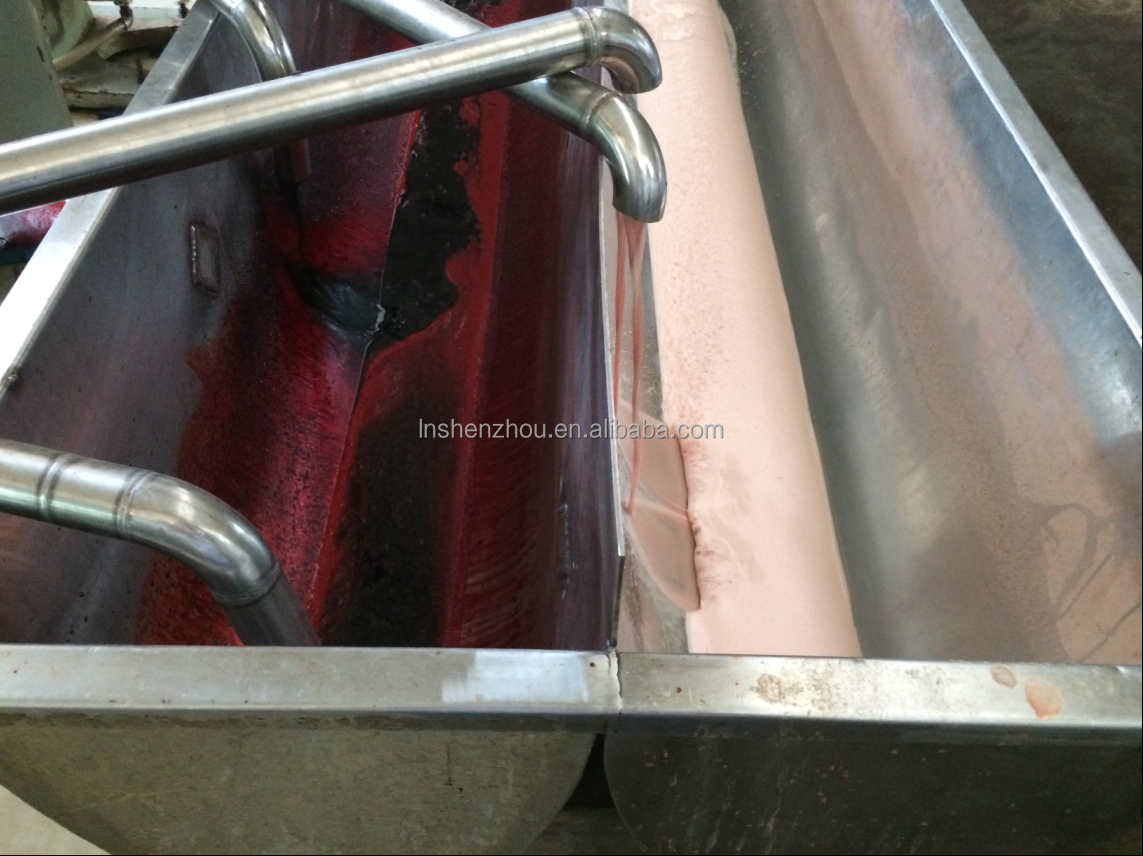

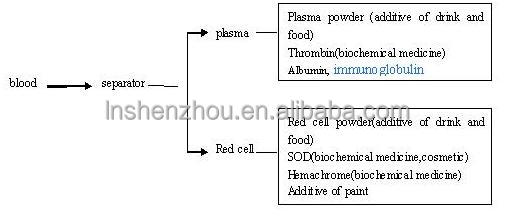

Blood centrifuge is kind of equipment which working for animal blood deep processing, under centrifugal force, separating blood plasma and blood cell.

Blood centrifuge is an ideal equipment for working under certain processing condition in centrifugal mode specialized for animal blood separation, which mainly working for liquid-liquid separation and liquid-liquid-solid separation, minimum size as 1 micron, especially for the small difference in specific gravity, fineness solid particle size, low content raw material separation and clarity.
With advantages of large amount handling capacity, high blood plasma yield, low blood cell broken rate, continuous and stable running, safety operation, all blood through part material as stainless steel, widely uses for biological, pharmaceutical, food stuff and fine chemical industries.
Working principle of Tubular Separator
Consist of the machine cover, driving device, drum, liquid catch tray, the liquid inlet and bearing seat, this separator with high running speed, belongs to sedimentation separator. The upper drum is a flexible shaft, while the lower is damping floating bearing. The main shaft is connected by a coupling buffer and a passive wheel. Motor transmit power from the transmission belt and tension wheel to passive wheel, to drive the drum rotate around its own axis with high-speed, and thus form a strong centrifugal force field. All the materials are fed from liquid inlet under the bottom, and flow upward along the drum wall by centrifugal force fluid. During this process, the dense liquid phase forms the outer ring, and the small liquid phase forms the inner ring,
which separately flow to respective liquid outlet mounted on the upper drum.
When the thickness of the sediment affect the liquid phase clarification or the capacity of the rated slag weight in the drum, the dregs of the drum wall should be removed manually after the shutdown.

Application:Tubular Separator is mainly used for separating all kinds of suspension which is difficult to be separated, especially suitable for separation of solid-liquid suspension with light concentration, heavy viscosity, fine particles and very small differential gravity of the two phases. such as clarification of herbs plants extracts, various medicine liquor, liquid medicine, oral liquid, the extraction of paint, dye, as well as various proteins, alga, fruit gels, and purification of rubber solution, coal tar, graphite, saponin, pectin, sirup, vaccine mycelia and all kinds of glucose; refining resin, and latex solution, enzyme (SOD) of oxide, animal blood,various kinds of albumens, the glucoside of the soap, etc.
Specification
Model
GFLB105
GFLB112
GFLB125
Bowl ID(mm)
105
112
125
Bowl height(mm)
730
740
740
Volume of the Drum(L)
6
7
8
Rotation Speed(Rpm)
19000
16000
15500
Spearion factor(G-force)
19800
17500
16000
Nozzle diamter(MM)
4/6/8
4/6/8
6/8/10
Inlet pressure(Mpa)
≥0.05
≥0.05
≥0.05
Capacity for refrigerated blood(L/H)
450
550
650
Capacity for fresh blood(L/H)
500
600
700
Motor model
3Phase two pole motor
3phase two pole motor
3phase two pole motor
Motor power
2.2KW
3.0KW
3.0 or 4.0KW
Dimension(mm)
950*650*1650
950*650*1650
950*650*1650
Net weight(Kgs)
510
530
550
Material of tbe bowl
304stainless steel
304 or 316 stainless steel
304 or 321 stainless steel
Package
wooden case
wooden case
wooden case
Main technical features
1. The unique design of interior blade is more suitable for the isolation of the fermentation bacteria than the conventional
tubular separators. Equipped with reverse stop device, the residual mother liquid can be retained completely without loss once the machine stop.
2.With advantages of high separation factor and strong separation ability, It is applicable to separate and clarify the materials which is difficult to separate by ordinary centrifuge and all kinds of emulsion liquid such as transformer oil, lubricating oil, fuel oil, turbine oil, grease, dyes, and saponification separation and so on.
3.Simple structure in linear type ,easy in installation and maintation.

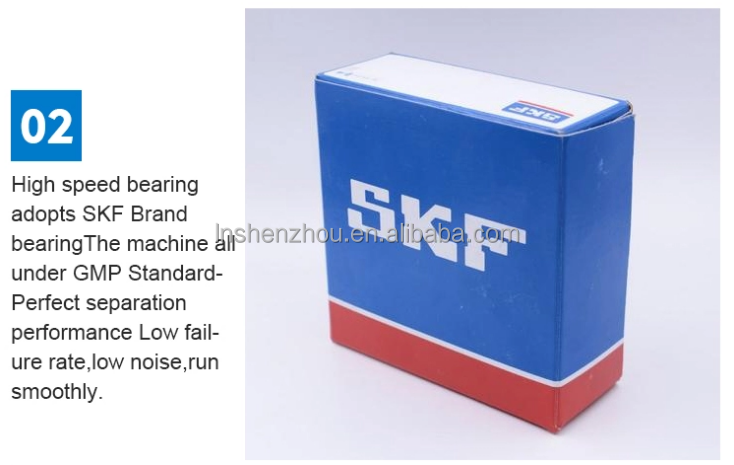

4.Adopting advanced world famous brand components in bearing parts, electric parts and operation parts.
5.Running in a high automatization and intellectualization,no pollution
6.Simple to set up, use and clean for minimal down-time between separations
7. No replacement membranes or costly disposables
8.3-phase electric motors provide power for rapid acceleration and quieter operation.
9.Small footprint.

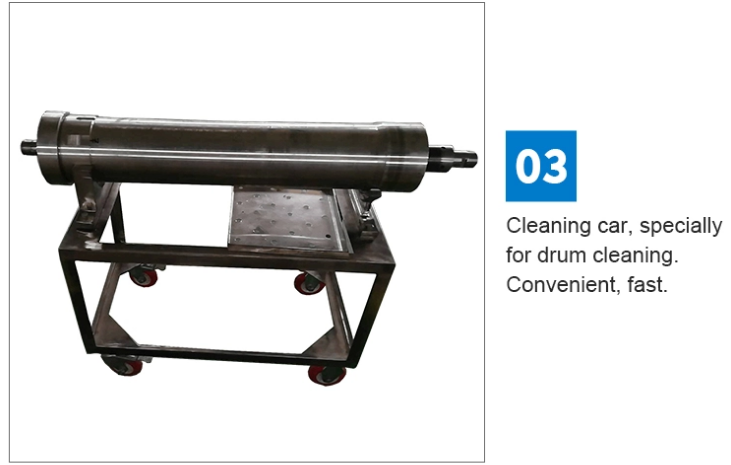

Details Images
Points for Operating the Tubular Separator
* When the percentage of impurities or solids in the liquid is less than 0.5%, the ideal separation effect will be realized. If
the percentage is higher than 0.5%, the solution should be clarified first
* High groove is used to feed materials. If the liquid is of large viscosity, it can also be pumped.
* Measurement for proper materials inlet pressure: when materials are fed by the nozzle into the separator, the proper inlet
pressure is depended on property of materials the nozzle into the separator,to spray materials at least half up onto the drum.
Low pressure will cause part of the liquid not fed into drum and slide into the bearing seat at the bottom of the drum to
outflow from overflow mouth, while the high pressure will affect the separation quality and lead to the vibration of the
machine.
* The inside diameter of feeding tube shall be large enough to be controlled by valve and be convenient for user to adjust
according to flow rate and output.
* The separator is equipped with nozzle in different diameter, to fit different the separation quality and yield.If small
production with high quality, the small nozzle is used, and vice versa.


Company Profile
Suggestion from SHENZHOU
Earned high reputation and good feedback from global customer among all of our products, High-speed Tubular Separator is capable of applied in a variety of biological processes from cell harvesting and clarify to separation of chemical, food, blood and pharmaceuticals.
High performance is consistently achieved in continuous, semi-continuous or batch operations. Include a range of sizes from research to production, our tubular separator provide an efficient and cost-effective technology to separate from one to several thousand liters of biological cultures and other mixtures. For extremely high solids concentrations, drum centrifuge for high performance separations can be supplied.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Customer’s working Show
FAQ
1. What certificates do you have?
We can provide CE, ISO 9001, etc

2. What is the warranty period of the equipment?
Normally 1 year warranty.

3. Can we visit your factory?
Of course, we sincerely invite you to visit, If it's not convenient for you to come to our factory, you can also visit by
telephone video conference.

4. What's payment you accept?
A4: T/T, Western Union, L/C, Ali Pay, etc

5. Can it be customized?
Of course, our equipment can be customized according to the actual requirements of customers.
