Peristaltic pump is used to transfer liquid by peristaltic rubber hose caused by rotating roller. The conveyed liquid only flows
in the rubber hose, does not contact with other parts of the pump, and has no cleaning dead angle, so as to avoid possible pollution. The material of the hose is strictly selected and made of non-toxic silicone rubber or polychloroene material, which meets the hygienic standards in biochemical and medical fields. This kind of pump is with novel design, simple structure, step-less speed change to adjust the flow, suitable for working in humid environment, easy to operate, and easy to clean and disinfect.
Peristaltic pump is widely used in hospitals, biochemistry and other industries to pump blood and other liquids. It can also be
used for transporting liquids in other industries. It is suitable to be used as a feed pump for high-speed tubular centrifuges.

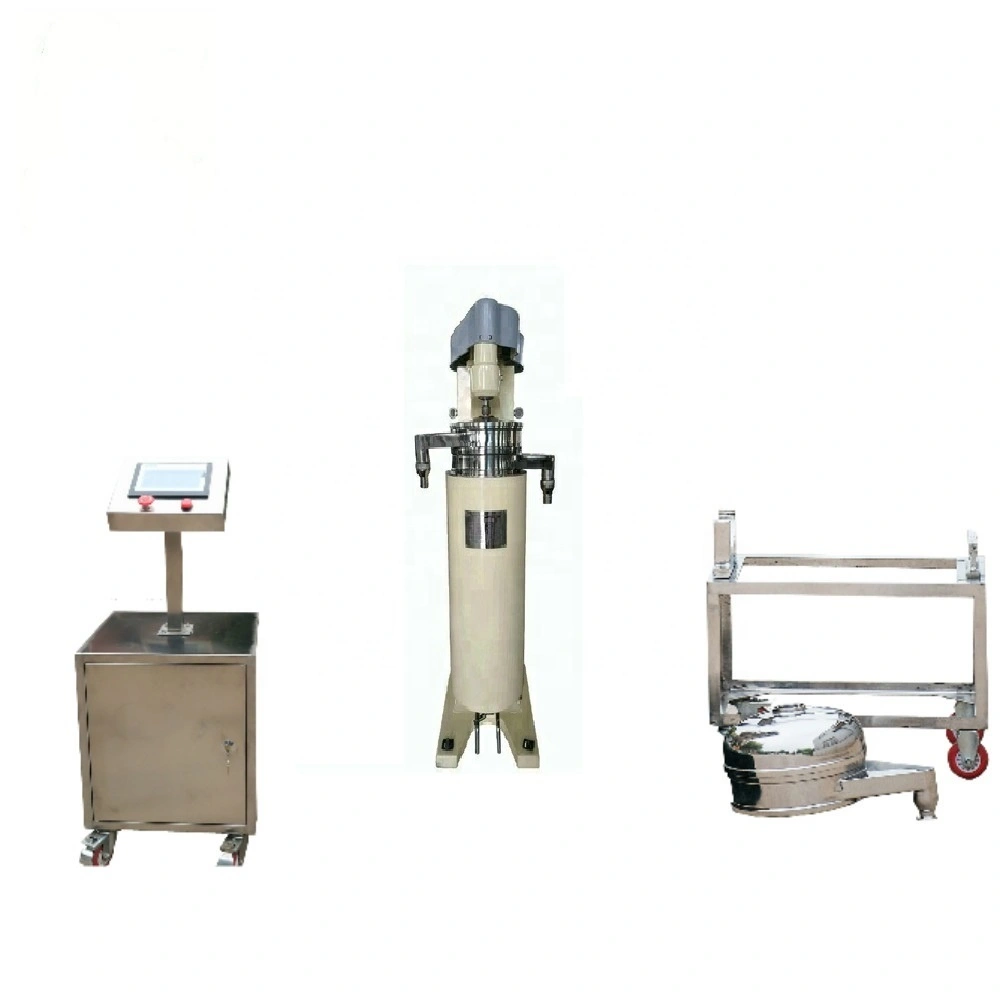

Shenzhou - GQLB-GF105 OPEN-TYPE TUBULAR CLARIFIER, 304SS Centrifuge & Separator
The use of technology has always been seen as quite necessary to the manufacturing process of the product.With those versatile and practical features, GQLB-GK105 OPEN-TYPE TUBULAR CLARIFIER, 304SS has wide applications in the field(s) of Separation Equipment and have an enormous impact on them.
5.0
Customization:
Customized logo (Min. Order: 1 Units),Customized packaging (Min. Order: 1 Units),Graphic customization (Min. Order: 1 Units)
shipping:
Support Sea freight · Land freight
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Since established, Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd has placed a great deal of emphasis on new product development.Decanter centrifuge,Disc Centrifuge,Tubular Centrifuge,Plate Centrifuge, which is recently developed by us, will be officially sold at very competitive prices. Centrifuge & Separator Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd will continually adopt positive marketing strategies to develop new markets, therefore establishing a more sound sales network. Moreover, we will reinforce the scientific research and try hard to gather more talents to focus on the research and development of new products. Our wish is to become one of the most competitive enterprises in the market.
| Place of Origin: | Liaoning, China | Type: | Centrifuge |
| Product Type: | Soap | Condition: | New |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Hot Product 2021 | Warranty of core components: | 2 years |
| Core Components: | Bearing | Brand Name: | LYSZ |
| Voltage: | Customized | Weight: | 220 |
| Dimension(L*W*H): | 580*650*750 mm | Warranty: | 2 years |
| Key Selling Points: | High Productivity | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company |
| Showroom Location: | None |
Product Description
GQLB-GK105 OPEN-TYPE TUBULAR CLARIFIER, 304SS.
Tubular Centrifuge, also called Tubular Separator, is a kind of fine separation equipment suitable for suspensions with thin
concentration, fine particles, and small density difference solid-liquid separation, or liquid-liquid-solid separation. It is
indispensable equipment for pharmaceutical, food, chemical, biological product, fermentation broth, beverages, blood products and other industries. Its working principle is that materials with different specific gravity are subject to different centrifugal forces when rotating at high speed, so as to achieve the purpose of separation.
concentration, fine particles, and small density difference solid-liquid separation, or liquid-liquid-solid separation. It is
indispensable equipment for pharmaceutical, food, chemical, biological product, fermentation broth, beverages, blood products and other industries. Its working principle is that materials with different specific gravity are subject to different centrifugal forces when rotating at high speed, so as to achieve the purpose of separation.
Specification
Item | GQ/GF45 | GQ/GF75 | GQ/GF105 | GQ/GF125 | ||
Bowl | Inner diameter/mm | 45 | 75 | 105 | 124 | |
Effective height/mm | 280 | 430 | 730 | 735 | ||
Lsediment capacity/L | 0.45 | 2 | 5.5 | 7.4 | ||
Rotating speed r/min | 28000 | 20000 | 16000 | 15000 | ||
Max.Separatingfactor | 19800 | 16770 | 15025 | 15500 | ||
Material inle pressure Mpa | >0.05 | >0.05 | >0.05 | >0.05 | ||
Production capacity/Kg/h | ~100 | ~500 | ~1000 | ~20000 | ||
Motor | Item | Universal motor | Y90S-2 | Y90L-2 | Y(B)112M-2-B5 | |
Power/Kw | 0.6 | 1.5 | 2.2 | 4.0 | ||
Rotating speed r/min | 4500 | 2840 | 2880 | 2890 | ||
Dimension(L*W*H)/mm | 580*650*7508 | 950*1230*1600 | 800*1200*1600 | 1010*510*1715 | ||
Weight/Kg | 120 | 300 | 400 | 565 | ||
Cooling tube | Heat dissipation area/m2 | 0.5 | 0.5 | 1.3 | ||
Pressure/Mpa | 1 | 1 | 1 | |||
TUBULAR CENTRIFUGE CLASSIFICATION
SZGF Separation Tubular Centrifuge
(Light liquid-heavy liquid-solid phase)
The GQ type is mainly used for a variety of difficult-to-separate suspensions in the separation industry, and is especially suitable for the separation of solid-liquid two-phase separations with thin concentration, fine particles and small specific gravity differences.
SZGQ Working Principle:
1. The centrifuge rotates at a high speed to reach a suitable working speed (the speed can be adjusted via the control panel), and the mixed suspension is continuously fed from the bottom, and the suspension are layered under the action of centrifugal force;
2. The density of the liquid in the suspension is relatively small, and it spirally rises gradually from bottom to top and then continuously discharges from the clear liquid outlet on the upper part of the rotor;
3.The solid phase is relatively heavier, and it will settle inside the bowl. After the solid is collected, turn off the
centrifuge, and manually remove the rotor for slag cleaning;
4. After cleaning the slag, you need to reset the rotor installation, and then start the next separation process.
2. The density of the liquid in the suspension is relatively small, and it spirally rises gradually from bottom to top and then continuously discharges from the clear liquid outlet on the upper part of the rotor;
3.The solid phase is relatively heavier, and it will settle inside the bowl. After the solid is collected, turn off the
centrifuge, and manually remove the rotor for slag cleaning;
4. After cleaning the slag, you need to reset the rotor installation, and then start the next separation process.
SZGQ Clarification Tubular Centrifuge
(Liquid phase-solid phase)
The GF type is mainly used for various difficult-to-separate suspensions in the separation industry, and is especially suitable for liquid-liquid separation with small specific gravity differences and liquid-liquid-solid three-phase separation with a small amount of impurities.
SZGF Working Principle
1.The centrifuge rotates at a high speed to reach a suitable working speed (the speed can be adjusted control panel), and the mixed suspension is continuously fed from the bottom, and the suspension are layered under the action of centrifugal force;
2.The two liquids in the suspension have a difference in density and are incompatible with each other. The liquid phase spirally rises gradually from bottom to top to the upper part of the rotor. The liquid phase with a smaller density is discharged from the light liquid outlet, and the liquid phase with a larger density is discharged from the heavy liquid outlet;
3.The solid phase density is the largest, and it will settle inside the bowl. After the solids are collected, turn off the
centrifuge, and manually remove the rotor for slag cleaning;
4. After cleaning the slag, need to re-install the rotor, and then start the next separation process.
2.The two liquids in the suspension have a difference in density and are incompatible with each other. The liquid phase spirally rises gradually from bottom to top to the upper part of the rotor. The liquid phase with a smaller density is discharged from the light liquid outlet, and the liquid phase with a larger density is discharged from the heavy liquid outlet;
3.The solid phase density is the largest, and it will settle inside the bowl. After the solids are collected, turn off the
centrifuge, and manually remove the rotor for slag cleaning;
4. After cleaning the slag, need to re-install the rotor, and then start the next separation process.
Machine Features
FEATURES OF TUBULAR CENTRIFUGE
* The enclosure shape is of square shape and round shape.
* Stainless steel 304 is used for the surface wrapping of the enclosure.
* Stainless steel 316L for the parts in contact with the suspension.
* The enclosure body with door-opening design is convenient for disassembly and assembly of the bowl, reduces labor intensity and the separation effect is not affected.
* Optional VFD control cabinet, start by inverter, adjustable speed, reduce the starting current and the degree of damage to the transmission components and wear parts, and improve the service life of the equipment and the motor.
* The control cabinet is optionally equipped with PLC and touch screen to display the speed and temperature.
* According to the field of use, explosion-proof type and cooling type with cooling coil are available.
* Mobile integrated base is available.
* Stainless steel 304 is used for the surface wrapping of the enclosure.
* Stainless steel 316L for the parts in contact with the suspension.
* The enclosure body with door-opening design is convenient for disassembly and assembly of the bowl, reduces labor intensity and the separation effect is not affected.
* Optional VFD control cabinet, start by inverter, adjustable speed, reduce the starting current and the degree of damage to the transmission components and wear parts, and improve the service life of the equipment and the motor.
* The control cabinet is optionally equipped with PLC and touch screen to display the speed and temperature.
* According to the field of use, explosion-proof type and cooling type with cooling coil are available.
* Mobile integrated base is available.
TUBULAR CENTRIFUGE FEEDING PUMP
FEEDING PUMP
Model | SZRB-10 |
Speed (RPM) | 200-700 |
Flow (L/min) | 4-10 |
Pressure (kg) | 1.5 |
Motor Power (w) | 220 |
Hose inner/outer Dia. (mm) | Φ10x16.5 |
Weight (kg) | 12 |
Dimension (mm) | 460x200x210 |
Packing & Delivery
wooden case
Company Profile
Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so onAt the same time,our product with best prices and good quality,welcome to Shenzhou!
FAQ
1. who are we?
We are based in Liaoning, China, start from 2018,sell to North America(30.00%),South America(10.00%),Southeast Asia(10.00%),South Asia(7.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),Africa(3.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Separator,Centrifuge,Packing & Filling,Drying,Tabling Machine
4. why should you buy from us not from other suppliers?
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
We are based in Liaoning, China, start from 2018,sell to North America(30.00%),South America(10.00%),Southeast Asia(10.00%),South Asia(7.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),Africa(3.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Separator,Centrifuge,Packing & Filling,Drying,Tabling Machine
4. why should you buy from us not from other suppliers?
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
