Shenzhou - smaller lab tubular centrifuge Tubular centrifuge

Our engineers and technicians have deep insight into the new technological developments. So far, we have been adopting the upgraded technologies maturely.It is popular in the application field(s) of smaller lab tubular centrifuge.

SEND INQUIRY NOW

Model Number:: GQ/GF

shipping:: Support Sea freight · Land freight

Customization:: Customized logo (Min. Order: 1 Units) , Customized packaging (Min. Order: 1 Units) , Graphic customization (Min. Order: 1 Units)

SEND INQUIRY NOW

Products Details

Our employees are skilled at utilizing state-of-the-art technologies.In the application field(s) of Separation Equipment, smaller lab tubular centrifuge is widely used and highly recognized by users. The measured data indicates that meets the market requirements. Shenzhou has been dedicated to the design, R&D, manufacturing, and updates of Decanter centrifuge,Disc Centrifuge,Tubular Centrifuge,Plate Centrifuge. We fully hope that we can satisfy customers from different fields, countries, and regions by offering them high-quality products and professional service. If you have any questions or problems, please contact us at any time through the contact information listed on our website.

Place of Origin:	Liaoning, China	Type:	Centrifuge
Product Type:	Plant	Condition:	New
Video outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Hot Product 2019	Warranty of core components:	1 Year
Core Components:	Bearing, Motor	Brand Name:	Shenzhou
Voltage:	Customerized	Power:	Model choosing
Weight:	460	Dimension(LWH):	8507501650mm
Warranty:	1 Year	Key Selling Points:	Easy to Operate
Applicable Industries:	Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Printing Shops, Construction works , Food & Beverage Shops, Advertising Company, centrifuge, animal feed factory, Blood plasma factory	Showroom Location:	None
Certification:	GMP/CE

Product Description

smaller lab tubular centrifuge

1.Brief introduction :
Tubular centrifuge is a kind of centrifugal equipment with high separation factor.The minimum separation particle size is 1micron.

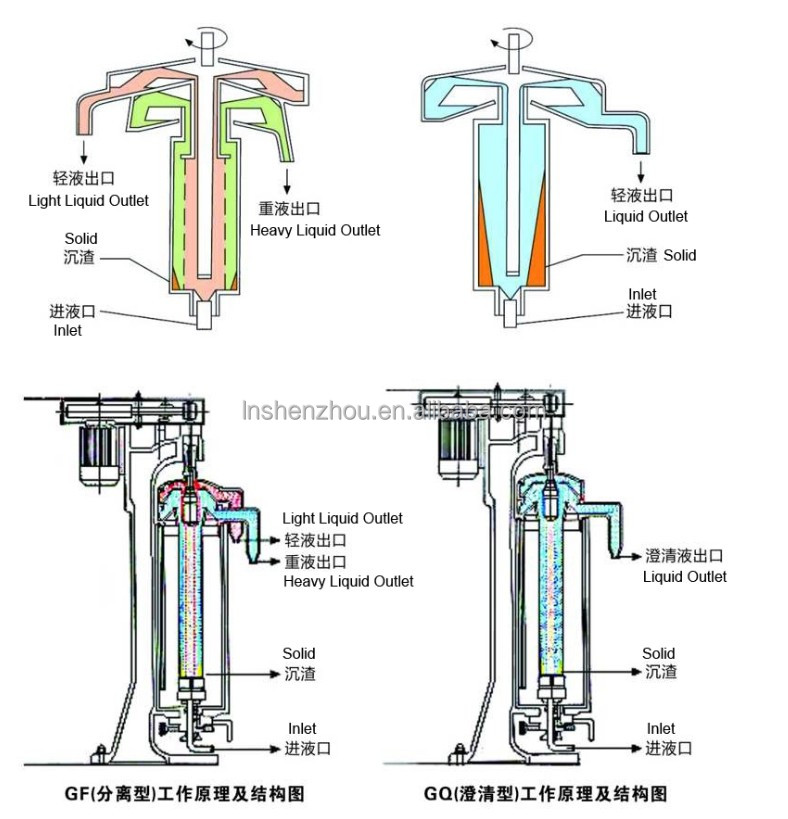

Working principle of Tubular Separator
Consist of the machine cover, driving device, drum, liquid catch tray, the liquid inlet and bearing seat, this separator with high running speed, belongs to sedimentation separator. The upper drum is a flexible shaft, while the lower is damping floating bearing. The main shaft is connected by a coupling buffer and a passive wheel. Motor transmit power from the transmission belt and tension wheel to passive wheel, to drive the drum rotate around its own axis with high-speed, and thus form a strong centrifugal force field. All the materials are fed from liquid inlet under the bottom, and flow upward along the drum wall by centrifugal force fluid. During this process, the dense liquid phase forms the outer ring, and the small liquid phase forms the inner ring,
which separately flow to respective liquid outlet mounted on the upper drum.
When the thickness of the sediment affect the liquid phase clarification or the capacity of the rated slag weight in the drum, the dregs of the drum wall should be removed manually after the shutdown.

Application：Tubular Separator is mainly used for separating all kinds of suspension which is difficult to be separated, especially suitable for separation of solid-liquid suspension with light concentration, heavy viscosity, fine particles and very small differential gravity of the two phases. such as clarification of herbs plants extracts, various medicine liquor, liquid medicine, oral liquid, the extraction of paint, dye, as well as various proteins, alga, fruit gels, and purification of rubber solution, coal tar, graphite, saponin, pectin, sirup, vaccine mycelia and all kinds of glucose; refining resin, and latex solution, enzyme (SOD) of oxide, various kinds of albumens, the glucoside of the soap, etc.

The main feature is the high rate of return of plasma and blood cells in the separation process of the crushing rate to a minimum.
Machine and material contact parts made of stainless steel, meet the GMP requirements of the pharmaceutical industry.Separation is widely used in humans, pigs, cattle, sheep, chickens and other kinds of blood plasma and blood cells
This machine has the advantages like: good separation effect,high yield,small cover area,easy operation etc.
Tubular centrifuge is mainly divided into clarify series GQ and separation series GF:
GF- separation type: mainly used for the separation of various difficult to separate the emulsion, especially for two-phase
density difference little liquid, liquid separation (difference in specific gravity greater than 0.1%), as well as a small amount
of liquid containing impurities, liquid, solid three-phase separator. Separation of various syrups;; separation of oil and the
like, transformer oil, edible oil dehydration and dewaxing, turbine oil, biodiesel, coal tar, lubricants, marine fuel oil,
quenching oil separation of whole blood - from whole blood the separation of plasma, blood cells; the separation of biological products; oil-water separation, sewage treatment.

Clarification GQ- centrifuge tube, mainly used for a variety of difficult to separate separating suspensions, especially suitable for low density, viscosity, fine solid particles, the solid-liquid specific gravity difference smaller solid-liquid separation.
Such as: large sugar oral liquid medicine, the floc more, fine solid particles and solid-liquid specific gravity difference is
small, and so on.

GF separation series:
This type mainly used for various industrial suspension very diffculty to separate,especially suitable for liquid-liquid
suspension with small specific gravity difference between solid phase and liquid phase,and liquid-liquid-solid separation with few impurities.

GQ separation series:
GQ clarify series: it is mainly used for various suspension very difficulty to separate, especially suitable for suspension that
is low concentration and fine grain, small specific gravity difference between solid phase and liquid phase. solid particles with larger Density deposite on the inner wall of the drum, gradually forming a sediment layer, which needs artificial discharge after downtime. the clarified fluid to the upper part of the drum is discharged from the drainage mouth.

Specification

Model	GQ/GF45	GQ/GF75	GQ/GF105	GQ/GF115	GQ/GF125	GQ/GF125
Drum Diameter	45mm	75mm	105mm	114mm	125mm	142mm
Rotating Speed of Drum	10000-30000rpm	19000rpm	16300rpm	16300rpm	15000rpm	13400rmp
Separation Factor	19800G	15200G	15620G	17000G	15700G	14300G
Capacity	100L/H	600L/H	1200L/H	1300L/H	1500L/H	2500-3000L/H
Motor	0.55kw	1.5kw	2.2KW	3.0KW	3.0KW	3.0
weight	90kg	260kg	500kg	520kg	530kg	600KG
Dimensionmm	500420760	7604501120	6009001600	6009001600	6009001600	6509501600

Main technical features

1. The unique design of interior blade is more suitable for the isolation of the fermentation bacteria than the conventional
tubular separators. Equipped with reverse stop device, the residual mother liquid can be retained completely without loss once the machine stop.
2.With advantages of high separation factor and strong separation ability, It is applicable to separate and clarify the materials which is difficult to separate by ordinary centrifuge and all kinds of emulsion liquid such as transformer oil, lubricating oil, fuel oil, turbine oil, grease, dyes, and saponification separation and so on.
3.Simple structure in linear type ,easy in installation and maintation.
4.Adopting advanced world famous brand components in bearing parts, electric parts and operation parts.
5.Running in a high automatization and intellectualization,no pollution
6.Simple to set up, use and clean for minimal down-time between separations
7. No replacement membranes or costly disposables
8.3-phase electric motors provide power for rapid acceleration and quieter operation.
9.Small footprint.

Details Images

Points for Operating the Tubular Separator
* When the percentage of impurities or solids in the liquid is less than 0.5%, the ideal separation effect will be realized. If
the percentage is higher than 0.5%, the solution should be clarified first
* High groove is used to feed materials. If the liquid is of large viscosity, it can also be pumped.
* Measurement for proper materials inlet pressure: when materials are fed by the nozzle into the separator, the proper inlet
pressure is depended on property of materials the nozzle into the separator,to spray materials at least half up onto the drum.
Low pressure will cause part of the liquid not fed into drum and slide into the bearing seat at the bottom of the drum to
outflow from overflow mouth, while the high pressure will affect the separation quality and lead to the vibration of the
machine.
* The inside diameter of feeding tube shall be large enough to be controlled by valve and be convenient for user to adjust
according to flow rate and output.
* The separator is equipped with nozzle in different diameter, to fit different the separation quality and yield.If small
production with high quality, the small nozzle is used, and vice versa.

Suggestion from SHENZHOU
Earned high reputation and good feedback from global customer among all of our products, High-speed Tubular Separator is capable of applied in a variety of biological processes from cell harvesting and clarify to separation of chemical, food, blood and pharmaceuticals.
High performance is consistently achieved in continuous, semi-continuous or batch operations. Include a range of sizes from research to production, our tubular separator provide an efficient and cost-effective technology to separate from one to several thousand liters of biological cultures and other mixtures. For extremely high solids concentrations, drum centrifuge for high performance separations can be supplied.

Customer’s working Show

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

1. What certificates do you have?
We can provide CE, ISO 9001, etc

2. What is the warranty period of the equipment?
Normally 1 year warranty.

3. Can we visit your factory?
Of course, we sincerely invite you to visit, If it's not convenient for you to come to our factory, you can also visit by
telephone video conference.

4. What's payment you accept?
A4: T/T, Western Union, L/C, Ali Pay, etc

5. Can it be customized?
Of course, our equipment can be customized according to the actual requirements of customers.
