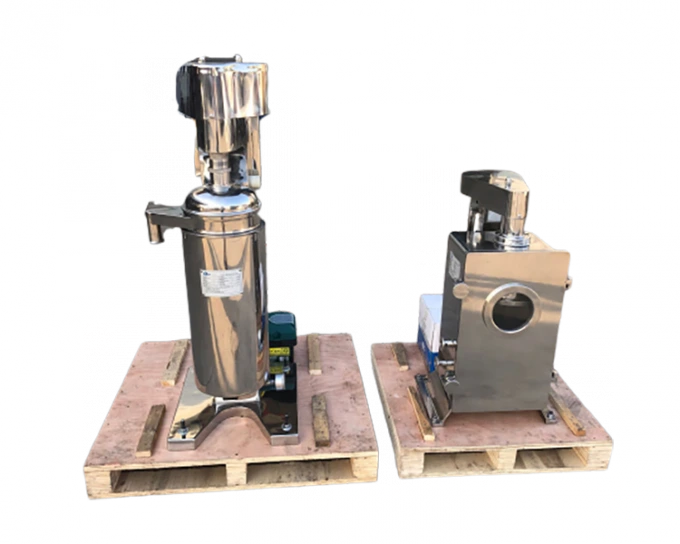

Shenzhou - High speed tubular bowl centrifuge hot selling in Shenzhou Tubular centrifuge
Advanced technology plays a key role in the manufacturing process for a company. We have been consistently improving manufacturing tools.Since we have carefully reviewed every application scenario, we have confirmed that High speed tubular bowl centrifuge hot selling in Shenzhou is indispensable in the field(s) of Separation Equipment.
5.0
Customization:
Customized logo (Min. Order: 1 Units),Customized packaging (Min. Order: 1 Units),Graphic customization (Min. Order: 1 Units)
shipping:
Support Sea freight · Land freight
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd has been focusing on developing products regularly, of which Decanter centrifuge,Disc Centrifuge,Tubular Centrifuge,Plate Centrifuge is the newest. It is the newest series of our company and is expected to surprise you. Separation Equipment Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd has always insisted on winning by "quality", and has won wide recognition and praise from many companies with high-quality services.
| Place of Origin: | Liaoning, China | Type: | Centrifuge |
| Product Type: | Plant | Condition: | New |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Hot Product 2019 | Warranty of core components: | 1 Year |
| Core Components: | Bearing, Motor | Brand Name: | Shenzhou |
| Voltage: | Customerized | Power: | Model choosing |
| Weight: | 460 | Dimension(L*W*H): | 850*750*1650mm |
| Warranty: | 1 Year | Key Selling Points: | Easy to Operate |
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Printing Shops, Construction works , Food & Beverage Shops, Advertising Company, centrifuge, animal feed factory, Blood plasma factory | Showroom Location: | None |
| Certification: | GMP/CE |
Product Description
Description
Tubular Centrifuges have many applications in the field of separation of solid/liquid, liquid/ liquid in petroleum, pharmaceutical and food industries. These centrifuges come in variety of rotation speeds and different sizes that are applicable to all purposes from research to mass production. Also, tubular centrifuges are capable of 8 to 500 Liters/Hour inlet flow.
Advantages of Using Centrifuges vs. Filtration Systems:
⦁ Costly wearable membranes are not used in centrifuges making them more economic choices with less expensive maintenance cost.
⦁ Given equal area and volume, centrifuge systems perform faster.
⦁ Filtration systems produce residues that remain in hard to access filtering layers while there is no waist residue in
centrifuges.
⦁ Efficiency of filtration system decreases over time while centrifuge’ efficiency remains constant.
Control and Monitoring System Specifications:
⦁ Capable to record test specifications; operator name, substance type, etc.
⦁ Automatically save temperature and rotor speed during the test, input current On/Off capability
⦁ Machine controls, speed and running time, via monitoring system
⦁ Vibration protection (warning & trip)
⦁ Display all machine operating conditions
⦁ Create reports after each run
⦁ ouch screen interface Designed per cGMP health standards:
⦁ Contact surfaces are electropolished to less than 0.4 micron roughness.
⦁ Contact surfaces are made of AISI 316L stainless steel
⦁ All O-rings and gaskets are made of vayton or EPDM that could be sterilized with saturated steam of 120°C, 1 Atmosphere, against environmental bacteria to BL-1-LS level.
Applications:
⦁ collecting biomass
⦁ processing animal blood
⦁ clarifying and purification
⦁ separation in biotechnology fields
⦁ separation process of beans, fibers and crystals
⦁ Clarification of paint, beverage, vegetable oil, butter, cocoa, etc.
Properties:
⦁ Rotation speed of up to 16,000 rpm to produce separation force up to 18,000 RCF
⦁ Direct coupling motor instead of belt, resulting in decreased particle releasing, noise and increased stability
⦁ Capable of processing high density solid particles up to relative density of 1.4 g/cm
⦁ Monitoring and control system
⦁ Eliminating small particle releasing off belt by using direct coupling technology.
⦁ Custom order rotors
⦁ safe and fast commissioning, operation and maintenance
⦁ Compatible with different type of rotor and rotational speed
⦁ long lasting bearings
⦁ powerful three-phase motor
Tubular Centrifuges have many applications in the field of separation of solid/liquid, liquid/ liquid in petroleum, pharmaceutical and food industries. These centrifuges come in variety of rotation speeds and different sizes that are applicable to all purposes from research to mass production. Also, tubular centrifuges are capable of 8 to 500 Liters/Hour inlet flow.
Advantages of Using Centrifuges vs. Filtration Systems:
⦁ Costly wearable membranes are not used in centrifuges making them more economic choices with less expensive maintenance cost.
⦁ Given equal area and volume, centrifuge systems perform faster.
⦁ Filtration systems produce residues that remain in hard to access filtering layers while there is no waist residue in
centrifuges.
⦁ Efficiency of filtration system decreases over time while centrifuge’ efficiency remains constant.
Control and Monitoring System Specifications:
⦁ Capable to record test specifications; operator name, substance type, etc.
⦁ Automatically save temperature and rotor speed during the test, input current On/Off capability
⦁ Machine controls, speed and running time, via monitoring system
⦁ Vibration protection (warning & trip)
⦁ Display all machine operating conditions
⦁ Create reports after each run
⦁ ouch screen interface Designed per cGMP health standards:
⦁ Contact surfaces are electropolished to less than 0.4 micron roughness.
⦁ Contact surfaces are made of AISI 316L stainless steel
⦁ All O-rings and gaskets are made of vayton or EPDM that could be sterilized with saturated steam of 120°C, 1 Atmosphere, against environmental bacteria to BL-1-LS level.
Applications:
⦁ collecting biomass
⦁ processing animal blood
⦁ clarifying and purification
⦁ separation in biotechnology fields
⦁ separation process of beans, fibers and crystals
⦁ Clarification of paint, beverage, vegetable oil, butter, cocoa, etc.
Properties:
⦁ Rotation speed of up to 16,000 rpm to produce separation force up to 18,000 RCF
⦁ Direct coupling motor instead of belt, resulting in decreased particle releasing, noise and increased stability
⦁ Capable of processing high density solid particles up to relative density of 1.4 g/cm
⦁ Monitoring and control system
⦁ Eliminating small particle releasing off belt by using direct coupling technology.
⦁ Custom order rotors
⦁ safe and fast commissioning, operation and maintenance
⦁ Compatible with different type of rotor and rotational speed
⦁ long lasting bearings
⦁ powerful three-phase motor
HIGH-SPEED TUBULAR SEPARATOR
High Speed Tubular Bowl Separator
Structure and principle: The separator consists of machine body, driving part ,bowl, liquid collecting pan and liquid-in bearing seat etc. The material is sprayed onto the bowl from the inlet on the bottom and strong centrifuge force is formed when the bowl rotates with the material and that makes the material flow upper along the wall of the bowl and then separated because of the different gravity by the centrifugal force.
High Speed Tubular Bowl Separator
Structure and principle: The separator consists of machine body, driving part ,bowl, liquid collecting pan and liquid-in bearing seat etc. The material is sprayed onto the bowl from the inlet on the bottom and strong centrifuge force is formed when the bowl rotates with the material and that makes the material flow upper along the wall of the bowl and then separated because of the different gravity by the centrifugal force.
GF-for separation: Heavy liquid forms outer ring and light liquid forms inner ring. They flow to the top of the bowl and discharge from their respective outlet. And the little solid is settled on the wall of the bowl and discharged manually after the machine stops.
GQ-for clarification: Heavy solid is deposited on the inner wall of the bowl，and forms the sludge. And it will be
discharged by manual after the machine stops. The clear liquid flows out of outlet from the top of the bowl. It is mainly used for separating all kinds of suspension difficult to be separated, especially suitable for separation of solid-liquid suspension with light concentration, heavy viscosity, fine particles and very small differential gravity of the two phases. The motor connect with the big pulley and delivery the power to the spindle through the belt, tensioner and small pulley and rotate with the bowl in high-speed as the clockwise. The high speed tubular centrifuge is mainly used in liquid-solid separation, liquid-liquid-solid separation in bio-pharmacy, beverage, chemical industry. It is an ideal separation equipment by centrifuging, especially for those feeding with little gravity difference, and small dimension in diameter.
GQ-for clarification: Heavy solid is deposited on the inner wall of the bowl，and forms the sludge. And it will be
discharged by manual after the machine stops. The clear liquid flows out of outlet from the top of the bowl. It is mainly used for separating all kinds of suspension difficult to be separated, especially suitable for separation of solid-liquid suspension with light concentration, heavy viscosity, fine particles and very small differential gravity of the two phases. The motor connect with the big pulley and delivery the power to the spindle through the belt, tensioner and small pulley and rotate with the bowl in high-speed as the clockwise. The high speed tubular centrifuge is mainly used in liquid-solid separation, liquid-liquid-solid separation in bio-pharmacy, beverage, chemical industry. It is an ideal separation equipment by centrifuging, especially for those feeding with little gravity difference, and small dimension in diameter.
Working principle of Tubular Separator
Consist of the machine cover, driving device, drum, liquid catch tray, the liquid inlet and bearing seat, this separator with high running speed, belongs to sedimentation separator. The upper drum is a flexible shaft, while the lower is damping floating bearing. The main shaft is connected by a coupling buffer and a passive wheel. Motor transmit power from the transmission belt and tension wheel to passive wheel, to drive the drum rotate around its own axis with high-speed, and thus form a strong centrifugal force field. All the materials are fed from liquid inlet under the bottom, and flow upward along the drum wall by centrifugal force fluid. During this process, the dense liquid phase forms the outer ring, and the small liquid phase forms the inner ring,
which separately flow to respective liquid outlet mounted on the upper drum.
When the thickness of the sediment affect the liquid phase clarification or the capacity of the rated slag weight in the drum, the dregs of the drum wall should be removed manually after the shutdown.
Application：Tubular Separator is mainly used for separating all kinds of suspension which is difficult to be separated, especially suitable for separation of solid-liquid suspension with light concentration, heavy viscosity, fine particles and very small differential gravity of the two phases. such as clarification of herbs plants extracts, various medicine liquor, liquid medicine, oral liquid, the extraction of paint, dye, as well as various proteins, alga, fruit gels, and purification of rubber solution, coal tar, graphite, saponin, pectin, sirup, vaccine mycelia and all kinds of glucose; refining resin, and latex solution, enzyme (SOD) of oxide, various kinds of albumens, the glucoside of the soap, etc.
Consist of the machine cover, driving device, drum, liquid catch tray, the liquid inlet and bearing seat, this separator with high running speed, belongs to sedimentation separator. The upper drum is a flexible shaft, while the lower is damping floating bearing. The main shaft is connected by a coupling buffer and a passive wheel. Motor transmit power from the transmission belt and tension wheel to passive wheel, to drive the drum rotate around its own axis with high-speed, and thus form a strong centrifugal force field. All the materials are fed from liquid inlet under the bottom, and flow upward along the drum wall by centrifugal force fluid. During this process, the dense liquid phase forms the outer ring, and the small liquid phase forms the inner ring,
which separately flow to respective liquid outlet mounted on the upper drum.
When the thickness of the sediment affect the liquid phase clarification or the capacity of the rated slag weight in the drum, the dregs of the drum wall should be removed manually after the shutdown.
Application：Tubular Separator is mainly used for separating all kinds of suspension which is difficult to be separated, especially suitable for separation of solid-liquid suspension with light concentration, heavy viscosity, fine particles and very small differential gravity of the two phases. such as clarification of herbs plants extracts, various medicine liquor, liquid medicine, oral liquid, the extraction of paint, dye, as well as various proteins, alga, fruit gels, and purification of rubber solution, coal tar, graphite, saponin, pectin, sirup, vaccine mycelia and all kinds of glucose; refining resin, and latex solution, enzyme (SOD) of oxide, various kinds of albumens, the glucoside of the soap, etc.
Specification
Model | GQ/GF45 | GQ/GF75 | GQ/GF105 | GQ/GF115 | GQ/GF125 | GQ/GF150 |
Drum Diameter | 45mm | 75mm | 105mm | 114mm | 125mm | 142mm |
Rotating Speed of Drum | 10000-30000rpm | 19000rpm | 16300rpm | 16300rpm | 15000rpm | 13400rmp |
Separation Factor | 19800G | 15200G | 15620G | 17000G | 15700G | 14300G |
Capacity | 100L/H | 600L/H | 1200L/H | 1300L/H | 1500L/H | 2500-3000L/H |
Motor | 0.55kw | 1.5kw | 2.2KW | 3.0KW | 3.0KW | 3.0 |
weight | 90kg | 260kg | 500kg | 520kg | 530kg | 600KG |
Dimensionmm | 500*420*760 | 760*450*1120 | 600*900*1600 | 600*900*1600 | 600*900*1600 | 650*950*1600 |
Main technical features
1. The unique design of interior blade is more suitable for the isolation of the fermentation bacteria than the conventional
tubular separators. Equipped with reverse stop device, the residual mother liquid can be retained completely without loss once the machine stop.
2.With advantages of high separation factor and strong separation ability, It is applicable to separate and clarify the materials which is difficult to separate by ordinary centrifuge and all kinds of emulsion liquid such as transformer oil, lubricating oil, fuel oil, turbine oil, grease, dyes, and saponification separation and so on.
3.Simple structure in linear type ,easy in installation and maintation.
4.Adopting advanced world famous brand components in bearing parts, electric parts and operation parts.
5.Running in a high automatization and intellectualization,no pollution
6.Simple to set up, use and clean for minimal down-time between separations
7. No replacement membranes or costly disposables
8.3-phase electric motors provide power for rapid acceleration and quieter operation.
9.Small footprint.
tubular separators. Equipped with reverse stop device, the residual mother liquid can be retained completely without loss once the machine stop.
2.With advantages of high separation factor and strong separation ability, It is applicable to separate and clarify the materials which is difficult to separate by ordinary centrifuge and all kinds of emulsion liquid such as transformer oil, lubricating oil, fuel oil, turbine oil, grease, dyes, and saponification separation and so on.
3.Simple structure in linear type ,easy in installation and maintation.
4.Adopting advanced world famous brand components in bearing parts, electric parts and operation parts.
5.Running in a high automatization and intellectualization,no pollution
6.Simple to set up, use and clean for minimal down-time between separations
7. No replacement membranes or costly disposables
8.3-phase electric motors provide power for rapid acceleration and quieter operation.
9.Small footprint.
Details Images
Points for Operating the Tubular Separator
* When the percentage of impurities or solids in the liquid is less than 0.5%, the ideal separation effect will be realized. If
the percentage is higher than 0.5%, the solution should be clarified first
* High groove is used to feed materials. If the liquid is of large viscosity, it can also be pumped.
* Measurement for proper materials inlet pressure: when materials are fed by the nozzle into the separator, the proper inlet
pressure is depended on property of materials the nozzle into the separator,to spray materials at least half up onto the drum.
Low pressure will cause part of the liquid not fed into drum and slide into the bearing seat at the bottom of the drum to
outflow from overflow mouth, while the high pressure will affect the separation quality and lead to the vibration of the
machine.
* The inside diameter of feeding tube shall be large enough to be controlled by valve and be convenient for user to adjust
according to flow rate and output.
* The separator is equipped with nozzle in different diameter, to fit different the separation quality and yield.If small
production with high quality, the small nozzle is used, and vice versa.
Suggestion from SHENZHOU
Earned high reputation and good feedback from global customer among all of our products, High-speed Tubular Separator is capable of applied in a variety of biological processes from cell harvesting and clarify to separation of chemical, food, blood and pharmaceuticals.
High performance is consistently achieved in continuous, semi-continuous or batch operations. Include a range of sizes from research to production, our tubular separator provide an efficient and cost-effective technology to separate from one to several thousand liters of biological cultures and other mixtures. For extremely high solids concentrations, drum centrifuge for high performance separations can be supplied.
* When the percentage of impurities or solids in the liquid is less than 0.5%, the ideal separation effect will be realized. If
the percentage is higher than 0.5%, the solution should be clarified first
* High groove is used to feed materials. If the liquid is of large viscosity, it can also be pumped.
* Measurement for proper materials inlet pressure: when materials are fed by the nozzle into the separator, the proper inlet
pressure is depended on property of materials the nozzle into the separator,to spray materials at least half up onto the drum.
Low pressure will cause part of the liquid not fed into drum and slide into the bearing seat at the bottom of the drum to
outflow from overflow mouth, while the high pressure will affect the separation quality and lead to the vibration of the
machine.
* The inside diameter of feeding tube shall be large enough to be controlled by valve and be convenient for user to adjust
according to flow rate and output.
* The separator is equipped with nozzle in different diameter, to fit different the separation quality and yield.If small
production with high quality, the small nozzle is used, and vice versa.
Suggestion from SHENZHOU
Earned high reputation and good feedback from global customer among all of our products, High-speed Tubular Separator is capable of applied in a variety of biological processes from cell harvesting and clarify to separation of chemical, food, blood and pharmaceuticals.
High performance is consistently achieved in continuous, semi-continuous or batch operations. Include a range of sizes from research to production, our tubular separator provide an efficient and cost-effective technology to separate from one to several thousand liters of biological cultures and other mixtures. For extremely high solids concentrations, drum centrifuge for high performance separations can be supplied.
