Shenzhou - Replacer Amino Acid Animal Blood Meal Oat Chicken Juice Instant Coffee Tea Flavored Meat Fat-rich Milk Powder Spray Dryer Drying & granulator Machine

Always putting an emphasis on the improvement of the research and development, Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd has finally developed Replacer Amino Acid Animal Blood Meal Oat Chicken Juice Instant Coffee Tea Flavored Meat Fat-rich Milk Powder Spray Dryer. The product with improved properties and features is expected to lead the trend of the industry. Our employees are skilled at utilizing tools and technology to manufacture Replacer Amino Acid Animal Blood Meal Oat Chicken Juice Instant Coffee Tea Flavored Meat Fat-rich Milk Powder Spray Dryer.The product has an enormous application range and now is widely used in the field(s) of Drying Equipment. Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd relentlessly strive for innovations and changes, hoping to lead the industry development and improve our products and services in our unique way. We are committed to being one of the best enterprises in the market.

Product Description

The drying technology is most suitable for producing the powder, particle products from the materials, such as: solution,
emulsion, soliquoid and pumpable paste states.
For this reason, when the particle size and distribution of the final products, their residual water contents, the stacking
density and the particle shape must meet the precision standard, the spray drying is one of the most desired technologies.

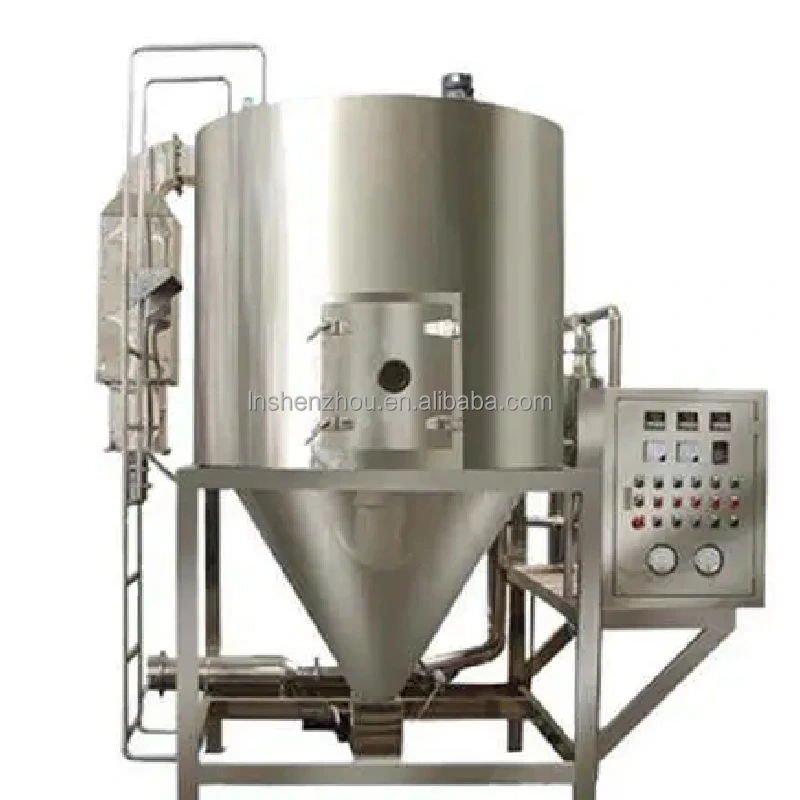

LPG High Speed Centrifugal Spray Dryer

Brief Indtroduction:
I . Working principle and configuration options:
The solution, emulsion, suspension liquid or slurry are sprayed into fine beads in the hot air, going down from the top of the drying chamber to the bottom, the water will be evaporated to and the product becomes powder or granular product.
Induce hot air from the top of drying tower, at the same time, pump the material liquid to the top of the tower by screw pump or peristaltic pump, the feeding solution becomes into fine beads or small droplets through the atomizer. When the droplets meet the high temperature hot air, the water will be evaporated immediately, and the material liquid is dried into dry product in a very short time, the product is discharged from the bottom of the drying tower, or from the cyclone (depend on the configuration). When the hot air contacts with the droplets, the temperature declines significantly, and the humidity increases greatly, and then will be exhausted by exhaust fan. The fine powder in the air will be collected through different separating devices There're different fine powder separation and recovery devices, such as cyclone (the common type and various combination type), bag filter, cyclone + bag filter, cyclone + wet scrubber, and bag filter + wet scrubber etc. We should different fine powder separation and recovery devices as per the characteristics of product and requirements of customer.
Depend on the product features and requirements, we might install secondary drying and cooling system (such as ZLG vibration fluid bed or pneumatic transportation), formulation system or powder sieving system etc after the spray dryer, or dehumidifier.

II . Features of our equipment:
The designs of our spray dryer are advanced in China, as well as worldwide. If we compare the important parameters of our spray dryers and some famous brand in the world, such as final moisture content, color, flavor, particle size, solubility and bulk density etc, they are very close, or sometimes, ours are even a little better. A lot of customers have achieved their desired results with our equipment.

III . Applications
Food Industry: whole milk powder, cocoa milk powder, milk substitute, egg white (yolk), etc. armpit prion, Oats, chicken juice,instant tea, seasoning meat, protein, soybean, peanut protein, protein hydrolyzate, etc. Corn syrup, corn starch, glucose, pectin,maltose, potassium sorbate, pumpkin powder, etc.
Pharmaceutical products: Chinese traditional medicine extract (herb extract), medicine colloid, yeast, vitamins, antibiotics,
amylase, lipase, etc. Plastics resin: AB, ABS emulsion, urea-formaldehyde resin, phenolic resin, dense plastic (urea) formaldehyde resin, polyethylene, polyvinyl chloride, etc. Detergent: advanced washing powder, normal washing powder, soap powder, soda powder, emulsifiers, brighteners, phosphoric acid agents. Chemical Industry: Sodium fluoride (potassium), alkaline dyestuff and pigment,dye intermediates, Mn3O4, formic silica acid, catalyst, sulfuric acid agent, amino acids, silica, etc.. Ceramic: aluminum oxide,ceramic

Specification

Specification	LPG-5	LPG-25	LPG-50	LPG-100	LPG-150	LPG-200
Air Inlet temperature	140-550 ° C (depend on the product to be dried, and URS)
Air exhaust temperature	60-120 ° C (depend on the product to be dried, and URS)
Nominal water evaporationcapacity (Kg / h)	5	25	50	100	150	200
Heating method	High-pressure steam, or steam + electricity, or any kinds of fuel (diesel, natural gas, liquefiedpetroleum gas or coal, etc.), or solid fuel (any combustible material). Please specify.
Drying tower diameter (mm)	1100	1800	2150	2560	2860	3200
Overall Dimensions (m)	2×1.4×2.2	5×3×4	6×4×5	8×4×6	8×5×7	10×5×8
Product yield	95-99.9%_depend on the properties of the product and configurations

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
