Shenzhou Machinery - Professional Industrial Centrifuge Machine Manufacturer and Centrifugal Separators Supplier in China

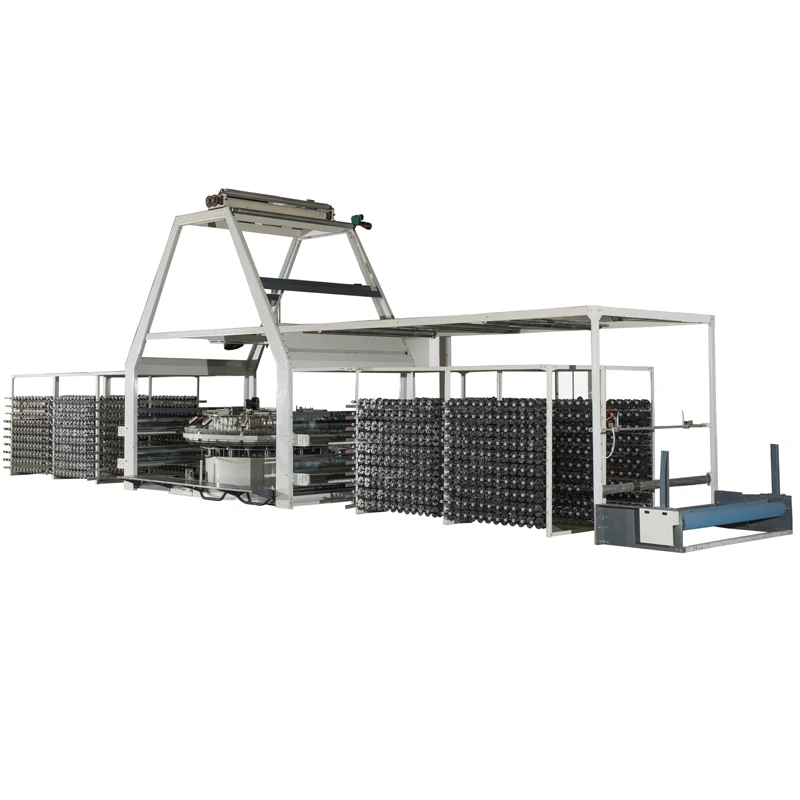

Shenzhou - bags weeding mat Eight shuttles high speed circular weaving machine Hot selling machine 1

Shenzhou - bags weeding mat Eight shuttles high speed circular weaving machine Hot selling machine 2

Shenzhou - bags weeding mat Eight shuttles high speed circular weaving machine Hot selling machine 3

Shenzhou - bags weeding mat Eight shuttles high speed circular weaving machine Hot selling machine 4

Shenzhou - bags weeding mat Eight shuttles high speed circular weaving machine Hot selling machine 5

Shenzhou - bags weeding mat Eight shuttles high speed circular weaving machine Hot selling machine

Produced by the latest technology, bags weeding mat Eight shuttles high speed circular weaving machine presents its finest function well.The design of it has met varied needs of customers.It has been proved that can be applied to wide range because the product embodies superb characteristic than other products in the market.

Customization:

Customized logo (Min. Order: 1 Units),Customized packaging (Min. Order: 1 Units),Graphic customization (Min. Order: 1 Units)

shipping:

Support Sea freight · Land freight

Inquiry

Write a Review

After years of development, Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd has gained strong capabilities in production and R&D, which allows us to develop new products to keep close up with industry development. The advancement in technology brings us unlimited benefits which include expanded product advantages.bags weeding mat Eight shuttles high speed circular weaving machine is perfect for the area(s) of Weaving Machines. Over the years,bags weeding mat Eight shuttles high speed circular weaving machine has been widely recognized by customers who have cooperated.

Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company	Showroom Location:	None
Video outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Hot Product 2021	Warranty of core components:	1 Year
Core Components:	PLC, Motor	Condition:	New
Type:	Shuttle Loom	Production Capacity:	40-150m/h
Place of Origin:	Liaoning, China	Brand Name:	lysz
Dimension(LWH):	1550035004560mm	Weight:	7500 KG
Power:	7.5kw	Warranty:	1 Year
Key Selling Points:	Easy to Operate

Product Description

Introduction:
This circle loom weaving machine can make pp flat yarn to woven rolls for woven bags or Jumbo bags .
With the scroll transmission by little cam and sewing-arm wheel, the machine runs easily and stable.
Rolling transmission is adopted in entire structure instead of slide block and slide rod, which doesn’t need lubricant and
decreases the wearing part. With the detector for warp-breaking, weft-breaking and weft-ending, the sensibility for automatic stop becomes reliable. It adopts the latest energy saving synchronous motor and the intelligent micro-computer controlling system can be instead if required. It can adjust the weft density and compensate the weft density in case of weft-braking, which can improve the evenness of woven fabrics.

Shenzhou - bags weeding mat Eight shuttles high speed circular weaving machine Hot selling machine 6

Specification

Type	Number of spindle	Lay-flat width (mm)	Max. Warp (pcs)	Rotational speed of main body (r/min)	Power of main motor (kw)	Total Power (kw)	Production (m/min) (10-24warps/100mm)	Installing dimensions	weight
YZJ-4/800	4	350-750	768	140-180	2.2	3.5	1.4-1.8	8400X2200X2650	1500
YZJ-4/1000	4	550-950	768/ 896	140-180	2.2	3.5	1.4-1.8	8400X2200X2650	1800
YZJ-4/1200	4	1000-1100	896/ 1020	120-160	2.2	4.5	1.2-1.6	8900X2350X2650	2000
YZJ-4/1500	4	800-1400	1040	90-125	4.0	5.5	0.9-1.25	9800X2500X2650	2300
YZJ-6/850	6	350-850	720	120-180	3.0	3.5	1.8-2.7	8700X2410X2650	2000
YZJ-6/1500	6	850-1450	1100	120-180	3.0	4.5	1.8-2.7	9100X2610X2650	3000
YZJ-6/1800	6	1450-1750	1440	120-180	4.0	5.5	1.8-2.7	9700X2810X2650	3500

Shenzhou - bags weeding mat Eight shuttles high speed circular weaving machine Hot selling machine 7

Model	YZJ-2000X8S	YZJ-2250X10S
Number of Shuttles	8	10
Rotation Speed of Main Body	60-65r/min
Power of Main Motor	7.5KW
Lay-flat Width	1500mm-1900mm	1800mm-2200mm
Production Capacity	40m/h-120m/h
Max warps	2280pcs	2880pcs
Diameter of Warp Yarn	Max 130mm
Diameter of Weft Yarn	Max 110mm
Yarn Disc Diameter	136mm
Max Roll Diameter	1500mm
Machine Size(LWH)	15.5mX3.5mX4.65m	17.5mX3.7mX4.85m
Machine Weight	7.5T	8.5T

Packing & Delivery

Shenzhou - bags weeding mat Eight shuttles high speed circular weaving machine Hot selling machine 8

wooden case

Company Profile

Shenzhou - bags weeding mat Eight shuttles high speed circular weaving machine Hot selling machine 9

Shenzhou - bags weeding mat Eight shuttles high speed circular weaving machine Hot selling machine 10

Shenzhou - bags weeding mat Eight shuttles high speed circular weaving machine Hot selling machine 11

Shenzhou - bags weeding mat Eight shuttles high speed circular weaving machine Hot selling machine 12

Shenzhou - bags weeding mat Eight shuttles high speed circular weaving machine Hot selling machine 13

Shenzhou - bags weeding mat Eight shuttles high speed circular weaving machine Hot selling machine 14

Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so onAt the same time,our product with best prices and good quality,welcome to Shenzhou!

FAQ

1. who are we?
We are based in Liaoning, China, start from 2018,sell to North America(30.00%),South America(10.00%),Southeast Asia(10.00%),South Asia(7.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),Africa(3.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Separator,Centrifuge,Packing & Filling,Drying,Tabling Machine

4. why should you buy from us not from other suppliers?
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
