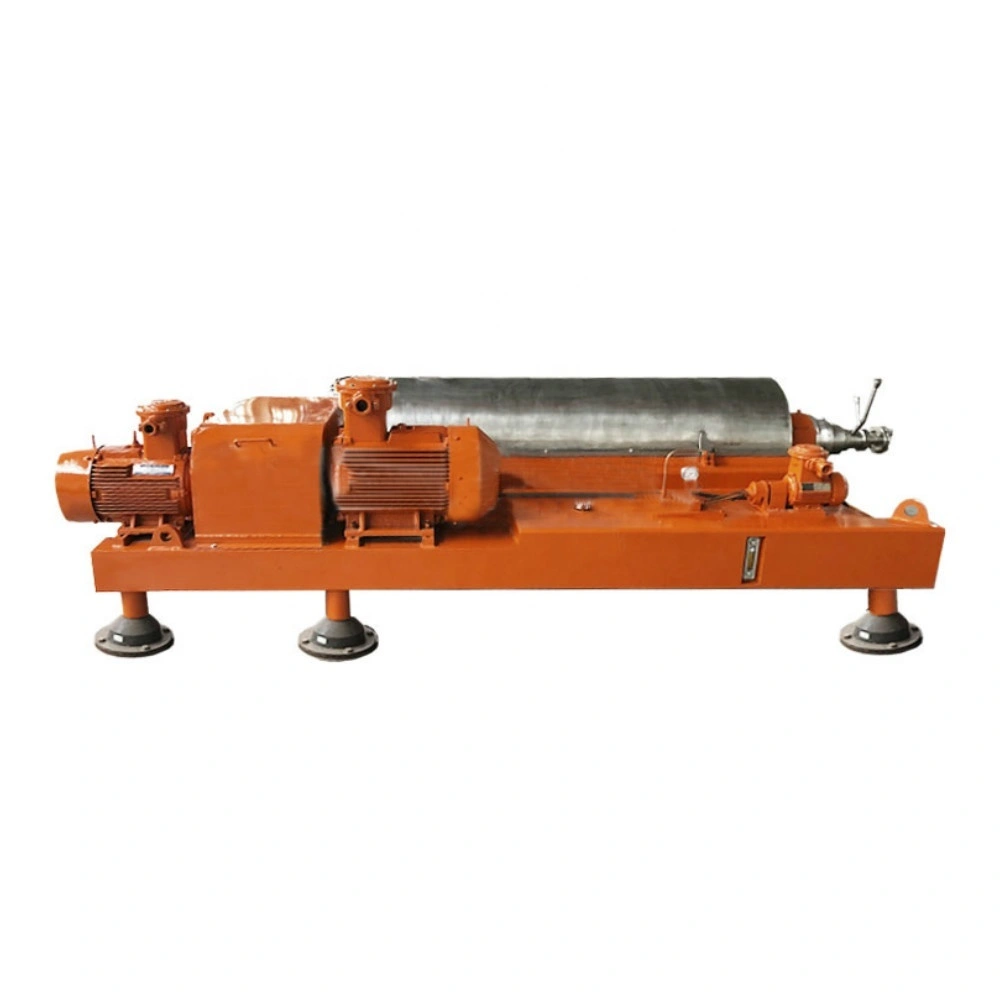

Shenzhou - Double - Motor Water Centrifuge Equipment , Municipal Sewage Liquid Centrifuge Centrifuge & Separator
We have continually adopted technologies learned from famous brands or developed on our own, to manufacture the product. With the improvement and upgrades of the product features, Double - Motor Water Centrifuge Equipment , Municipal Sewage Liquid Centrifuge has been found to be very useful in the field(s) of Centrifuge & Separator.
5.0
Customization:
Customized logo (Min. Order: 1 Units),Customized packaging (Min. Order: 1 Units),Graphic customization (Min. Order: 1 Units)
shipping:
Support Sea freight · Land freight
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
In the fierce market competition, Shenzhou Group Co.,Ltd/Liaoyang Shenzhou Machinery Equipment Co.,Ltd has grown continuously. We invest in R&D to find better solutions in the Separation Equipment industry. Technological innovation is the cornerstone of product quality. Double - Motor Water Centrifuge Equipment , Municipal Sewage Liquid Centrifuge is not only manufactured to draw the attention of people but also to bring them convenience and benefits. Designed by creative designers, Decanter centrifuge,Disc Centrifuge,Tubular Centrifuge,Plate Centrifuge presents a style of aesthetics. In addition, it is excellent characterized thanks to the adopted high-quality raw materials and high-end technologies.
| Place of Origin: | China | Type: | Centrifuge |
| Product Type: | Plant | Condition: | New |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty of core components: | 1 Year |
| Core Components: | PLC, Bearing, Gearbox, Motor | Brand Name: | Shenzhou |
| Voltage: | 380V/50HZ,3Phase | Power: | Model |
| Weight: | 1050 | Dimension(L*W*H): | Model |
| Warranty: | 1 Year | Key Selling Points: | Easy to Operate |
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Construction works , Food & Beverage Shops, Chemical plant, pharmaceutical plant | Showroom Location: | Thailand, Sri Lanka |
| Material: | Stainless Steel | Product name: | Decanter Centrifuge |
| Max.Capacity: | 2m³/H 45m³/H 57m³/H 80m³/H | Drum Max Speed: | 4800rpm 3900rpm 1800rpm 3200rpm |
Product Description
Double - Motor Water Centrifuge Equipment , Municipal Sewage Liquid Centrifuge
For water purification plants, sewage treatment plants, high-performance water treatment dedicated decanter centrifuge is an ideal equipment, It highly adapts to the sludge features, but also has a greater process capacity to handle at low concentrations (SS 0.5 %) case without thickener/concentrator to meet the process aim of concentration and dewatering.
SHENZHOU centrifuges are designed & developed and manufactured by its own factory, mostly used in waste-water or waste sludge treatment and separation. Its main body uses SS304 or SS321 materials, high standard production process, high technology support with high capacity, easy maintenance, is welcome by the users at home and abroad.
SHENZHOU centrifuges are designed & developed and manufactured by its own factory, mostly used in waste-water or waste sludge treatment and separation. Its main body uses SS304 or SS321 materials, high standard production process, high technology support with high capacity, easy maintenance, is welcome by the users at home and abroad.
Water Treatment field
The impurities such as glass and braids in the biochemical sludge from the sludge tank is pulverized and removed. The sludge pump sends the sludge (concentration 0.5~4% or higher) into the centrifuge, and the fully automatic flocculant dosing device adds continuously PAM flocculant solution (concentration 1~3‰) into the feed pipe through the dosing pump for flocculation in the feed pipe and in the vicinity to produce flocculus to be sent into the centrifuge. The dehydrated mud cake is discharged from the drum by a centrifuge, and transported to the outside through the screw conveyor.
The dehydration system is widely used for oxidation ditch, AB, A/O, A2/O, SBR, MBR, anaerobic fermentation, and other processes, as well as urban domestic sewage, municipal sewage, landfill leachate, urban tap water, purified water, and some industrial wastewater of conventional sewage treatment processes. Solid-liquid separation is achieved by a high-performance DE type two-phase high-efficiency centrifuge.
Modern water purification and sewage treatment processes, increasingly strict emission standards, and subsequent treatment of dewatered mud cakes, whether stacked, dried or incinerated, have set higher requirements for key equipment of excess sludge treatment.
The impurities such as glass and braids in the biochemical sludge from the sludge tank is pulverized and removed. The sludge pump sends the sludge (concentration 0.5~4% or higher) into the centrifuge, and the fully automatic flocculant dosing device adds continuously PAM flocculant solution (concentration 1~3‰) into the feed pipe through the dosing pump for flocculation in the feed pipe and in the vicinity to produce flocculus to be sent into the centrifuge. The dehydrated mud cake is discharged from the drum by a centrifuge, and transported to the outside through the screw conveyor.
The dehydration system is widely used for oxidation ditch, AB, A/O, A2/O, SBR, MBR, anaerobic fermentation, and other processes, as well as urban domestic sewage, municipal sewage, landfill leachate, urban tap water, purified water, and some industrial wastewater of conventional sewage treatment processes. Solid-liquid separation is achieved by a high-performance DE type two-phase high-efficiency centrifuge.
Modern water purification and sewage treatment processes, increasingly strict emission standards, and subsequent treatment of dewatered mud cakes, whether stacked, dried or incinerated, have set higher requirements for key equipment of excess sludge treatment.
Scope of application:
Application fields
1. Food
A flesh processing,aquatic products process and edible protein recovery;
B Extract plant protein from soybean,oily seeds and leguminous plants;
C Recovery of brewing leach liquor malt and yeast
D Treatment and recovery of wine lees liquid;
E Extract of instant coffee and tea;
F Clarification of palm oil,olive oil and seed oil;
G Extract juice from fruits ,berries and vegetables;
H Recovery of refined pectin;
I Clarification of grape juice and grape wine.
2. Environmental protection
Drilling mud ,industrial effluent ,waste water of municipal works,fertilizer,organic waste water,paint sludge,plastic
particles,gravel washing water,waste water in steel-making ,flue gas desulfurization,sewage sludge treatment of waterworks.
3. Petroleum and chemical industry
A Processing of kaolin and calcium carbonate,production of bentonite and titanium dioxide;
B Exploration of petroleum oil,natural gas,crude oil refining and related industries,additive of lube oil and waste oil recovery;
C Intermediate products and final products of organic chemistry industry;
D Thermoplastic materials,includes PVC,polypropylene,polystyrene,synthetic rubber and fiber;
E Inorganic chemical industry ,includes bleach,acid,silica products and fertilizers;
F Treatment of spent wash and molasses fermentation residues;
G Extraction of starch from wheat,corn ,cassava and potato;
H Waste liquid recovery and recycling from above industries.
Other fields
Pharmaceutical intermediates,salts and manures,etc.
A flesh processing,aquatic products process and edible protein recovery;
B Extract plant protein from soybean,oily seeds and leguminous plants;
C Recovery of brewing leach liquor malt and yeast
D Treatment and recovery of wine lees liquid;
E Extract of instant coffee and tea;
F Clarification of palm oil,olive oil and seed oil;
G Extract juice from fruits ,berries and vegetables;
H Recovery of refined pectin;
I Clarification of grape juice and grape wine.
2. Environmental protection
Drilling mud ,industrial effluent ,waste water of municipal works,fertilizer,organic waste water,paint sludge,plastic
particles,gravel washing water,waste water in steel-making ,flue gas desulfurization,sewage sludge treatment of waterworks.
3. Petroleum and chemical industry
A Processing of kaolin and calcium carbonate,production of bentonite and titanium dioxide;
B Exploration of petroleum oil,natural gas,crude oil refining and related industries,additive of lube oil and waste oil recovery;
C Intermediate products and final products of organic chemistry industry;
D Thermoplastic materials,includes PVC,polypropylene,polystyrene,synthetic rubber and fiber;
E Inorganic chemical industry ,includes bleach,acid,silica products and fertilizers;
F Treatment of spent wash and molasses fermentation residues;
G Extraction of starch from wheat,corn ,cassava and potato;
H Waste liquid recovery and recycling from above industries.
Other fields
Pharmaceutical intermediates,salts and manures,etc.
Specification
Model | Diameter(mm) | Lenght(mm) | Max speed | L/D ratio | G-force | Capacity(m3/h) | Main motor power(Kw) | Weight(kg) | Dimension (mm) |
LW250*1000 | 250 | 1000 | 5000 | 4 | 2722 | 0.5-5 | 7.5 | 950 | 2120*1250*680 |
LW300*900 | 300 | 900 | 4200 | 3 | 2964 | 1-6 | 11 | 1160 | 2150*1300*900 |
LW300*1200 | 300 | 1200 | 4000 | 4 | 2784 | 2-6 | 11 | 1350 | 2450*1300*900 |
LW355*1160 | 355 | 1160 | 3600 | 3.3 | 2576 | 2-8 | 15 | 1400 | 2470*1350*830 |
LW355*1460 | 355 | 1460 | 3600 | 4 | 2576 | 2-10 | 15 | 1800 | 2750*1350*830 |
LW400*1200 | 400 | 1200 | 3200 | 3 | 2294 | 3-12 | 18.5 | 1800 | 2730*1600*1080 |
LW400*1600 | 400 | 1600 | 3000 | 4 | 2016 | 3-15 | 22 | 2000 | 3130*1600*1080 |
LW450*1800 | 450 | 1800 | 2800 | 4 | 1976 | 4-25 | 37 | 2500 | 3320*1700*1130 |
LW500*2000 | 500 | 2000 | 2800 | 4 | 1750 | 5-35 | 45 | 4000 | 3520*1800*1170 |
LW530*1855 | 530 | 1855 | 2600 | 3.5 | 2006 | 5-38 | 55 | 4680 | 3885*1350*1600 |
LW530*2120 | 530 | 2120 | 2400 | 4 | 1709 | 5-40 | 55 | 4800 | 4150*1350*1600 |
LW550*2000 | 550 | 2000 | 2800 | 4 | 2414 | 6-40 | 55 | 5700 | 4570*1380*1600 |
LW650*1950 | 650 | 1950 | 2200 | 3 | 1761 | 6-45 | 75 | 5000 | 4840*1510*1720 |
LW650*2600 | 650 | 2600 | 2000 | 4 | 1456 | 6-65 | 90 | 6000 | 5490*1510*1720 |
LW720*2160 | 720 | 2160 | 2000 | 3 | 1612 | 7-80 | 120 | 6000 | 5200*1600*1800 |
LW720*2880 | 720 | 2880 | 2000 | 4 | 1306 | 7-90 | 120 | 8000 | 3100*1600*1800 |
LW800*2400 | 800 | 2400 | 1800 | 3 | 1451 | 20-100 | 150 | 12000 | 5820*2000*1300 |
LW800*3200 | 800 | 3200 | 1800 | 4 | 1451 | 20-120 | 150 | 1300 | 7100*2000*1300 |
Main technical features
Not only equipment manufacturer but also system engineering service provider
With strong technical strength and rich engineering experience, we are fully qualified for the turnkey project of the sludge
dewatering room. We are also willing to recommend the design layout of the sludge dewatering room for owners and design institutes.
Eddy current type spiral outlet
The outlet of the screw conveyor adopts a vortex type to accelerate the entry of materials into the rotating drum, thereby
reducing the disturbance of the discharged materials to the formed solid phase layer and improving the processing capacity. In the industry of flocculant, it can effectively reduce the shearing effect of the discharge hole on the floccules under the high-speed discharging state, so as to reduce the consumption of chemical agent.
BD board technology
The screw conveyor adopting BD board technology is the most advanced for reducing the water content and improving the solid recovery rate of activated sludge (organic matter ≥ 40%). The technology has the following advantages:
• Increase the depth of the liquid layer, the effective settlement area, and the processing capacity of the centrifuge;
• Reduce the moisture content of the sediment under the action of spiral high-pressure extrusion;
• Improve solid recovery rate and make the clear liquid clearer;
• Save the consumption of chemical agent and cut down equipment operating cost;
• Compared with the common centrifuges of the same separation performance, it is lower in operating speed and requires less power consumption.
More economical in equipment investment and later-stage operation
Goal: Minimum equipment operation, maintenance and repair costs;
We are committed to creating the best quality and most cost-effective China-made centrifuge brand. We recognize that stable operation of equipment is the guarantee of greater benefits for customers, and outstanding suppliers and modern processing equipment are the basic guarantee for quality centrifuges. Advanced and unique technology is the guarantee to reduce operating cost, in addition to high-quality wear resistance, eddy current type spiral outlet, circular arc slag outlet, special spiral structure, advanced electrical control technology, etc.
High performance wear-and corrosion-resistant cemented carbide
There are inevitably small hard particles and impurities such as sand, glass, and metal in sewage. If the centrifuge does not adopt a reliable wear-resistant configuration, its service life and operational stability will be greatly affected. The
wear-resistant solution is completely targeted. According to the material characteristics (pH value, corrosive substance, solid particle size hardness, etc.), cemented carbide or ceramic can be selected, and the cemented carbide can be either YG6, YG8, or various modified tungsten-cobalt alloys with the hardness of 89~93 (HRA), which can fully meet the application fields of the centrifuge.
With strong technical strength and rich engineering experience, we are fully qualified for the turnkey project of the sludge
dewatering room. We are also willing to recommend the design layout of the sludge dewatering room for owners and design institutes.
Eddy current type spiral outlet
The outlet of the screw conveyor adopts a vortex type to accelerate the entry of materials into the rotating drum, thereby
reducing the disturbance of the discharged materials to the formed solid phase layer and improving the processing capacity. In the industry of flocculant, it can effectively reduce the shearing effect of the discharge hole on the floccules under the high-speed discharging state, so as to reduce the consumption of chemical agent.
BD board technology
The screw conveyor adopting BD board technology is the most advanced for reducing the water content and improving the solid recovery rate of activated sludge (organic matter ≥ 40%). The technology has the following advantages:
• Increase the depth of the liquid layer, the effective settlement area, and the processing capacity of the centrifuge;
• Reduce the moisture content of the sediment under the action of spiral high-pressure extrusion;
• Improve solid recovery rate and make the clear liquid clearer;
• Save the consumption of chemical agent and cut down equipment operating cost;
• Compared with the common centrifuges of the same separation performance, it is lower in operating speed and requires less power consumption.
More economical in equipment investment and later-stage operation
Goal: Minimum equipment operation, maintenance and repair costs;
We are committed to creating the best quality and most cost-effective China-made centrifuge brand. We recognize that stable operation of equipment is the guarantee of greater benefits for customers, and outstanding suppliers and modern processing equipment are the basic guarantee for quality centrifuges. Advanced and unique technology is the guarantee to reduce operating cost, in addition to high-quality wear resistance, eddy current type spiral outlet, circular arc slag outlet, special spiral structure, advanced electrical control technology, etc.
High performance wear-and corrosion-resistant cemented carbide
There are inevitably small hard particles and impurities such as sand, glass, and metal in sewage. If the centrifuge does not adopt a reliable wear-resistant configuration, its service life and operational stability will be greatly affected. The
wear-resistant solution is completely targeted. According to the material characteristics (pH value, corrosive substance, solid particle size hardness, etc.), cemented carbide or ceramic can be selected, and the cemented carbide can be either YG6, YG8, or various modified tungsten-cobalt alloys with the hardness of 89~93 (HRA), which can fully meet the application fields of the centrifuge.
Production workshop
Screw production1
Screw production2:
.
High speed dynamic balance detection1
High speed dynamic balance detection2
High performance stainless steel
Because the sewage contains some corrosive ions or substances, to ensure the stability and the service life of the centrifuge, AISI321, AISI316, AISI316L or duplex stainless steel SAF2205 with high strength and corrosion resistance are used.
High-dryness screw conveyor and drum structure
The dehydration of solid particles relies mainly on strong centrifugal force, high-torque screw extrusion force (pushing torque), and ultra-long solid particle dehydration length. The centrifuge can generate centrifugal force exceeding thousands of G, 30 ~ 50% higher than the screw pushing torque of common centrifuges. The screw pusher torque, and the drum dehydration length is 10 ~ 20% longer than that of common centrifuges.
High torque involute planetary gear differential
The ultra-high pushing torque requires a high-torque involute planetary gear differential as the foundation. The differential
equipped on the centrifuge features high torque, high speed, low heat generation, and excellent heat dispersion, which ensure that the centrifuge can be used for a long time and stably.
Because the sewage contains some corrosive ions or substances, to ensure the stability and the service life of the centrifuge, AISI321, AISI316, AISI316L or duplex stainless steel SAF2205 with high strength and corrosion resistance are used.
High-dryness screw conveyor and drum structure
The dehydration of solid particles relies mainly on strong centrifugal force, high-torque screw extrusion force (pushing torque), and ultra-long solid particle dehydration length. The centrifuge can generate centrifugal force exceeding thousands of G, 30 ~ 50% higher than the screw pushing torque of common centrifuges. The screw pusher torque, and the drum dehydration length is 10 ~ 20% longer than that of common centrifuges.
High torque involute planetary gear differential
The ultra-high pushing torque requires a high-torque involute planetary gear differential as the foundation. The differential
equipped on the centrifuge features high torque, high speed, low heat generation, and excellent heat dispersion, which ensure that the centrifuge can be used for a long time and stably.
CIP washing system
The fully automatic control system is equipped with a CIP washing system, which can effectively solve the problem that it is not completely cleaned during the shutdown process and effectively avoid the equipment troubles caused by artificial factors.
Humanized centrifuge configuration
1.Spiral bearing (in the drum, concealed) lubrication technology: the lubricant is filled from the outside of the hood.
2,The hood adopts a hinged opening structure and is equipped with a high-pressure gas strut to assist the opening.
Variable pitch technology
Variable pitch technology is a relatively advanced technology in the world. It can effectively reduce the screw pushing torque, improve the processing capacity, and further reduce the sediment water content.
High rigidity screw rotor technology
Decanter centrifuge is a typical high-speed rotating device with different speeds and two rotors. The rigidity of the screw rotor directly affects the stability and safety of the equipment. Through theoretical analysis and calculation, the working speed of the high-rigidity screw rotor is far from the first-order and second-order critical speeds, which can avoid the resonance state at high speed.
Double-motor double-frequency conversion common DC bus
The main and ancillary motors of the centrifuge are controlled by a high-performance vector inverter. The ancillary motor is always in the generator state under the differential speed. The inverter adopts common DC bus technology. The auxiliary inverter can convert the electric energy generated by the ancillary motor into the power source to drive the main motor, thereby achieving the purpose of energy conservation.
Through the double-motor double-frequency conversion control technology, the stepless adjustment of the centrifuge differential speed can be realized. It features fast reaction speed, accurate torque detection, stable torque control, and low failure rate.
Constant torque control technology
The constant torque control of the centrifuge is the most advanced control mode in the world. The real-time monitoring of the actual output torque of the constant torque variable frequency motor through the high-performance auxiliary inverter is compared with the set torque value, and PID is used to adjust the material pushing speed of the screw conveyor in real time. The centrifuge can achieve continuous, stable, and economic operation.
The fully automatic control system is equipped with a CIP washing system, which can effectively solve the problem that it is not completely cleaned during the shutdown process and effectively avoid the equipment troubles caused by artificial factors.
Humanized centrifuge configuration
1.Spiral bearing (in the drum, concealed) lubrication technology: the lubricant is filled from the outside of the hood.
2,The hood adopts a hinged opening structure and is equipped with a high-pressure gas strut to assist the opening.
Variable pitch technology
Variable pitch technology is a relatively advanced technology in the world. It can effectively reduce the screw pushing torque, improve the processing capacity, and further reduce the sediment water content.
High rigidity screw rotor technology
Decanter centrifuge is a typical high-speed rotating device with different speeds and two rotors. The rigidity of the screw rotor directly affects the stability and safety of the equipment. Through theoretical analysis and calculation, the working speed of the high-rigidity screw rotor is far from the first-order and second-order critical speeds, which can avoid the resonance state at high speed.
Double-motor double-frequency conversion common DC bus
The main and ancillary motors of the centrifuge are controlled by a high-performance vector inverter. The ancillary motor is always in the generator state under the differential speed. The inverter adopts common DC bus technology. The auxiliary inverter can convert the electric energy generated by the ancillary motor into the power source to drive the main motor, thereby achieving the purpose of energy conservation.
Through the double-motor double-frequency conversion control technology, the stepless adjustment of the centrifuge differential speed can be realized. It features fast reaction speed, accurate torque detection, stable torque control, and low failure rate.
Constant torque control technology
The constant torque control of the centrifuge is the most advanced control mode in the world. The real-time monitoring of the actual output torque of the constant torque variable frequency motor through the high-performance auxiliary inverter is compared with the set torque value, and PID is used to adjust the material pushing speed of the screw conveyor in real time. The centrifuge can achieve continuous, stable, and economic operation.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q1.What's your advantage? Why we choose you?
A:1) More than 50 years experience of centrifuge & separator production and R&D.We have the most professional techniques and team. More advantage in price
2)Great production capacity Sustainable Supply . According to customer requirements, We support the customized include package.
3)We use famouse good quality materials and the best production process
Q2.What's the Payment?
A:T/T would be better with quick transfer and few bank fees. LC could also be accept, but the
procedure is complex and the fee is high. You can also use Western Union and Paypal.
Q3.Are you a factory or trading company?
A:We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.
Q4.How long is the warranty period ?
A:12 months.
A:1) More than 50 years experience of centrifuge & separator production and R&D.We have the most professional techniques and team. More advantage in price
2)Great production capacity Sustainable Supply . According to customer requirements, We support the customized include package.
3)We use famouse good quality materials and the best production process
Q2.What's the Payment?
A:T/T would be better with quick transfer and few bank fees. LC could also be accept, but the
procedure is complex and the fee is high. You can also use Western Union and Paypal.
Q3.Are you a factory or trading company?
A:We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.
Q4.How long is the warranty period ?
A:12 months.
{{item.score}} Stars
{{item.pre}}%
{{item.nickname ? (item.nickname.slice(0, 2) + '*****') : item.source === 1 ? 'mall buyer' : '--'}}
{{item.comment_time}}
Review in the {{item.country}}
{{itemAttr.params_key}}: {{itemAttr.params_value}}
GET IN TOUCH WITH Us
just leave your email or phone number in the contact form so we can send you a free quote for our wide range of designs
Related Products
no data
Copyright © 2025 Shenzhou Machinery is a core subsidiary of Shenzhou Group | Sitemap
