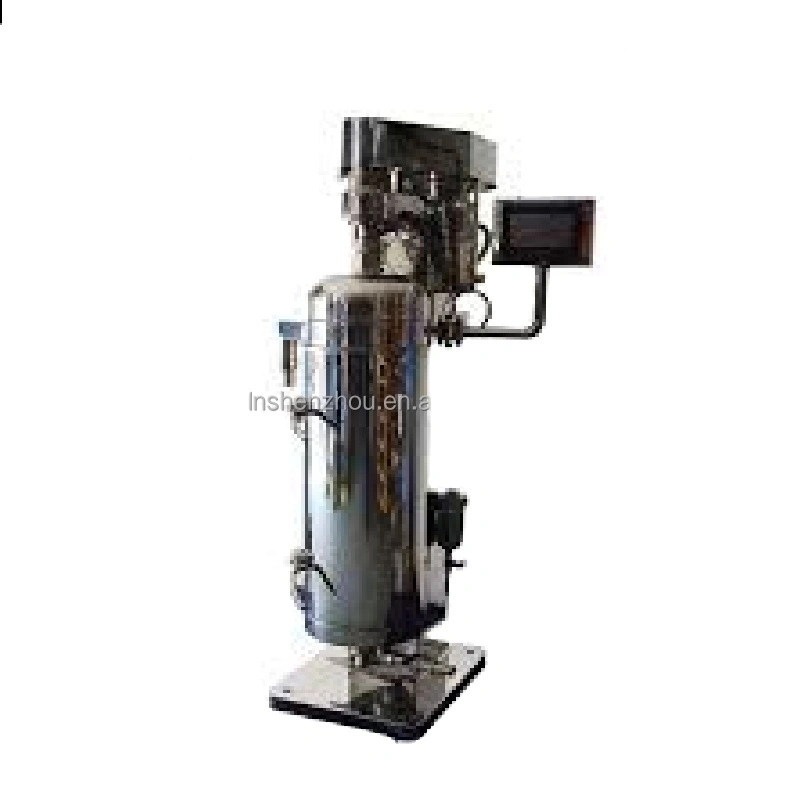

Shenzhou - GQ High Speed Yeast Bacteria Centrifuge Separator Tubular Centrifuge Tubular centrifuge

There are so many different GQ High Speed Yeast Bacteria Centrifuge Separator Tubular Centrifuge products for different age groups and budgets. The advancement in technology brings us unlimited benefits which include expanded product advantages.GQ High Speed Yeast Bacteria Centrifuge Separator Tubular Centrifuge is perfect for the area(s) of Separation Equipment. Reflecting the latest industry trend and development, our GQ High Speed Yeast Bacteria Centrifuge Separator Tubular Centrifuge is designed to be attractive enough to catch people's attention. Moreover, it has some excellent characteristics, which makes it more value-added. In this competitive market, this Separation Equipment has the greatest appreciation space.

Products Description

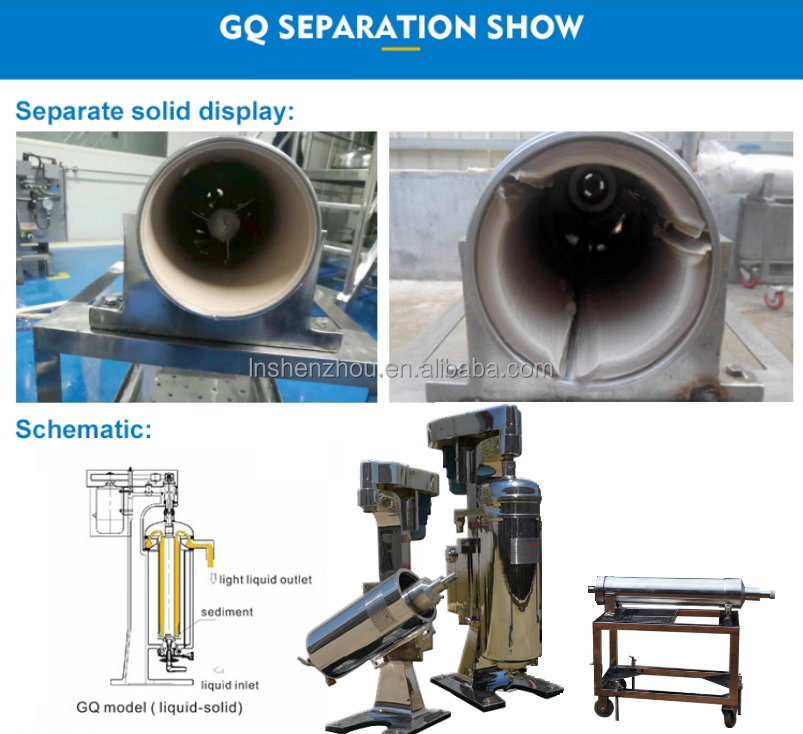

GQ clarification type

It mainly used for all kinds of suspensions with high separation difficulty, especially suitable for solid-liquid separation of
suspensions with low concentration, fine particles and little specific gravity difference between solid and liquid. The solid
particles with high density are gradually deposited on the inner wall of the drum to form a sediment layer, which is manually unloaded after stopping, and the clarified liquid flows to the discharge outlet of the upper part of the drum.

Specification

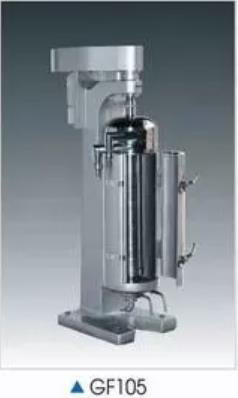

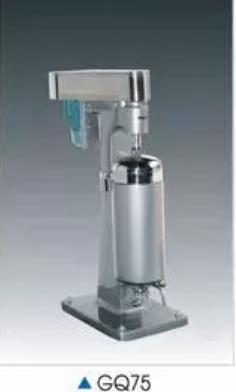

Model	GQ75	GQ105	GQ125	GQ150
Diameter(mm)	75	105	125	150
Height(mm)	450	730	730	730
Sedimentation volume(L)	2.67	6	8	10
Max speed(r/min)	20000	16800	15800	14500
Max separation factor	21000	15300	16300	15600
Inlet nozzle diameter(mm)	3/4	4/6/8	4/6/8	4/6/8/10
Material inlet pressure(Mpa)	≥0.05
Capacity(Water capacity)L	670	1600	2200	3200
Motor model	3 phase two pole motor
motor power(kw)	1.5	2.2	3	3
Machine dimension(mm)	500*700*1300	600*1000*1600	600*1000*1600	600*1000*1600
Machine Weight(kg)	260	490	510	550

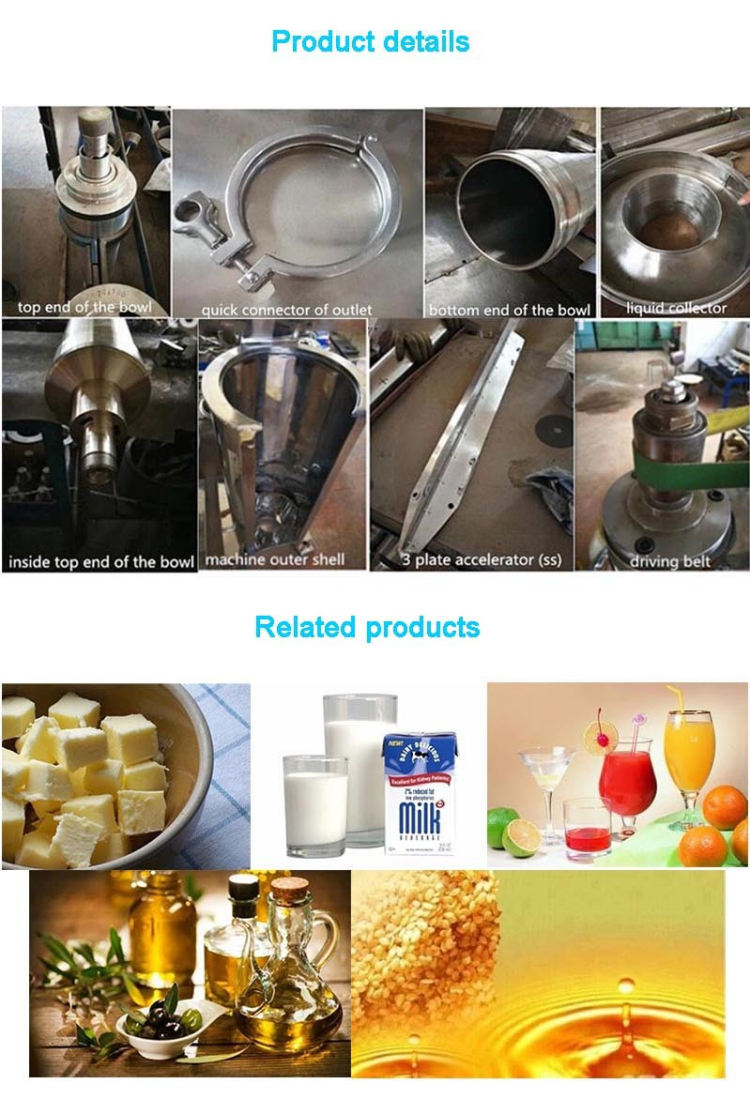

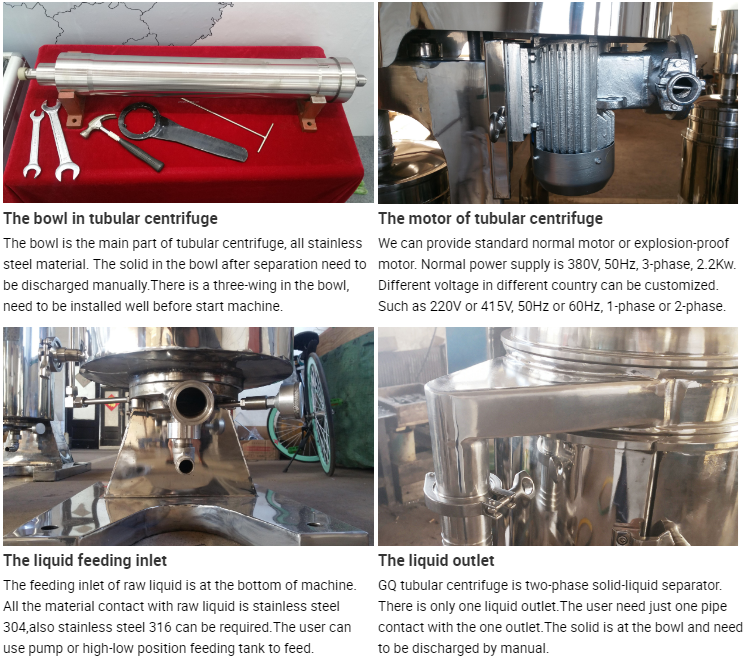

Details

Scope of application:

GQ type, used to separate all kinds of suspensions which are difficult to separate, various medications, glucose chlorhexidine, malic acid, various oral liquids, Beidou root clarification, coal tar, graphite residue removal, extraction of various proteins, algae belts and pectin, purification of molasses, blood separation, sedimentation of vaccine hyphae and various glucose, purification of paints, dyes, resins and rubber solutions.

Traditional Chinese medicine: separation and clarification of plant extract.

Customer’s working Show

Product packaging

Why Choose Us?

Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so on At the same time,our product with best prices and good quality,welcome to Shenzhou!

our service

Pre-sale Service
1. Provide 24-hour technical consulting reply;
2. Provide professional quoted price;
3. Provide detailed product performance specification;
4. According to product’s using condition, technicians will offer rationalization proposals to assist clients to select proper
product types;
5. Provide other corollary equipment according to client requirements.

In-sale Service
1. Begin to supervise from raw material, its qualified rate can reach to 100%;
2. Whole manufacturing process are in strict accordance with promised procedure requirements, product qualified rate can reach to 100%;
3. Provide product’s inspection record of key junctures to customers;
4. Provide production schedule photos to customers at regular intervals;
5. Package and transport products strictly accordance with export standard;
6. Provide transportation schedule information to clients timely.
After-sale Service
1. Provide targeted installation video;
2. Under the premise of correct installation, normal maintenance and using, we guarantee one-year warranty period;
3. When warranty period has expired, our sold products enjoys lifetime guarantee repair, we only charge cost price for changing product’s standard component and sealing component;
4. During installation and adjustment period, our after-sale service staff will communicate with customers frequently to know product’s running state in time. Assist customers to install and adjust products until customers are satisfied;
5. If product has malfunction during operation period, we’ll offer you satisfied answer in time. We’ll reply you within 1 hour
and provide solution or send staff to spot within 24 hours after receiving maintenance notification.
6. Lifelong free technical support. Conduct satisfaction survey and inquiry equipment running condition to clients by telephone or e-mail semiannually from the first day of equipment running, put on records of acquired information

7. Provide assistant service if product is damaged during transportation.

FAQ

1. What certificates do you have?
We can provide CE, ISO 9001, etc

2. What is the warranty period of the equipment?
Normally 1 year warranty.

3. Can we visit your factory?
Of course, we sincerely invite you to visit, If it's not convenient for you to come to our factory, you can also visit by
telephone video conference.

4. What's payment you accept?
A4: T/T, Western Union, L/C, Ali Pay, etc

5. Can it be customized?
Of course, our equipment can be customized according to the actual requirements of customers.
